DCP-YOLO:轻量化反无人机目标检测网络

刘佳,  毛碟,  蒋子瑞,  曹一涵,  陈大鹏

刘佳, 毛碟, 蒋子瑞, 曹一涵, 陈大鹏. DCP-YOLO:轻量化反无人机目标检测网络[J]. 电子与信息学报. doi: 10.11999/JEIT261031
引用本文: 刘佳, 毛碟, 蒋子瑞, 曹一涵, 陈大鹏. DCP-YOLO:轻量化反无人机目标检测网络[J]. 电子与信息学报. doi: 10.11999/JEIT261031
LIU Jia, MAO Die, JIANG Zirui, CAO Yihan, CHEN Dapeng. DCP-YOLO: A Lightweight Anti-UAV Object Detection Network[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT261031
Citation: LIU Jia, MAO Die, JIANG Zirui, CAO Yihan, CHEN Dapeng. DCP-YOLO: A Lightweight Anti-UAV Object Detection Network[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT261031

DCP-YOLO:轻量化反无人机目标检测网络

doi: 10.11999/JEIT261031 cstr: 32379.14.JEIT261031
基金项目: 国家自然科学基金(项目编号:62473200和62203226),江苏省青年科技人才支持计划(项目编号:JSTJ-2024-195),江苏省“青蓝工程”
详细信息
    作者简介:

    刘佳:女,教授,研究方向为计算机视觉与图像处理、智能机器人,邮箱 liujia@nuist.edu.cn

    毛碟:女,硕士生,研究方向为计算机视觉与图像处理、智能机器人

    蒋子瑞:男,硕士生,研究方向为多模态智能体与具身智能

    曹一涵:男,副教授,研究方向为红外探测与融合、自动化检测系统

    陈大鹏:男,教授,研究方向为多模态信息处理、具身智能,邮箱 dpchen@nuist.edu.cn

    通讯作者:

    陈大鹏 dpchen@nuist.edu.cn

  • 中图分类号: TP391.41; TN911.73; TP183

DCP-YOLO: A Lightweight Anti-UAV Object Detection Network

Funds: National Natural Science Foundation of China (62473200 and 62203226), Jiangsu Province Youth Science and Technology Talent Support Project (JSTJ-2024-195), “Qinglan Project” of Jiangsu Province
  • 摘要: 随着低空经济的快速发展,无人机违规飞行带来严重安全隐患。针对现有反无人机检测方法存在小目标特征易丢失、边缘算力受限,难以平衡检测精度与模型轻量化的问题,该文提出一种基于YOLOv26n改进的轻量化多模块协同优化检测方法(DCP-YOLO)。首先设计DPC3k2轻量化特征提取结构,增强小目标多方向特征提取能力并缩减参数。然后,提出反向上采样模块CUS,恢复目标高频纹理细节。最后,构建C2PSCAA注意力增强模块,提升模型多尺度特征学习能力。在多个公开数据集的实验结果表明,该方法参数量仅2.29M,推理速度达210.71 FPS,检测精度较基线模型显著提升。消融与泛化实验验证了各模块的有效性与模型的泛化能力,可有效兼顾检测精度与轻量化性能,适配资源受限场景下的低空无人机实时检测任务。

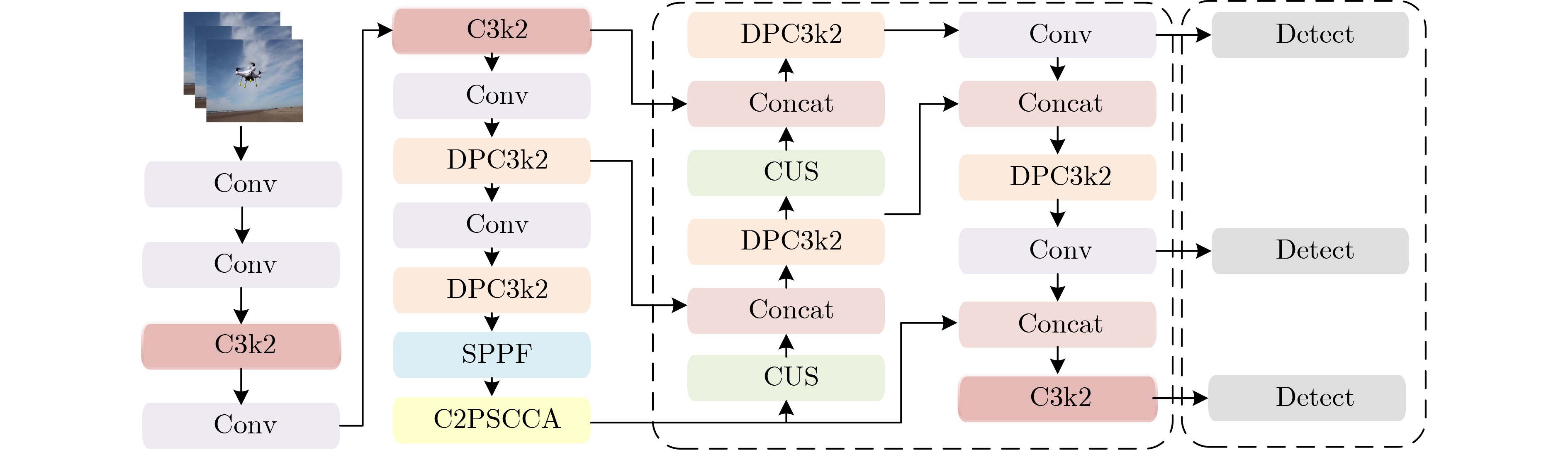

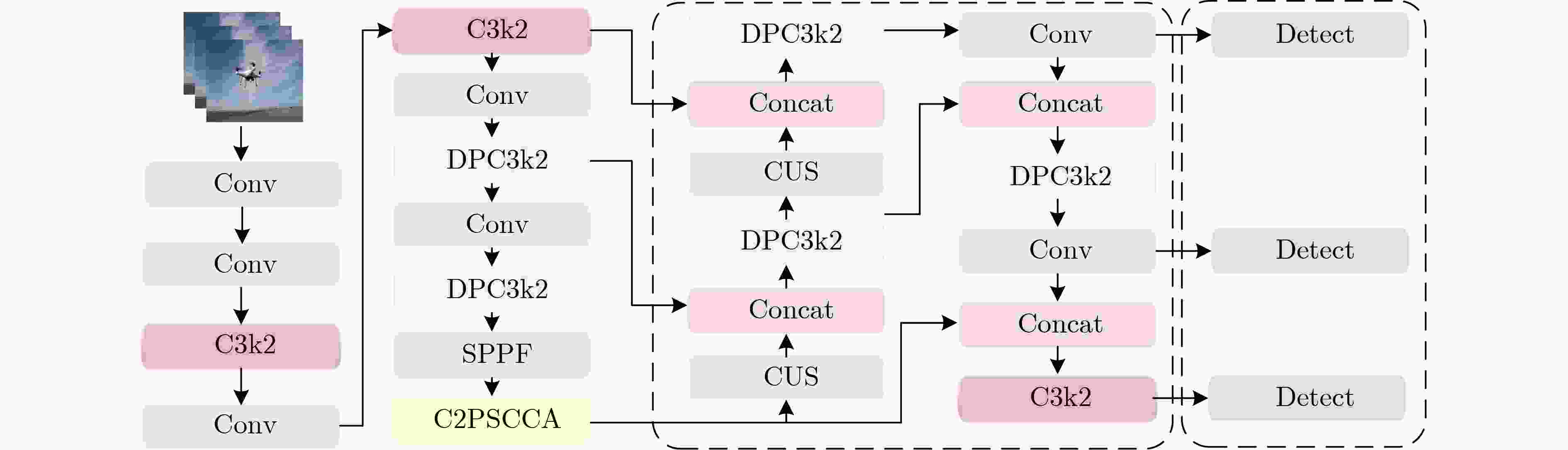

  • 图  1  DCP-YOLO网络架构

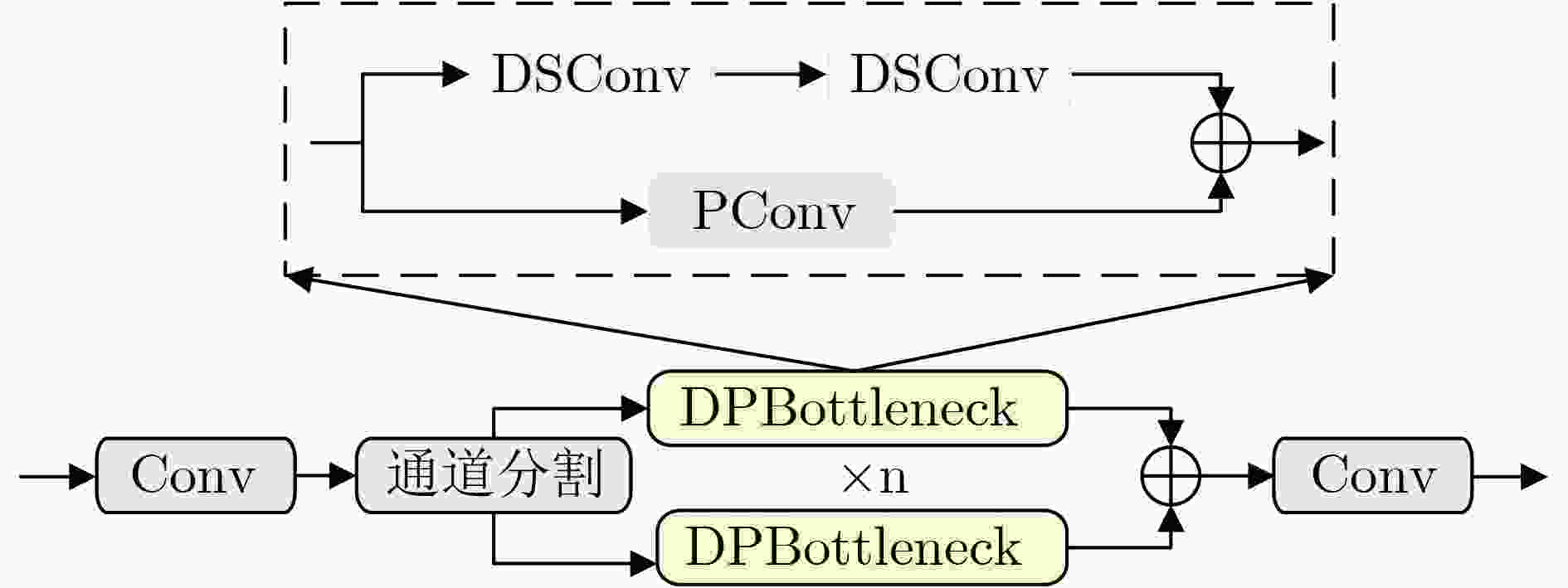

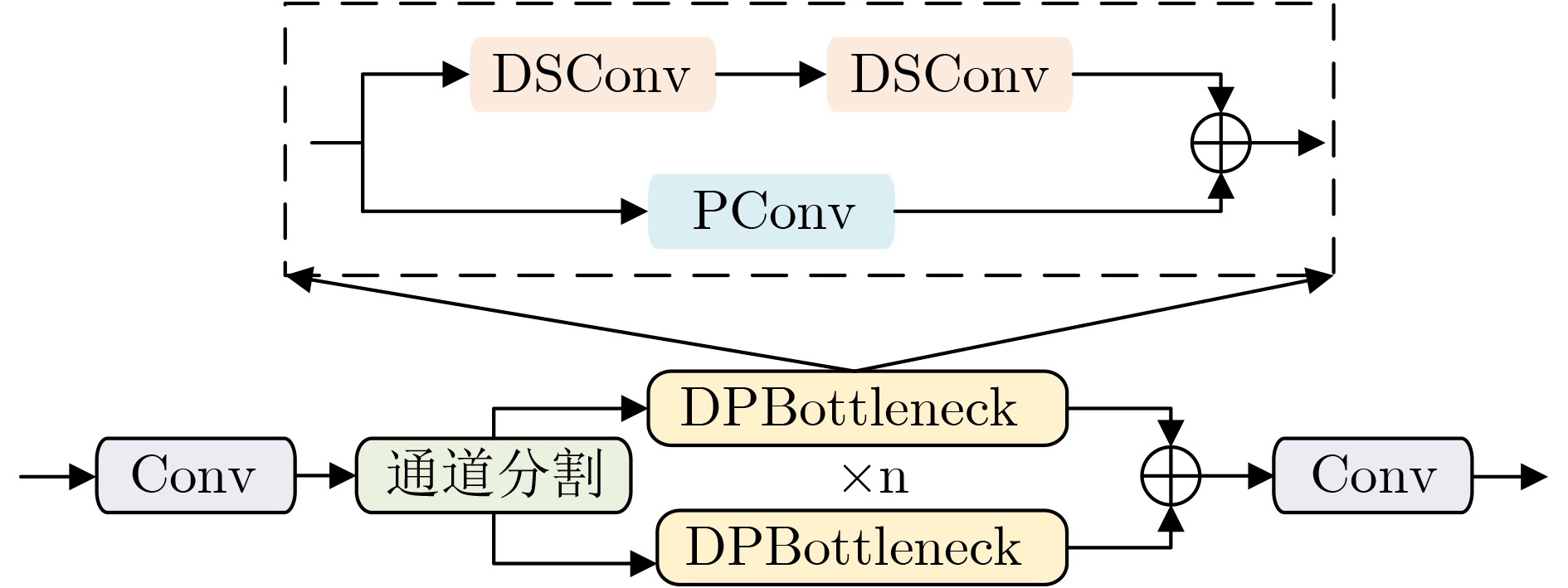

    图  2  DPBottleneck与DPC3k2模块结构

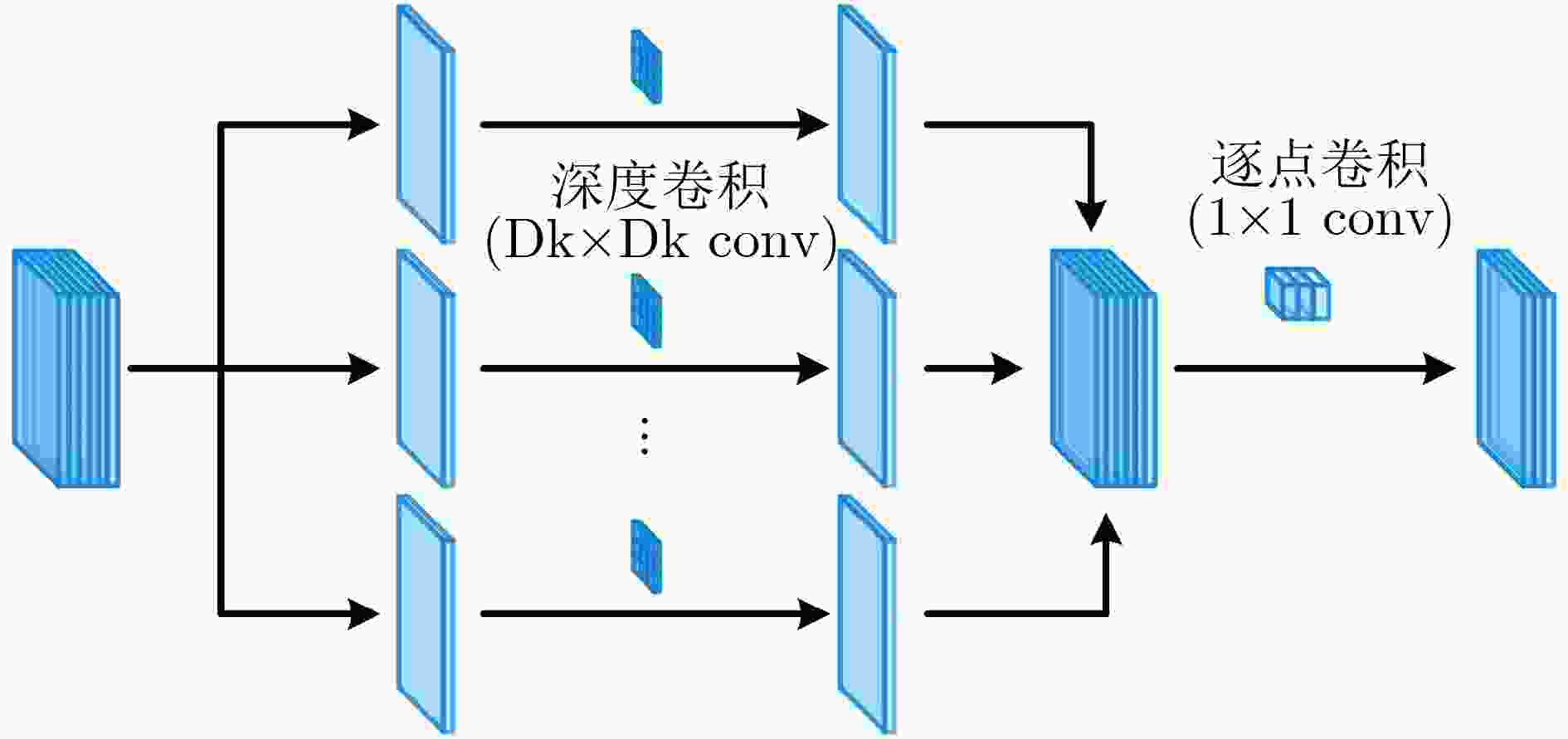

    图  3  DSConv结构图

    图  4  PConv结构图

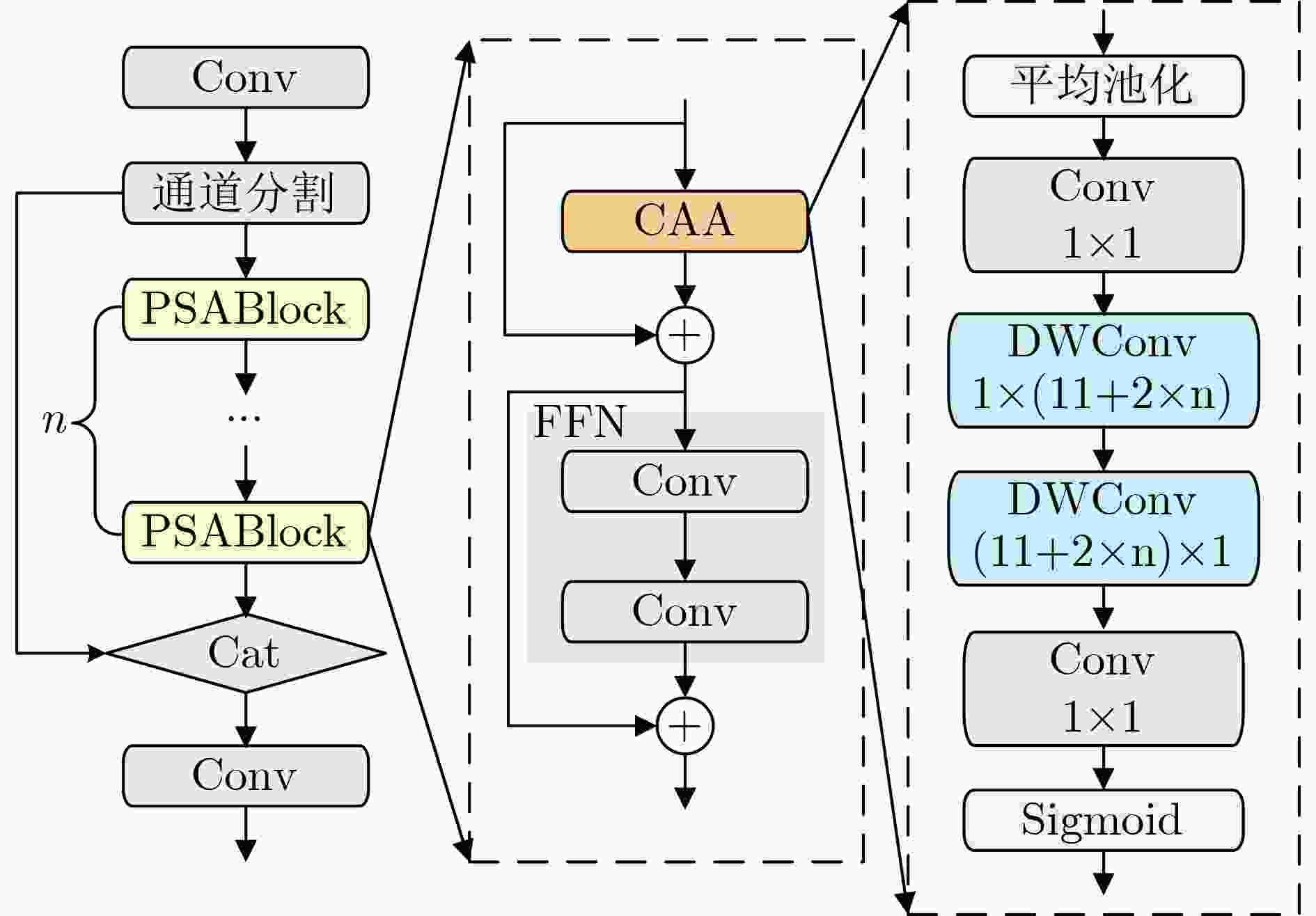

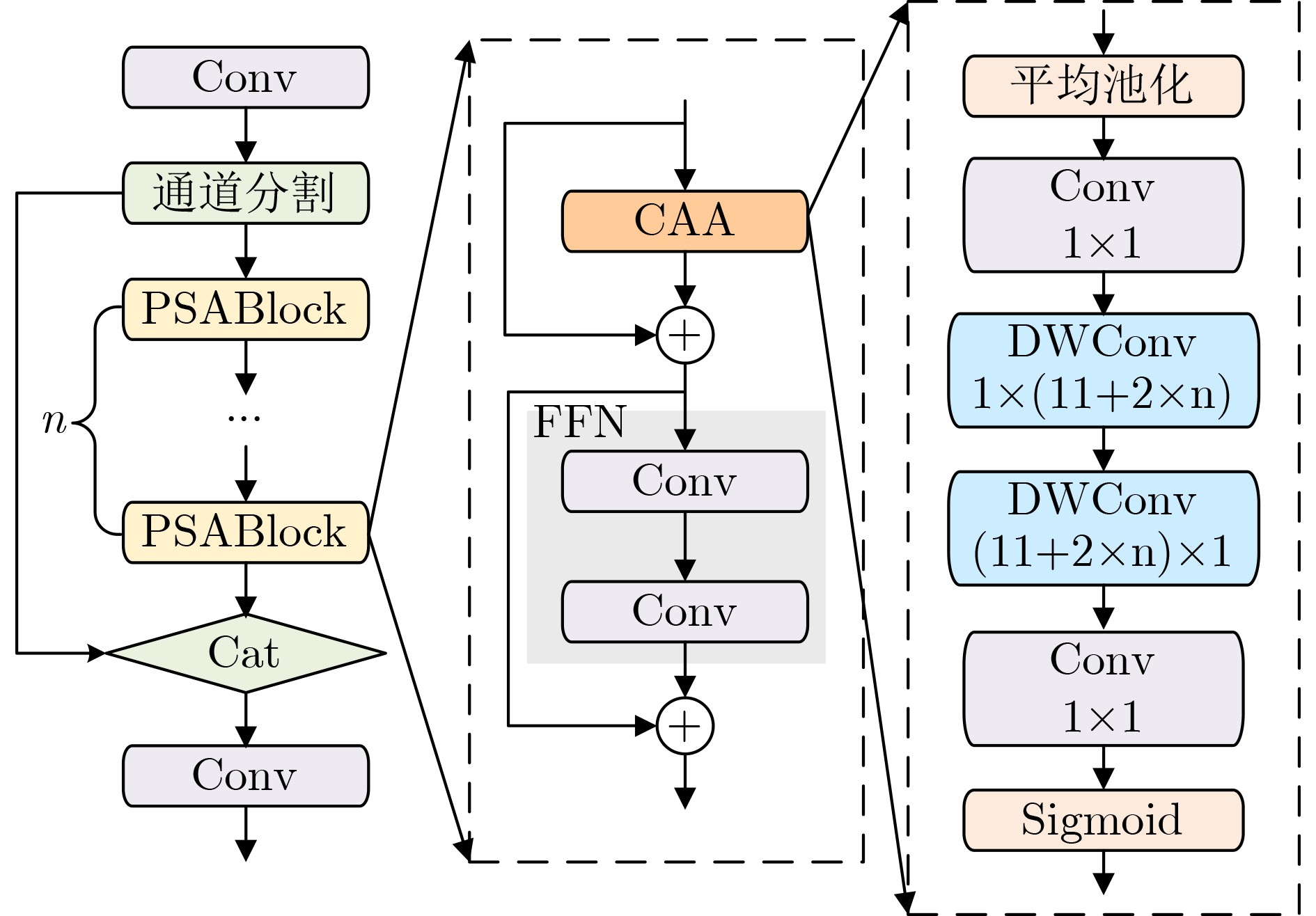

    图  5  C2PSCAA结构

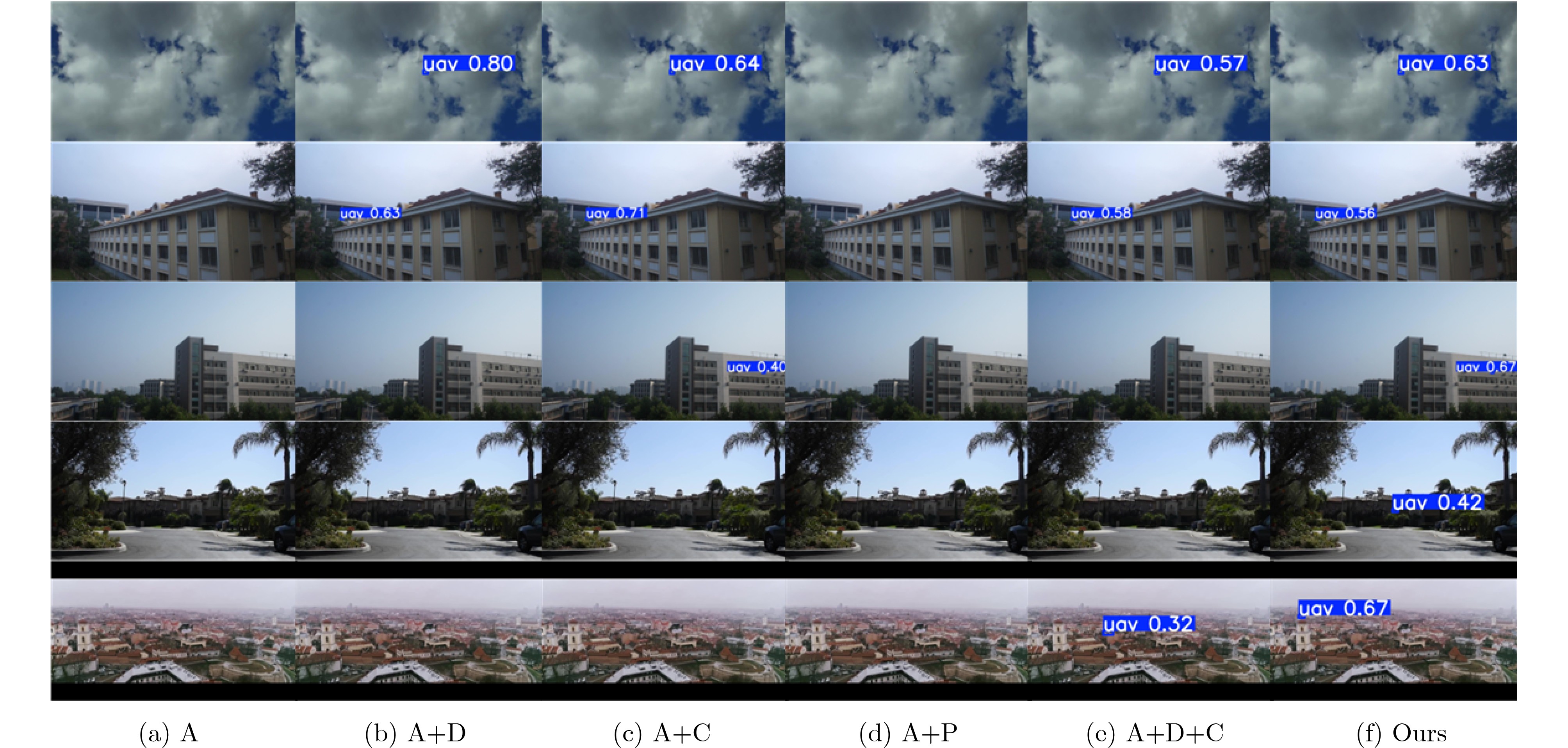

    图  6  基于DUT Anti-UAV数据集消融实验结果可视化

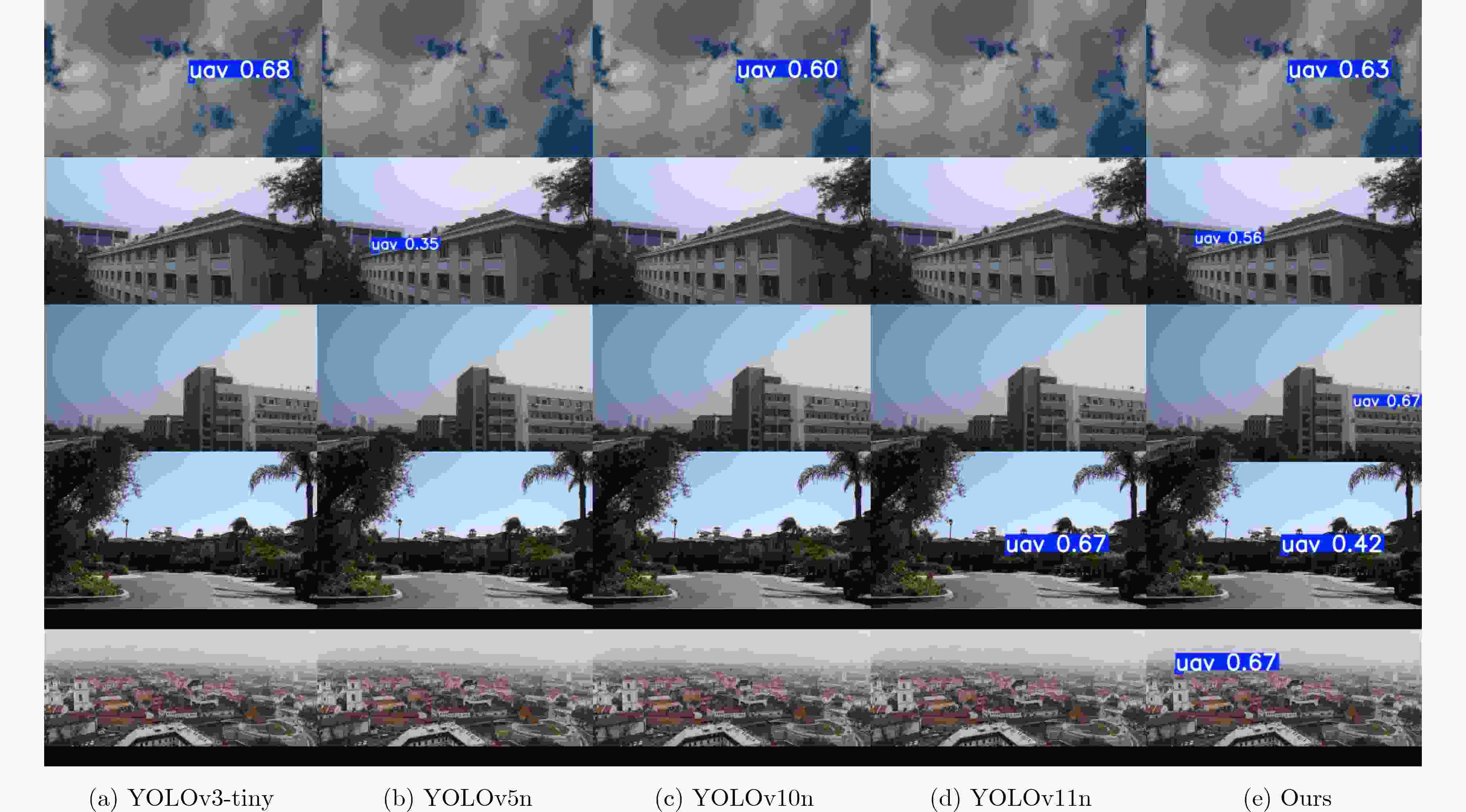

    图  7  基于DUT Anti-UAV数据集YOLO系列检测结果可视化

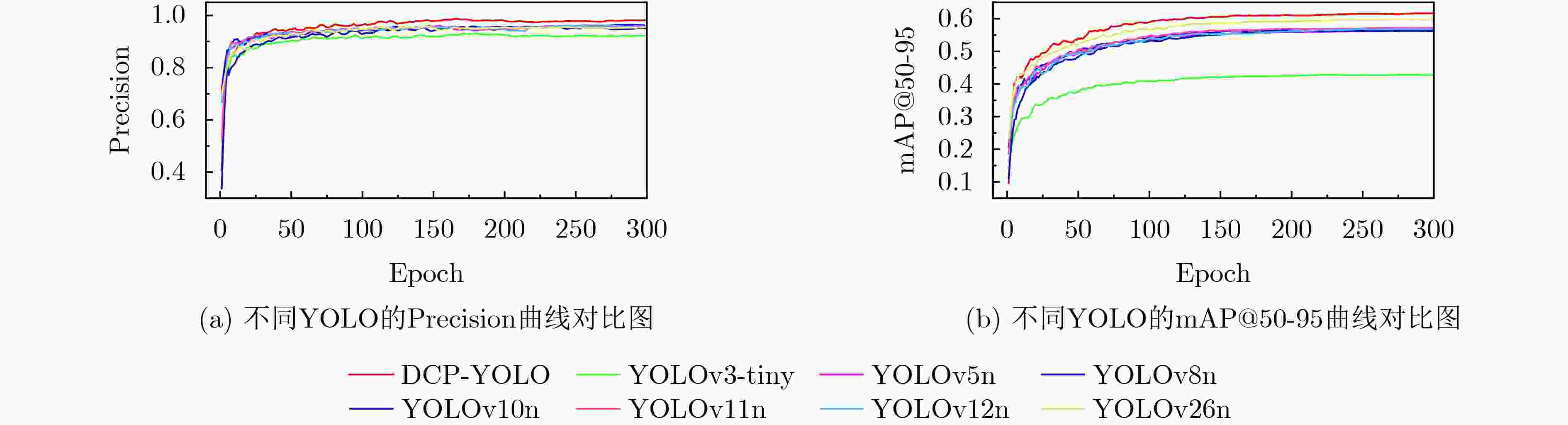

    图  8  不同YOLO系列模型Precision和mAP@50-95收敛曲线对比图

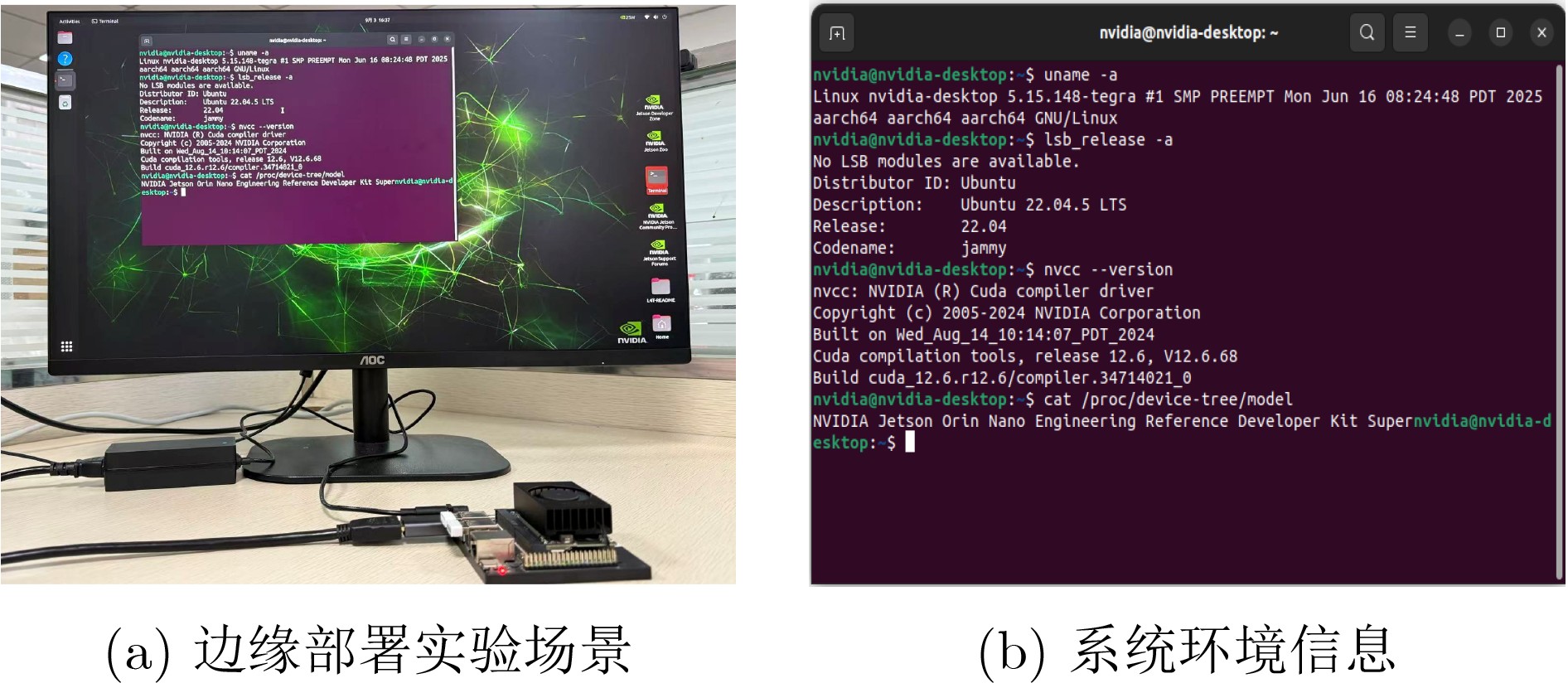

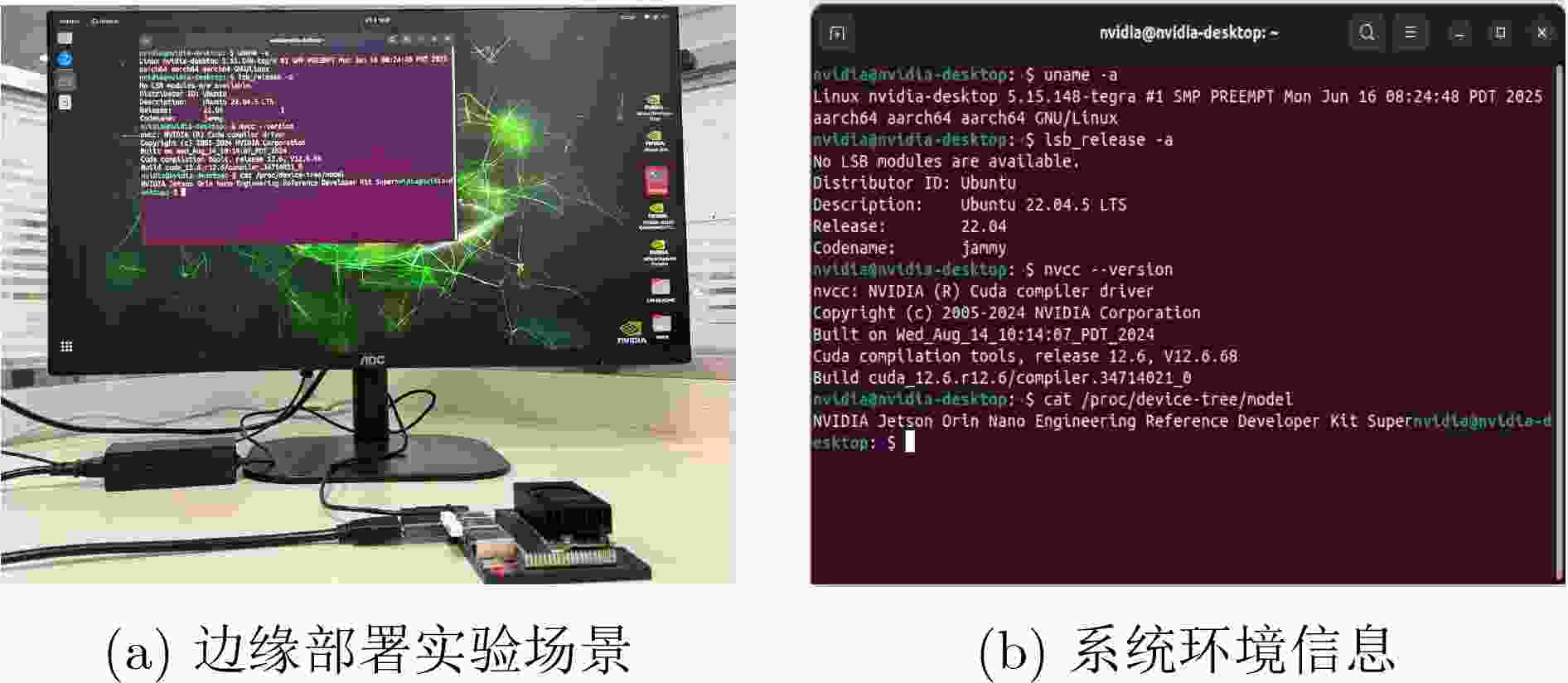

    图  9  Jetson Orin Nano边缘部署实验环境

    表  1  不同上采样的检测性能对比

    上采样方式 P(%) R(%) mAP50(%) mAP50-95(%) Params/M GFLOPs
    Nearest(基线) 95.5 87.6 90.0 59.4 2.38 5.2
    Transposed Conv 96.68 88.47 92.03 59.68 2.7 5.6
    CUS 97.4 89.2 92.1 60.8 2.38 5.2
    下载: 导出CSV

    表  2  基于DUT Anti-UAV数据集消融实验结果

    模型P(%)R(%)mAP@50(%)mAP@50-95(%)GFLOPsParas(M)Size(MB)FPS
    A95.587.690.059.45.22.385.4245.98
    A+D97.688.992.260.65.02.305.3233.6
    A+C97.489.292.160.85.22.385.4215.03
    A+P97.088.791.960.25.22.365.4254.28
    A+D+C97.489.992.261.45.02.305.3204.7
    A+D+C+P98.790.092.461.75.02.295.2210.71
    下载: 导出CSV

    表  3  DPC3k2内部消融实验结果

    模型 P(%) R(%) mAP@50(%) mAP@50-95(%) GFLOPs Paras(M) Size(MB) FPS
    Baseline 95.5 87.6 90.0 59.4 5.2 2.38 5.4 245.98
    +DSConv 96.67 89.06 91.77 60.04 5.1 2.33 5.3 238.09
    +PConv 96.88 89.04 91.81 60.1 4.9 2.18 5.1 248.29
    +DPC3k2 97.6 88.9 92.2 60.6 5.0 2.30 5.3 233.6
    下载: 导出CSV

    表  4  基于TIB-Net 数据集消融实验结果

    模型 P(%) R(%) mAP@50(%) mAP@50-95(%) GFLOPs Paras(M) Size(MB) FPS
    A 88.8 87.6 89.8 36.4 5.2 2.38 5.4 249.67
    A+D 90 90 92.1 38.9 5.0 2.29 5.2 235.21
    A+C 88.9 87.8 90.1 36.5 5.2 2.38 5.4 215.28
    A+P 88.8 89.8 91.1 37.1 5.2 2.36 5.4 256.23
    A+D+C 89.3 88.7 91 37.9 5.0 2.30 5.3 204.88
    A+D+C+P 90.7 88.9 91 39 5.0 2.29 5.2 212.07
    下载: 导出CSV

    表  5  YOLO 系列模型对比实验结果

    模型 P(%) R(%) mAP@50(%) mAP@50-95(%) GFLOPs Paras(M) Size(MB) FPS
    YOLOv3-tiny 92.3 73.2 75.9 44.3 18.9 12.13 23.3 1038.62
    YOLOv5n 96 84.3 87.4 56.3 7.1 2.5 5.3 451.7
    YOLOv8n 95.7 84.7 87.2 56.5 8.1 3.0 6.3 501.51
    YOLOv10n 95 86 88.5 56.5 6.5 2.27 5.8 297.44
    YOLOv11n 95.9 86.1 88.7 57.2 6.3 2.58 5.5 360.53
    YOLOv12n 95.7 85.9 88.1 56.7 6.3 2.56 5.6 213.45
    YOLOv26n 95.5 87.6 90.0 59.4 5.2 2.38 5.4 245.98
    Ours 98.7 90.0 92.4 61.7 5.0 2.29 5.2 210.71
    下载: 导出CSV

    表  6  主流模型对比实验结果

    模型 P(%) R(%) mAP@50(%) mAP@50-95(%) GFLOPs Paras(M)
    AAP2-YOLO[11] 96.1 85.4 90.9 - 9.4 1.66
    YOLO-ADD[12] 86.4 93 91.5 60.6 15.1 4.22
    DCR-YOLO[13] 95 81.3 88.8 58.6 6.1 2.43
    DRBD-YOLOv8[14] 90.9 77 85.7 53.5 5.7 1.57
    YOLO11n-SMSH[15] 94.8 85.7 91.5 61.3 9.4 2.6
    ET-YOLOv6[18] - - 90.6 58.8 7.9 3.2
    DRF-YOLO[20] 93.9 80.3 86.9 54.8 - -
    TARG-YOLO[25] - - 89.98 61.14 75.64 19.7
    Ours 98.7 90.0 92.4 61.7 5.0 2.29
    下载: 导出CSV

    表  7  VisDrone2019跨数据集泛化检测性能比较

    模型 P(%) R(%) mAP@50(%) mAP@50-95(%)
    YOLOv26n 42.3 30.9 28.6 15.6
    Ours 42.7 32.3 28.8 16.7
    下载: 导出CSV

    表  8  模型复杂度与推理速度比较

    模型 GFLOPs Paras(M) Size(MB) FPS
    YOLOv26n 5.2 2.38 5.4 249.33
    Ours 5.0 2.29 5.2 211.53
    下载: 导出CSV

    表  9  在Jetson Orin Nano平台上的边缘部署性能

    模型精度模式mAP@50(%)mAP@50-95(%)FPS内存/GB
    YOLOv26nFP3290.9860.1495.053.07
    DCP-YOLOFP3294.7162.6485.382.93
    YOLOv26nFP1690.8960.26181.273.27
    DCP-YOLOFP1694.5962.7116.023.00
    下载: 导出CSV
  • [1] 聂伟, 戴琪霏, 杨小龙, 等. 基于多维信号特征的无人机探测识别方法[J]. 电子与信息学报, 2024, 46(3): 1089–1099. doi: 10.11999/JEIT230302.

    NIE Wei, DAI Qifei, YANG Xiaolong, et al. Unmanned aerial vehicle detection and recognition method based on multi-dimensional signal feature[J]. Journal of Electronics & Information Technology, 2024, 46(3): 1089–1099. doi: 10.11999/JEIT230302.
    [2] STUDIAWAN H, GRISPOS G, and CHOO K K R. Unmanned aerial vehicle (UAV) forensics: The good, the bad, and the unaddressed[J]. Computers & Security, 2023, 132: 103340. doi: 10.1016/j.cose.2023.103340.
    [3] WANG Bingshu, LI Qiang, MAO Qianchen, et al. A survey on vision-based anti unmanned aerial vehicles methods[J]. Drones, 2024, 8(9): 518. doi: 10.3390/drones8090518.
    [4] CHAUHAN D, KAGATHARA H, MEWADA H, et al. Nation’s defense: A comprehensive review of anti-drone systems and strategies[J]. IEEE Access, 2025, 13: 53476–53505. doi: 10.1109/ACCESS.2025.3550338.
    [5] GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation[C]. 2014 IEEE Conference on Computer Vision and Pattern Recognition, Columbus, USA, 2014: 580–587. doi: 10.1109/CVPR.2014.81.
    [6] GIRSHICK R. Fast R-CNN[C]. 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 2015: 1440–1448. doi: 10.1109/ICCV.2015.169.
    [7] HE Kaiming, GKIOXARI G, DOLLÁR P, et al. Mask R-CNN[C]. 2017 IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 2017: 2980–2988. doi: 10.1109/ICCV.2017.322.
    [8] LIU Wei, ANGUELOV D, ERHAN D, et al. SSD: Single shot MultiBox detector[C]. Proceedings of 14th European Conference on Computer Vision – ECCV 2016, Amsterdam, The Netherlands, 2016: 21–37. doi: 10.1007/978-3-319-46448-0_2.
    [9] REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: Unified, real-time object detection[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Las Vegas, USA, 2016: 779–788. doi: 10.1109/CVPR.2016.91.
    [10] SAPKOTA R, CHEPPALLY R H, SHARDA A, et al. YOLO26: Key architectural enhancements and performance benchmarking for real-time object detection[J]. arXiv preprint arXiv: 2509.25164, 2025. (查阅网上资料, 不确定本条文献类型是否正确, 请确认).
    [11] HU Xiang, ZHANG Xinding, HU Jianmin, et al. AAP2-YOLO: A model improvement about counter-UAV detection[C]. 2025 IEEE 6th International Conference on Computer, Big Data, Artificial Intelligence (ICCBD+AI), Xiamen, China, 2025: 1–6. doi: 10.1109/ICCBDAI66607.2025.11388615.
    [12] WANG Rijun, YANG Chunhui, TENG Xianglong, et al. YOLO-ADD: A high-precision detection model for small low-altitude drones in complex scenarios[J]. Applied Soft Computing, 2026, 199: 115347. doi: 10.1016/j.asoc.2026.115347.
    [13] DING Shaobo, ZHANG Maowei, LIU Datong, et al. DCR-YOLO: An enhanced anti-UAV detection method based on triple collaborative optimization strategy[J]. Aerospace Science and Technology, 2026, 168: 111319. doi: 10.1016/j.ast.2025.111319.
    [14] JIANG Panpan, YANG Xiaohua, WAN Yaping, et al. DRBD-YOLOv8: A lightweight and efficient anti-UAV detection model[J]. Sensors, 2024, 24(22): 7148. doi: 10.3390/s24227148.
    [15] YANG Jiyuan, GUO Tao, HAN Jinzu, et al. YOLO11n-SMSH: An improved UAV target detection model for YOLO11n[EB/OL]. https://www.preprints.org/manuscript/202509.0262, 2025.
    [16] 吴林, 曹雯. YOLO-SCDI: 基于改进YOLOv8的车辆检测算法[J]. 电子与信息学报, 2025, 47(10): 3967–3978. doi: 10.11999/JEIT250238.

    WU Lin and CAO Wen. YOLO-SCDI: A vehicle detection algorithm based on an improved YOLOv8[J]. Journal of Electronics & Information Technology, 2025, 47(10): 3967–3978. doi: 10.11999/JEIT250238.
    [17] 侯国家, 马佳琦, 王岳川, 等. UWF-YOLO: 冗余信息优化的轻量化水下目标检测[J]. 电子与信息学报, 2026, 48(7): 2876–2886. doi: 10.11999/JEIT251129.

    HOU Guojia, MA Jiaqi, WANG Yuechuan, et al. UWF-YOLO: A lightweight framework for underwater object detection via redundant information optimization[J]. Journal of Electronics & Information Technology, 2026, 48(7): 2876–2886. doi: 10.11999/JEIT251129.
    [18] 贾亮, 林铭文, 戚丽瑾, 等. 面向无人机航拍图像的多尺度目标检测研究[J]. 半导体光电, 2024, 45(3): 501–507,514. doi: 10.16818/j.issn1001-5868.2024010903.

    JIA Liang, LIN Mingwen, QI Lijin, et al. Multiscale target detection for UAV aerial images[J]. Semiconductor Optoelectronics, 2024, 45(3): 501–507,514. doi: 10.16818/j.issn1001-5868.2024010903.
    [19] FENG Sheng, PU Xingchen, HU Yanting, et al. ET-YOLOv6: Tiny object detection algorithm on UAV targets based on star operation and cross-level fusion mechanism[EB/OL]. https://www.preprints.org/manuscript/202501.1348, 2025.
    [20] WANG Songwei, SHUAI Jianping, YANG Yuzhu, et al. DRF-YOLO model for small UAV detection through multi-scale residual enhancement and progressive feature fusion[J]. Applied System Innovation, 2025, 8(6): 179. doi: 10.3390/asi8060179.
    [21] 方贤进, 姜雪凤, 徐留权, 等. CFS-YOLO: 一种利用粗细粒度搜索与焦点调制的早期火灾检测方法[J]. 电子与信息学报, 2025, 47(6): 1976–1991. doi: 10.11999/JEIT240928.

    FANG Xianjin, JIANG Xuefeng, XU Liuquan, et al. CFS-YOLO: An early fire detection method via coarse and fine grain search and focus modulation[J]. Journal of Electronics & Information Technology, 2025, 47(6): 1976–1991. doi: 10.11999/JEIT240928.
    [22] 刘杰, 刘书豪, 田明, 等. 复杂环境下无人机航拍小目标检测算法[J]. 电子与信息学报, 2026, 48(4): 1763–1773. doi: 10.11999/JEIT251126.

    LIU Jie, LIU Shuhao, TIAN Ming, et al. Small object detection algorithm for UAV aerial images in complex environments[J]. Journal of Electronics & Information Technology, 2026, 48(4): 1763–1773. doi: 10.11999/JEIT251126.
    [23] 肖振久, 赖思宇, 曲海成. 多层次精细化无人机图像目标检测[J]. 光电工程, 2025, 52(5): 240287. doi: 10.12086/oee.2025.240287.

    XIAO Zhenjiu, LAI Siyu, and QU Haicheng. Multi-level refined UAV image target detection[J]. Opto-Electronic Engineering, 2025, 52(5): 240287. doi: 10.12086/oee.2025.240287.
    [24] YANG Qiu, CHEN Chunmei, GONG Yuming, et al. RCF-YOLO: High precision small object visual detection algorithm for anti-UAV[J]. Measurement, 2026, 275: 121260. doi: 10.1016/j.measurement.2026.121260.
    [25] DU Yan, DAI Zifeng, WU Teng, et al. TARG-YOLO: An efficient small target detection framework for UAV[J]. Machine Vision and Applications, 2026, 37(2): 35. doi: 10.1007/s00138-026-01792-2.
    [26] 贾小军, 唐彪, 骆淑云, 等. 基于频域感知特征融合的无人机航拍图像小目标检测算法[J]. 光电工程, 2026, 53(2): 250208. doi: 10.12086/oee.2026.250208.

    JIA Xiaojun, TANG Biao, LUO Shuyun, et al. A small target detection algorithm for UAV aerial images based on frequency domain perception feature fusion[J]. Opto-Electronic Engineering, 2026, 53(2): 250208. doi: 10.12086/oee.2026.250208.
    [27] HOWARD A G, ZHU Menglong, CHEN Bo, et al. MobileNets: Efficient convolutional neural networks for mobile vision applications[EB/OL]. https://arxiv.org/abs/1704.04861, 2017.
    [28] YANG Jiangnan, LIU Shuangli, WU Jingjun, et al. Pinwheel-shaped convolution and scale-based dynamic loss for infrared small target detection[C]. Proceedings of the 39th AAAI Conference on Artificial Intelligence, Philadelphia, USA, 2025: 9202–9210. doi: 10.1609/aaai.v39i9.32996.
    [29] HUANG Xuhong, LIU Shiqi, ZHANG Kai, et al. Reverse convolution and its applications to image restoration[C]. 2025 IEEE/CVF International Conference on Computer Vision (ICCV), Honolulu, USA, 2025: 10507–10516. doi: 10.1109/ICCV51701.2025.00978.
    [30] CAI Xinhao, LAI Qiuxia, WANG Yuwei, et al. Poly kernel inception network for remote sensing detection[C]. 2024 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, USA, 2024: 27706–27716. doi: 10.1109/CVPR52733.2024.02617.
    [31] ZHAO Jie, ZHANG Jingshu, LI Dongdong, et al. Vision-based anti-UAV detection and tracking[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(12): 25323–25334. doi: 10.1109/TITS.2022.3177627.
    [32] SUN Han, YANG Jian, SHEN Jiaquan, et al. TIB-Net: Drone detection network with tiny iterative backbone[J]. IEEE Access, 2020, 8: 130697–130707. doi: 10.1109/ACCESS.2020.3009518.
    [33] ZHU Pengfei, WEN Longyin, DU Dawei, et al. Detection and tracking meet drones challenge[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2022, 44(11): 7380–7399. doi: 10.1109/tpami.2021.3119563.
