DroneRFc-MM: 反无人机多模态实测数据集

虞涛菘; 杨倩倩; 胡卓; 李明锴; 吴嘉俊; 苏煜繁; 潘俊宇; 史治国; 陈积明

doi:10.11999/JEIT260889

DroneRFc-MM: 反无人机多模态实测数据集

doi: 10.11999/JEIT260889 cstr: 32379.14.JEIT260889

1.
全省空域感知与自主无人系统重点实验室杭州 310027
2.
浙江大学控制学院杭州 310027
3.
浙江大学国际联合学院信息电子国际研究中心嘉兴 314400

基金项目: 国家重点研发计划项目(2025YFF0514600)

详细信息

作者简介:
虞涛菘：男，博士生，研究方向为大模型智能体，反无人机探测。　3448641981@qq.com

杨倩倩：女，博导，研究方向为智能信息技术

胡卓：男，硕士生，研究方向为低空电磁大模型

李明锴：男，博士生，研究方向为多模态学习

吴嘉俊：男，博士生，研究方向为反无人机技术，信号处理，模式识别

苏煜繁：男，硕士生，研究方向为射频成像，多模态三维重建

潘俊宇：男，硕士生，研究方向为语义通信，无线感知

史治国：男，博士，教授，研究方向为信号处理，人工智能，反无人机智能监测，物联网设备定位识别，空间姿态模拟控制。shizg@zju.edu.cn

陈积明：男，教授，研究方向为网络优化与控制、网络系统安全、工业大数据与物联网等

通讯作者:
史治国　shizg@zju.edu.cn

中图分类号: TN975
计量
- 文章访问数: 45
- HTML全文浏览量: 8
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2026-06-30
- 修回日期: 2026-07-11
- 录用日期: 2026-07-29
- 网络出版日期: 2026-08-08

DroneRFc-MM: Anti-UAV Multi-modal Detection Measured Dataset

1.
College of Information Science and Electronic Engineering, Zhejiang University, Hangzhou 310027, China
2.
State Key Laboratory of Industrial Control Technology, Zhejiang University, Hangzhou 310027, China
3.
International Research Center for Information Science and Electronic Engineering, Zhejiang University, Jiaxing 314400, China

Funds: National Key Research and Development Program of China(2025YFF0514600)

摘要

摘要: 多模态信息融合技术可有效改善反无人机探测系统的泛化能力、鲁棒性与场景适配能力。针对现有反无人机探测数据集在模态种类、无人机型号和标注信息等方面的缺陷，该文公开了DroneRFc-MM多模态反无人机探测数据集。该数据集同步采集了云台相机、广角相机、射频天线、激光雷达、毫米波雷达和传声器阵列6类传感器数据，覆盖6种消费级无人机机型，并提供机型、定位、姿态和速度等细粒度标注，可支持目标探测、机型识别和运动方向推理等任务，并提供了易用的样本提取工具代码。最后，作为该数据集的使用示范，该文评估了Qwen系列最新模型在无人机飞行方向推理任务的表现。
- 反无人机探测 /
- 多模态数据集 /
- 低空经济
Abstract: Multimodal data fusion can effectively improve the generalization, robustness, and scene adaptability of counter-unmanned aerial vehicle (UAV) detection systems. To address the limitations of existing counter-UAV datasets in sensing modalities, UAV models, and annotation granularity, the paper releases DroneRFc-MM, a multimodal counter-UAV detection dataset. DroneRFc-MM synchronously collects data from six types of sensors, including a pan-tilt-zoom camera, a wide-angle (fisheye) camera, radio-frequency antennas, LiDAR, millimeter-wave radar, and a microphone array. The dataset covers six consumer UAV models and provides fine-grained annotations such as model category, position, attitude, and velocity. It supports multiple tasks, including target detection, UAV model recognition, and motion-direction reasoning, and is accompanied by user-friendly sample extraction tools. Finally, as a demonstration of dataset usage, the paper evaluates the performance of recent Qwen-series models on UAV flight-direction reasoning.Objective: The work aims to build a more comprehensive benchmark for multimodal counter-UAV detection. Existing datasets often cover limited sensing modalities and UAV models, making it difficult to represent realistic low-altitude scenarios and diverse target characteristics. Their annotations are also typically coarse, such as category labels or bounding boxes, and thus cannot fully support downstream tasks requiring precise spatial, motion, and cross-modal information. DroneRFc-MM addresses these gaps by providing synchronized multimodal data, richer UAV coverage, and fine-grained annotations for detection, model recognition, trajectory analysis, motion reasoning, and multimodal fusion evaluation.Methods: The DroneRFc-MM dataset was synchronously captured via six heterogeneous sensors—including a pan-tilt-zoom(PTZ) camera, fisheye camera, radio frequency(RF) antenna, LiDAR, millimeter-wave radar, and microphone array—on an open rooftop of a university in Zhejiang Province. Featuring a representative urban low-altitude scenario, this dataset contains data recordings of six consumer-grade DJI drones. All devices were time-synchronized via network timestamp, and drones flew in rectangular and vertical reciprocating trajectories within 20–60 meters. Fine-grained annotations including drone type, position, attitude and velocity were provided. For flight direction reasoning task, 5-second multimodal clips were generated: videos for cameras and RF spectrograms, audio for microphones, text coordinates for radar point clouds. Zero-shot inference was conducted on Qwen 3.6-Plus and Qwen 3.5-Omni-Plus models with unified prompts, and accuracy and inference time were evaluated by comparing predicted directions with ground truth calculated from drone positioning data.Conclusions: Experiments on Qwen-series models show that general-purpose multimodal large models can capture weak motion-related features from drone-related videos, audio, RF spectrograms and point clouds, but only achieve limited flight-direction reasoning accuracy ranging from 20% to 30%. Meanwhile, the long inference time and unstable latency make them unable to satisfy the real-time and stability demands of practical low-altitude surveillance systems. These results demonstrate that domain-specific pre-training, supervised fine-tuning, knowledge enhancement and lightweight inference optimization are essential for deploying multi-modal LLMs in real anti-UAV detection scenarios. Future work will focus on expanding the dataset scale and enriching application scenarios to support the development of intelligent and efficient low-altitude airspace management systems.
- Anti-UAV detection /
- multimodal dataset /
- low-altitude economy

HTML全文

图 1 数据采集设置和流程

下载: 全尺寸图片幻灯片

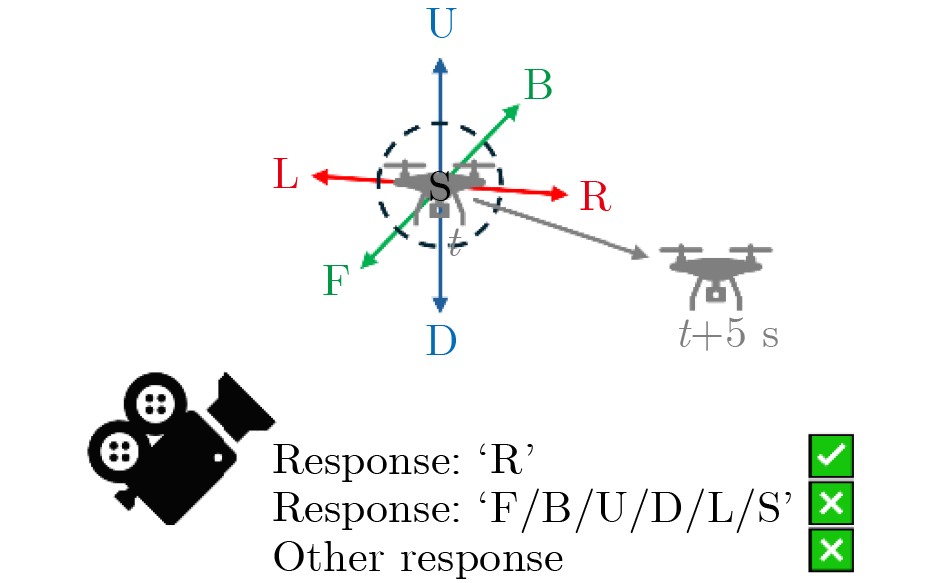

图 2 飞行方向定义

下载: 全尺寸图片幻灯片

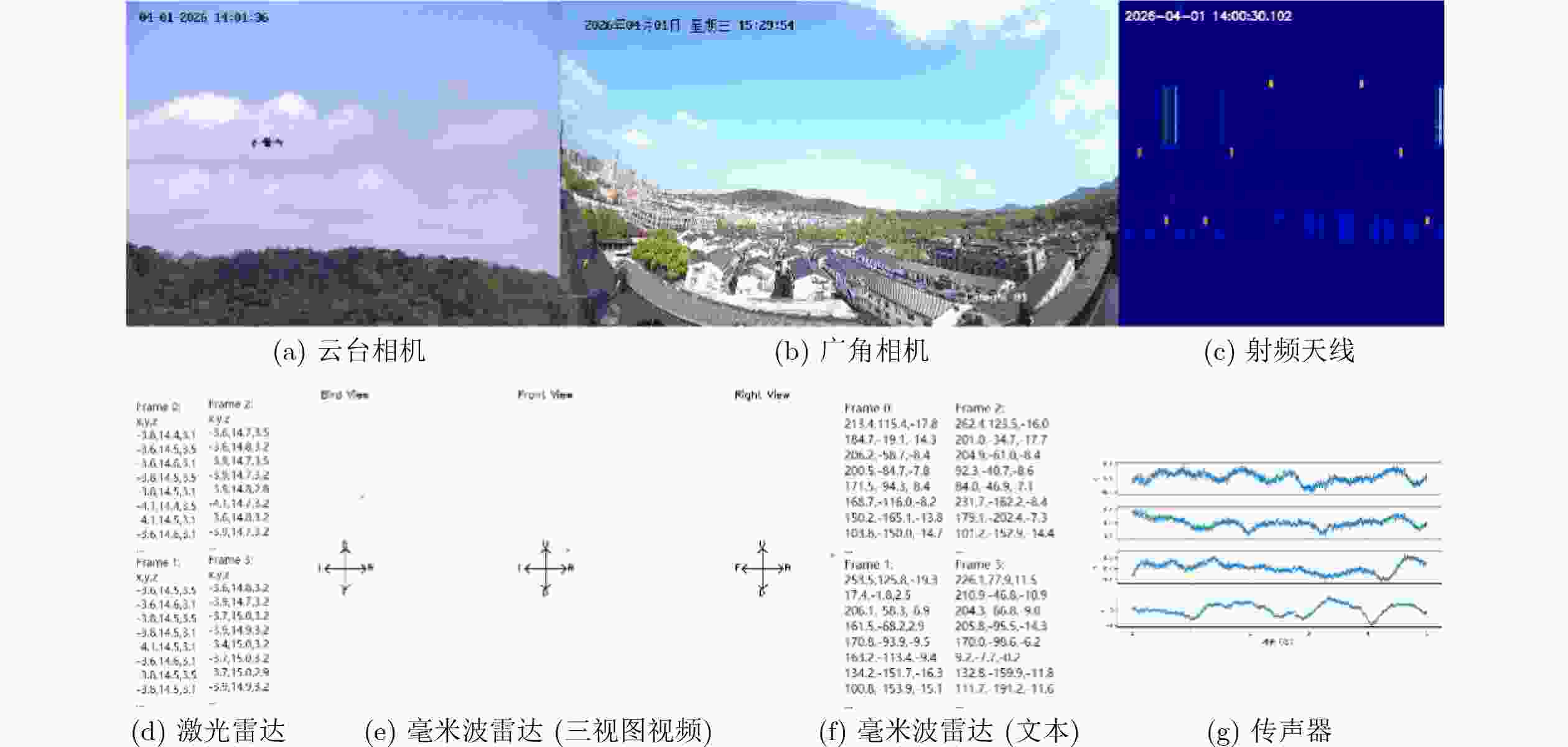

图 3 各传感器数据的推理输入样本实例

下载: 全尺寸图片幻灯片

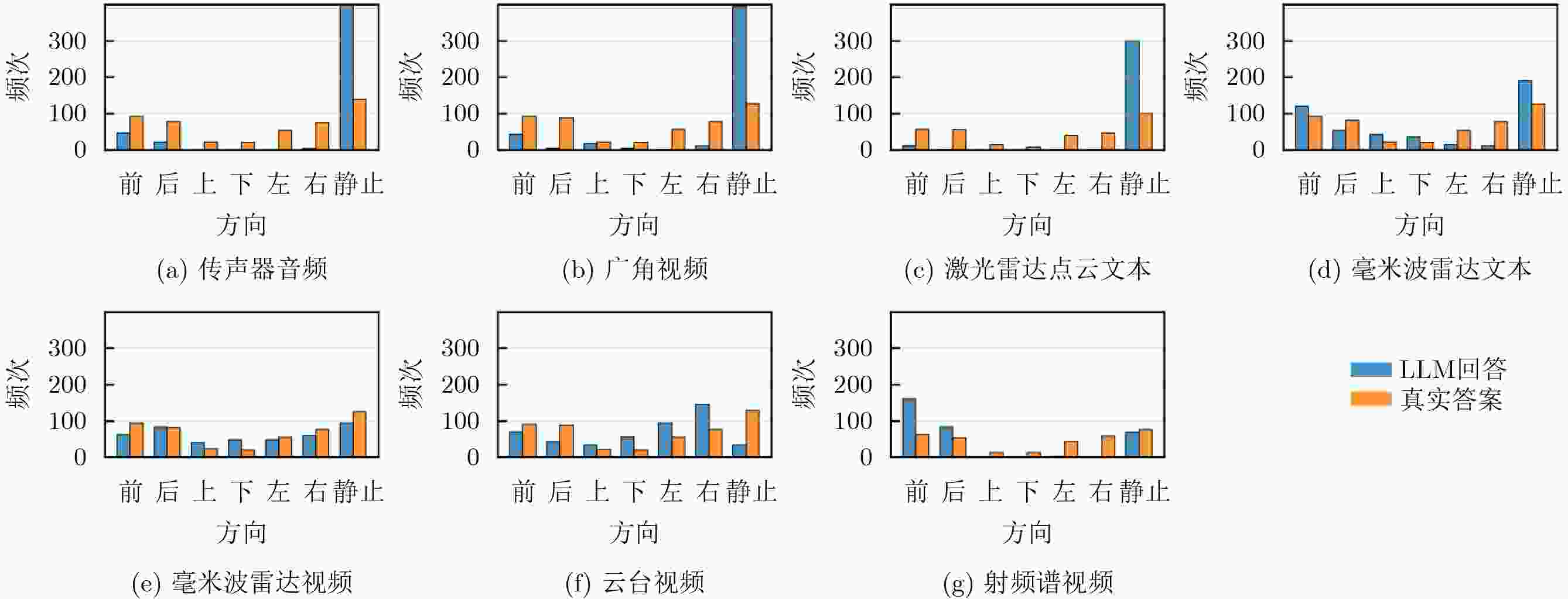

图 4 模型预测方向分布

下载: 全尺寸图片幻灯片

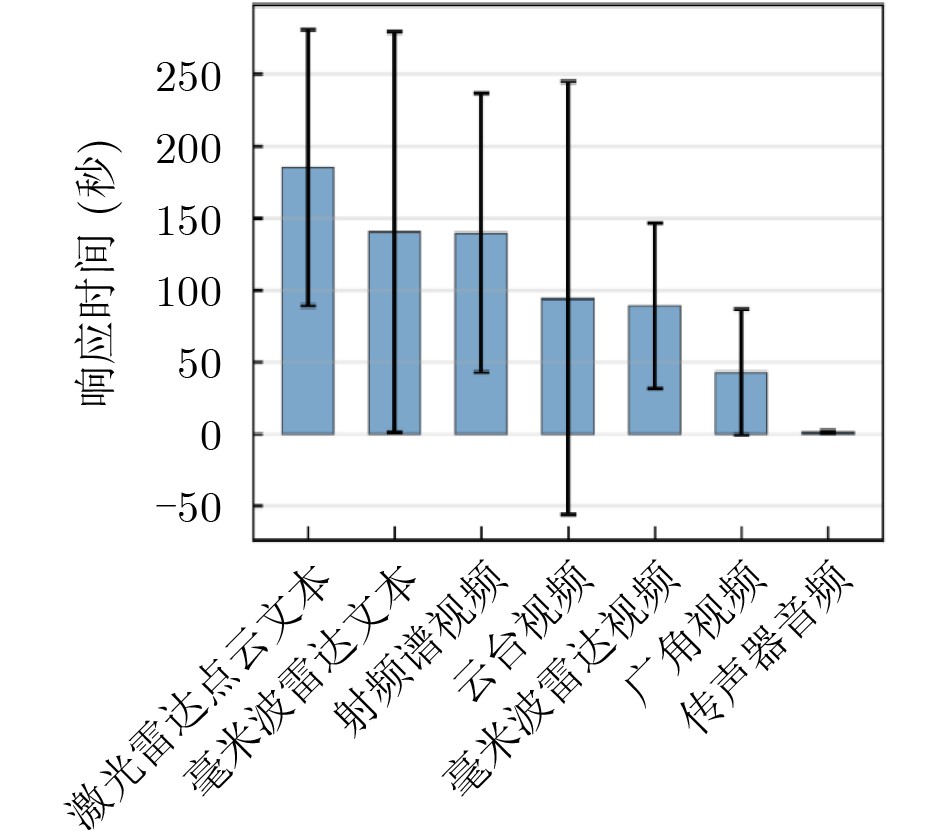

图 5 推理响应时间统计

下载: 全尺寸图片幻灯片

表 1 常用反无人机探测设备比较

设备	探测范围(km)	优势	劣势
可见光相机	0～6	检测算法成熟，结果直观	容易受光照、遮挡影响
红外成像仪	0～6	可夜间工作，可信度高	成本高，分辨率低
X 波段雷达	3～15	探测距离远，可探知方位和速度	无法探测静止目标，使用受管制，虚警多
射频天线	0.5～10	探测距离远，包含信息丰富	成本高，城市同频干扰多，需指定频段

下载: 导出CSV

表 2 本数据集和现有反无人机探测多模态数据集比较

数据集	采集设备	无人机机型
Anti-UAV	可见光相机、红外相机	DJI: Phantom 4, Spreading Wings S1000, Tello
MMAUD	立体相机、激光雷达、毫米波雷达、传声器阵列	DJI: Mavic 2, Mavic 3, Phantom 4, Avata, M300
DroneRFc-MM	云台相机、广角相机、射频天线、激光雷达、毫米波雷达、传声器阵列	DJI: Mini 2 SE, Mini 3, Mavic Air 2S, Air 3, Mavic 3, Avata

下载: 导出CSV

表 3 采集设备列表

探测设备	品牌型号	主要参数规格
PTZ相机	海康威视DS-2DC6423IW	分辨率2 560×1 440，23倍光学变焦
广角相机	海康威视DS-2CD3346	分辨率2 560×1 440，视场角H180°V98°
全向射频天线	Ettus VERT2450	配合NI USRP-2955，采样率100 MHz，中心频率2.45 GHz，单次连续采样时间50 ms
激光雷达	速腾聚创EM4	线数512，点频2592万点/秒，视场角H120°V27°
毫米波雷达	Arbe Phoenix	探测波段77-81 GHz，点云模式，视场角H100°V30°
电容传声器	爱华AWA14411	4通道阵列，采样率25.6 kHz，动态范围6.5-137 dB

下载: 导出CSV

表 4 无人机型号与采集编号

无人机型号	机型编号
DJI Mavic 3	A1
DJI Avata	B1
DJI Mini 2 SE	C1
DJI Mini 3	E1
DJI Air 3	F1
DJI Air 2s	G1

下载: 导出CSV

表 5 飞行方向推理任务提示词

种类	提示词
提示词模板 (“{}”内为可变内容)	“{data_type} showing a drone. {extra_explanation} Please identify the moving direction of the drone. Respond with only one uppercase letter: F for Forward (approaching the {device}), B for Backward(separating from the {device}), U for Upward, D for Downward, L for Left, R for Right, S for Stopping (moving distance < 2 m).”
云台相机	{data_type}=”Here is a PTZ camera video”, {device}=”camera”
广角相机	{data_type}=”Here is a fisheye camera video”, {device}=”camera”
射频天线	{data_type}=”Here is an RF spectrum video”, {device}=”antenna”
激光雷达	{data_type}=”Here are lidar pointcloud data”, {device}=”lidar”, {extra_explanation}=” The data are in compact CSV format: each row is one point with three comma-separated values (x,y,z). Frames are separated by a blank line.”
毫米波雷达 (视频输入)	{data_type}=”Here are bird-view, front-view, and right-view videos of a millimeter wave radar pointcloud.”, {device}=”radar”
毫米波雷达 (文本输入)	{data_type}=”Here are millimeter wave radar pointcloud data”, {device}=”antenna”, {extra_explanation}=” The data are in compact CSV format: each row is one point with three comma-separated values (x,y,z). Frames are separated by a blank line.”
传声器	{data_type}=”Here are 4 audio recordings”, {device}=”microphone array”, {extra_explanation}=” The audio uploading sequence is arranged from left to right in accordance with the mounting positions of the microphone array.”

下载: 导出CSV

表 6 各模态无人机飞行方向推理准确率

采集设备	输入模态	总问答	正确回答	准确率(%)
激光雷达	点云位置文本	317	97	30.60
传声器	音频	476	137	28.78
毫米波雷达	点云位置文本	469	125	26.65
广角相机	视频	477	120	25.15
云台相机	视频	476	111	23.31
射频天线	时频谱视频	318	70	22.01
毫米波雷达	点云三视图视频	469	95	20.25

下载: 导出CSV
