星载非对称几何下DBATI-SAR关键几何参数求解方法

申清源; 张洋洋; 赖涛; 朱宇霆; 谢志锋; 王小青

doi:10.11999/JEIT260870

星载非对称几何下DBATI-SAR关键几何参数求解方法

doi: 10.11999/JEIT260870 cstr: 32379.14.JEIT260870

1.
中山大学电子与通信工程学院深圳 518107
2.
清华大学深圳国际研究生院深圳 518055

基金项目: 国家重点研发计划项目(项目编号：2023YFB3904905)

详细信息

作者简介:
申清源：男，博士生，主要研究方向为SAR海洋遥感，SAR信号处理

张洋洋：男，博士生，主要研究方向为SAR海洋遥感，SAR信号处理

赖涛：男，博士，副教授，博导，主要研究方向为SAR信号处理，超宽带SAR/ISAR成像，多通道信号处理

朱宇霆：男，博士，主要研究方向为SAR海洋遥感，海洋大模型

谢志锋：男，博士生，主要研究方向为SAR海洋遥感，动目标成像

王小青：男，博士，教授，博导，主要研究方向为海洋微波遥感、雷达信号处理等

通讯作者:
王小青　wangxq58@mail.sysu.edu.cn

中图分类号: TN955
计量
- 文章访问数: 13
- HTML全文浏览量: 2
- PDF下载量: 1
- 被引次数: 0
出版历程
- 录用日期: 2026-07-29
- 网络出版日期: 2026-08-28

Determination of Key Geometric Parameters for Spaceborne Dual-Beam Along-Track Interferometric SAR under Asymmetric Geometry

1.
School of Electronics and Communication Engineering, Sun Yat-sen University, Shenzhen 518107, China
2.
Tsinghua Shenzhen International Graduate School, Tsinghua University, Shenzhen 518055, China

Funds: National Key R&D Program of China (Grant Number: 2023YFB3904905)

摘要

摘要: 星载双波束顺轨干涉合成孔径雷达(Dual-Beam Along-Track Interferometric Synthetic Aperture Radar, DBATI-SAR)可通过前、后视观测获取不同方向的海表径向速度，为二维海面流场矢量反演提供观测基础。二维流速反演的稳定性与两次雷达视线(Radar Line-of-Sight, RLOS)在目标点局部地表切平面内的投影关系密切相关，当前、后视RLOS地表投影接近正交时，径向速度误差向水平流速分量的几何放大较小。然而，传统前、后视几何参数求解多基于平地几何和匀速直线运动假设，难以刻画轨道曲率、地球曲率和地球自转共同作用下的星载非对称几何，易导致实际RLOS地表投影偏离理想正交构型。针对该问题，本文提出一种星载非对称几何下DBATI-SAR关键几何参数求解方法，以RLOS地表投影正交性作为直接约束。首先，在地心地固坐标系(Earth-Centered Earth-Fixed, ECEF)下建立星载观测几何模型，定义RLOS地表投影夹角、斜视角和下视角，并将观测时间、斜视角和下视角等关键几何参数的求解表述为满足RLOS地表投影正交约束的观测时间反问题。其次，在零斜视参考点邻域内推导观测时间偏置关于RLOS地表投影夹角的解析主项，用于解释观测时间尺度及主要几何控制因素。最后，基于完整ECEF正向几何采样构建多项式数值逆映射模型，实现给定投影夹角条件下关键几何参数的高精度求解。仿真结果表明，当采用 7 阶多项式且采样点数量不少于 20 时，500组随机轨道参数下的RLOS地表投影夹角平均误差约为0.04°；相比传统平地几何模型约 6.5° 的正交误差，几何约束精度显著提高，对应归一化几何放大因子由约 1.12 降至 1.0007。所提方法可在完整星载非对称几何下实现前、后视观测时间、斜视角和下视角等关键几何参数的高精度求解。
- 星载DBATI-SAR /
- 非对称几何 /
- RLOS地表投影 /
- 数值逆映射
Abstract: Objective Spaceborne dual-beam along-track interferometric synthetic aperture radar (DBATI-SAR) acquires fore- and aft-looking radial velocities for two-dimensional ocean surface current retrieval. The inversion stability depends on the relative directions of the two radar line-of-sight (RLOS) projections on the target local tangent plane. Conventional flat-Earth models usually assume symmetric squint angles or time offsets, whereas orbital curvature, Earth curvature, Earth rotation, and local projection nonlinearity produce asymmetric spaceborne geometries. Consequently, symmetric squint angles do not necessarily guarantee orthogonal ground-projected RLOS directions. This study develops a method for determining the fore- and aft-looking observation times, squint angles, and look angles directly under the ground-projected RLOS orthogonality constraint. Methods A complete Earth-Centered Earth-Fixed (ECEF) geometry is established using the satellite state and target position. The RLOS is projected onto the target local tangent plane, and a signed ground-projected RLOS angle is defined relative to the zero-squint reference direction. The squint and look angles are calculated from the observation times rather than prescribed independently. A two-dimensional observation matrix is constructed between the horizontal current components and the two radial velocities. Under an ideal symmetric geometry adopted to simplify the derivation, the singular values and condition number show that a one-sided projection angle of $ {45}^{{^{\circ}}} $ gives the best inversion conditioning. A normalized geometric amplification factor is introduced to quantify additional error amplification caused by nonorthogonal projections. Near the zero-squint reference point, a closed-form analytical leading term is derived between the observation-time offset and ground-projected RLOS angle. It reveals the effects of the reference slant range, look angle, equivalent along-track velocity, and second-order range-history curvature. A local polynomial inverse mapping is then constructed from complete ECEF forward-geometry samples. The target angles of $ {-45}^{{^{\circ}}} $ and $ +{45}^{{^{\circ}}} $ are inserted into the inverse mapping to obtain the fore- and aft-looking times, after which the corresponding squint and look angles are calculated. Results and Discussions Numerical experiments are conducted using 500 random orbit-parameter sets. Fifth- and sixth-order polynomials show relatively large inverse-mapping errors, whereas a seventh-order model significantly improves accuracy. With 20 samples, the mean ground-projected RLOS angle error is $ {0.0392}^{\circ } $, and further increases in polynomial order or sample number provide limited improvement (Fig. 2, Table 2). The analytical leading term agrees well with the complete ECEF model. For a representative case, the angular root-mean-square error and maximum deviation are approximately $ {0.11}^{\circ } $ and $ {0.31}^{\circ } $, respectively. Across the 500 cases, the root-mean-square errors of the analytical fore- and aft-looking times are 0.95 s and 0.57 s, indicating that the analytical term captures the dominant time scale, while the numerical inverse mapping compensates for asymmetric higher-order effects (Fig. 3). The conventional flat-Earth model produces a squint-angle correction of up to approximately $ {3}^{\circ } $ and a projection orthogonality error of approximately $ {6.5}^{\circ } $. The proposed method reduces the mean angle error to approximately $ {0.04}^{\circ } $ and decreases the normalized geometric amplification factor from approximately 1.12 to 1.0007 (Fig. 4). The semimajor axis has the strongest influence on the aft-looking time, which varies from approximately 34 s to 76 s, while variations caused by other orbital parameters remain within 7 s (Fig. 5). Under combined squint- and down-looking-angle perturbations of up to $ {0.2}^{\circ } $, most samples retain projection-angle errors below $ {1}^{\circ } $ (Fig. 6). Conclusions A key geometric parameter determination method is proposed for spaceborne DBATI-SAR under asymmetric geometry. The analytical leading term explains the dominant observation-time scale, while the complete ECEF numerical inverse mapping accurately determines the fore- and aft-looking observation times and corresponding viewing angles. The method provides substantially higher geometric accuracy than the conventional flat-Earth approach. Practical mission design should additionally consider pulse repetition frequency, azimuth ambiguity, Doppler bandwidth, beam-steering capability, and ATI coherence.
- Spaceborne DBATI-SAR /
- Asymmetric geometry /
- Ground-projected RLOS /
- Numerical inverse mapping

HTML全文

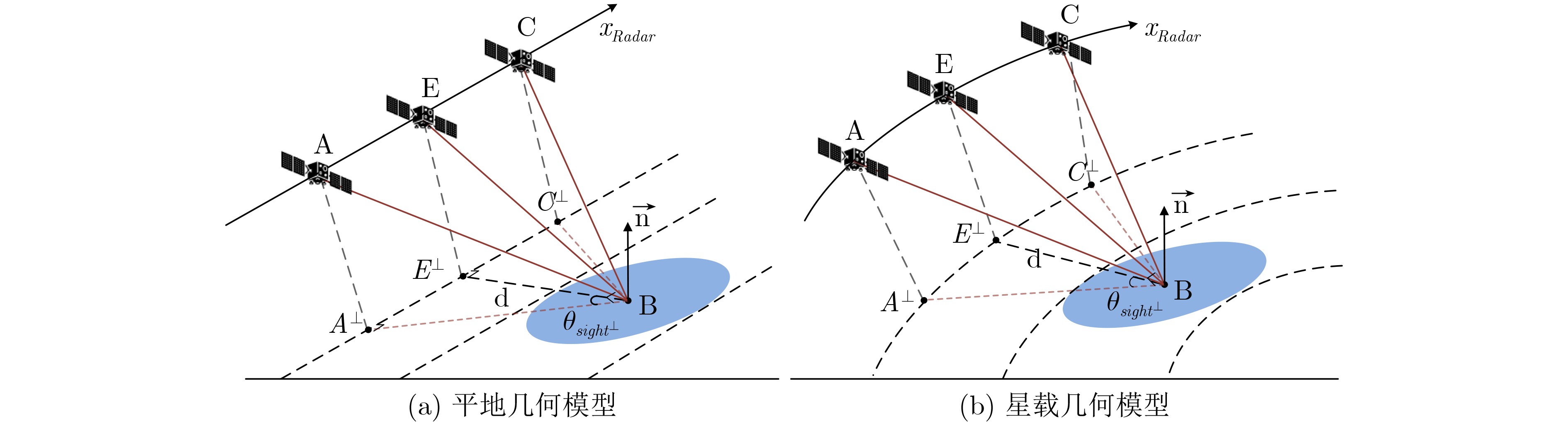

图 1 DBATI-SAR几何模型

下载: 全尺寸图片幻灯片

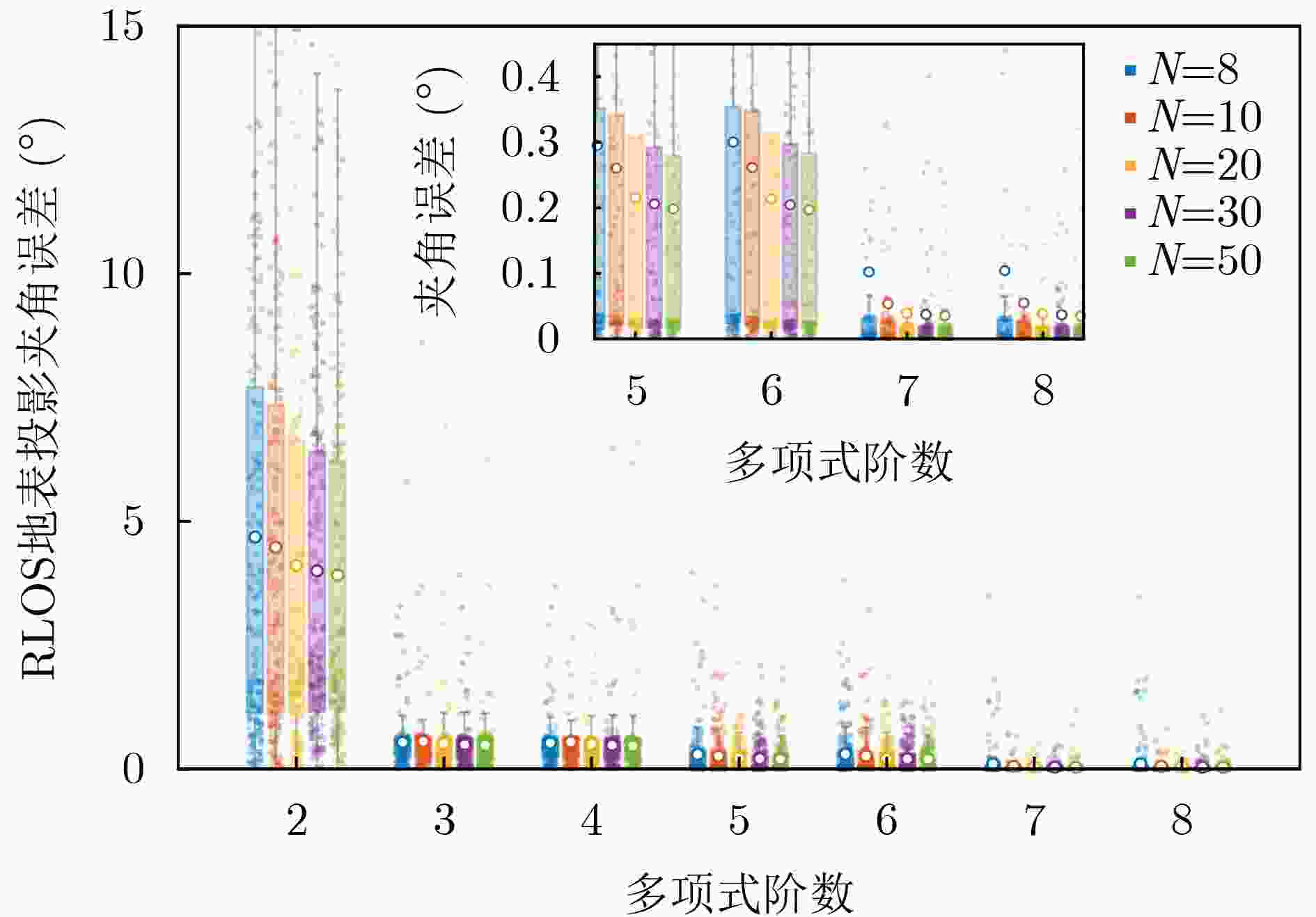

图 2 采样点数和多项式阶数对数值逆映射精度的影响。散点表示单组随机轨道参数下的地表投影夹角误差，箱线图表示误差分布，局部放大图展示 5 阶至 8 阶模型的误差差异

下载: 全尺寸图片幻灯片

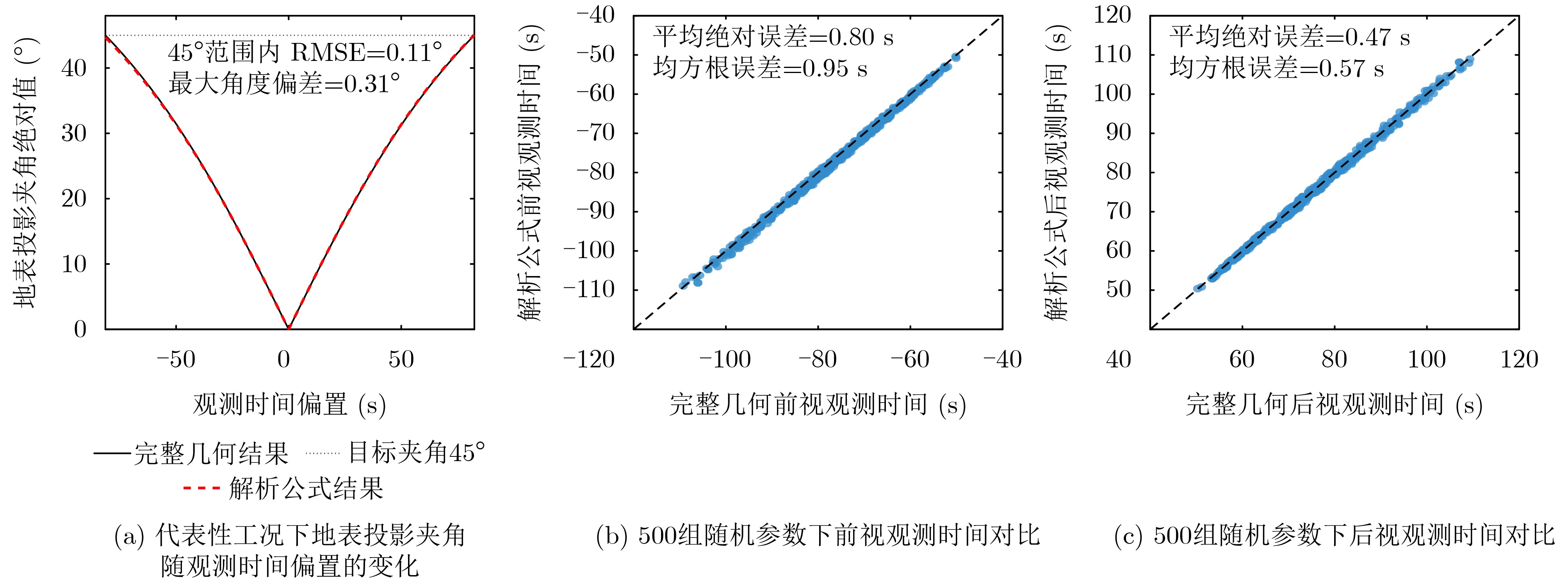

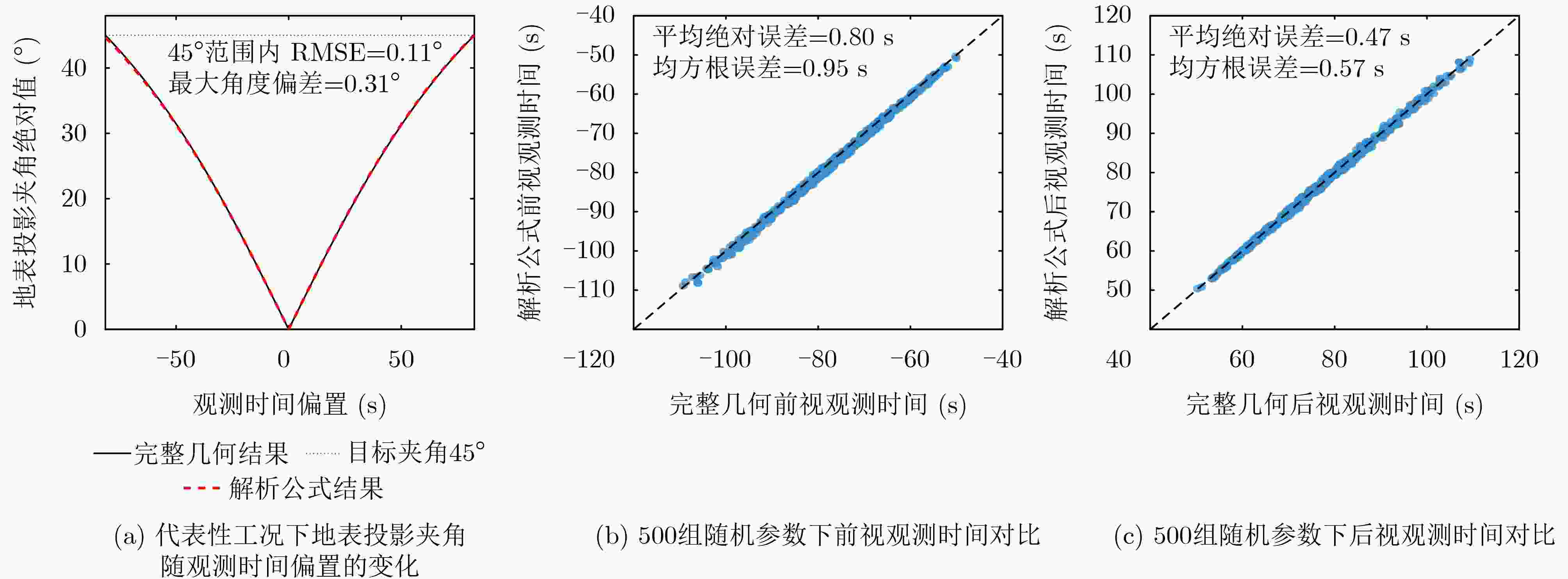

图 3 解析主项与完整几何模型的一致性验证。虚线表示解析模型与数值模型完全一致的参考线

下载: 全尺寸图片幻灯片

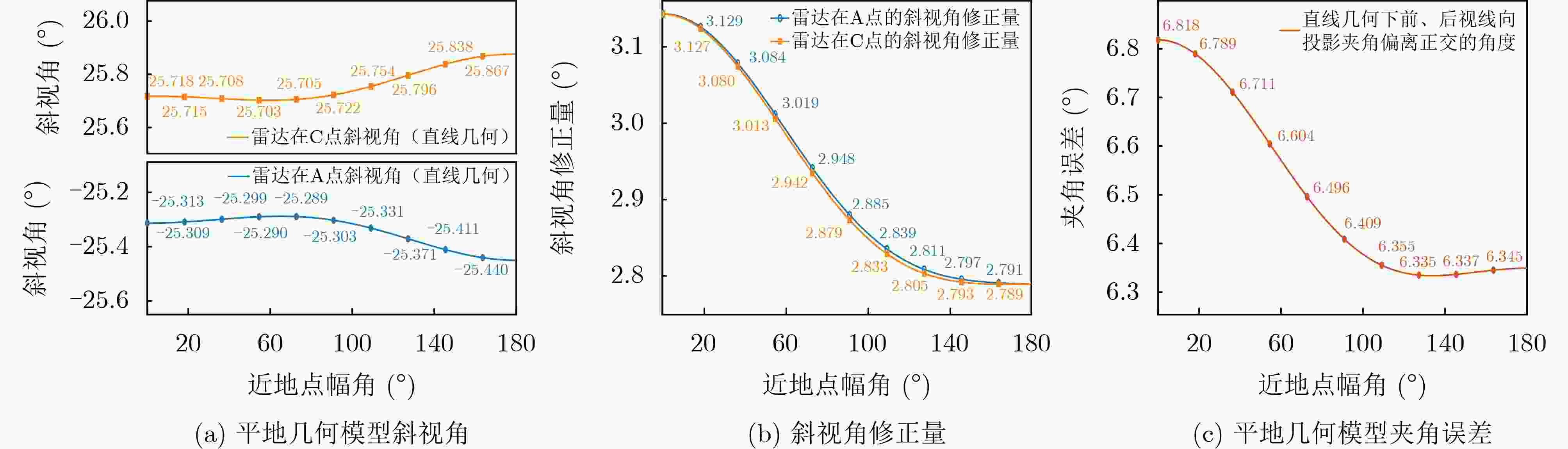

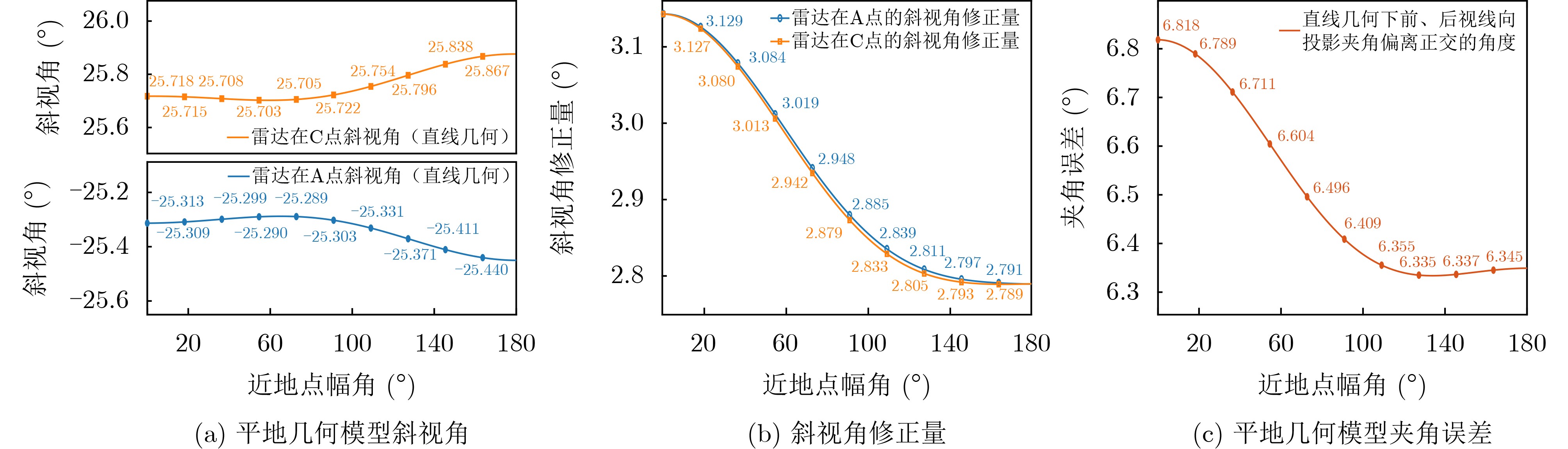

图 4 平地几何模型误差分析

下载: 全尺寸图片幻灯片

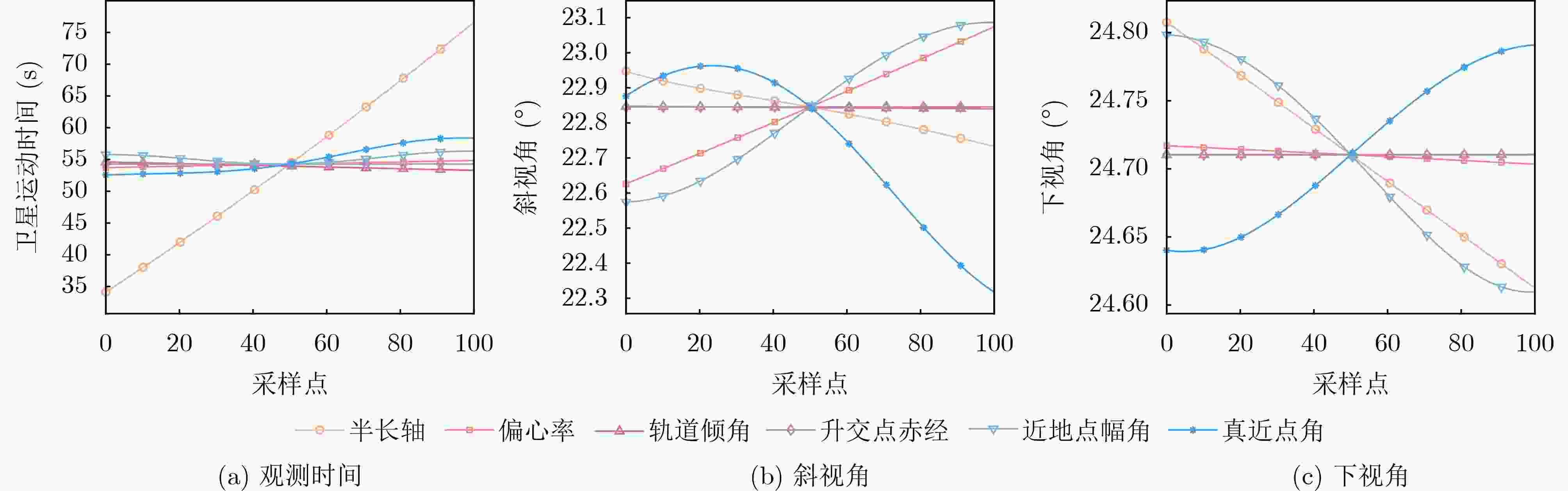

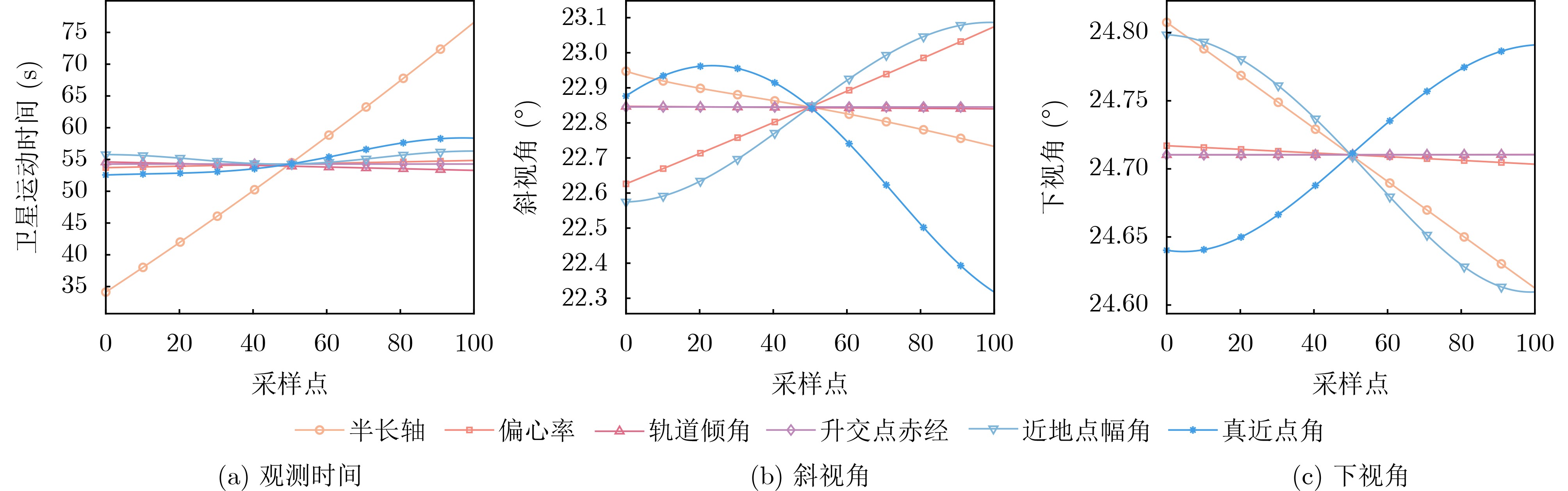

图 5 不同轨道参数对后视关键几何参数的影响

下载: 全尺寸图片幻灯片

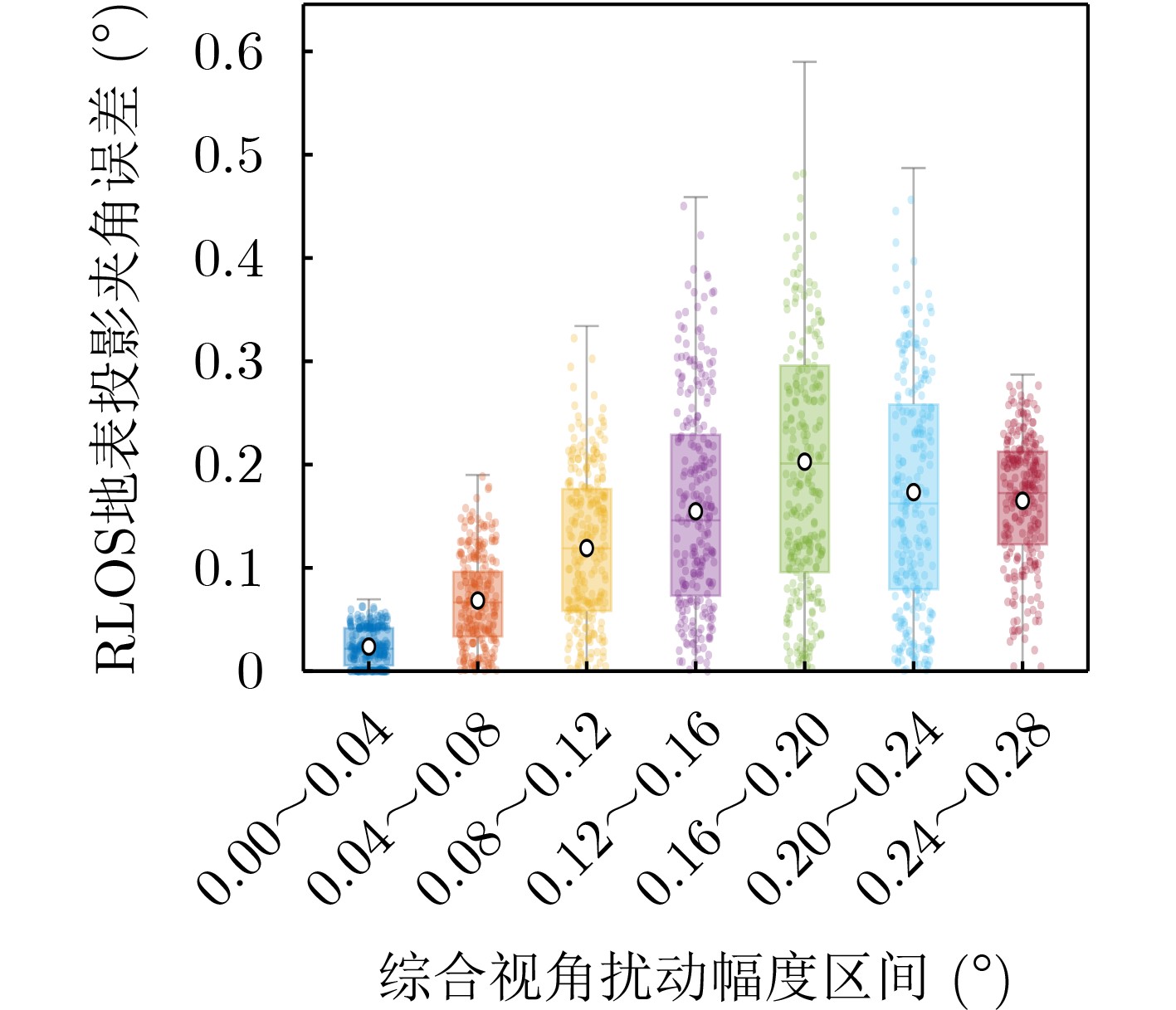

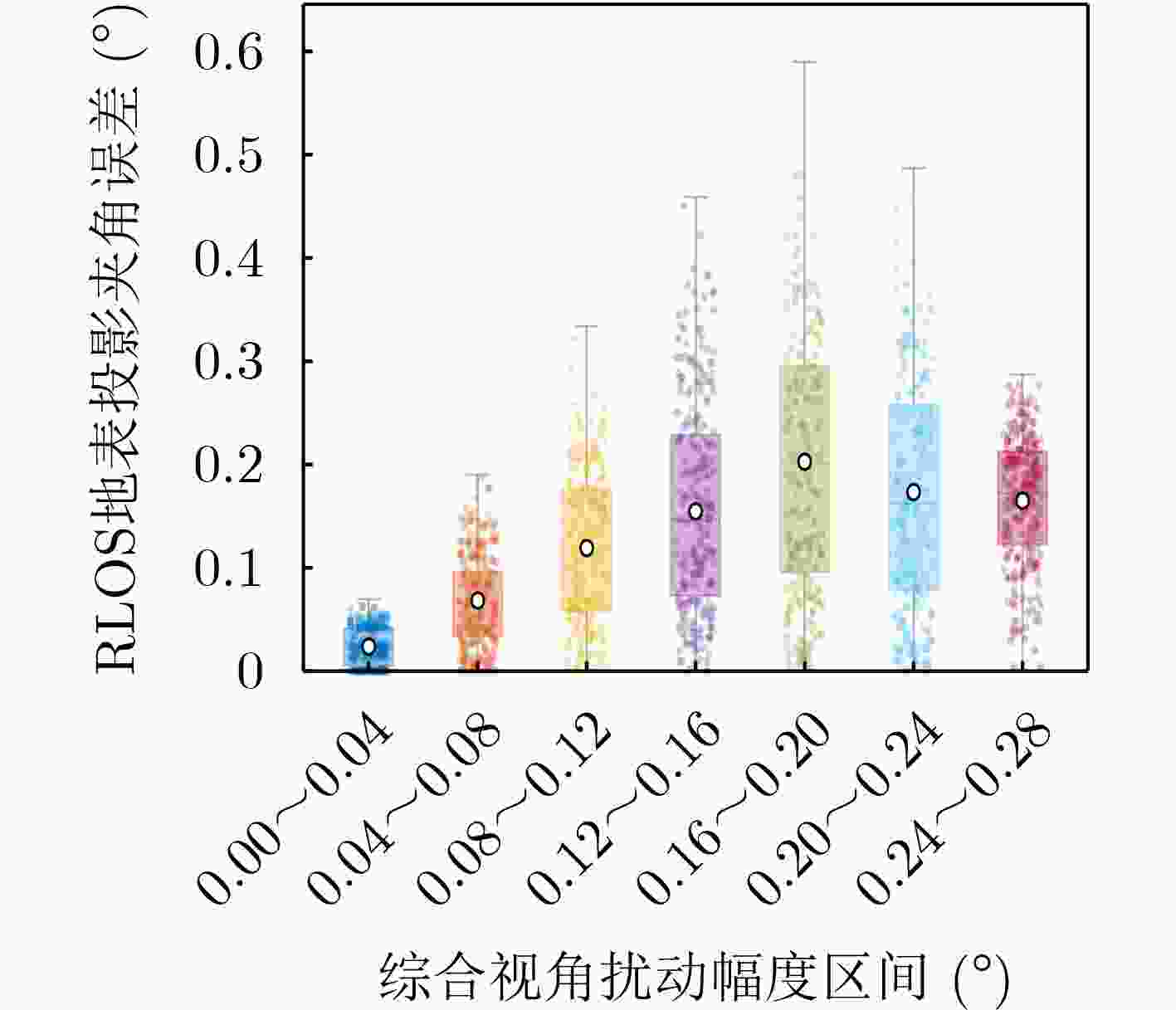

图 6 视角扰动条件下的RLOS地表投影夹角误差分布

下载: 全尺寸图片幻灯片

表 1 参数取值范围

参数	取值范围
半长轴 (千米）	6 878～7 378
偏心率	0～0.01
轨道倾角 (度)	70～90
升交点赤经 (度)	0～180
近地点幅角 (度)	0～180
真近点角(度)	0～180
下视角(度)	20～60

下载: 导出CSV

表 2 不同阶数和采样点数下的平均RLOS 地表投影夹角误差(度)

	N=8	N=10	N=20	N=30	N=50
N_p=5	0.2955	0.2605	0.2154	0.2062	0.1985
N_p=6	0.3006	0.2620	0.2138	0.2047	0.1971
N_p=7	0.1024	0.0536	0.0392	0.0374	0.0355
N_p=8	0.1043	0.0548	0.0385	0.0367	0.0348

下载: 导出CSV
