无线先验对多用户多天线预编码学习计算与能耗开销的影响

丛鹏宇; 韩圣千; 邓鸣宇; 刘胜杰; 杨晨阳; 沈嵩辉

doi:10.11999/JEIT260388

无线先验对多用户多天线预编码学习计算与能耗开销的影响

doi: 10.11999/JEIT260388 cstr: 32379.14.JEIT260388

1.
北京航空航天大学电子信息工程学院北京 100191
2.
中国移动通信有限公司研究院北京 100053

详细信息

作者简介:
丛鹏宇：男，博士生，研究方向为智能通信

韩圣千：男，副教授，研究方向为智能通信、移动通信等

邓鸣宇：男，博士生，研究方向为智能通信

刘胜杰：男，博士生，研究方向为智能通信

杨晨阳：女，教授，研究方向为智能通信、移动通信等

沈嵩辉：男，工程师，研究方向为移动通信物理层技术

通讯作者:
韩圣千　sqhan@buaa.edu.cn

中图分类号: TN929.5, TP181
计量
- 文章访问数: 275
- HTML全文浏览量: 105
- PDF下载量: 18
- 被引次数: 0
出版历程
- 收稿日期: 2026-04-01
- 修回日期: 2026-07-15
- 录用日期: 2026-07-15
- 网络出版日期: 2026-07-25

Impact of Wireless Priors on the Computation and Energy Cost of MU-MIMO Precoding Learning

1.
School of Electronic Information Engineering, Beihang University, Beijing 100191, China
2.
China Mobile Research Institute, Beijing 100053, China

摘要

摘要: 随着移动通信系统中天线阵列规模的持续增大，多用户多输入多输出(MU-MIMO)预编码在显著提高系统性能的同时，也带来了高计算复杂度与高能耗等挑战。该文针对MU-MIMO预编码策略学习问题，研究在神经网络结构设计中引入无线策略数学先验(简称“无线先验”)知识对深度学习计算和能耗的影响。为此，首先分析MU-MIMO预编码策略的多维联合置换等变性和不变性，在此基础上构建一种注意力图神经网络(AGNN)；然后，基于3GPP标准信道数据集开展仿真与硬件实测，对AGNN与传统数值算法和Transformer模型进行比较。研究结果表明，AGNN在频谱效率、计算复杂度和推理能耗方面均优于仅满足一维置换等变性的Transformer模型，表明充分利用无线先验对高效学习的重要影响。同时，随着天线规模与带宽的扩大，传统数值算法的计算复杂度和能耗增长速度明显高于性能增益；而AGNN能够在提高系统性能的同时，显著降低推理时间与推理能耗，表明融入无线先验的学习方法是未来6G预编码优化的有效技术路径。
- 6G /
- 预编码 /
- 无线先验 /
- 图神经网络 /
- 计算能耗
Abstract: Objective This paper investigates downlink MultiUser Multi-Input Multi-Output (MU-MIMO) precoding policy learning from the perspectives of computational complexity and energy consumption. Traditional numerical optimization algorithms achieve high performance but exhibit rapidly increasing computational complexity as the numbers of base station antennas and served users increase, leading to high inference latency and energy consumption. In recent years, deep learning has been widely adopted to reduce online computational cost; however, existing evaluations generally rely on training or inference time and FLoating-point OPerations (FLOPs), without direct measurements of energy consumption and power. More importantly, the computational cost of a deep learning model is closely related to network architecture design, which should effectively exploit the wireless prior knowledge of the precoding policy. Therefore, this paper develops a network architecture that matches the multidimensional permutation properties of the precoding policy and systematically investigates how wireless priors affect computational complexity and energy consumption through comprehensive hardware-based measurements and simulations. Methods The MU-MIMO precoding policy is formulated as a mapping from multiuser channel information to the optimal precoding matrix under a transmit power constraint. The optimal policy satisfies multidimensional joint permutation equivariance and invariance with respect to user indices, receive antenna indices, and base station antenna indices. To exploit these wireless priors, an Attention-based Graph Neural Network (AGNN) is proposed based on a hypergraph structure, in which the update and aggregation operations satisfy the required equivariance and invariance properties. An attention mechanism is incorporated to model inter-user interference and improve generalization across different numbers of users. For broadband precoding, multi-subcarrier channel information is aggregated at the input layer to construct an expanded feature representation. To quantify computational energy cost, a hardware measurement platform is developed to collect energy consumption and power for the GPU, CPU, and DRAM during both training and inference. Simulations are conducted using 3GPP TR 38.901 Urban Macrocell (UMa) channel datasets with different antenna array sizes and bandwidth configurations. The proposed AGNN is compared with a traditional numerical optimization algorithm based on Zero-Forcing Block Diagonalization (ZFBD) with greedy user pairing and two Transformer-based architectures that satisfy only one-dimensional permutation equivariance. Results and Discussions Two major findings are obtained. First, incomplete exploitation of wireless priors results in inferior performance and higher computational cost. In the MU-MISO scenario, the Transformer-based architectures achieve lower spectral efficiency than the ZFBD+Greedy baseline while requiring substantially larger models and higher inference FLOPs than AGNN. By matching the multidimensional permutation properties of the precoding policy, AGNN achieves higher spectral efficiency while reducing inference FLOPs by approximately one order of magnitude. Hardware measurements further demonstrate that AGNN reduces inference energy consumption and power on both the CPU and GPU. Second, in small- and large-scale MU-MIMO scenarios, ZFBD+Greedy increases the system sum rate by 10.9×, whereas inference FLOPs, inference time, and inference energy increase by 79.0×, 21.3×, and 38.6×, respectively. In contrast, AGNN increases the system sum rate by 11.5×, while inference FLOPs increase by only 1.89×. Meanwhile, inference time and inference energy are reduced to 0.03× and 0.20×, respectively. These results demonstrate that exploiting the multidimensional permutation properties of the precoding policy provides an effective approach for reducing computational complexity, inference latency, and energy consumption in large-scale 6G MU-MIMO systems. Conclusions This paper investigates the effect of wireless priors on the computational complexity and energy consumption of MU-MIMO precoding learning. By exploiting the multidimensional joint permutation equivariance and invariance of the optimal precoding policy, an AGNN is developed that is well matched to these properties. A hardware-aware measurement platform is established to obtain direct measurements of energy consumption and power for the GPU, CPU, and DRAM during training and inference. Simulations based on 3GPP TR 38.901 UMa channel datasets demonstrate that Transformer-based architectures satisfying only one-dimensional permutation equivariance achieve lower spectral efficiency while incurring substantially higher computational and energy costs. In contrast, AGNN achieves higher spectral efficiency while substantially reducing inference FLOPs, inference time, inference energy consumption, and training complexity. As system size increases, traditional numerical optimization algorithms exhibit much faster growth in computational and energy costs than in system sum rate, whereas the proposed learning method based on wireless priors maintains low inference latency and energy consumption. Overall, exploiting the wireless prior knowledge of the MU-MIMO precoding policy in network architecture design provides an effective solution for computationally and energy-efficient high-dimensional precoding optimization in future 6G networks.
- 6G /
- Precoding /
- Wireless priors /
- Graph neural networks /
- Computational energy consumption

HTML全文

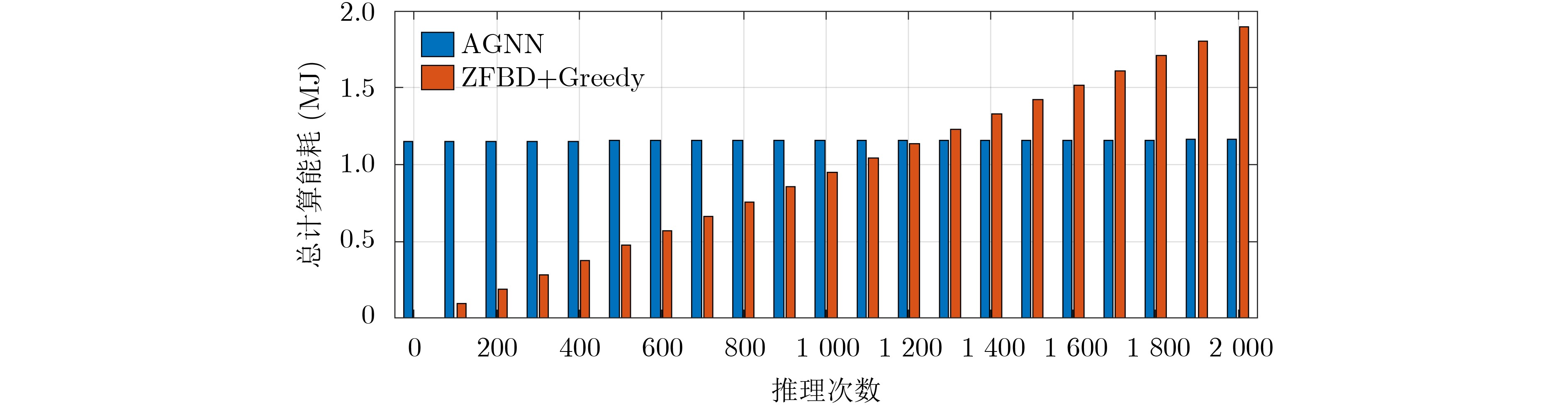

图 1 大规模MU-MIMO场景下的总计算能耗

下载: 全尺寸图片幻灯片

表 1 测试平台硬件设置

硬件组件	型号名称 × 数量	存储容量(GB)	TGP或TDP(W)	闲置功耗(W)
GPU	NVIDIA GeForce RTX 4090 D GPU×1	24 (显存)	425	6.76
CPU	Intel Xeon Gold 5515+ CPU×1	-	165	34.11
DRAM	Samsung DDR5 R-ECC 32 GB 内存×2 SK Hynix DDR5 R-ECC 32 GB 内存×2	128	30.5	5.31
注：全文各表中“-”表示该指标不适用。

下载: 导出CSV

表 2 GPU, CPU和DRAM能耗测试流程

(1) 测试准备阶段
正式测量前终止所有非必需后台进程，独立启动两个命令行终端，分别运行NVSMI和Intel PCM，采样间隔100 ms并保持连续采样。工具　开启后，服务器空闲运行10 min，使各硬件组件进入稳定的空闲水平(GPU和CPU均进入深度休眠)。此阶段数据不参与后续能耗计算。
(2) 测量服务器闲置功耗
服务器继续保持空闲状态运行10 min。该阶段内由NVSMI与Intel PCM采集的数据用于计算GPU, CPU和DRAM 的闲置功耗，计算结果　为10 min内平均值。
(3) 测量算法运行的能耗与功耗
启动PyCharm等待加载完毕，运行目标程序。为确保测量期间CPU和GPU稳定，先对所有样本执行一轮预热推理(数据不参与最终统　计)。程序记录算法起止时间戳，以划定功耗/能耗采样数据的统计区间。不同类型算法的测量方式如下：
(a)传统数值算法：先把所有测试数据加载至DRAM，再记录预编码计算过程的起止时间戳。
(b)AI算法：先把数据加载至DRAM并构建网络模型；若在GPU上进行计算，则需再把数据和模型参数从DRAM迁移至显存。之后记录时　间戳，具体方式如下：
–训练阶段：记录模型整个训练周期的起止时间戳；
–推理阶段：测试样本需逐个输入网络，记录完成所有测试样本推理的起止时间戳。

下载: 导出CSV

1 计算第$ k $个用户的子带等效信道

输入：第$ k $个用户在子带内$ C $个子载波上的信道矩阵$ {\mathbf{H}}_{k,c} $。
输出：第$ k $个用户的子带等效信道$ {\widetilde{\mathbf{H}}}_{k} $。
1. 计算子带信道相关矩阵　$ {\mathbf{R}}_{k}=1/C\displaystyle\sum \nolimits_{c=1}^{C}\mathbf{H}_{k,c}^{\text{H}}{\mathbf{H}}_{k,c}\in {\mathbb{C}}^{{{N}_{\text{T}}}\times {{N}_{\text{T}}}} $；
2. 对$ {\mathbf{R}}_{k} $进行特征分解$ {\mathbf{R}}_{k}={\mathbf{U}}_{k}{\mathbf{\Sigma }}_{k}\mathbf{U}_{k}^{\text{H}} $，得到特征值和特征　向量；
3. 从$ {\boldsymbol{\varSigma }}_{k} $中选取最大的$ {N}_{\text{R}} $个特征值$ {\sigma }_{i} $及对应的特征向量；
4. 计算等效信道矩阵$ {\widetilde{\mathbf{H}}}_{k}={\left[\begin{array}{ccc}\sqrt{{\sigma }_{1}}{\mathbf{u}}_{1} & \cdots & \sqrt{{\sigma }_{{{N}_{\text{R}}}}}{\mathbf{u}}_{{{N}_{\text{R}}}}\end{array}\right]}^{\text{H}} $

下载: 导出CSV

表 3 不同场景下各神经网络的超参数

系统配置	$ N=32，带宽51\mathrm{\ RB} $				$ N=128，带宽273\ \mathrm{RB} $
MIMO技术	MU-MISO			MU-MIMO	MU-MIMO
学习算法	Transformer适配1/2	AGNN	MDGNN	AGNN	AGNN
网络规模	2*[2560]	5*[32]	5*[32]	4*[32]	6*[16]
批大小	256	256	256	64	64
学习率	0.0001	0.0001	0.0001	0.001	0.001
注1：网络规模m*[n]表示隐藏层数为m，隐藏表示数为n。注2：表中各模型超参数均基于不同场景下的实际训练收敛性能调优确定。

下载: 导出CSV

表 4 小规模MU-MISO场景下的频谱效率、训练和推理复杂度比较

预编码算法	ZFBD+Greedy	Transformer适配1	Transformer适配2	AGNN	MDGNN
频谱效率(bps/Hz)	24.6	17.0	18.2	25.8	17.6
推理FLOPs	6.7×10⁸	7.5×10⁹	5.6×10⁹	1.3×10⁷	2.6×10⁶
CPU推理时间 (ms)	320	21.3	14.5	4.02	2.61
GPU推理时间 (ms)	-	2.07	2.45	5.22	3.94
训练时间 (s)	-	2 715	1 186	970	839
模型参数量	-	1.1×10⁸	7.0×10⁷	2.5×10⁴	1.5×10⁴

下载: 导出CSV

表 5 小规模MU-MISO场景下训练与推理阶段的能耗与功耗比较

预编码算法	硬件组件	训练阶段		推理阶段(CPU)		推理阶段(GPU)
预编码算法	硬件组件	能耗 (J)	功耗 (W)	能耗 (mJ)	功耗 (W)	能耗 (mJ)	功耗 (W)
ZFBD+ Greedy	CPU	-	-	1.2×10⁴	36.4	-	-
	DRAM	-	-	1,750	5.46	-	-
	合计	-	-	1.3×10⁴	41.9	-	-
Transformer适配1	GPU	9.1×10⁵	334	-	-	537	259
	CPU	1.2×10⁵	44.5	2,715	127	151	73.1
	DRAM	1.6×10⁴	5.93	222	10.4	11.8	5.71
	合计	1.0×10⁶	384	2,937	138	700	338
Transformer适配2	GPU	4.0×10⁵	333	-	-	520	212
	CPU	5.5×10⁴	46.8	1,830	126	186	75.7
	DRAM	6,975	5.88	141	9.79	14.3	5.84
	合计	4.6×10⁵	386	1,972	136	719	294
MDGNN	GPU	4.4×10⁴	51.9	-	-	83.2	21.1
	CPU	6.0×10⁴	71.9	233	89.4	271.4	68.8
	DRAM	4,920	5.86	14.6	5.60	22.2	5.63
	合计	1.1×10⁵	130	247.8	95.0	377	95.6
AGNN	GPU	1.1×10⁵	109	-	-	130	24.8
	CPU	7.0×10⁴	72.1	373	92.9	345	66.0
	DRAM	5,618	5.79	22.2	5.53	29.0	5.56
	合计	1.8×10⁵	187	395	98.4	503	96.4

下载: 导出CSV

表 6 MU-MIMO场景下的频谱效率、训练和推理复杂度比较

系统规模	$ N=32，带宽51\mathrm{\ RB} $	$ N=128，带宽273\mathrm{\ RB} $
预编码算法	ZFBD+Greedy	ZFBD+Greedy	AGNN
频谱效率 (bit/(s·Hz))	53.9	118	124
和速率 (Gbps)	1.08	11.8	12.4
推理FLOPs	9.9×10⁷	7.9×10⁹	1.9×10⁸
CPU推理时间 (ms)	444	9,431	124
GPU推理时间 (ms)	-	-	15.1
训练时间 (s)	-	-	3,331
模型参数量	-	-	1.1×10⁴

下载: 导出CSV

表 7 MU-MIMO场景下训练与推理阶段的能耗与功耗比较

预编码算法	硬件组件	训练阶段		推理阶段(CPU)		推理阶段(GPU)
预编码算法	硬件组件	能耗 (J)	功耗 (W)	能耗 (mJ)	功耗 (W)	能耗 (mJ)	功耗 (W)
小规模ZFBD+Greedy	CPU	-	-	2.2×10⁴	49.9	-	-
	DRAM	-	-	2,408	5.43	-	-
	合计	-	-	2.5×10⁴	55.4	-	-
大规模ZFBD+Greedy	CPU	-	-	8.9×10⁵	94.9	-	-
	DRAM	-	-	5.3×10⁴	5.64	-	-
	合计	-	-	9.5×10⁵	101	-	-
大规模 AGNN	GPU	9.0×10⁵	271	-	-	3,795	251
	CPU	2.3×10⁵	68.8	1.5×10⁴	117	1,060	70.2
	DRAM	2.1×10⁴	6.22	1,871	15.1	95.8	6.35
	合计	1.2×10⁶	346	1.6×10⁴	132	4,950	328

下载: 导出CSV

表 8 大规模场景下各算法相对于小规模场景ZFBD+Greedy的对比

预编码算法	ZFBD+Greedy	AGNN
和速率	10.9倍	11.5倍
推理FLOPs	79.0倍	1.89倍
推理时间	21.3倍	0.03倍
推理能耗	38.6倍	0.20倍

下载: 导出CSV

表 9 非理想信道下MU-MIMO场景的频谱效率、训练和推理复杂度比较

系统规模	$ N=32，带宽51\mathrm{\ RB} $	$ N=128，带宽273\mathrm{\ RB} $
预编码算法	ZFBD+Greedy	ZFBD+Greedy	AGNN
频谱效率 (bit/(s·Hz))	44.6	81.6	90.9
和速率 (Gbit/(s·Hz))	0.892	8.16	9.09
推理FLOPs	9.9×10⁷	7.9×10⁹	2.8×10⁸
CPU推理时间 (ms)	444	9,431	260
GPU推理时间 (ms)	-	-	15.1
训练时间 (s)	-	-	31.75
模型参数量	-	-	3.6×10⁵

下载: 导出CSV

表 10 非理想信道下MU-MIMO场景训练与推理阶段的能耗与功耗比较

预编码算法	硬件组件	训练阶段		推理阶段(CPU)		推理阶段(GPU)
预编码算法	硬件组件	能耗 (J)	功耗 (W)	能耗 (mJ)	功耗 (W)	能耗 (mJ)	功耗 (W)
小规模ZFBD+Greedy	CPU	-	-	2.2×10⁴	49.9	-	-
	DRAM	-	-	2 408	5.43	-	-
	合计	-	-	2.5×10⁴	55.4	-	-
大规模ZFBD+Greedy	CPU	-	-	8.9×10⁵	94.9	-	-
	DRAM	-	-	5.3×10⁴	5.64	-	-
	合计	-	-	9.5×10⁵	101	-	-
大规模 AGNN	GPU	6.0×10⁵	264	-	-	7 625	240
	CPU	2.0×10⁵	66.8	3.0×10⁴	113	2 125	68.4
	DRAM	1.5×10⁴	6.48	4120	16.1	215.5	6.79
	合计	1.2×10⁶	338	3.4×10⁴	129	9 966	315

下载: 导出CSV

表 11 非理想信道下大规模场景各算法相对于小规模场景ZFBD+Greedy的对比

预编码算法	ZFBD+Greedy	AGNN
和速率	9.1倍	10.2倍
推理FLOPs	79.0倍	2.83倍
推理时间	21.3倍	0.03倍
推理能耗	38.6倍	0.40倍

下载: 导出CSV
