雷诺分解运动引导纹理学习的瘢痕心肌分型方法

阮东升; 杨代国; 张晓琳; 马建华; 蒋明峰; 汪亚明

doi:10.11999/JEIT260330

雷诺分解运动引导纹理学习的瘢痕心肌分型方法

doi: 10.11999/JEIT260330 cstr: 32379.14.JEIT260330

1.
浙江理工大学计算机科学与工程学院(人工智能学院) 杭州 310018
2.
东南大学网络空间安全学院南京 211189

基金项目: 国家自然科学基金(62272415)

详细信息

作者简介:
阮东升：男，讲师，研究方向为医学图像处理

杨代国：男，硕士，研究方向为医学图像处理

张晓琳：女，硕士，研究方向为医学图像处理

马建华：男，博士生，研究方向为计算机视觉

蒋明峰：男，教授，研究方向为医学图像处理

汪亚明：男，教授，研究方向为医学图像处理

通讯作者:
蒋明峰　m.jiang@zstu.edu.cn

中图分类号: TN911.7
计量
- 文章访问数: 237
- HTML全文浏览量: 55
- PDF下载量: 13
- 被引次数: 0
出版历程
- 收稿日期: 2026-03-25
- 修回日期: 2026-07-28
- 录用日期: 2026-07-28
- 网络出版日期: 2026-08-28

Reynolds Decomposition Motion-Guided Texture Learning for Scarred Myocardium Phenotyping

1.
School of Computer Science and Technology, Zhejiang Sci-Tech University , Hangzhou 310018, China
2.
School of Cyber Science and Engineering, Southeast University, Nanjing 211189, China

Funds: The National Natural Science Foundation of China (62272415)

摘要

摘要: 针对现有基于心脏电影磁共振成像的瘢痕心肌分型方法中运动表征过于离散化且多模态融合机制难以挖掘深层病理关联的问题，该文提出一种基于运动引导纹理学习的瘢痕心肌分型方法(MGTNet)。该方法旨在通过精细化的运动场先验主动引导纹理特征的提取，实现运动与纹理的深度协同。首先引入流体力学中的雷诺分解思想构建雷诺分解运动网络，将心肌运动场解耦为规律性的平均运动与异常性的脉动运动以捕捉微小的运动异常。其次设计运动引导注意力模块，以提炼后的运动特征作为查询向量，通过交叉注意力机制定向增强纹理特征对病灶区域的感知能力。最后结合帧间运动交互与帧内纹理提取模块，实现端到端的精确分型。在CMRD与公开的ACDC数据集上的实验结果表明，该方法在各项关键指标上均优于现有的单模态及多模态融合方法。具体而言，MGTNet在两个数据集上的准确率分别达到95.6%和97.3%，AUC值均超过0.960。相比于基线网络运动与纹理网络(MTNet)，该方法在准确率和F1分数上最高分别提升了1.4%和2.3%。结果证实MGTNet通过利用运动先验信息引导纹理特征提取的策略，有效提升了瘢痕心肌的无创诊断精度。
- 瘢痕心肌分型 /
- 心脏电影磁共振成像 /
- 雷诺分解 /
- 运动引导注意力 /
- 多模态融合
Abstract: Objective Scarred myocardium is a key imaging marker of multiple cardiovascular diseases, and accurate phenotyping is clinically valuable for treatment planning and prognosis. Cine-MRI noninvasively provides both cardiac motion and anatomical texture information. However, existing classification methods have two major limitations. First, motion representation is often overly discretized and insensitive to subtle abnormalities. Second, multimodal fusion commonly relies on simple feature concatenation, which limits the ability to capture the deep pathological association between motion impairment and texture alteration. A motion-guided texture learning framework is therefore developed to improve the accuracy of non-invasive scarred myocardium classification. Methods A Motion-Guided Texture fusion Network (MGTNet) is proposed to enable deep interaction between motion and texture features. First, inspired by Reynolds decomposition in fluid dynamics, a Reynolds Decomposition Motion Network (RDMNet) is designed within a diffeomorphic registration framework to decompose the myocardial motion field into a regular mean motion component and an abnormal pulsatile motion component. This decomposition provides a refined motion representation that is sensitive to subtle abnormalities. Second, a Motion-Guided Cross-Attention (MGCA) module is designed, in which refined motion features serve as query features to dynamically modulate texture features and enhance the perception of suspected lesion regions. In addition, an inter-frame motion interaction module is used to capture temporal dependencies across cardiac frames, while an intra-frame texture extraction module learns multi-scale spatial texture patterns within each frame. Through a serial pipeline of motion field estimation, motion-guided texture enhancement, and feature fusion, end-to-end scarred myocardium classification is achieved. Results and Discussions Experiments on the CMRD and ACDC datasets show that MGTNet consistently outperforms existing single-modality and multimodal methods (Tables 1 and 2). It achieves accuracies of 95.6% on CMRD and 97.3% on ACDC, with AUC values of 96.6% and 96.0%, respectively. Compared with the baseline MTNet, MGTNet improves accuracy by up to 1.4 percentage points and the F1-score by up to 2.3 percentage points. Further comparisons with different motion field estimation methods (Tables 3 and 4) show that RDMNet provides more discriminative motion priors and achieves the best overall performance on both datasets. These results indicate that fine-grained motion modeling and motion-guided texture enhancement effectively capture complementary pathological information from Cine-MRI. The ROC curves of the nine methods on both datasets further support the superior classification performance of the proposed method. Conclusions A scarred myocardium classification method based on motion-guided texture learning is presented. Reynolds decomposition is incorporated into motion field estimation to separate regular mean motion from abnormal pulsatile motion, and cross-attention is used to guide texture extraction with motion priors. This strategy addresses the limitations of discrete motion representation and shallow multimodal fusion. The results confirm that deep motion-texture interaction improves the accuracy and robustness of non-invasive scarred myocardium classification and provides an effective approach for Cine-MRI-based myocardial phenotyping.
- Scarred myocardium classification /
- Cine Magnetic Resonance Imaging (Cine-MRI) /
- Reynolds decomposition /
- Motion-guided attention /
- Multimodal fusion

HTML全文

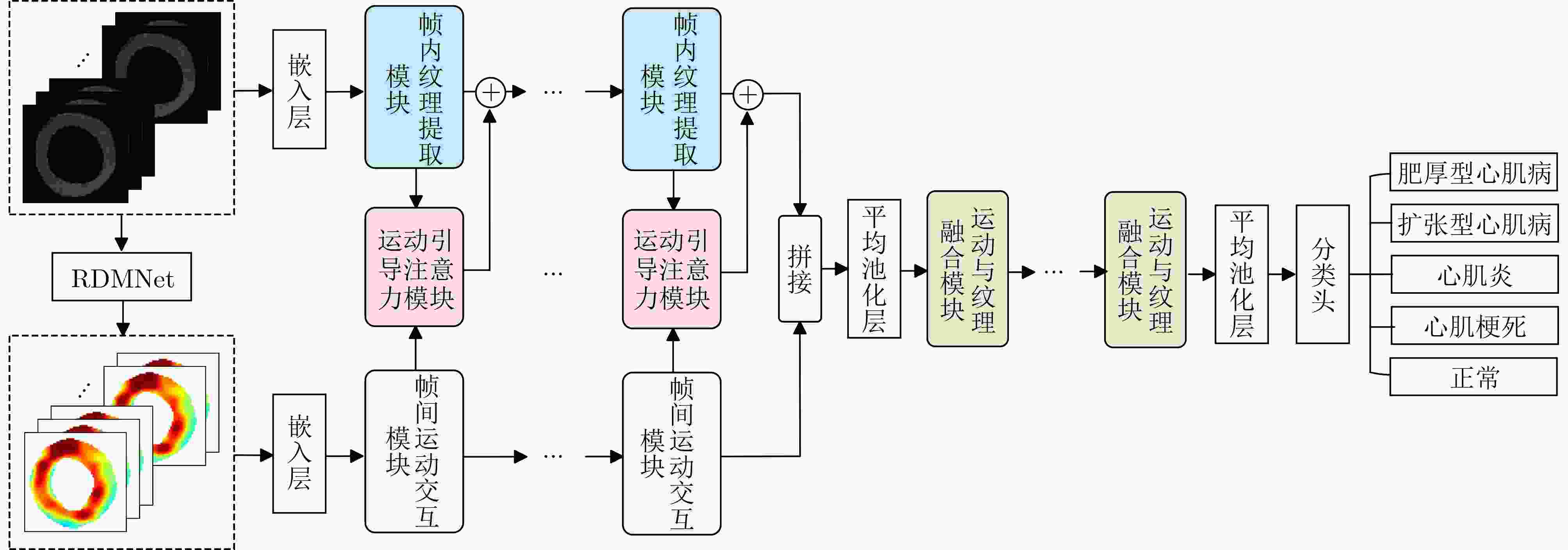

图 1 运动引导纹理融合网络

下载: 全尺寸图片幻灯片

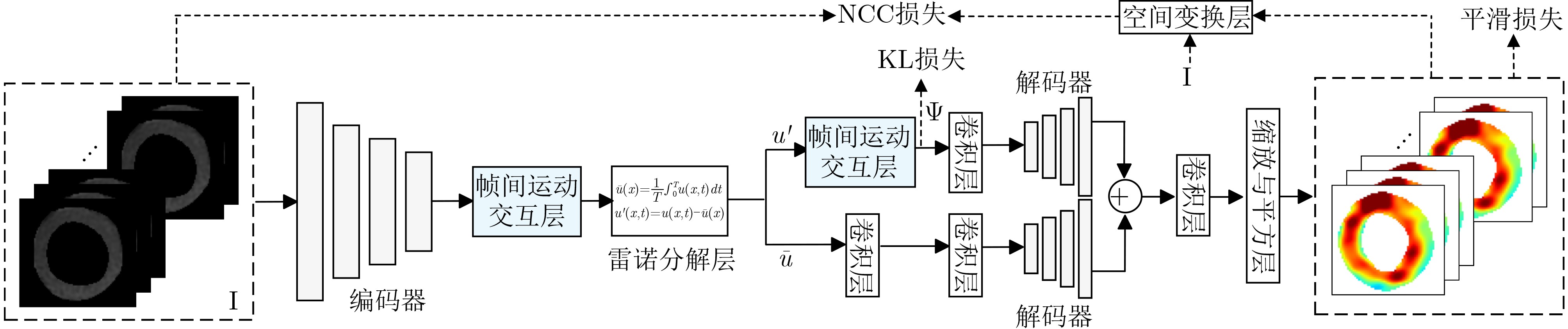

图 2 雷诺分解运动网络RDMNet

下载: 全尺寸图片幻灯片

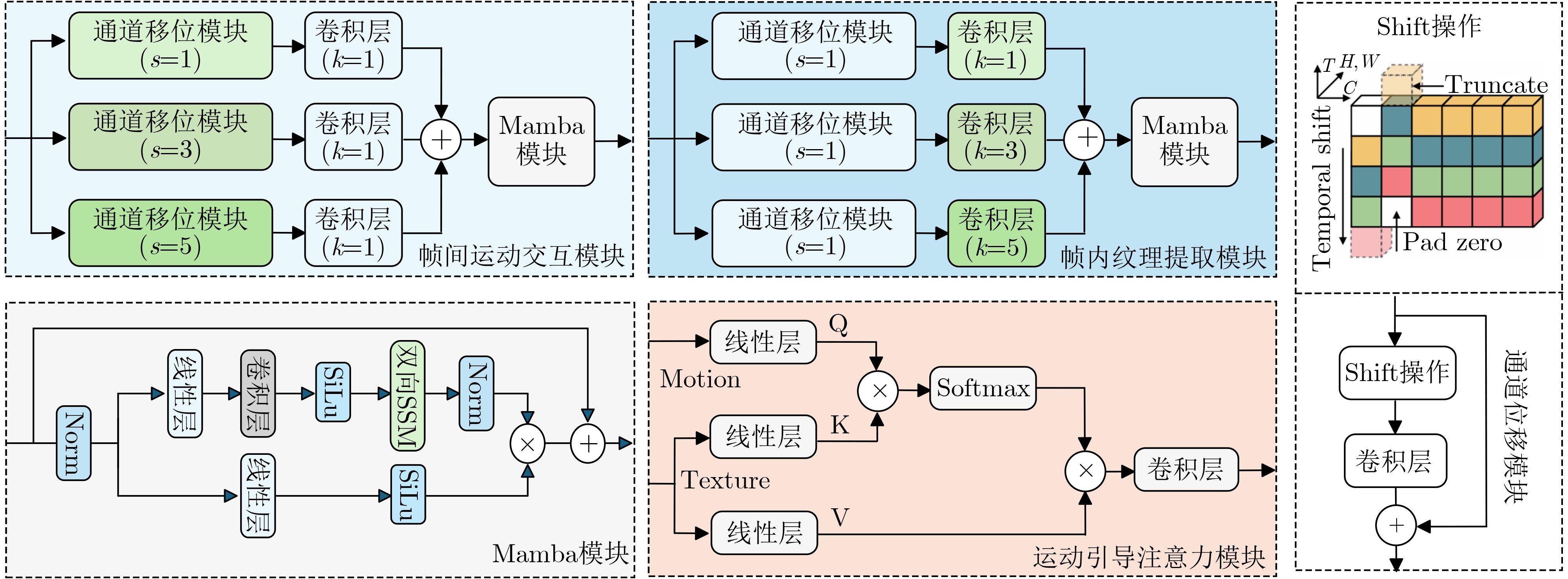

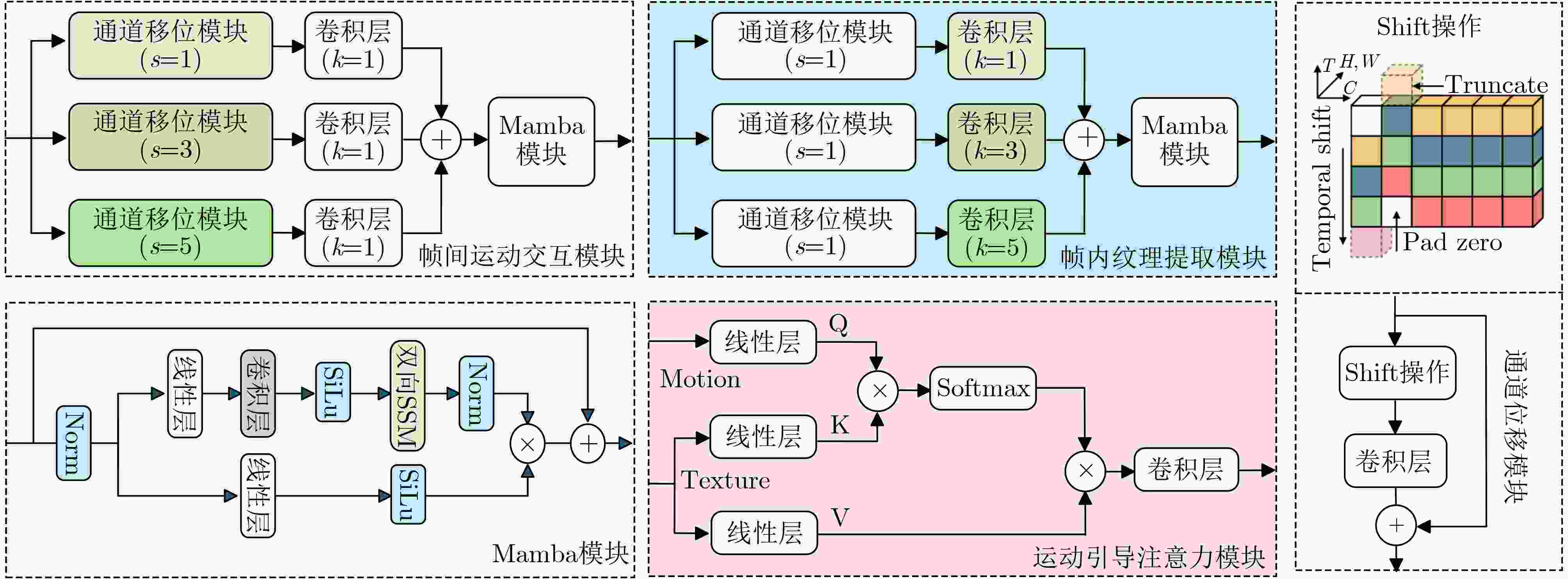

图 3 帧间运动交互模块和帧内纹理提取模块示意图

下载: 全尺寸图片幻灯片

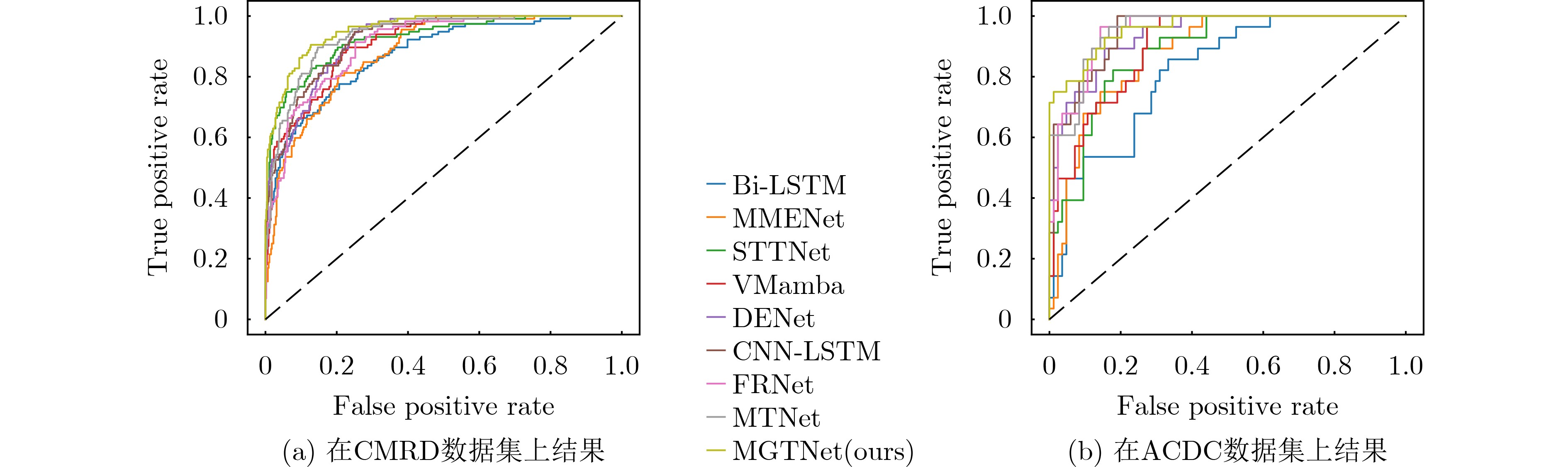

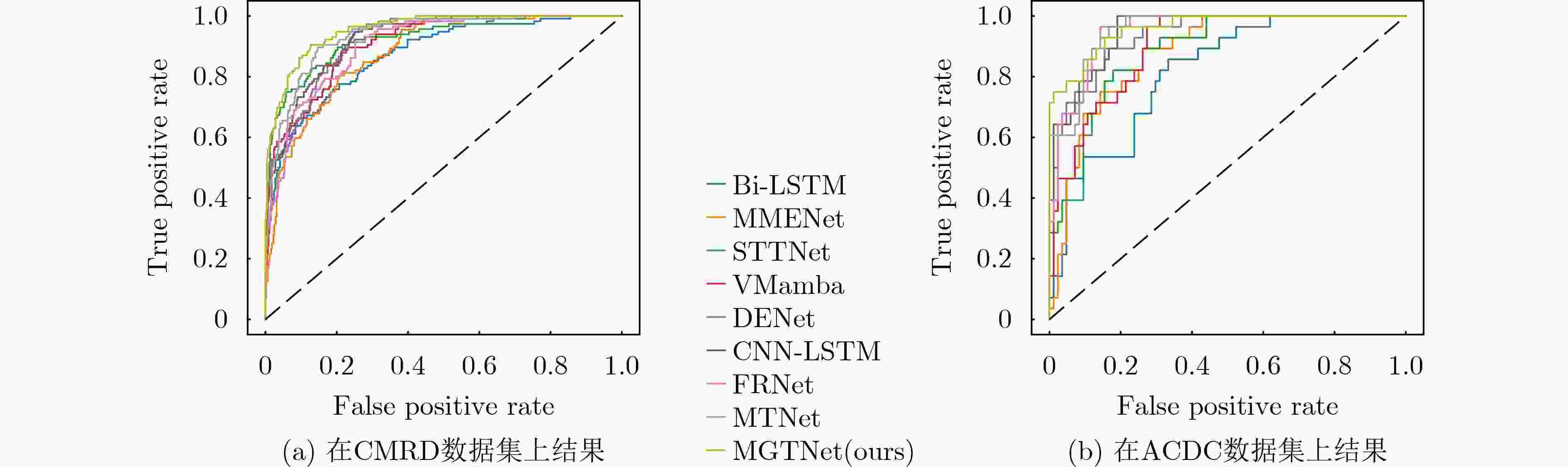

图 4 CMRD和ACDC数据集下9种方法的ROC曲线

下载: 全尺寸图片幻灯片

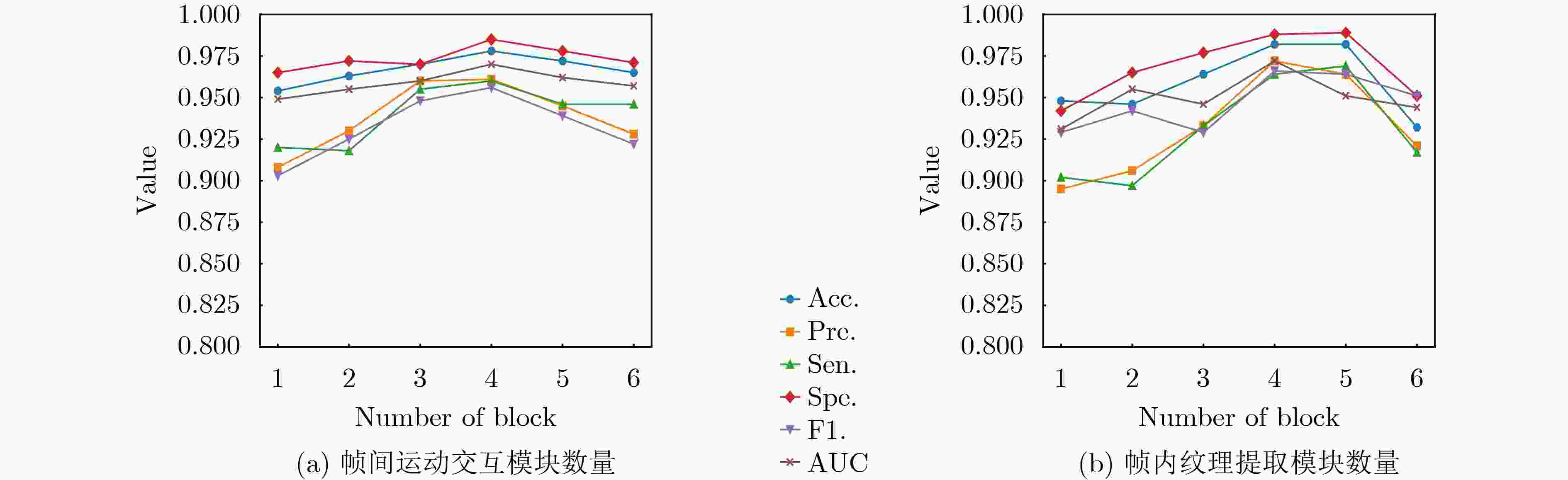

图 5 对MGTNet中帧间运动交互模块和帧内纹理提取模块最佳数量的讨论

下载: 全尺寸图片幻灯片

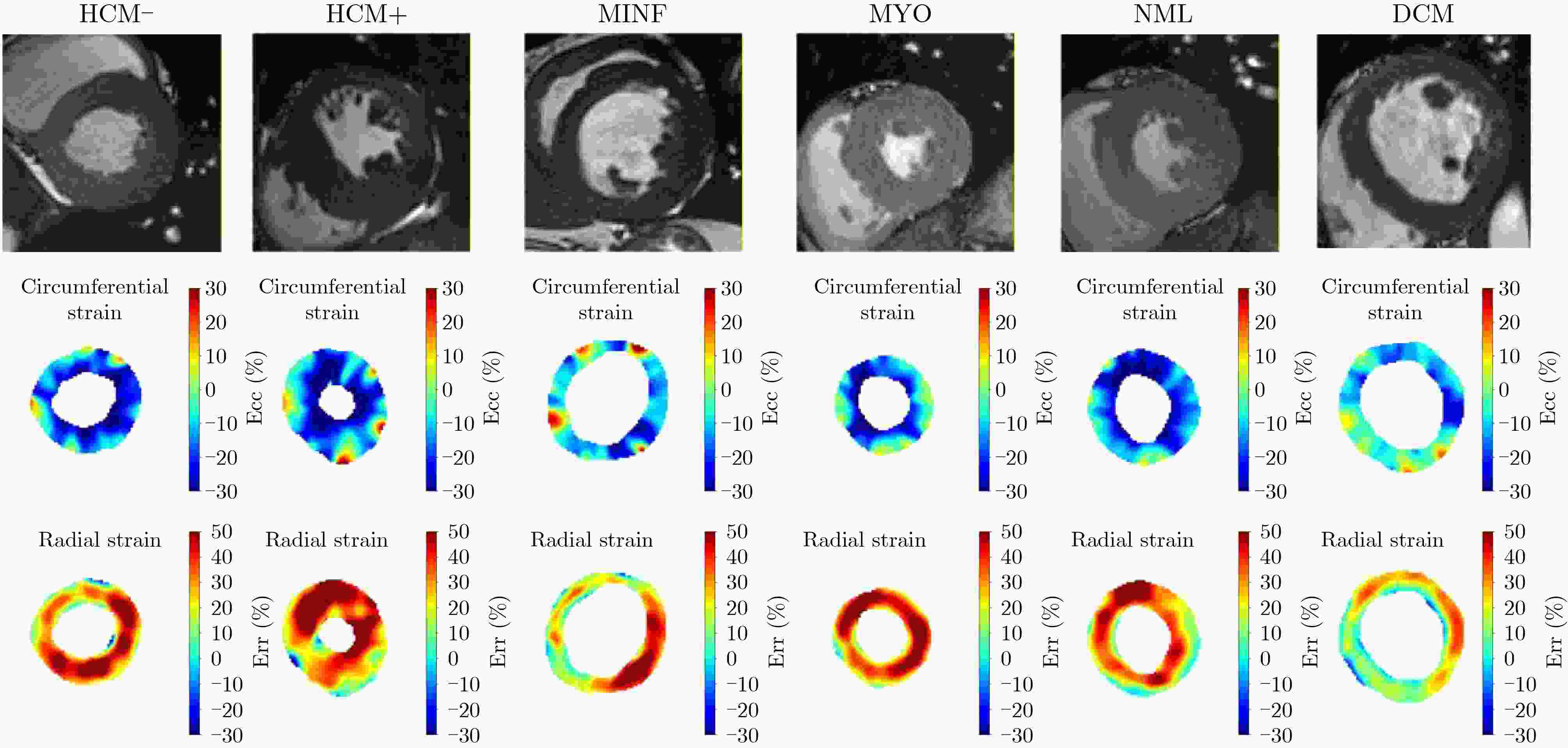

图 6 对6种案例的运动场的径向运动和环形运动可视化

下载: 全尺寸图片幻灯片

表 1 在CMRD数据集上对比9种方法的分类性能(%)

方法	准确率	精确率	敏感度	特异性	F1分数	AUC值
Bi-LSTM	85.5±1.8	56.5±3.0	54.4±3.8	90.4±1.1	53.0±3.2	88.5±1.7
MMENet	86.2±1.7	60.3±3.1	57.5±3.7	90.1±0.7	57.2±2.9	90.6±1.5
STTNet	91.0±1.0	75.2±2.3	71.0±3.0	92.9±0.3	71.3±2.0	93.7±1.0
VMamba	89.6±0.8	70.8±2.8	61.9±3.5	92.4±0.6	62.3±2.7	92.6±1.0
DENet	90.8±1.0	74.6±2.8	68.3±3.0	93.3±0.7	68.4±2.8	93.1±1.3
CNN-LSTM	91.9±0.8	78.5±2.5	74.7±2.5	94.2±0.5	74.6±2.3	93.8±1.1
FRNet	92.1±0.6	82.3±2.0	81.1±2.0	92.0±0.4	80.7±2.0	92.4±0.9
MTNet	94.2±0.4	86.1±1.7	87.5±1.8	95.9±0.3	86.8±1.8	95.1±0.8
MGTNet(本文)	95.6±0.4	88.7±1.5	86.9±1.7	96.3±0.3	89.1±1.7	96.6±0.7

下载: 导出CSV

表 2 在ACDC数据集上对比九种方法的分类性能(%)

方法	准确率	精确率	敏感度	特异性	F1分数	AUC值
Bi-LSTM	80.4±2.7	60.0±4.1	61.4±4.1	86.8±2.5	60.8±3.7	82.3±2.4
MMENet	78.6±2.7	64.4±3.8	60.7±4.6	85.5±2.7	59.6±3.5	81.8±2.6
STTNet	85.7±2.3	72.1±3.5	71.4±3.8	90.5±1.8	70.3±3.4	89.4±1.6
VMamba	91.1±1.8	82.3±3.2	82.0±2.6	94.1±1.3	81.1±3.4	89.8±1.7
DENet	92.5±1.5	84.6±2.8	85.0±2.4	95.2±1.1	84.0±2.9	91.2±1.4
CNN-LSTM	93.8±1.3	88.0±2.5	88.5±2.1	96.3±0.9	87.8±2.4	93.0±1.2
FRNet	93.4±1.0	92.0±1.8	91.2±1.7	96.3±1.0	90.1±2.0	93.5±1.0
MTNet	96.9±1.7	94.4±3.0	94.1±2.3	98.0±1.1	93.7±3.6	95.6±1.1
MGTNet(本文)	97.3±1.4	95.2±2.1	95.0±1.7	98.0±1.0	94.5±3.4	96.0±1.0

下载: 导出CSV

表 3 以MGTNet为网络主干，对比不同的运动场提取方法在CMRD数据集上的性能(%)

主干	运动	准确率	精确率	敏感度	特异性	F1分数	AUC值
MGTNet	BOF	88.5±1.5	79.6±3.0	74.4±4.0	84.9±1.8	85.0±3.2	89.1±1.8
	MEB	89.0±1.5	80.0±3.0	75.0±4.0	85.5±1.8	85.5±3.2	89.5±1.8
	MQS	85.2±1.8	75.0±3.5	70.0±4.5	83.0±2.0	80.0±3.5	86.0±2.0
	Voxelmorph	94.0±0.8	86.0±2.0	84.0±2.0	95.0±0.6	87.0±1.8	95.0±0.9
	Deeptag	95.0±0.5	88.0±1.5	86.0±1.7	96.4±0.3	88.8±1.6	96.2±0.7
	TransMorph	94.3±0.7	86.5±1.8	84.5±1.8	95.3±0.5	87.5±1.7	95.3±0.8
	CorrMLP	94.7±0.6	87.2±1.6	85.5±1.6	95.8±0.4	88.2±1.6	95.8±0.7
	RDMNet(本文)	95.6±0.4	88.7±1.5	86.9±1.7	96.3±0.3	89.1±1.7	96.6±0.7

下载: 导出CSV

表 4 以MGTNet为网络主干，对比不同的运动场提取方法在ACDC数据集上的性能(%)

主干	运动	准确率	精确率	敏感度	特异性	F1分数	AUC值
MGTNet	BOF	89.5±1.5	77.6±3.0	80.4±3.2	89.1±1.6	85.0±3.2	90.5±1.6
	MEB	90.0±1.5	78.5±3.0	81.0±3.2	89.5±1.6	85.5±3.2	91.0±1.6
	MQS	86.0±1.8	75.0±3.5	77.0±3.5	87.0±1.8	82.0±3.5	88.0±1.8
	Voxelmorph	92.0±1.3	85.0±2.8	87.0±2.5	93.0±1.3	88.0±3.0	92.5±1.3
	Deeptag	95.5±1.0	93.0±2.2	92.0±2.0	96.5±0.9	91.5±2.5	94.5±1.0
	TransMorph	93.5±1.2	88.0±2.5	90.0±2.3	94.5±1.1	90.0±2.8	93.5±1.2
	CorrMLP	96.5±0.6	93.5±2.0	94.5±1.5	97.5±0.5	93.5±2.0	95.8±0.6
	RDMNet(本文)	97.3±1.6	95.2±2.8	95.0±2.1	98.0±1.0	94.5±3.4	96.0±1.0

下载: 导出CSV
