应用于边缘端视觉感知系统的低功耗片上缓冲存储器

陈漠; 张静; 王艳蓉; 麦麦提·那扎买提; 乔飞

doi:10.11999/JEIT250466

应用于边缘端视觉感知系统的低功耗片上缓冲存储器

doi: 10.11999/JEIT250466 cstr: 32379.14.JEIT250466

1.
北方工业大学集成电路学院北京 100144
2.
清华大学电子工程系北京 100084

基金项目: 北京市自然科学基金(L253009)，新疆维吾尔自治区重点研发计划项(2022B01008-3)，国家自然科学基金项目(92164203, 62334006)

详细信息

作者简介:
陈漠：男，硕士生，研究方向为低功耗智能视觉感知集成电路设计

张静：女，教授，研究方向为智能感知器件

王艳蓉：女，讲师，研究方向为气敏传感器

麦麦提·那扎买提：男，博士，研究方向为超低功耗智能视觉感知芯片设计，面向视觉感知的能量采集和能量管理架构和电路设计

乔飞：男，副研究员，研究方向为智能感知集成电路与系统

通讯作者:
乔飞　qiaofei@tsinghua.edu.cn

中图分类号: TN492
计量
- 文章访问数: 27
- HTML全文浏览量: 8
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-27
- 修回日期: 2025-08-28
- 网络出版日期: 2025-09-02

Design of Low-Power On-Chip Cache for Visual Perception Systems on the Edge

1.
School of Integrated Circuits, North China University of Technology, Beijing 100144, China
2.
Department of Electronic Engineering, Tsinghua University, Beijing 100084, China

Funds: The Beijing Natural Science Foundation (L253009), The Key Research and Development Program of Xinjiang Uygur Autonomous Region (2022B01008-3), The National Natural Science Foundation of China (92164203, 62334006)

摘要

摘要: 视觉感知系统通过算法提取信息，但其能效受限于感知过程中数据转换与搬移的功耗开销。采用片上缓存实现边缘端系统中数据的存储与交互，通过减少对冗余信息的传输与搬运过程中的功耗，可有效降低系统的整体功耗。该研究提出了一种面向边缘计算的低功耗片上缓冲存储器(Cache)设计方案。该方案基于静态随机存取存储器(SRAM)单元，根据系统中二值神经网络层间数据量峰值，将缓存容量定制为40.5 Kb，集成在芯片内，专用于存储视觉感知系统的神经网络层间数据。针对传统单体式片上缓存功耗过高的问题，该方案采用分块式存储架构，依据二值神经网络最大池化层输出特征，将缓存阵列划分为8个独立可关断的72×72位子阵列。通过分块存储机制，数据存取过程中的动态功耗得到了有效降低。同时，该文进一步提出动态存储控制策略，利用卷积运算时层间数据量逐层递减的特性，在存取第2层卷积数据时，仅激活必要子阵列，由存储控制模块动态关闭未使用区块，实现功耗深度优化。在TSMC 180 nm CMOS工艺下仿真，结果表明时钟频率在10 MHz时，相较于单一式架构，分块式缓存在存储第1层卷积数据时，读写动态功耗降低64.97%；结合动态存储控制策略后，存储第2层卷积数据时的读写动态功耗进一步降低52.9%。该设计为边缘端视觉感知系统提供了高能效的片上存储解决方案。
- 片上缓冲存储器 /
- 低功耗设计 /
- 静态随机存取存储器
Abstract: Objective The proliferation of Internet of Things (IoT) devices and the growing demand for edge computing have driven increased reliance on edge systems. However, deploying compute-intensive tasks on resource-constrained edge devices significantly raises computational demands and power consumption, thereby placing additional strain on energy-limited terminals. On-chip cache, which temporarily stores frequently accessed data and instructions, plays a crucial role in reducing latency and improving system performance. To address the stringent requirements of edge environments, it is essential to design on-chip caches that offer low power consumption, low manufacturing cost, and stable performance. Methods The proposed on-chip cache employs SRAM-based storage cells and a block-based architecture to store intermediate data between neural network layers. The memory capacity is configured as 40.5 Kb, based on the output feature map of the first neural network layer, which generates the largest data volume. This feature map has spatial dimensions of 72×72 with 8 channels. To enable efficient data scheduling during neural network computation, data from each channel is stored in an independent sub-array. Therefore, the buffer consists of 8 sub-arrays, each implemented as a 72×72 SRAM array with dedicated bit-line and word-line drivers. A memory control module is implemented to exploit the progressive reduction in data volume across convolutional layers. During access to the second convolutional layer, only the required sub-arrays are activated. Unused memory blocks are dynamically powered down by the control module to achieve deep power optimization. Performance evaluation is carried out through simulations using TSMC 180 nm CMOS technology. The evaluation includes measurements of access latency under different process corners and temperatures; read/write dynamic power consumption under varying supply voltages, temperatures, and clock frequencies; and a comparative analysis of dynamic power consumption between monolithic and block-based storage architectures. Results and Discussions The proposed on-chip cache demonstrates strong performance across key evaluation metrics. First, a comprehensive design summary is provided, detailing supply voltage, memory capacity, and layout area under different process variations (Table 1). Second, dynamic read/write power measurements under varying operating temperatures, supply voltages, and clock frequencies (Tables 2–4) confirm excellent energy efficiency, satisfying the stringent power-performance requirements of edge visual sensing applications across diverse conditions. Access latency analysis further confirms stable memory read/write behavior under process corner variations and thermal fluctuations (Fig. 8). A comparative evaluation of power consumption between monolithic and partitioned storage architectures (Table 5), together with benchmarking against state-of-the-art designs (Table 6), demonstrates that the proposed cache achieves significantly lower read/write energy consumption at the same process node, while maintaining stable access characteristics at reduced operating voltages. This design adopts a system-level optimization strategy that emphasizes architectural innovation over costly process scaling. When implemented in more advanced technology nodes, the architecture is expected to achieve substantial gains in energy-per-access, minimum operating voltage, and area efficiency. Conclusions This paper presents the architecture and circuit-level design of an on-chip cache tailored for edge visual perception systems. By optimizing the cache structure for neural network workloads, the proposed design reduces dynamic power consumption through block-based storage and dynamic memory control, thereby enhancing energy efficiency and extending operational endurance. The approach offers broad applicability for edge-based visual perception devices.
- On-Chip Cache /
- Low Power Design /
- SRAM

HTML全文

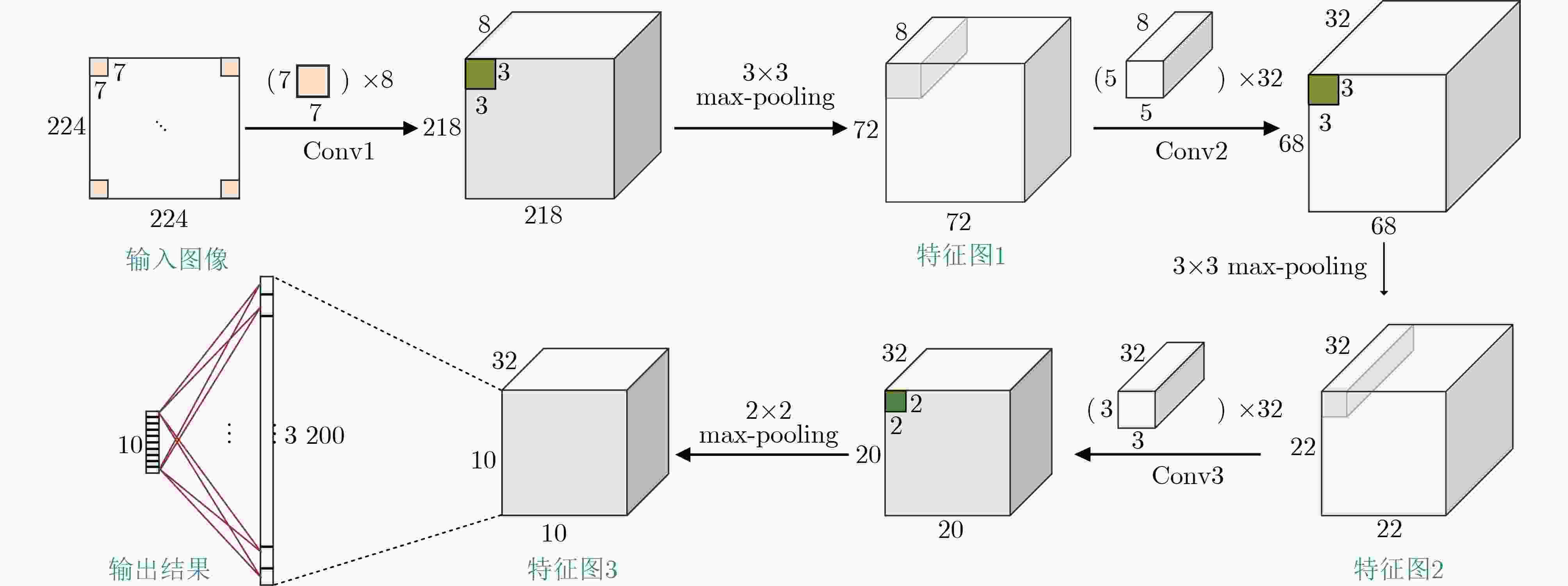

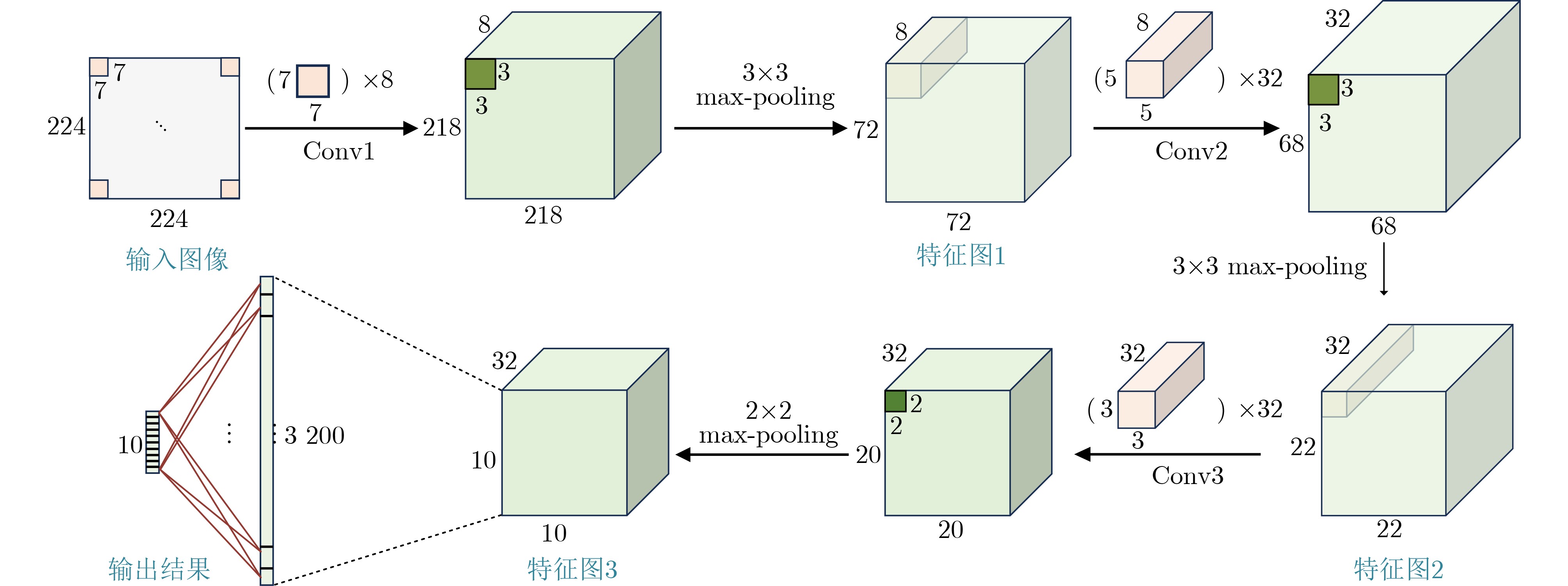

图 1 芯片上部署的四层神经网络的数据流示意图

下载: 全尺寸图片幻灯片

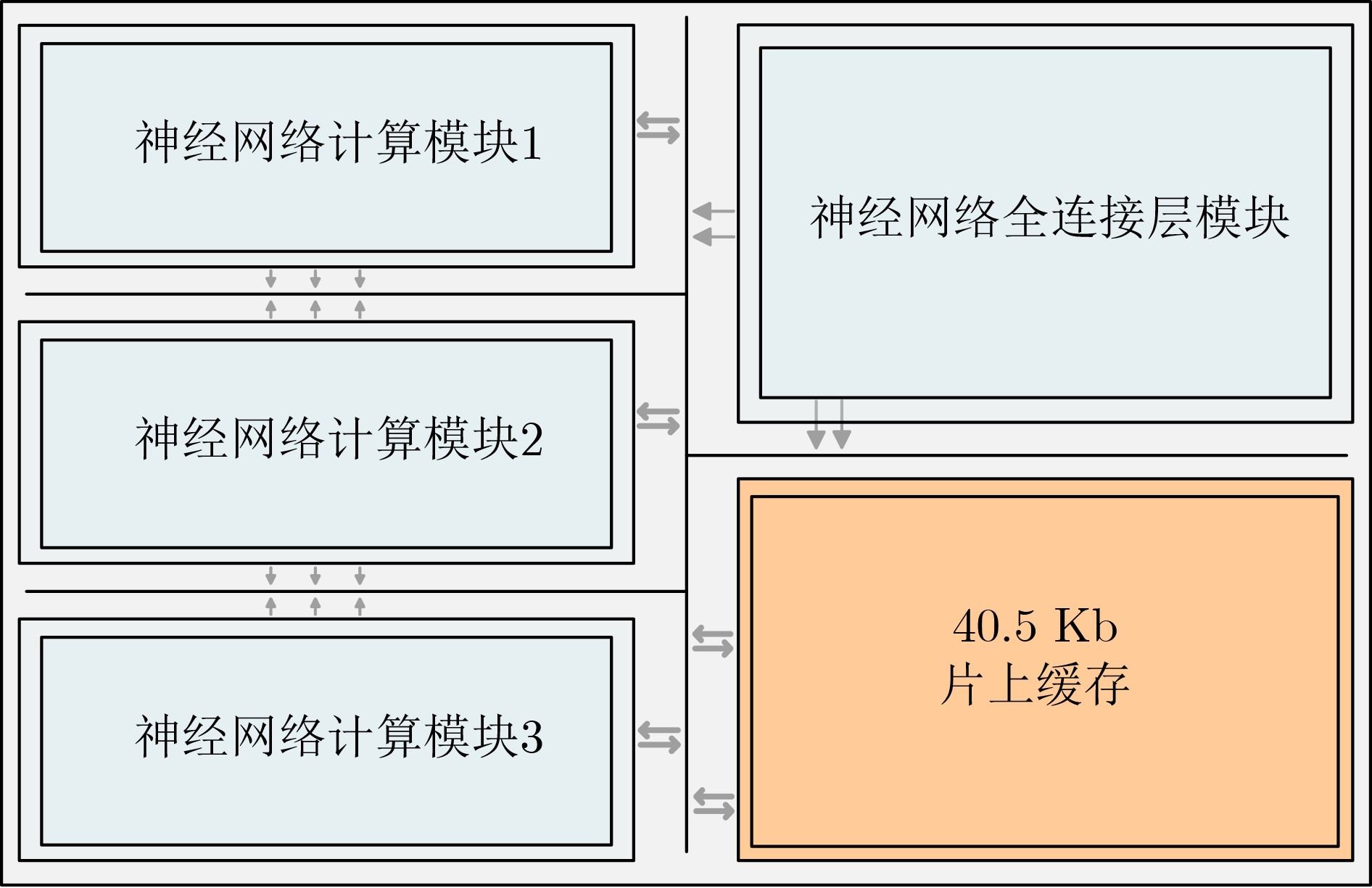

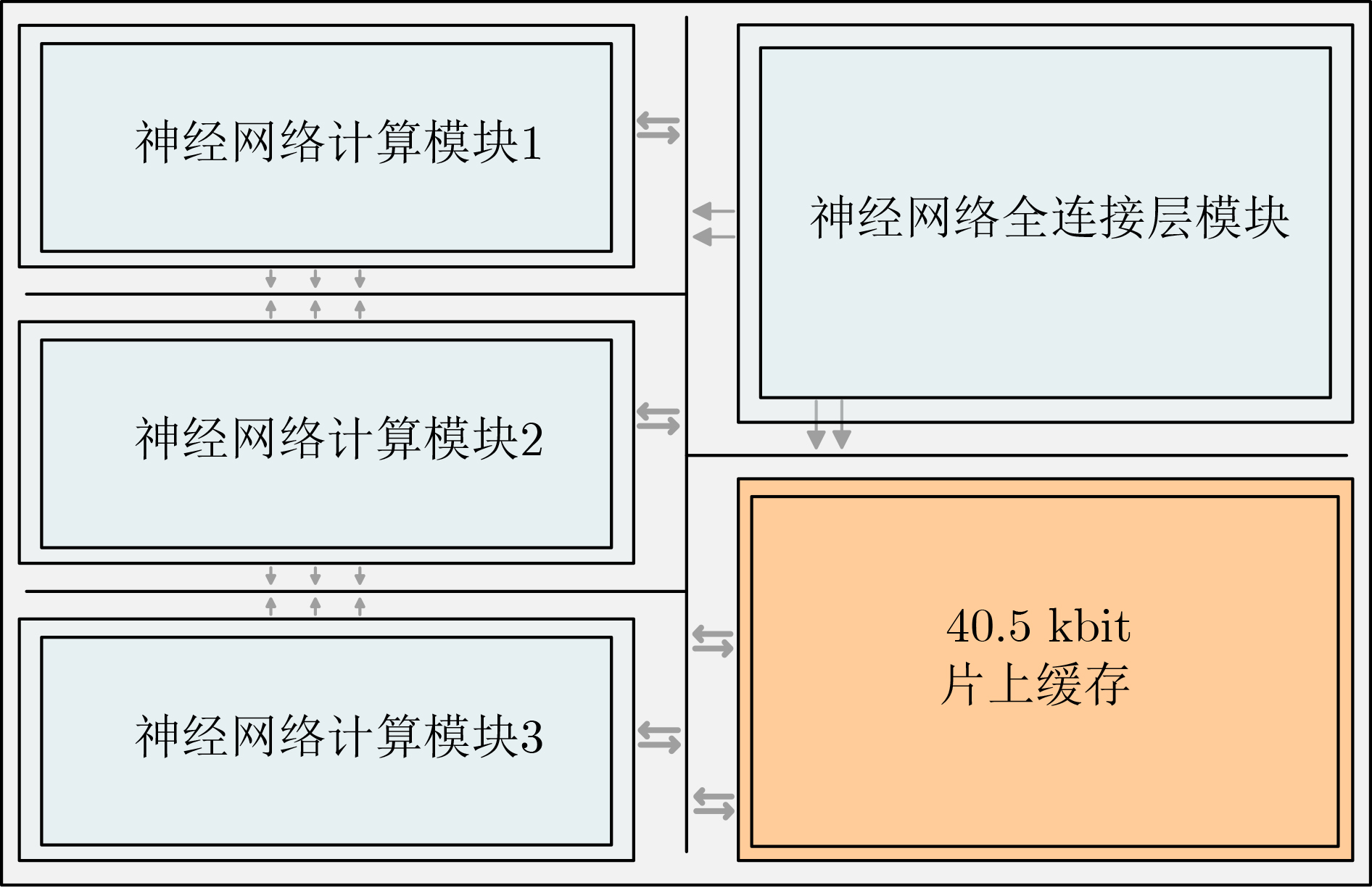

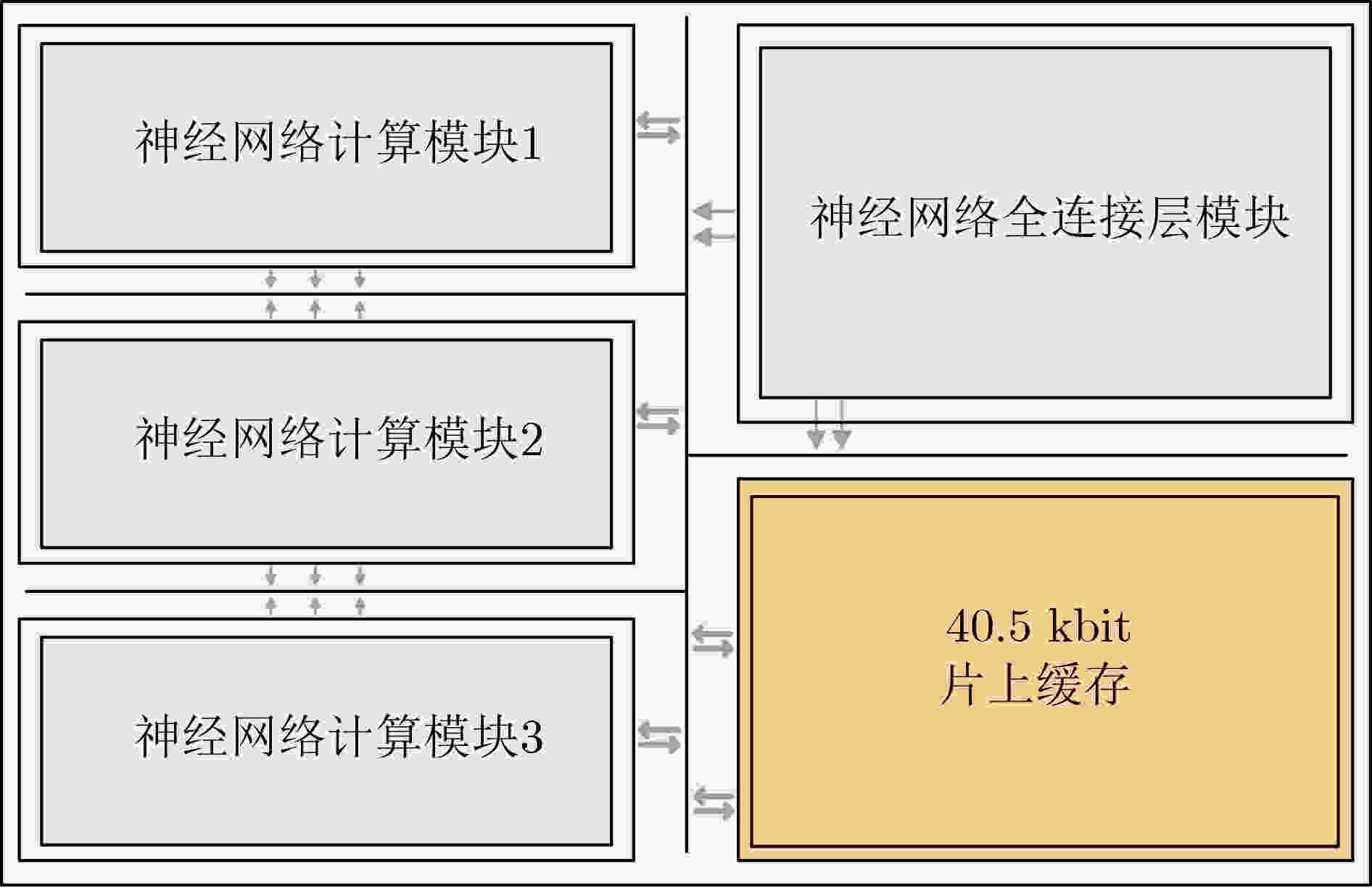

图 2 片上缓存存储器位于系统架构中的位置

下载: 全尺寸图片幻灯片

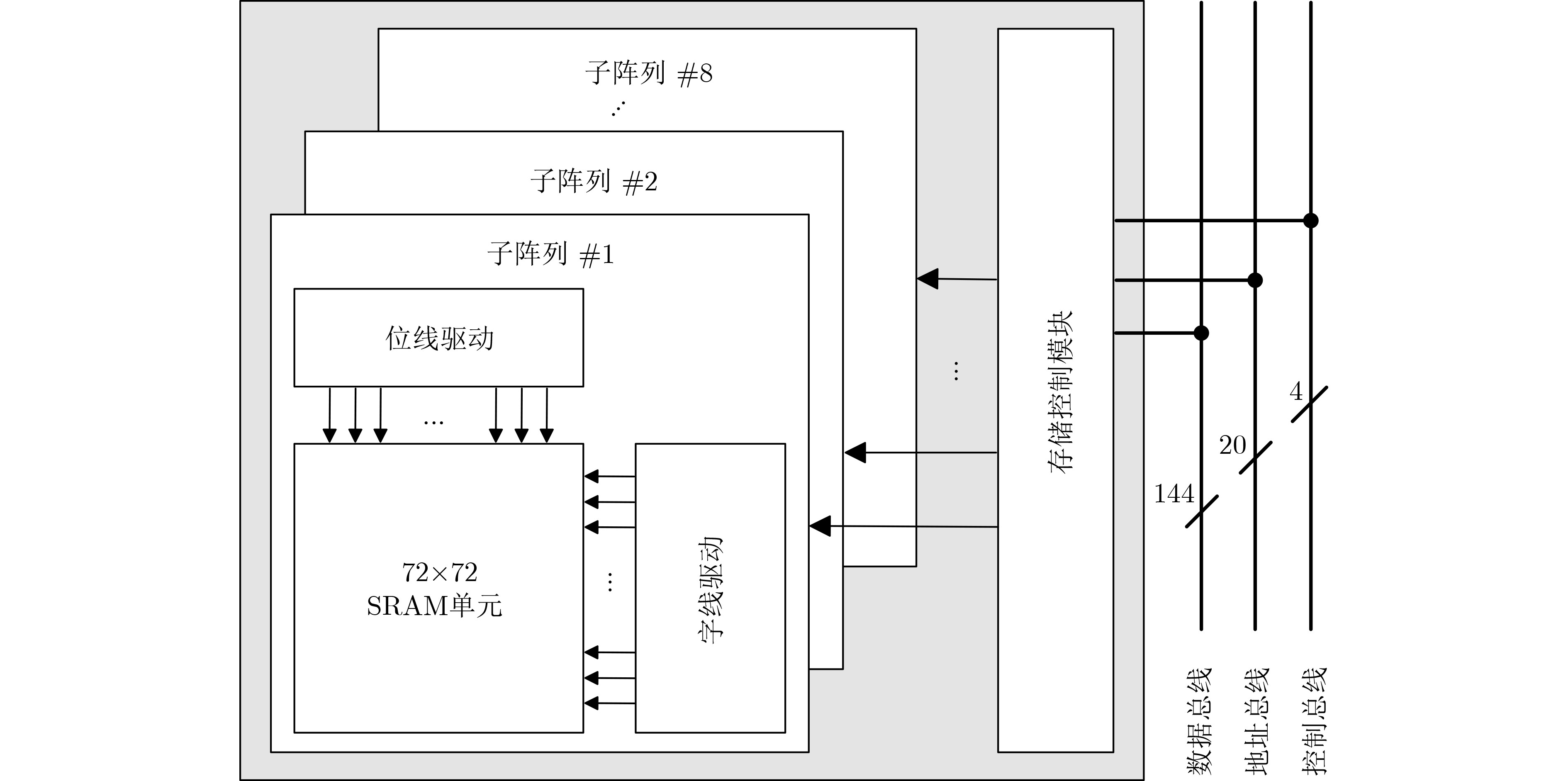

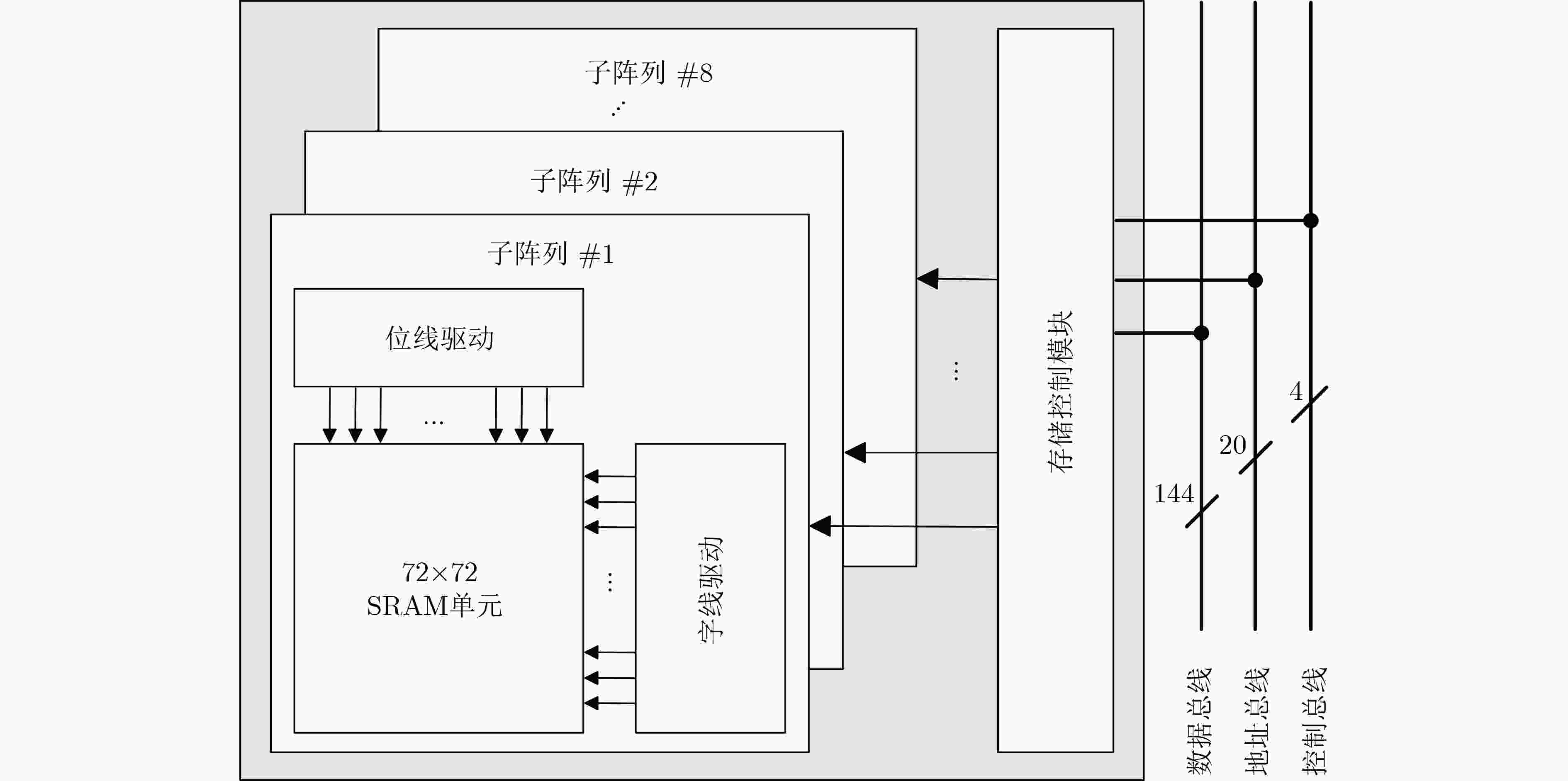

图 3 分块存储片上缓存架构

下载: 全尺寸图片幻灯片

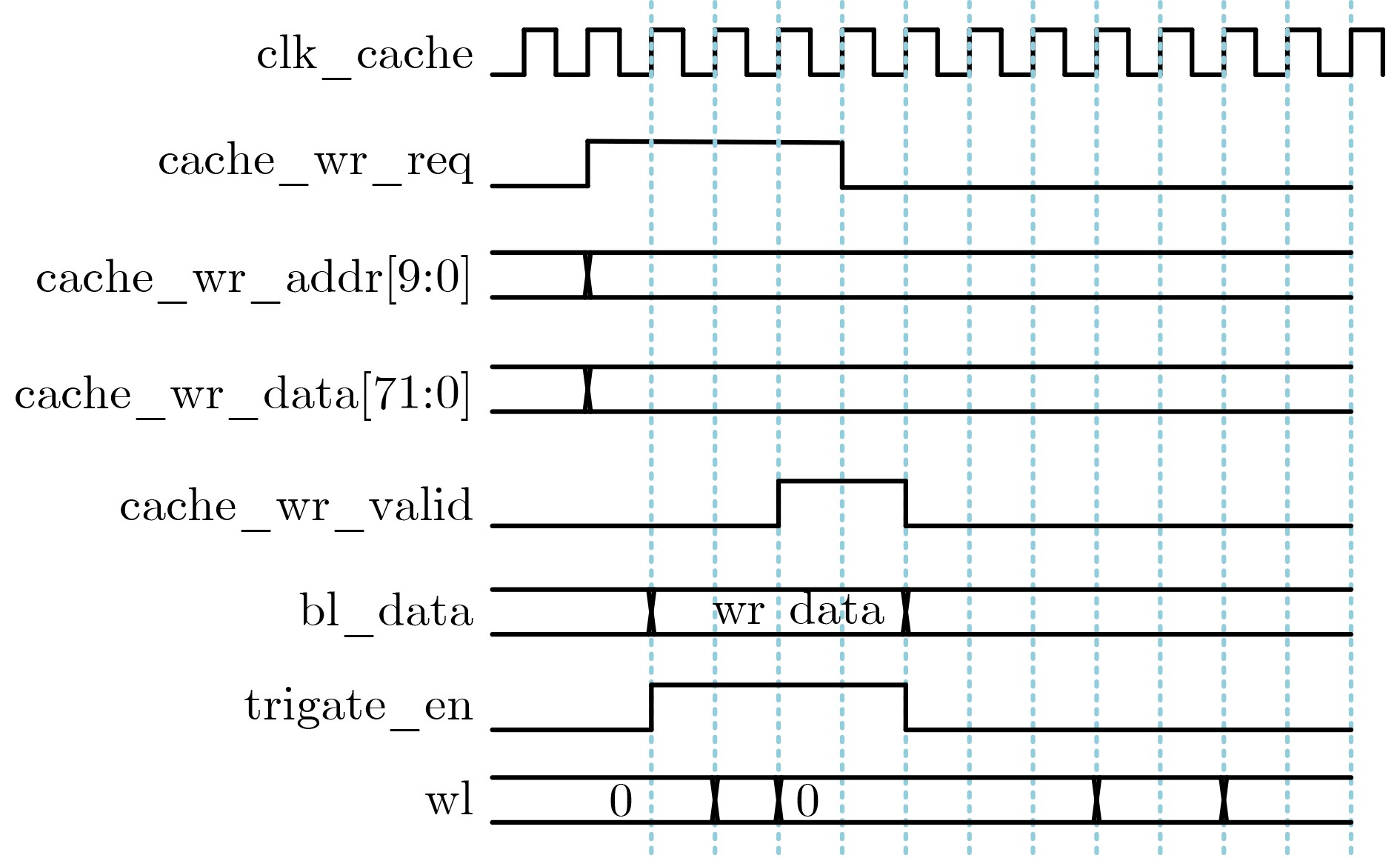

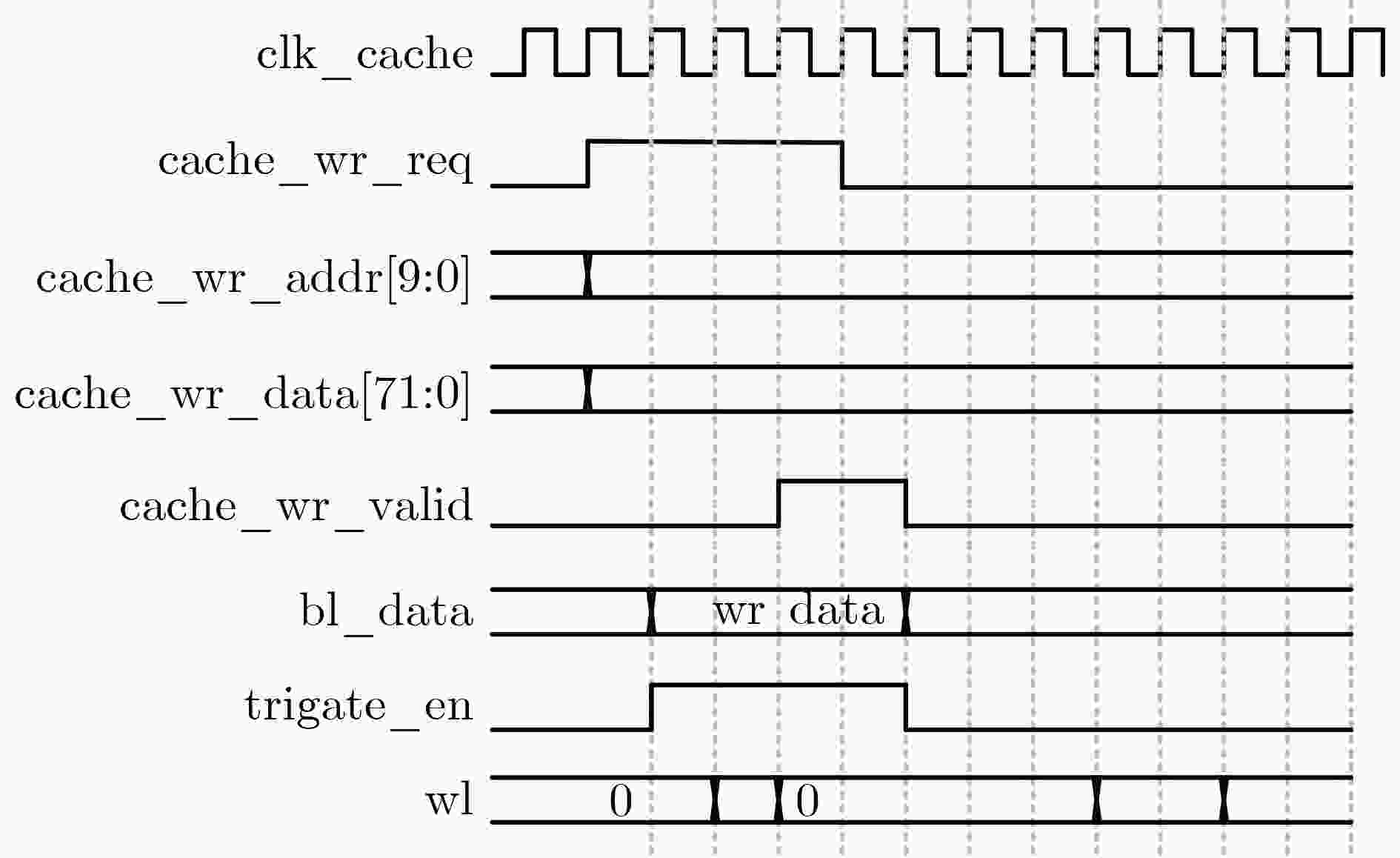

图 4 缓冲存储器写入请求控制逻辑

下载: 全尺寸图片幻灯片

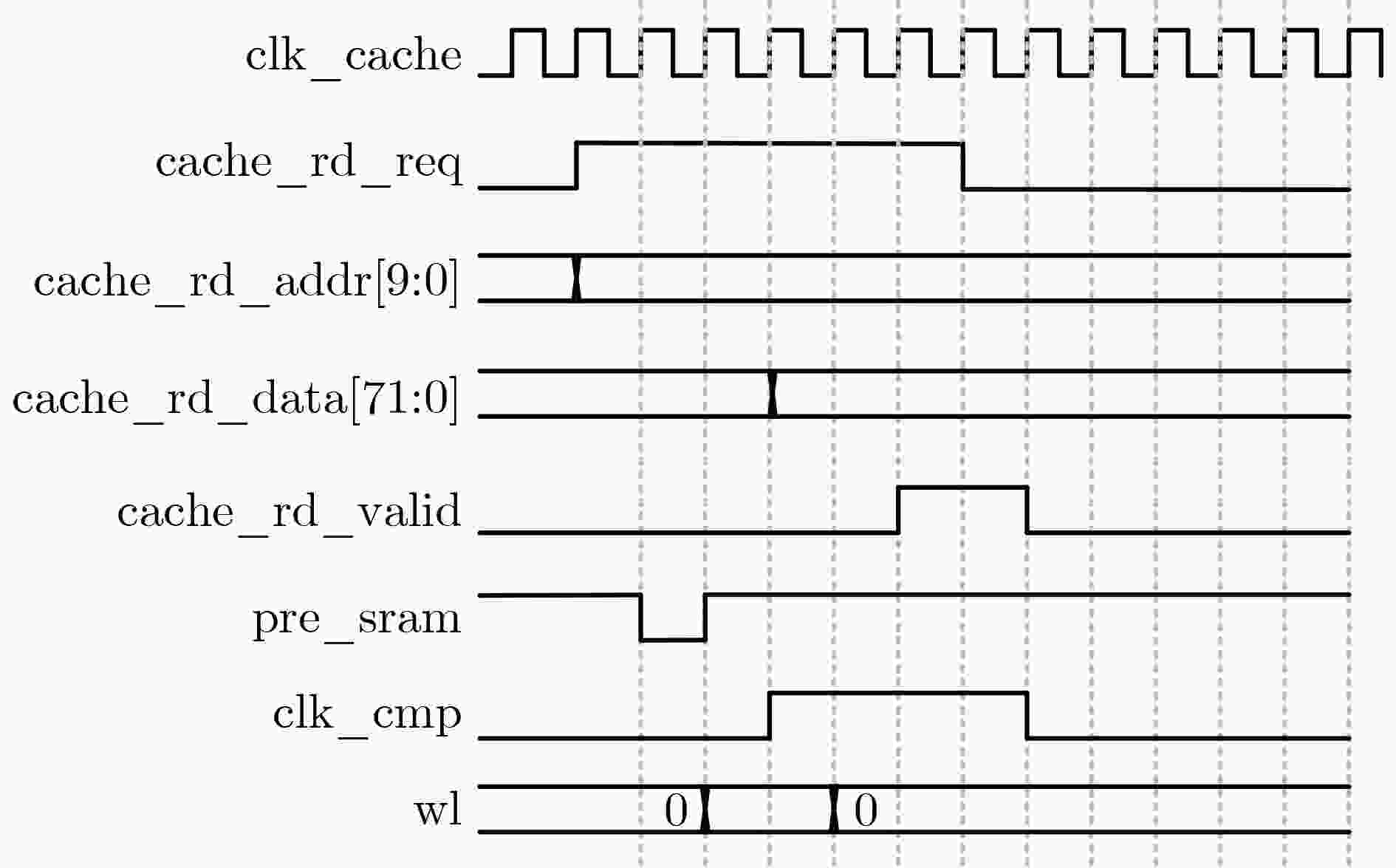

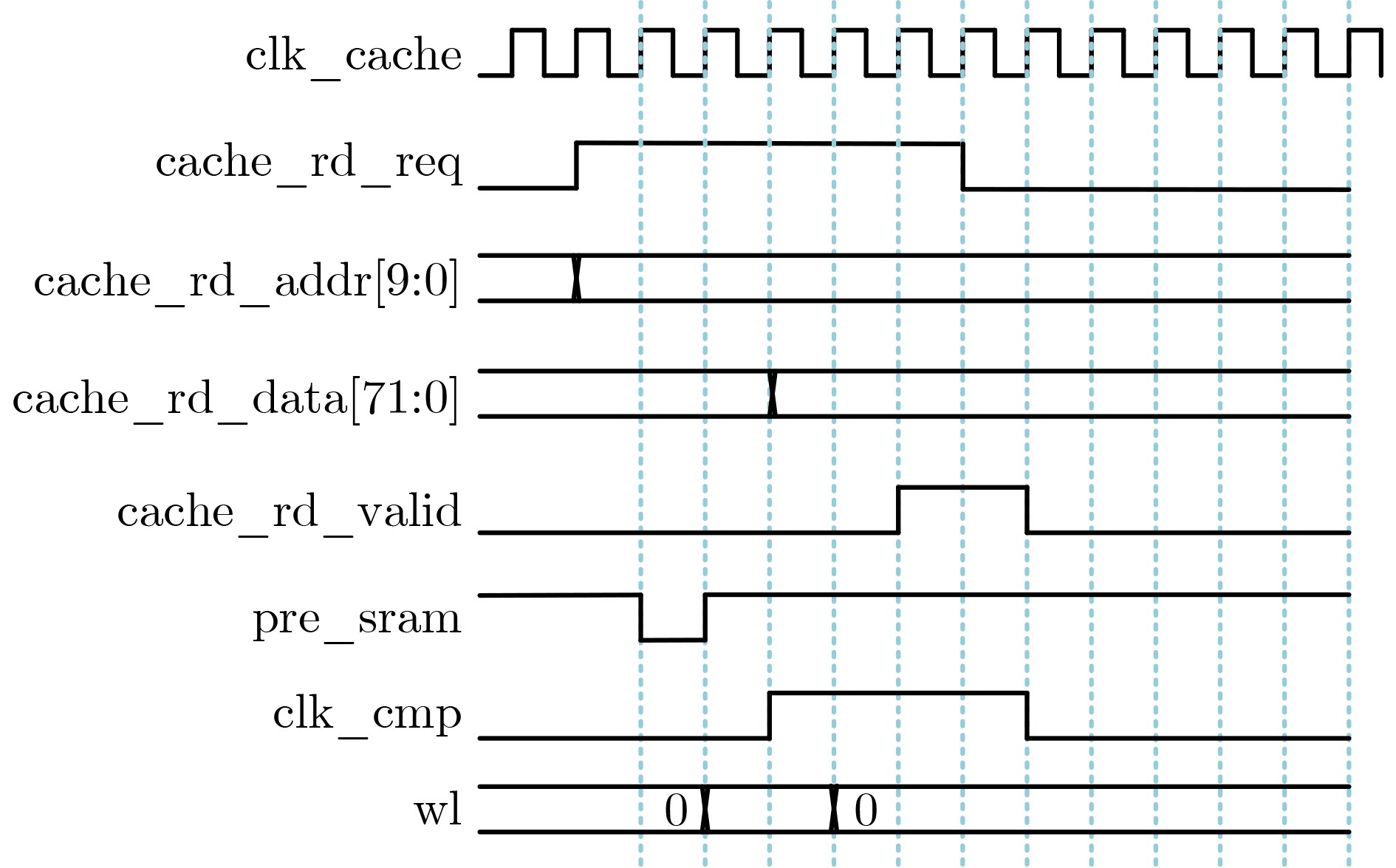

图 5 缓冲存储器读出请求控制逻辑

下载: 全尺寸图片幻灯片

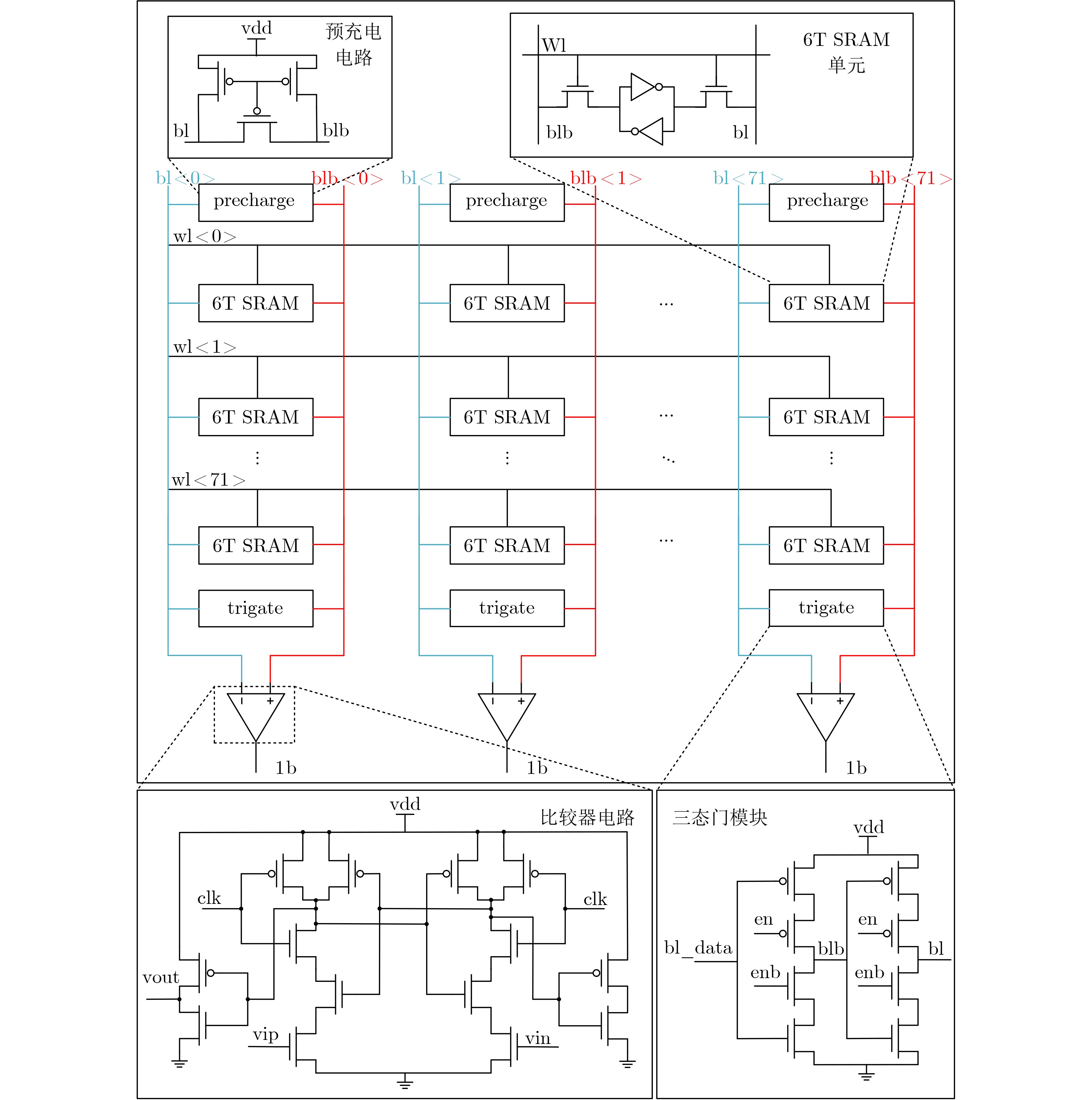

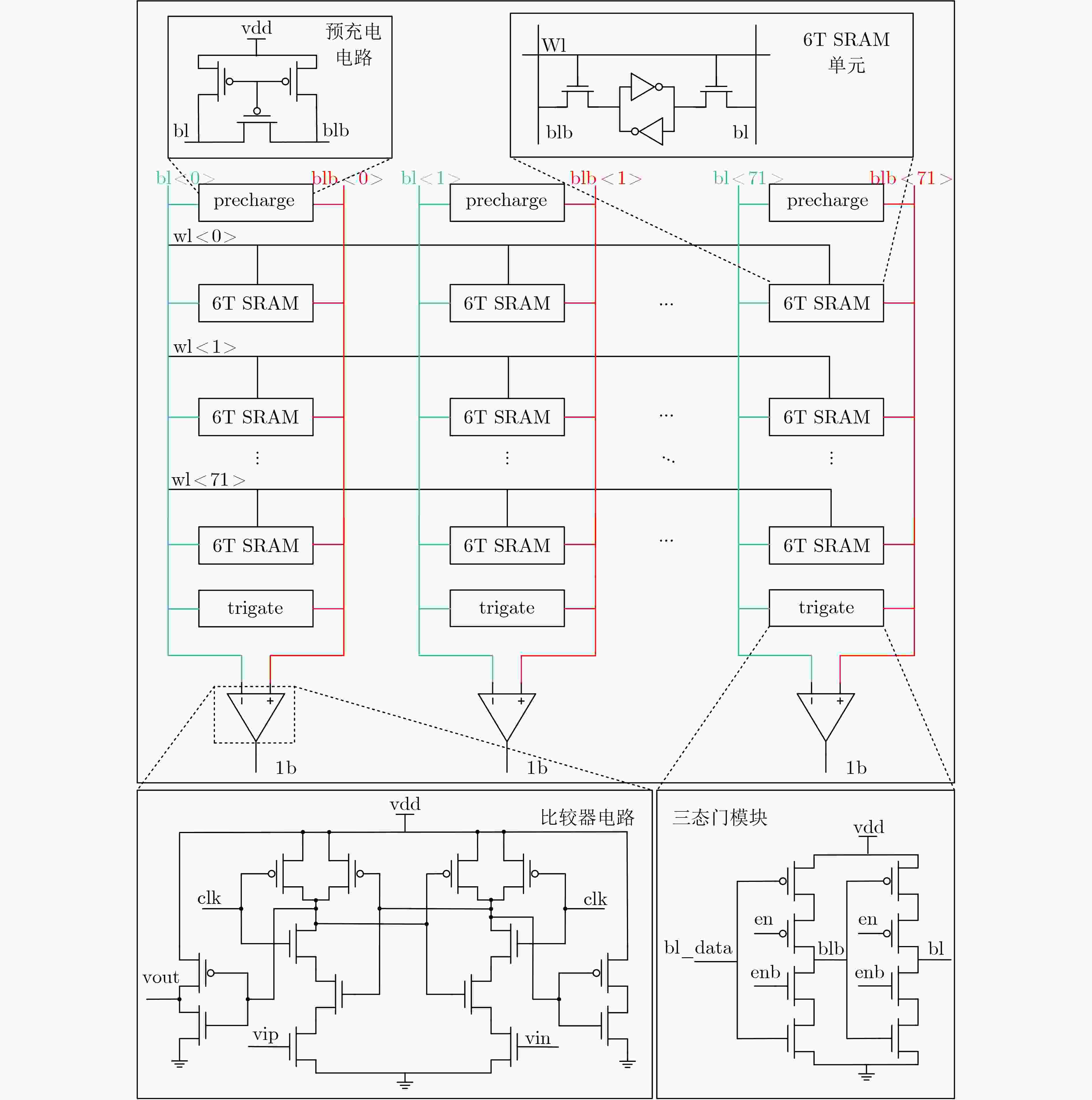

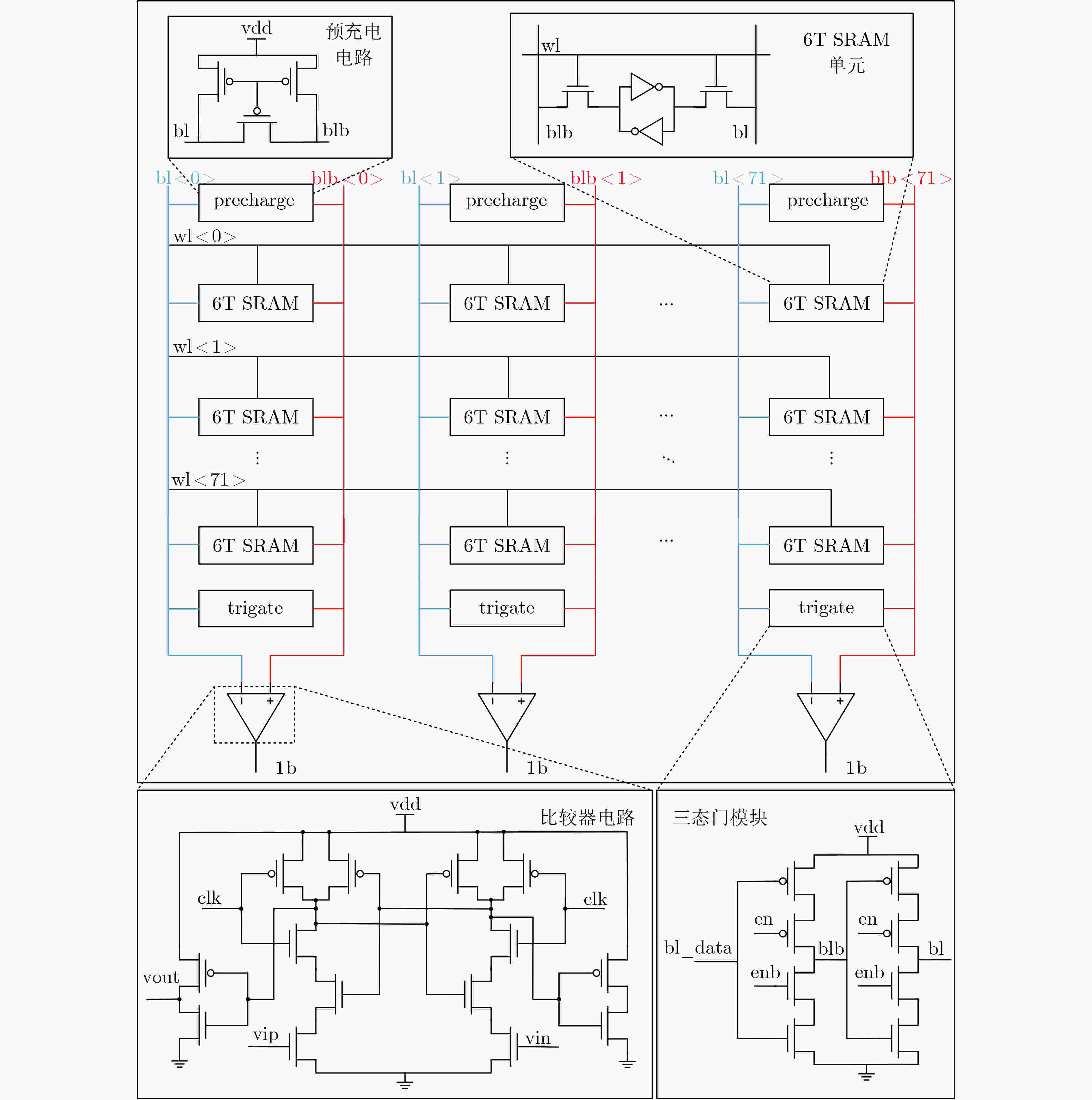

图 6 72×72 SRAM子阵列架构

下载: 全尺寸图片幻灯片

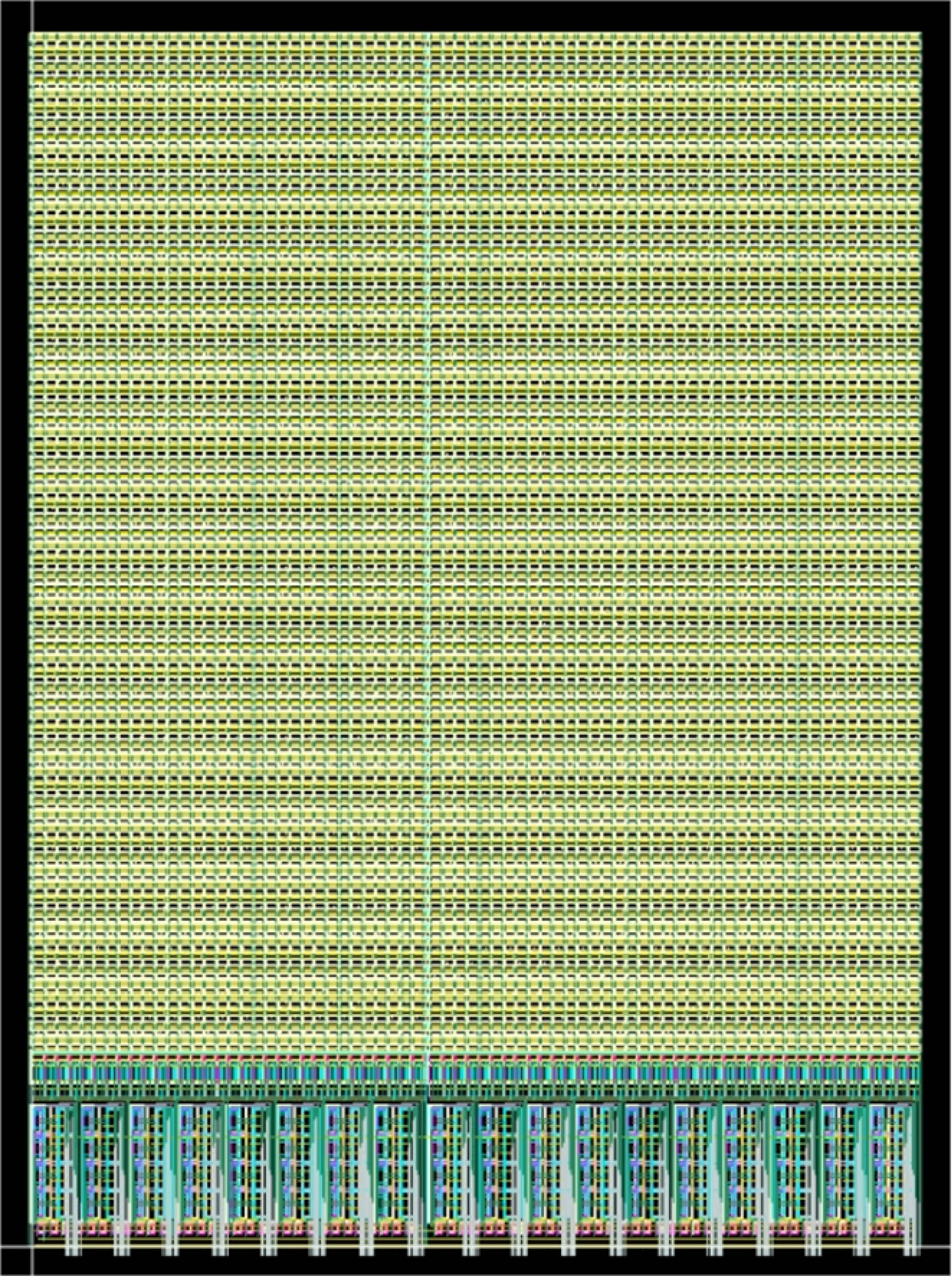

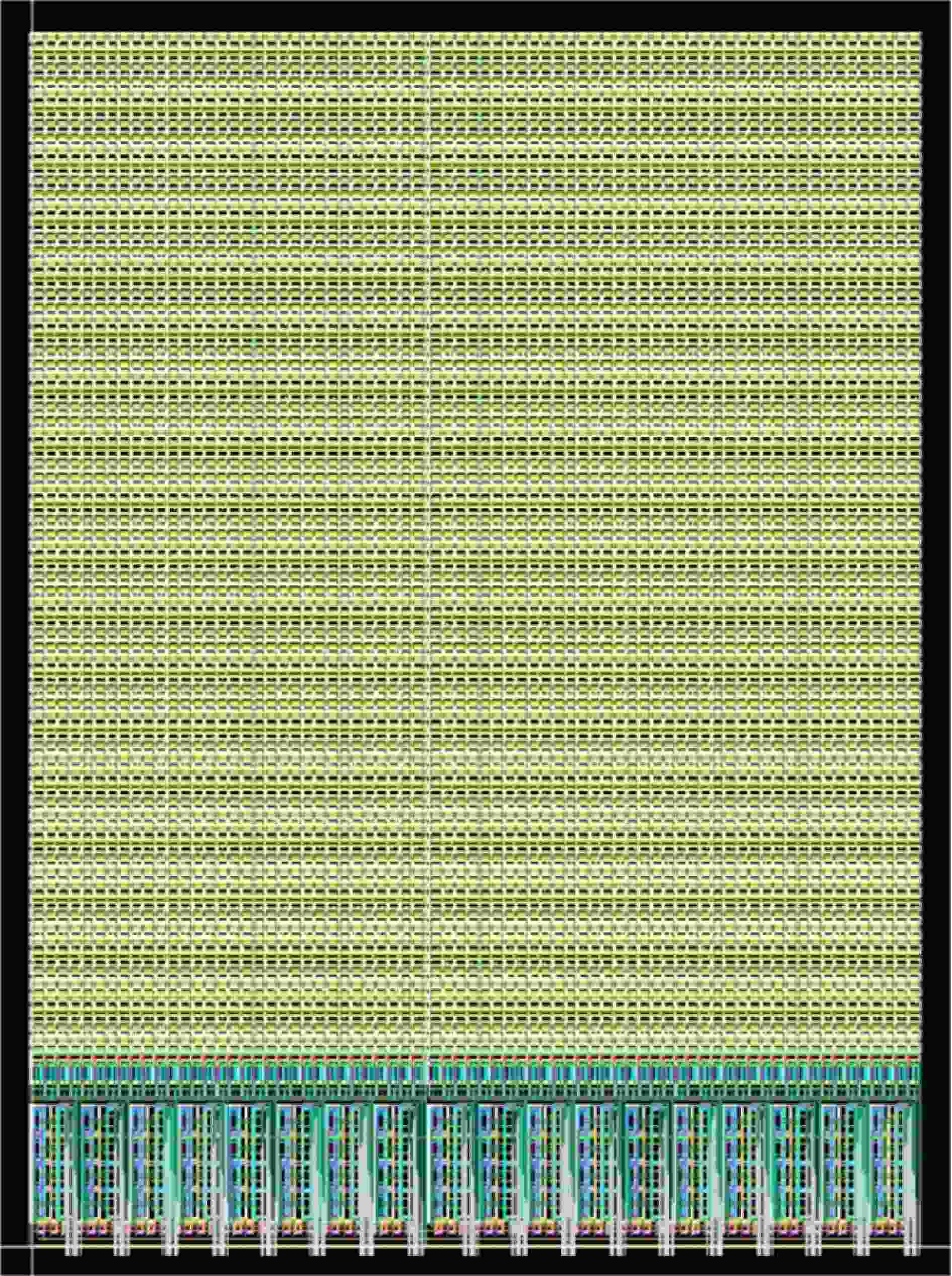

图 7 72×72 SRAM子阵列版图

下载: 全尺寸图片幻灯片

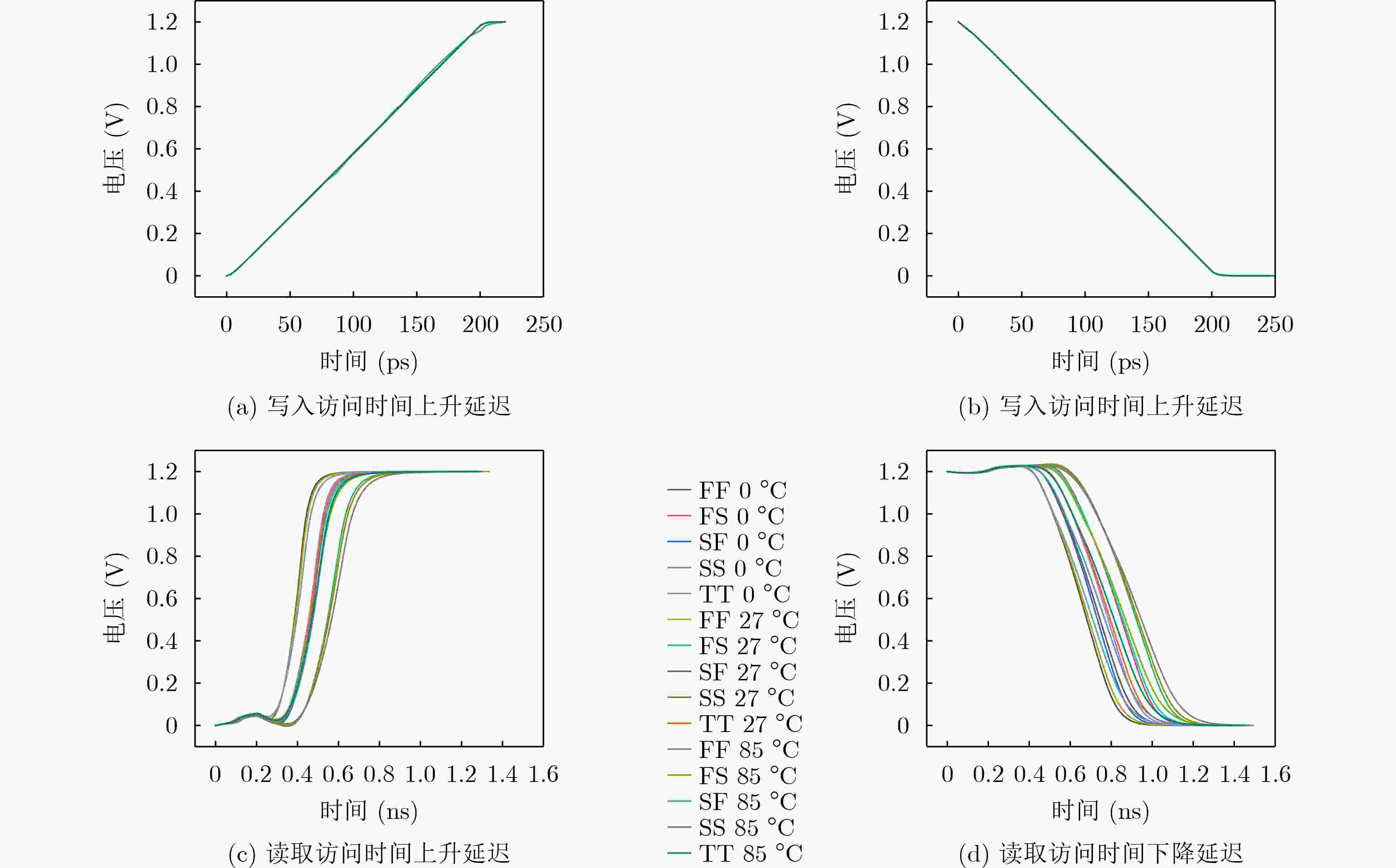

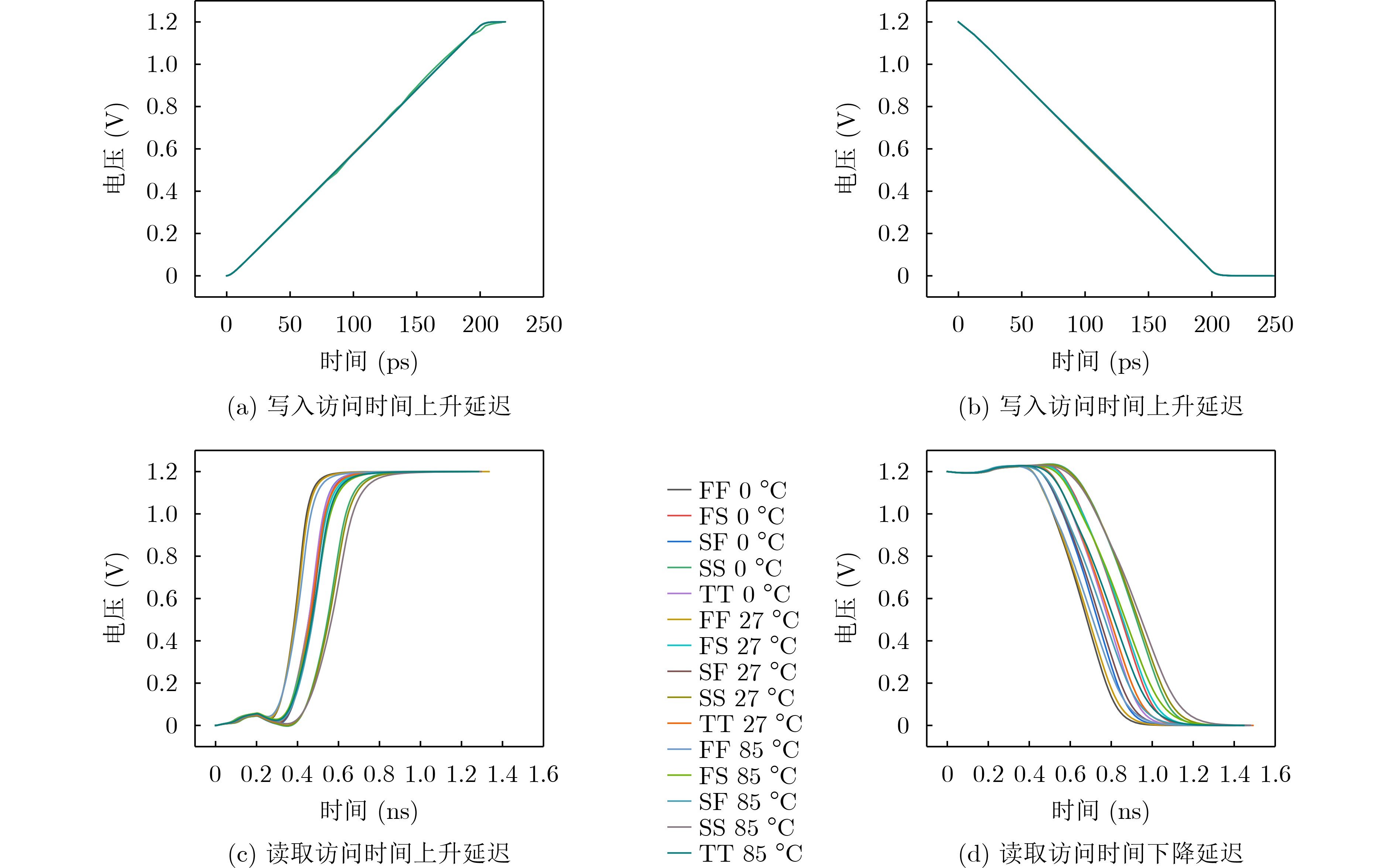

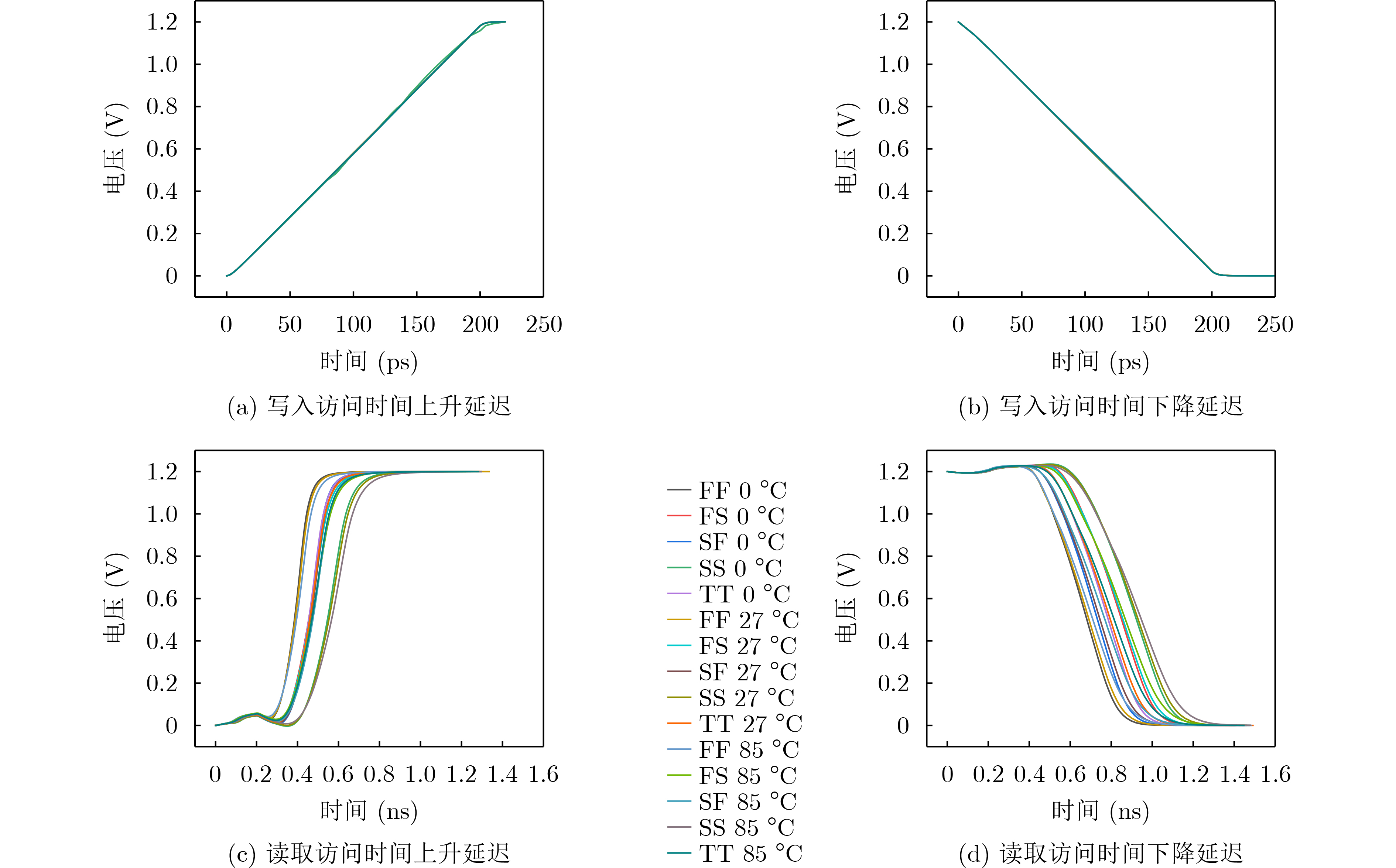

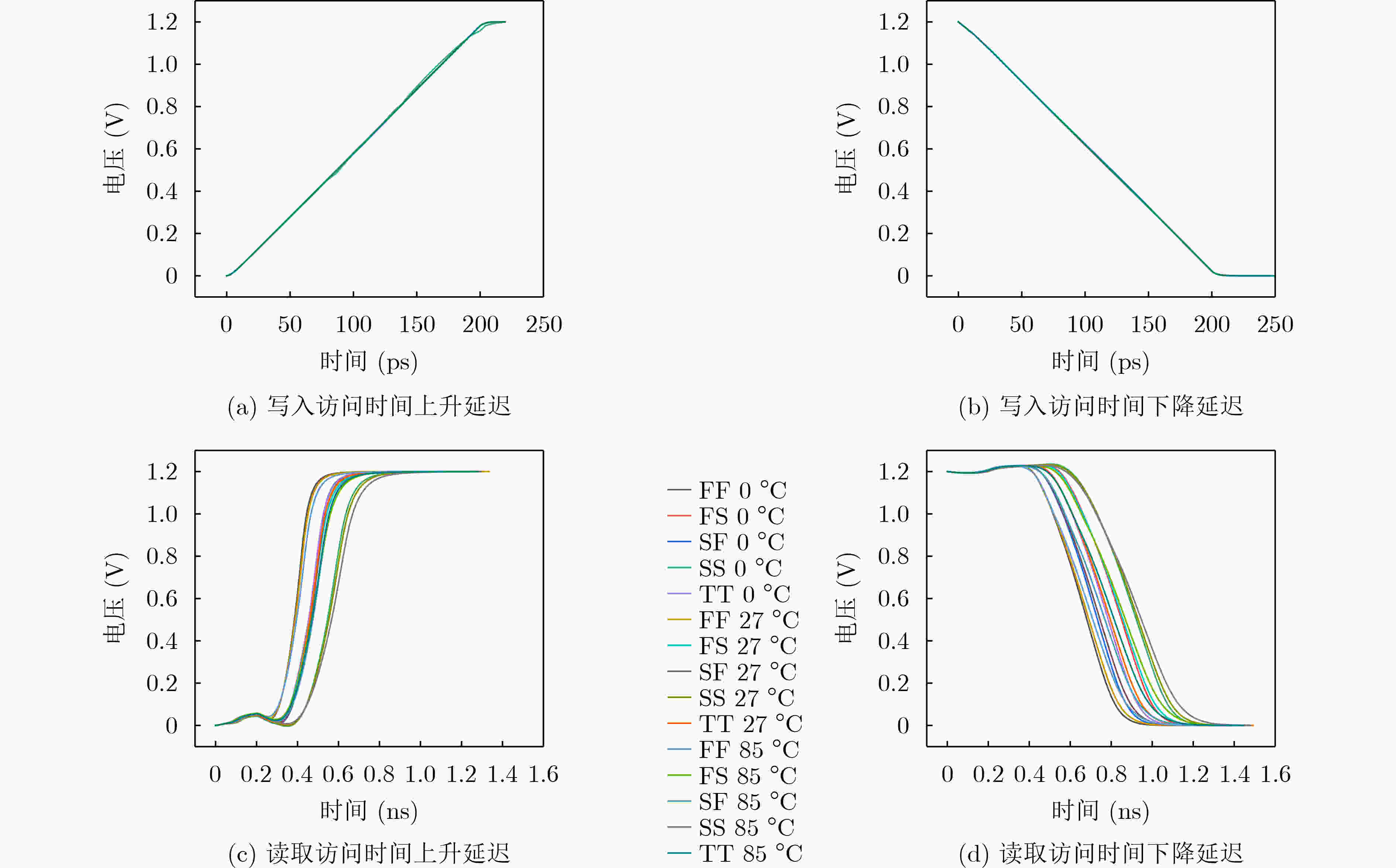

图 8 不同工艺角和温度下写入与读取访问时间延迟

下载: 全尺寸图片幻灯片

表 1 设计总结

工艺	180 nm, 1P6M CMOS
电源电压	1.2 V
存储容量	40.5k bit 72 bit × 72 bit × 8 bank
单元类型	SRAM 6T
单元版图大小	4.20 μm × 3.98 μm
存储器版图大小	1.2 mm × 0.8 mm
读写能耗	190.1 fJ/bit

下载: 导出CSV

表 2 不同时钟频率下读写操作动态功耗

时钟频率(MHz)	温度( °C)	电源电压(V)	写操作动态功耗(μW)	读操作动态功耗(μW)	总动态功耗(μW)
10	27	1.2	14.24	15.04	29.28
20			35.75	34.65	70.40
40			70.14	68.06	138.20

下载: 导出CSV

表 3 不同温度下读写操作动态功耗

温度( °C)	时钟频率(MHz)	电源电压(V)	写操作动态功耗(μW)	读操作动态功耗(μW)	总动态功耗(μW)
0	10	1.2	17.50	17.11	34.61
27			14.24	15.04	29.28
85			30.03	29.23	59.26

下载: 导出CSV

表 4 不同电源电压下读写操作动态功耗

电源电压(V)	温度( °C)	时钟频率(MHz)	写操作动态功耗(μW)	读操作动态功耗(μW)	总动态功耗(μW)
0.8	27	10	6.82	8.08	14.90
1.0			11.87	12.54	24.41
1.2			14.24	15.04	29.28

下载: 导出CSV

表 5 单一式与分块存储式片上缓冲存储器存储不同卷积层数据时的读写动态功耗

片上缓存策略	温度( °C)	时钟频率(MHz)	电源电压(V)	卷积层	写操作动态功耗(μW)	读操作动态功耗(μW)	总动态功耗(μW)
单一式	27	10	1.2	Conv1	34.78	48.80	83.58
分块存储	27	10	1.2	Conv1	14.24	15.04	29.28
分块存储	27	10	1.2	Conv2	6.97	6.82	13.79

下载: 导出CSV

表 6 本文提出的片上缓冲存储器与其他设计案例的对比

文献	工艺尺寸(nm)	电源电压(V)	缓存容量(Kb)	读写能耗(fJ)	版图面积(mm²)
本文	180	1.2	40.5	190.1^a	0.960
[19]	180	1.6	64.0	330.0^a	0.690
[20]	90	0.6	128.0.	126.2^a	0.489
[21]	65	1.0	16.0	32.3^a	0.064
注：a: 单比特读写能耗

下载: 导出CSV
