混合开关电容物理不可克隆函数和一次性可编程的片上RSA加密算法私钥生成方法

李大为; 陈铁男; 周瑶; 江小平; 万美琳; 张力; 贺章擎

doi:10.11999/JEIT250382

混合开关电容物理不可克隆函数和一次性可编程的片上RSA加密算法私钥生成方法

doi: 10.11999/JEIT250382 cstr: 32379.14.JEIT250382

1.
中南民族大学电子与信息工程学院武汉 430074
2.
湖北大学物理与电子科学学院武汉 430062
3.
湖北工业大学理学院武汉 430068
4.
湖北工业大学电气与电子工程学院武汉 430068

基金项目: 武汉市科技计划项目(曙光计划)(2023010201020463)，中央高校基本科研业务费专项资金自科重点项目 (CZZ24001)

详细信息

作者简介:
李大为：男，副教授，研究方向为模拟IC设计，物联网安全

陈铁男：男，硕士生，研究方向为物联网安全，神经网络

周瑶：女，硕士生，研究方向为模拟IC设计，LDO

江小平：男，教授，研究方向为物联网与智能安防技术

万美琳：男，教授，研究方向为数模混合集成电路设计

张力：男，副教授，研究方向为RISC-V处理器设计与应用

贺章擎：男，教授，研究方向为集成电路设计与安全

通讯作者:
万美琳　wanml@hubu.edu.cn

中图分类号: TP309.7; TN4
计量
- 文章访问数: 21
- HTML全文浏览量: 10
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-08
- 修回日期: 2025-09-03
- 网络出版日期: 2025-09-09

Generating Private Key of RSA Encryption Algorithm Using On-Chip Physical Unclonable Functions

1.
College of Electronic Information Engineering, South-Central Minzu University, Wuhan 430074, China
2.
College of Physics and Electronics, Hubei University, Wuhan 430062, China
3.
College of Science, Hubei University of Technology, Wuhan 430068, China
4.
College of Electrical and Electronic Engineering, Hubei University of Technology, Wuhan 430068, China

Funds: The Knowledge Innovation Program of Wuhan-ShuGuang (2023010201020463), The Fundamental Research Funds for the Central Universities of South-Central Minzu University (CZZ24001)

摘要

摘要: Rivest-Shamir-Adleman(RSA)加密算法作为一种非对称加密算法，被认为是目前最安全的加密方法之一。传统RSA私钥存在存储开销大、功耗高和易受攻击等问题，针对RSA私钥面临非易失性存储器(NVM)存储依赖及物理探测攻击，该文提出一种新型RSA私钥生成架构，该方案基于SMIC 180 nm 标准CMOS工艺，利用全定制开关电容物理不可克隆函数(SC-PUF)单元产生随机密钥，采用片上1次可编程单元(OTP)将SC-PUF的输出随机密钥直接映射为满足要求的RSA私钥，完全消除NVM依赖。同时SC-PUF提供的容性敏感金属层能够有效保护OTP的编辑状态不被攻击者获取，保证了整个密钥产生电路的安全性。实验结果显示，芯片总体面积为18.77 mm²，功耗218 mW，基于SC-PUF和OTP的RSA私钥产生电路不仅能够有效产生密钥，且整个RSA算法工作正常，验证了该新型RSA私钥生成架构的可行性和安全性。
- RSA加密算法 /
- 物理不可克隆函数 /
- 安全 /
- 一次性可编程
Abstract: Objective RSA, an asymmetric encryption algorithm, is widely recognized as one of the most secure cryptographic methods. Conventional Rivest-Shamir-Adleman(RSA) private keys face challenges of high storage overhead, power consumption, and vulnerability to attacks. To address the dependency on Non-Volatile Memory (NVM) and the risk of physical probing, a novel RSA private key generation architecture is proposed. The design utilizes fully customized Switched Capacitor Physical Unclonable Functions(SC-PUF) cells for random key generation. By mapping the initial output codes of the weak Physical Unclonable Functions(PUF) to the final private key using One-Time Programmable (OTP) memory, the circuit eliminates the need for independent NVM such as flash or EEPROM. This reduces power and area consumption as well as factory testing costs. An integrated capacitive metal shielding layer in the SC-PUF prevents OTP state compromise, thereby ensuring secure key generation. Methods The proposed OTP mapping-based scheme is implemented and validated in a security ASIC. A low-cost capacitive SC-PUF circuit is employed to generate stable initial PUF keys through capacitance ratio mismatch sampling, with comprehensive shielding applied to protect the entire PUF and OTP circuitry from invasive attacks. To further mitigate such attacks, Metal–Insulator–Metal (MIM) capacitors constructed from two high-layer metals are used to realize the sense capacitor of the SC-PUF. Both the PUF and OTP circuits are encapsulated within a capacitive-sensitive protective layer. An on-chip CMOS-compatible eFuse-based OTP serves as the mapping circuit, and the OTP, PUF extraction circuit, and mapping circuit are placed beneath the capacitive metal coating provided by the PUF. This architecture enables secure, low-cost, and power-efficient private key generation. Results and Discussions The defensive efficacy of SC-PUF and metal shielding against invasive attacks is evaluated by removing the corresponding top metal layer using Focused Ion Beam (FIB) techniques. Although the state of the poly eFuse is directly exposed, complete removal of the top metal layer alters the output key of the SC-PUF (Fig. 7a, b). In a potential attack scenario, all SC-PUF keys may be probed first, followed by metal layer removal to reveal the eFuse state, with the aim of reconstructing the original PUF output codes and mapping control signals. To assess the protective capability of the proposed architecture against such attacks, probing experiments are conducted on the metal layer to determine whether SC-PUF keys can be externally extracted. A total of eight key units are probed (Fig. 7c–f). The results show that single-ended probing of the top metal layer leads to a rapid increase in parasitic capacitance to ground, which consistently forces the corresponding output code to 0 (Fig. 7c, e). In contrast, differential probing introduces parasitic capacitance mismatch larger than the original MIM capacitor mismatch, resulting in deviation of the probed output codes from the original values (Fig. 7d, f). Among the eight SC-PUF units tested, five exhibit probe results that differ from the original output codes. These observations indicate that probing the metal layer changes the keys due to parasitic capacitance variations, and the extracted information does not represent the true SC-PUF outputs. Therefore, even if the eFuse state is exposed, the SC-PUF keys cannot be reconstructed and the RSA private key cannot be derived. Additionally, existing implementations generally rely on on-chip NVM to store private keys, making them susceptible to data bus–based probing attacks (Table 1). In contrast, the proposed scheme employs OTP to map the initial weak PUF output codes to the final private key, thereby eliminating the need for independent NVM (Table 1). Although the RSA-2048 algorithm increases logic complexity, leading to a higher gate count and a slight reduction in speed, the proposed OTP mapping–based private key generation circuit achieves a throughput of 187.09 Kbps at a power consumption of 218 mW, corresponding to an energy efficiency of 0.858 Kbps/mW (Table 1). Conclusions To address the dependency on NVM storage and the vulnerability of RSA private keys to physical probing, a novel OTP mapping–based private key generation scheme is proposed. The scheme is programmed at the wafer testing stage, directly mapping the raw PUF output to the target RSA private key, thereby reducing circuit overhead and enabling real-time key generation. This approach effectively mitigates the risk of key interception. Experimental results confirm two key advantages: (1) by mapping the initial output codes of the weak PUF to the final private key through OTP, the scheme eliminates the need for NVM, lowers power and area consumption, and reduces factory test cost. The prototype, fabricated in SMIC 180 nm CMOS technology, occupies 18.77 mm² and consumes 218 mW; (2) the integrated SC-PUF and metal shielding layer provide effective protection against invasive attacks. This work represents the first application of PUF to RSA private key generation. Furthermore, the proposed scheme can be extended to other asymmetric encryption algorithms requiring private keys, including SM4 and ECC.
- Rivest-Shamir-Adleman (RSA) /
- Physical Unclonable Functions (PUF) /
- Security /
- One-Time Programmable (OTP)

HTML全文

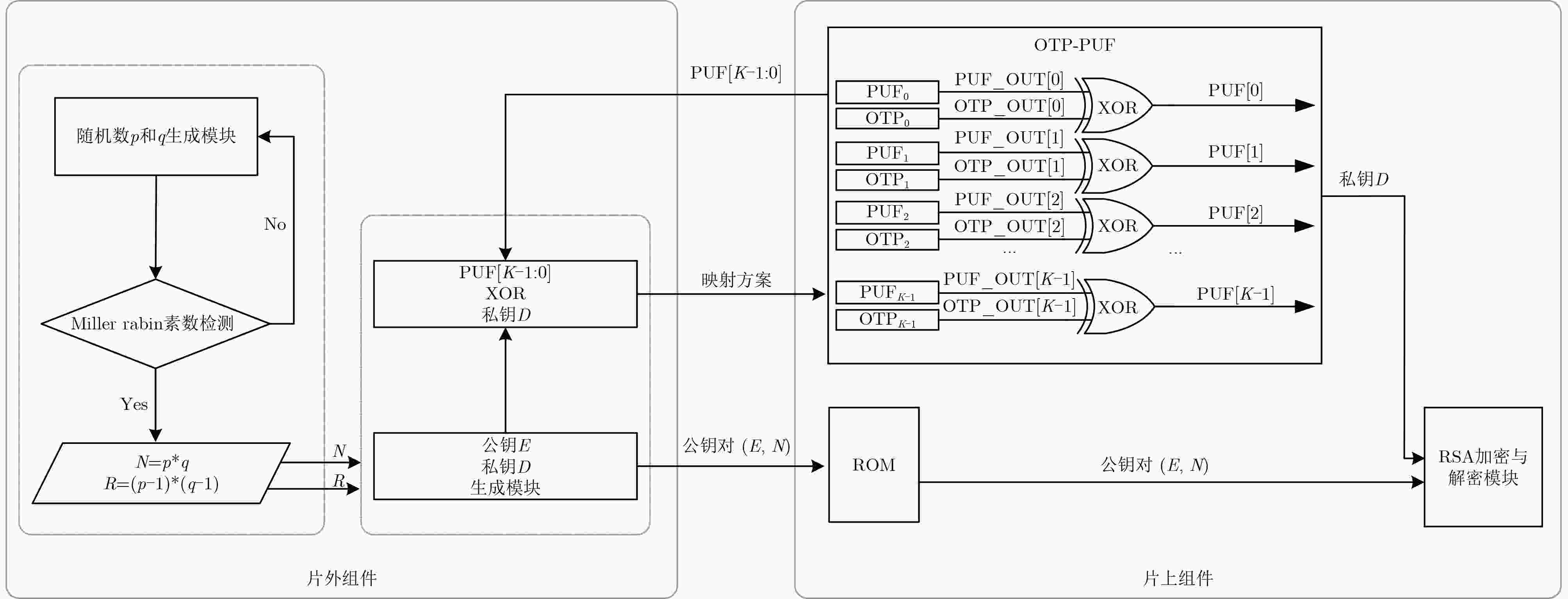

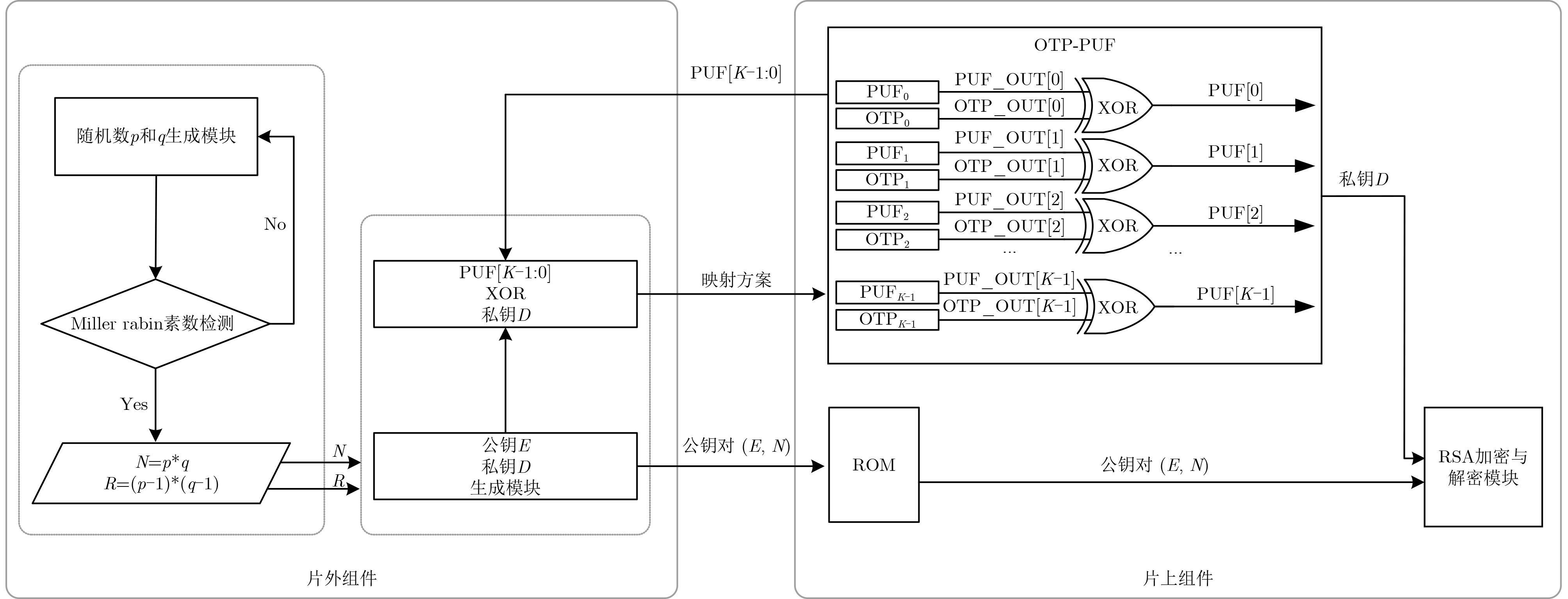

图 1 基于 OTP 映射的片内 PUF RSA 私钥生成方案

下载: 全尺寸图片幻灯片

图 2 XXXXXXXX

下载: 全尺寸图片幻灯片

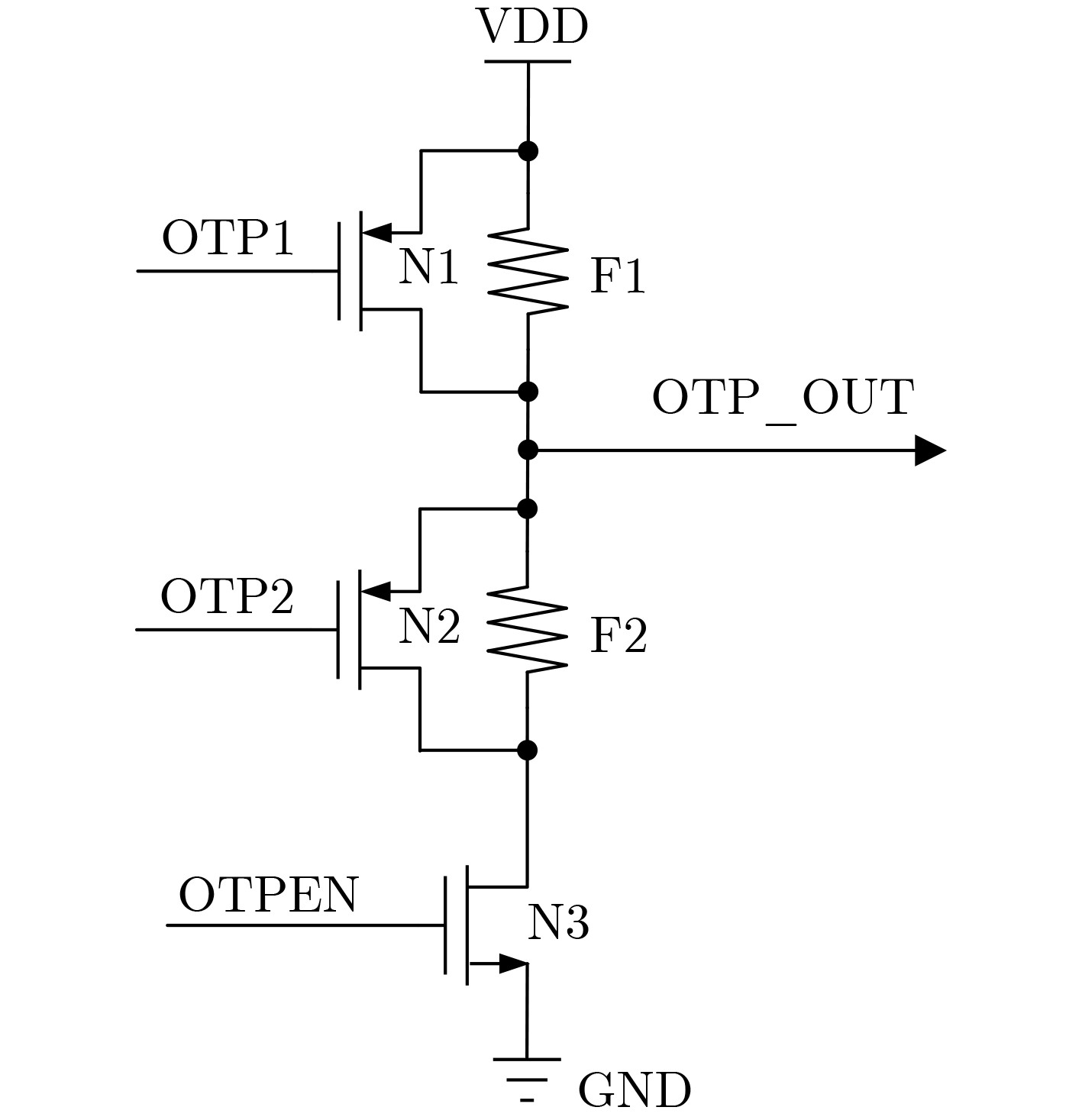

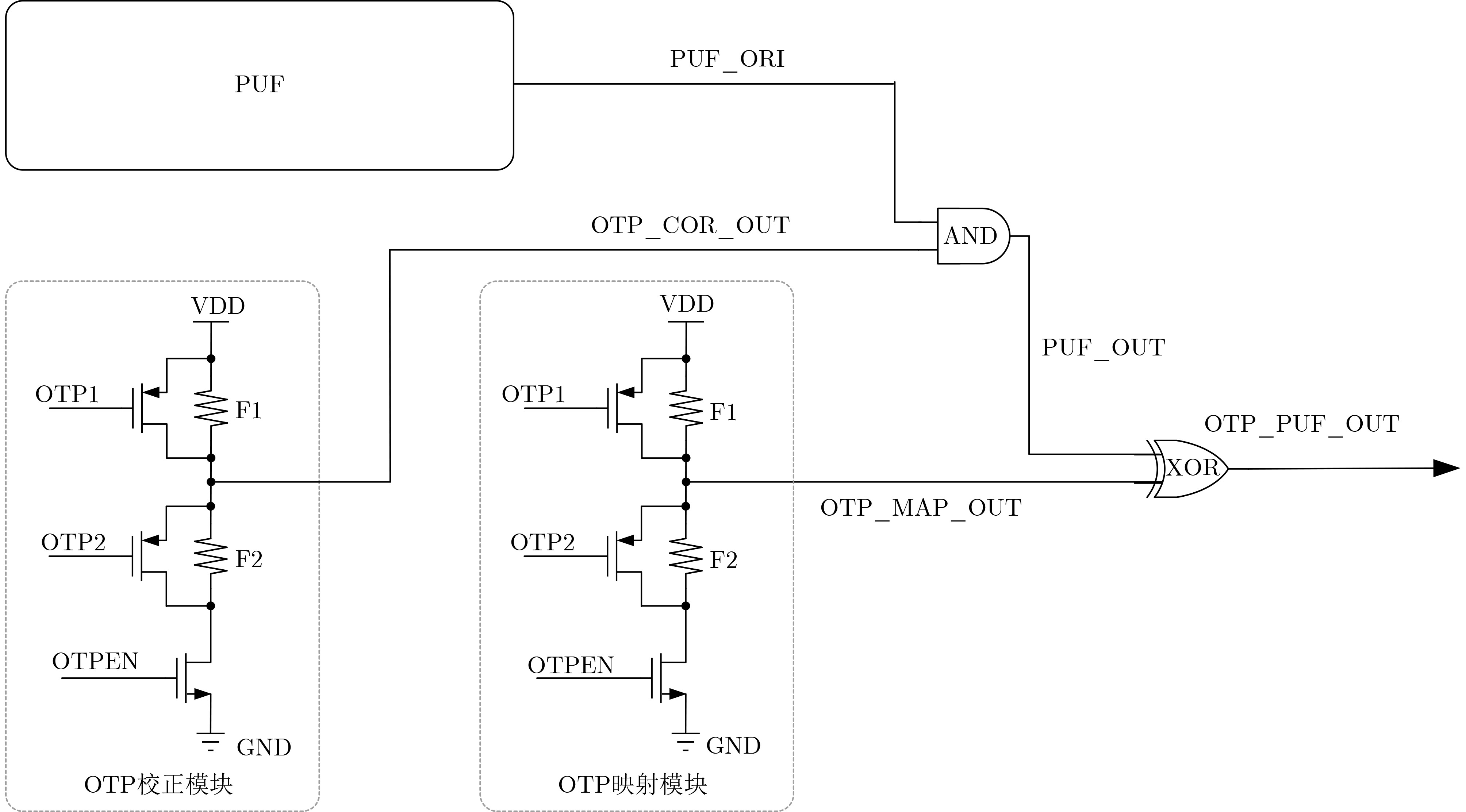

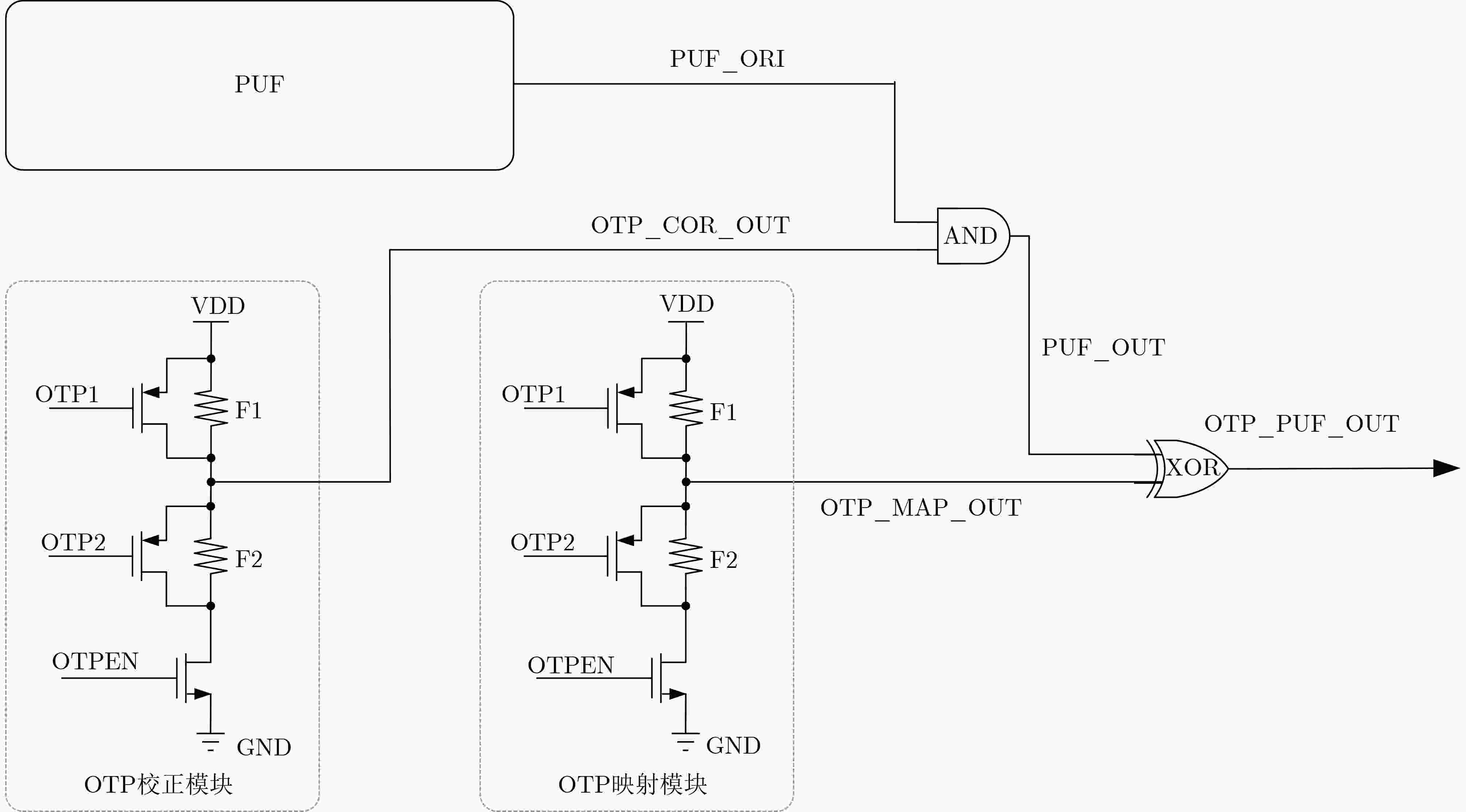

图 3 OTP-PUF 电路

下载: 全尺寸图片幻灯片

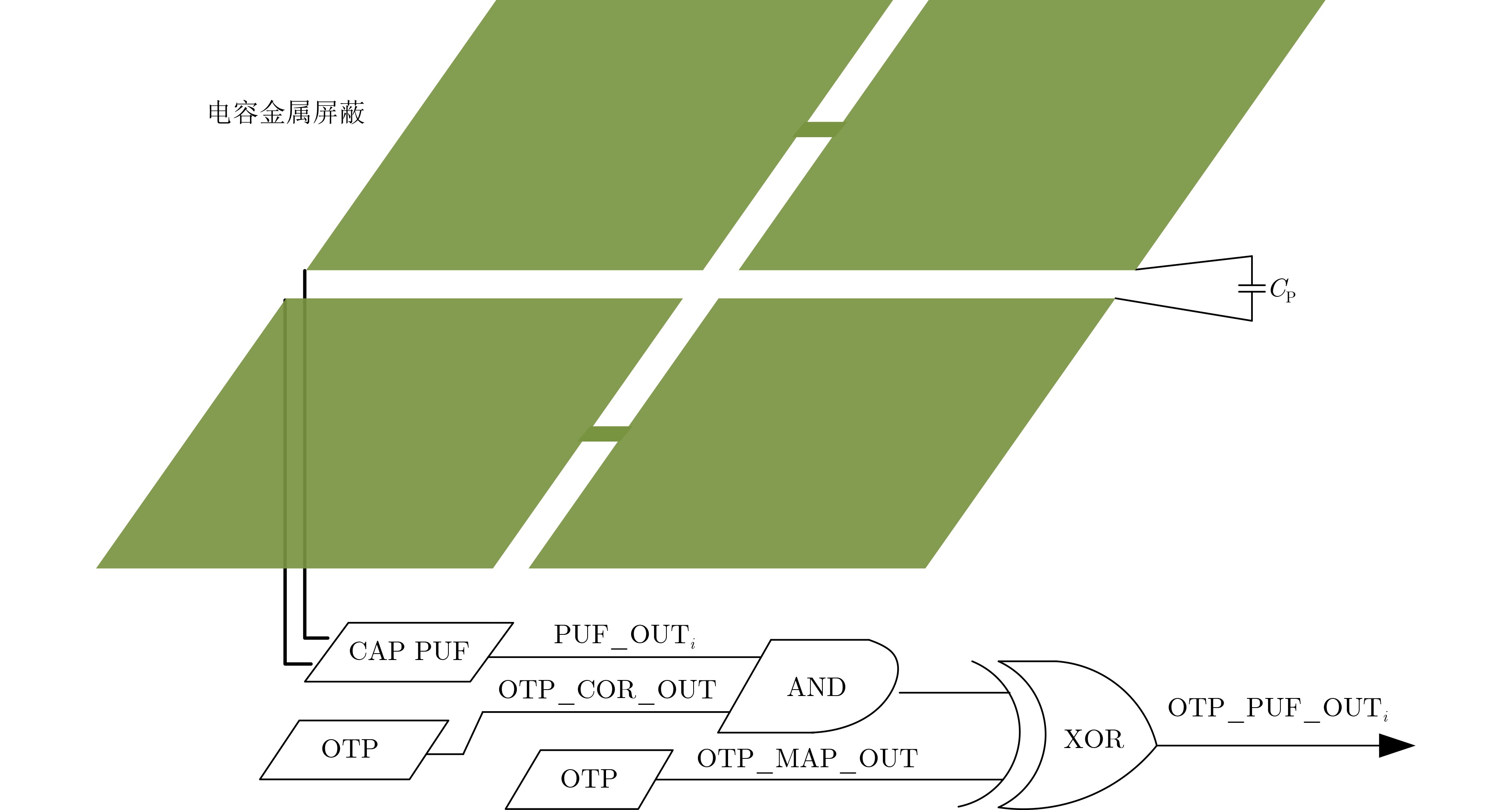

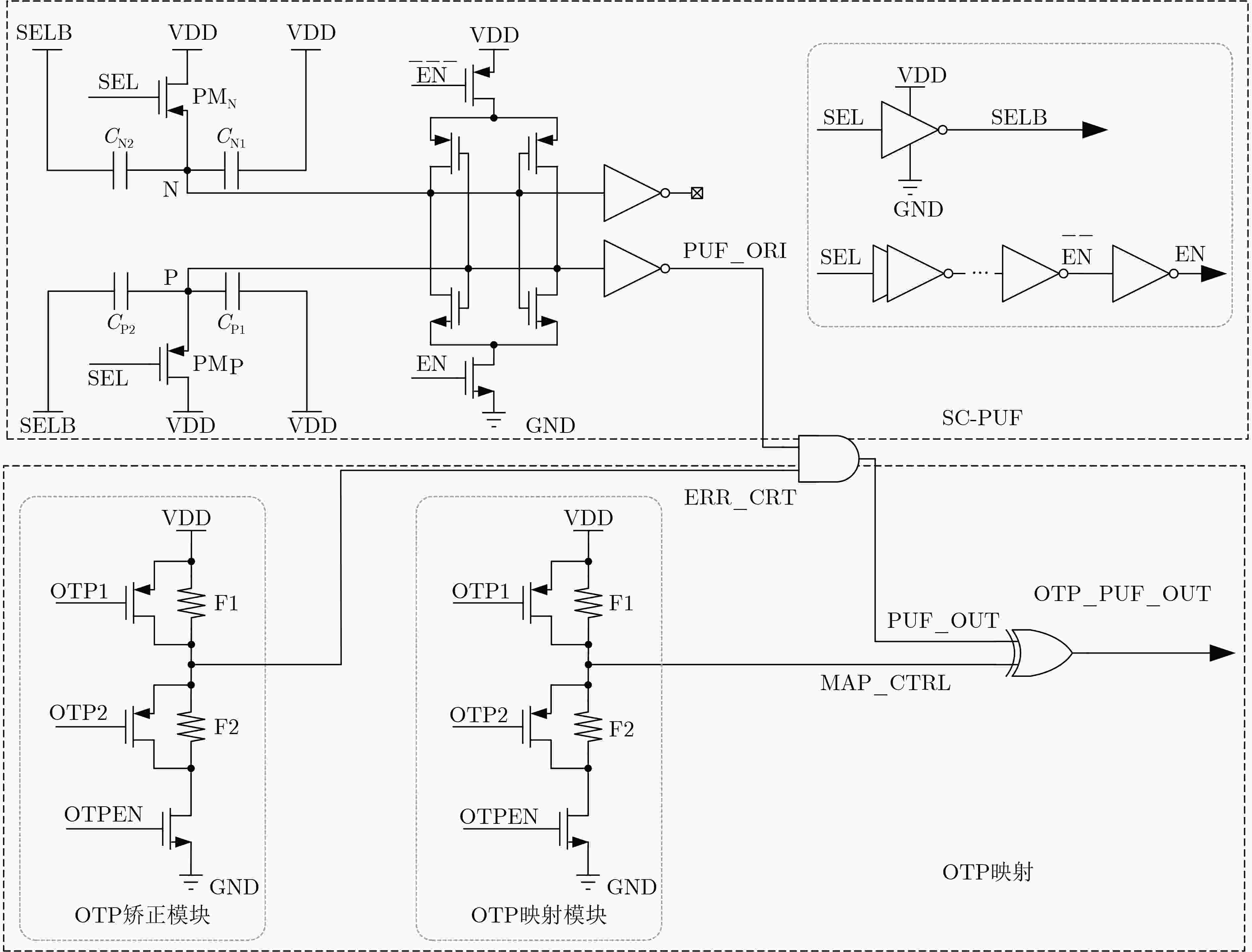

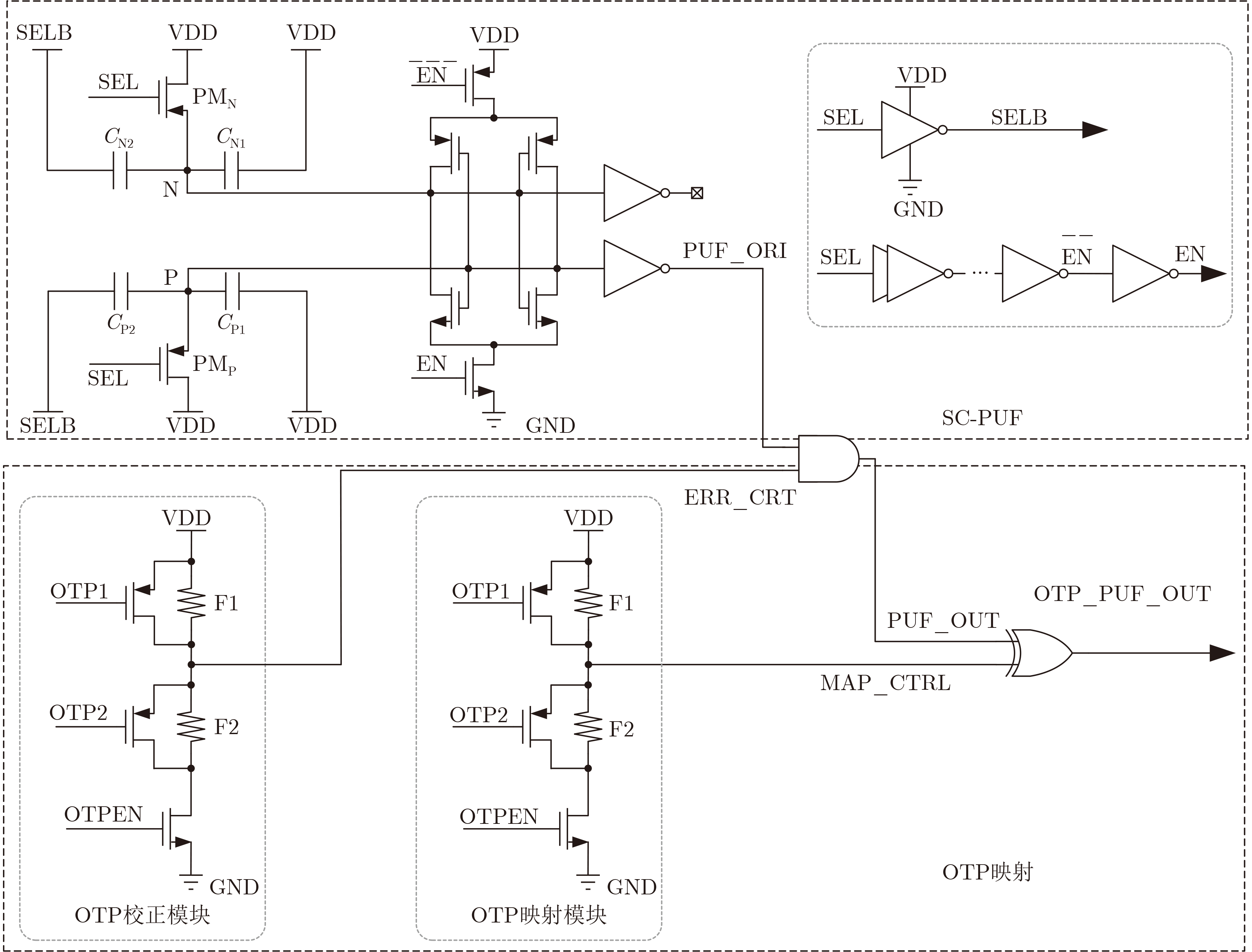

图 4 基于电容型 PUF 的抗侵入式攻击设计方案

下载: 全尺寸图片幻灯片

图 5 XXXXXXXXXXXXX

下载: 全尺寸图片幻灯片

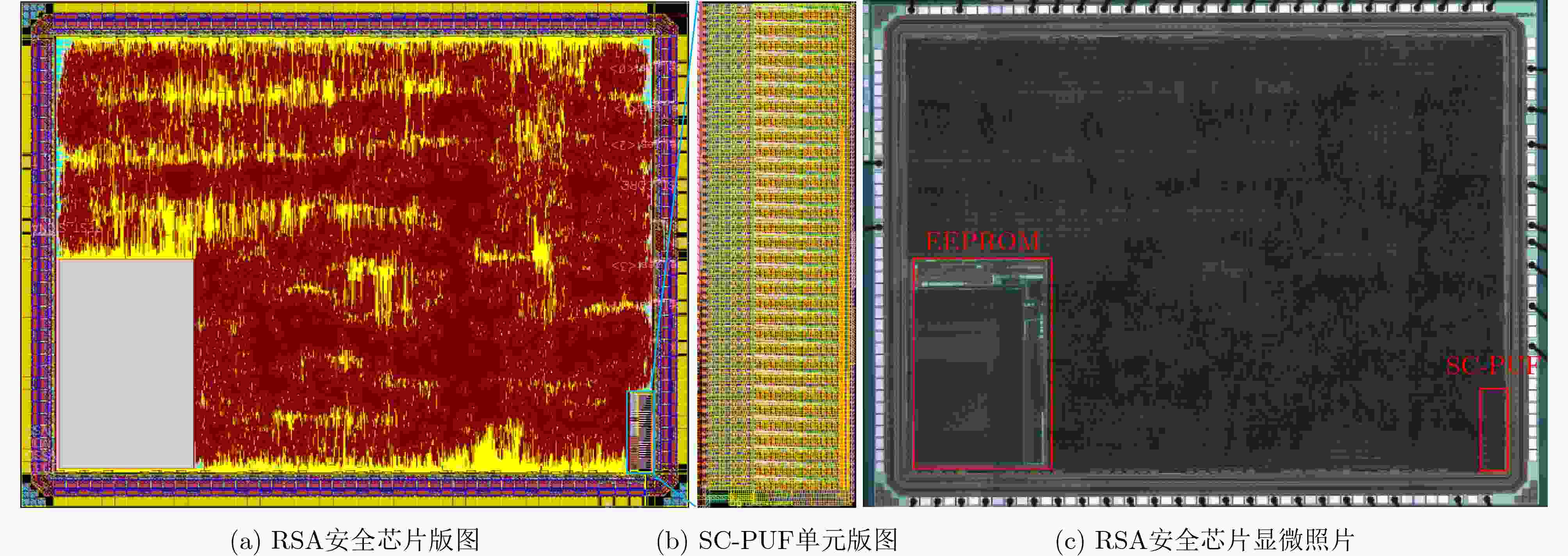

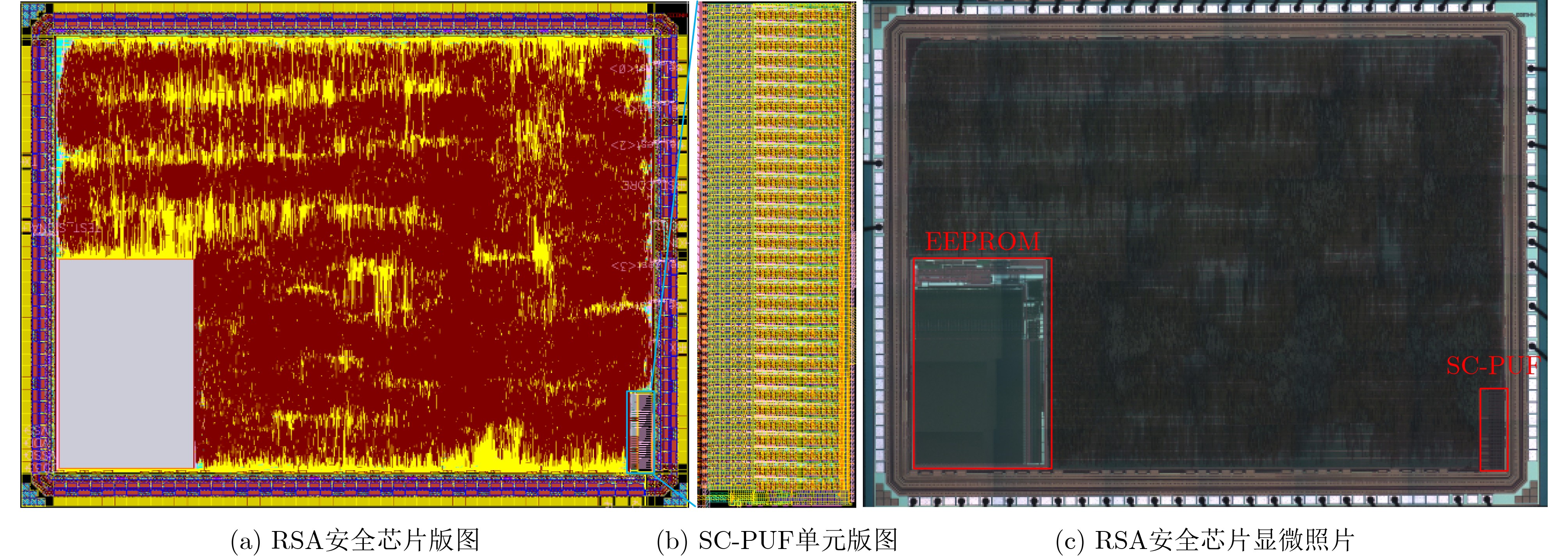

图 6 RSA 安全芯片与 SC-PUF 的版图及芯片照片

下载: 全尺寸图片幻灯片

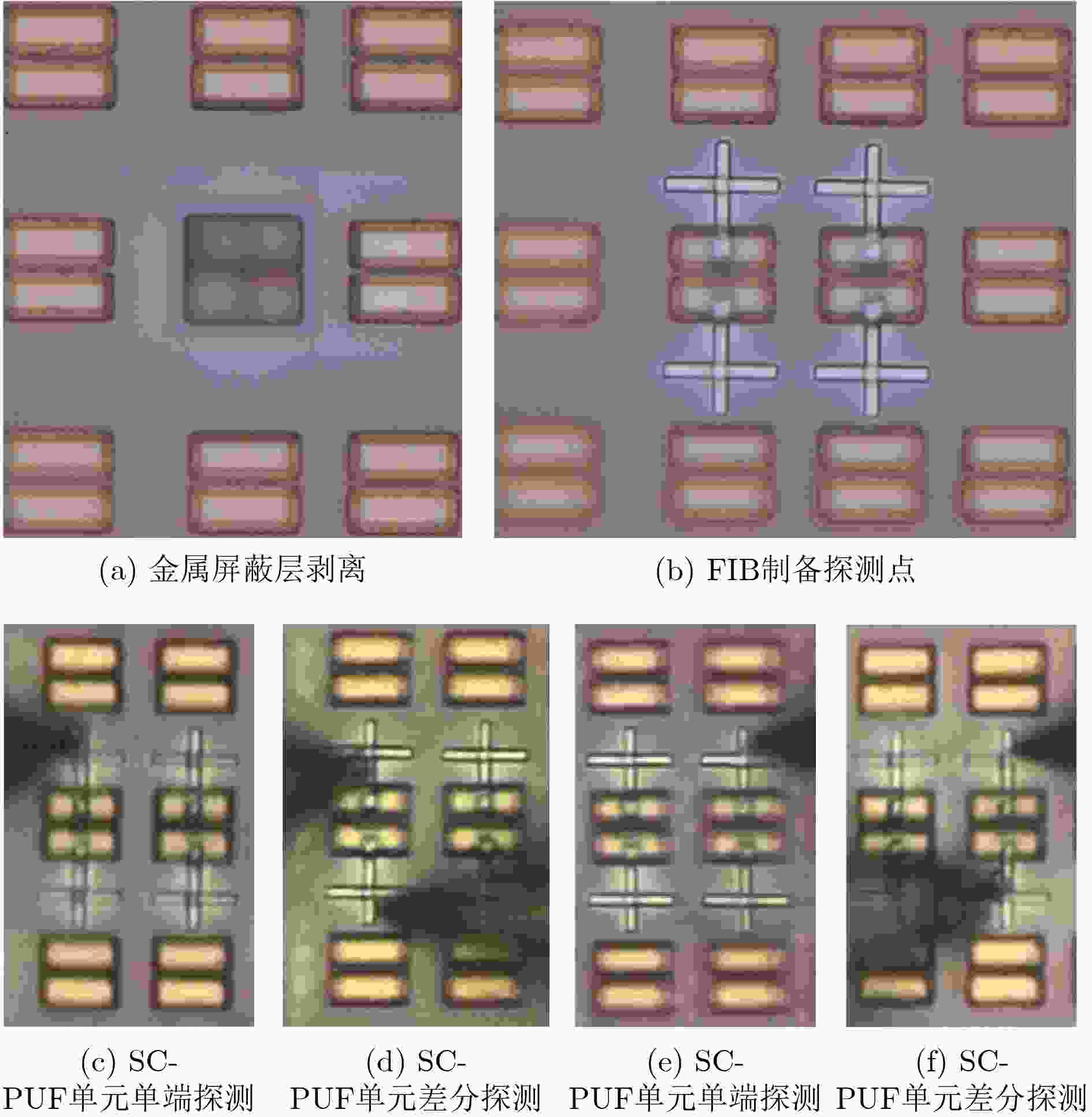

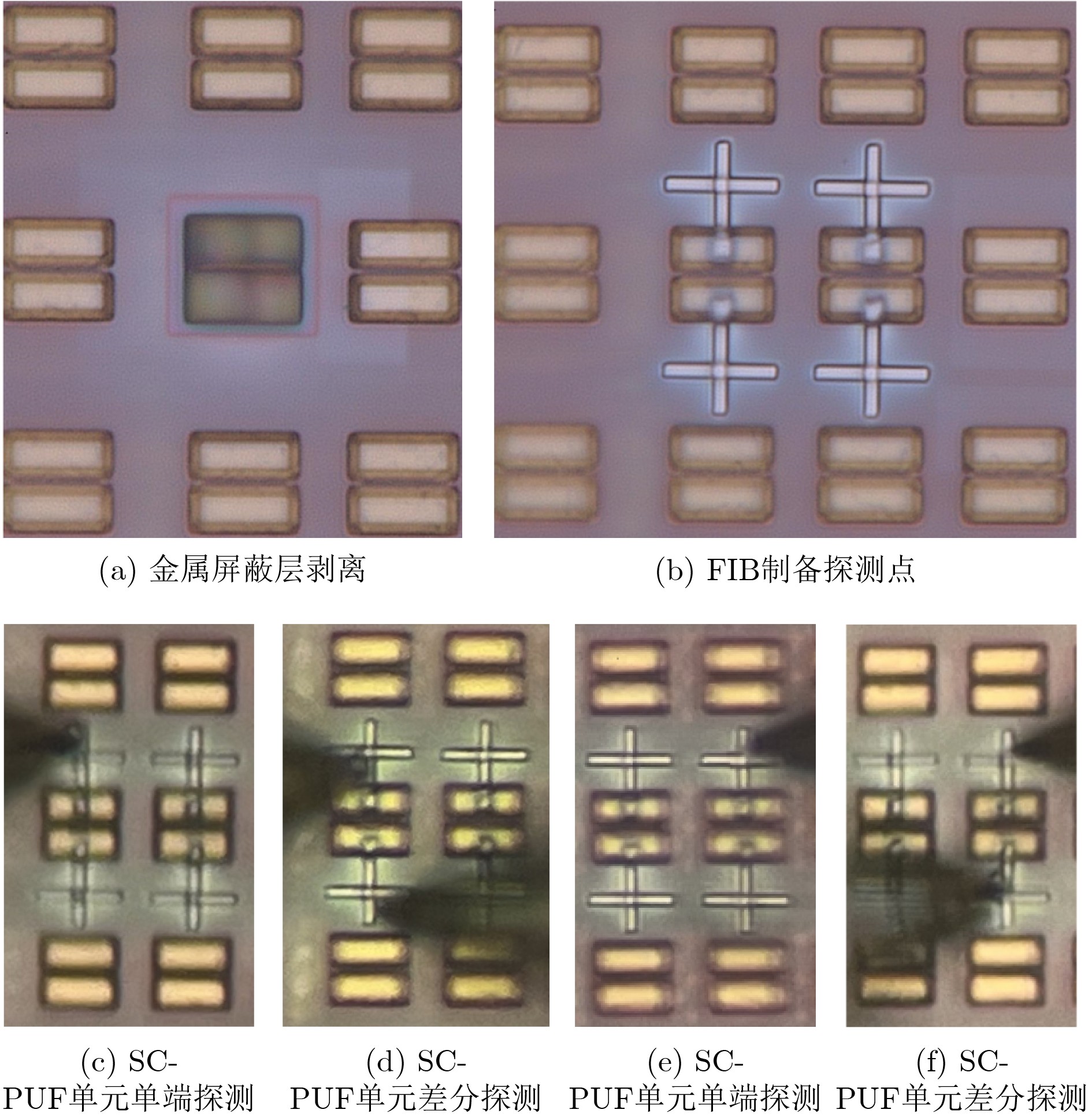

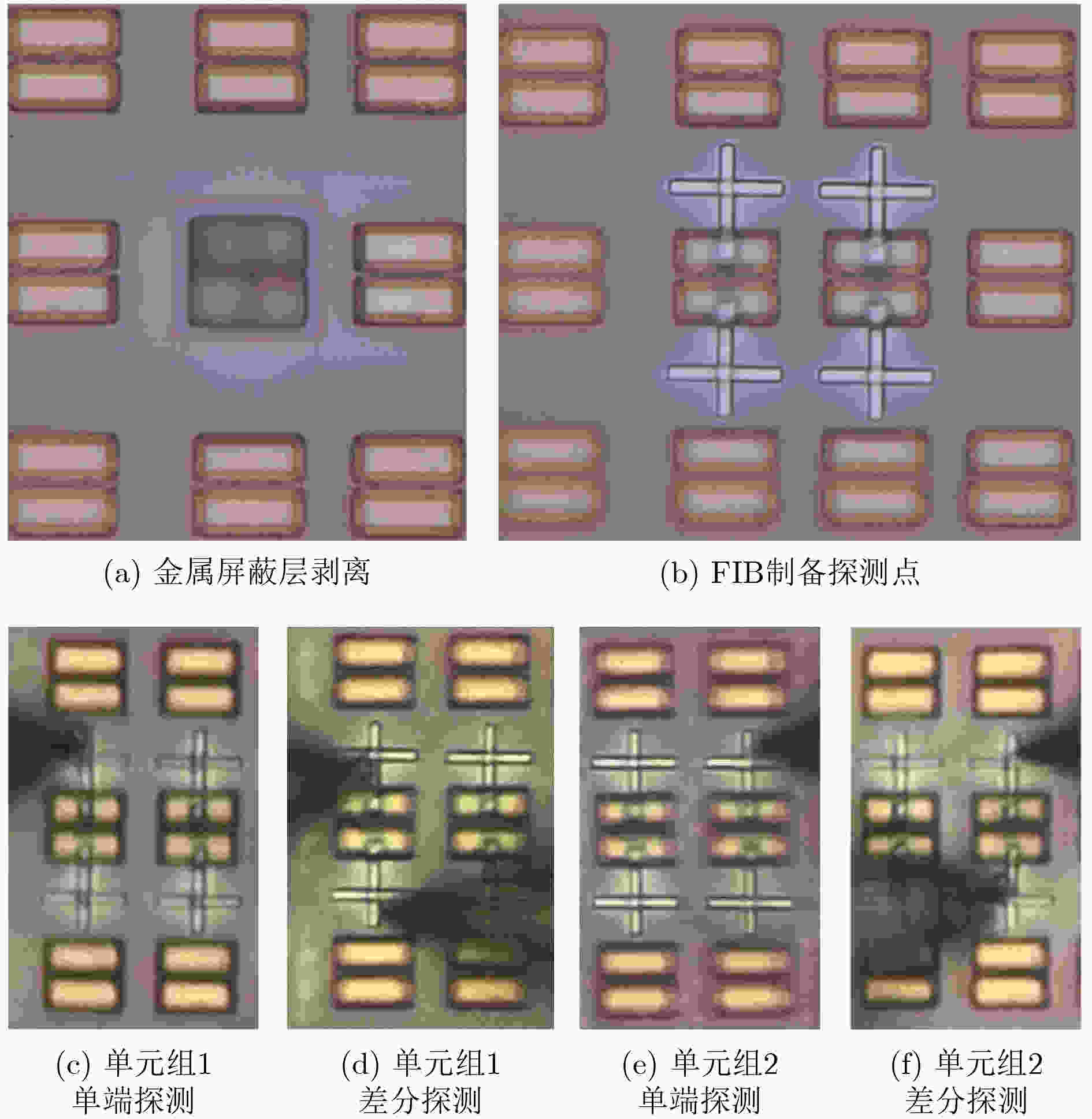

图 7 SC-PUF 侵入式攻击测试示意图

下载: 全尺寸图片幻灯片

表 1 与其他 RSA 实现方案的对比

指标	文献[14]	文献[15]	文献[16]	本文方法
实现平台TSMC	0.13 μm TSMC	0.18 μm Samsung	0.50 μm SMIC	0.18 μm
密钥存储方式	NVM	NVM	NVM	SC-PUF+OTP
算法	RSA-1024	RSA-1024	RSA-1024	RSA-2048
面积 (Kgates)	139	148	156	343
频率(MHz)	500	450	50	50
功耗(mW)	-	-	-	218
吞吐量(Kbit/(s·Hz))	243.19	214	46.55	187.09

下载: 导出CSV
