基于门控机制与重放策略的持续语义分割方法

杨静; 何瑶; 李斌; 李少波; 胡建军; 溥江

doi:10.11999/JEIT230803

基于门控机制与重放策略的持续语义分割方法

doi: 10.11999/JEIT230803 cstr: 32379.14.JEIT230803

杨静^{1, 2},
何瑶^{1, 2, ,},
李斌^{1, 2},
李少波^{1, 2},
胡建军³,
溥江⁴

1.
贵州大学机械工程学院贵阳 550025
2.
贵州大学公共大数据国家重点实验室贵阳 550025
3.
美国南卡罗莱纳州大学计算机科学与工程系哥伦比亚 29208
4.
贵州民族大学机械电子工程学院贵阳 550025

基金项目: 国家自然科学基金(62166005)，贵阳市科技人才培养对象及培养项目(筑科合同[2023]48-8号)，国家重点研发计划(2018AAA010800)

详细信息

作者简介:
杨静：男，副教授，研究方向为视觉计算

何瑶：女，硕士生，研究方向为持续学习

李斌：男，硕士，研究方向为持续学习

李少波：男，二级教授，研究方向为大数据

胡建军：男，美国终身教授，研究方向为深度学习

溥江：女，副教授，研究方向为先进制造技术

通讯作者:
何瑶　gs.yaohe21@gzu.edu.cn

中图分类号: TP183; TN919.81
计量
- 文章访问数: 1224
- HTML全文浏览量: 542
- PDF下载量: 56
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-01
- 修回日期: 2023-12-02
- 网络出版日期: 2023-12-14
- 刊出日期: 2024-07-29

A Continual Semantic Segmentation Method Based on Gating Mechanism and Replay Strategy

YANG Jing^{1, 2},
HE Yao^{1, 2
, ,},
LI Bin^{1, 2},
LI Shaobo^{1, 2},
HU Jianjun³,
PU Jiang⁴

1.
School of Mechanical Engineering, Guizhou University Guiyang 550025, China
2.
State Key Laboratory of Public Big Data, Guizhou University, Guiyang 550025, China
3.
Department of Computer Science and Engineering, University of South Carolina, Columbia 29208, USA
4.
School of Mechatronics Engineering, Guizhou Minzu University, Guiyang 550025, China

Funds: The National Natural Science Foundation of China (62166005), Developing Objects and Projects of Scientific and Technological Talents in Guiyang City (ZKH[2023]48-8), The National Key R&D Program of China (2018AAA010800)

摘要

摘要: 基于深度神经网络的语义分割模型在增量更新知识时由于新旧任务参数之间的干扰加之背景漂移现象，会加剧灾难性遗忘。此外，数据常常由于隐私、安全等因素无法被存储导致模型失效。为此，该文提出基于门控机制与重放策略的持续语义分割方法。首先，在不存储旧数据的情况下，通过生成对抗网络生成及网页抓取作为数据来源，使用标签评估模块解决无监督问题、背景自绘模块解决背景漂移问题；接着，使用重放策略缓解灾难性遗忘；最后，将门控变量作为一种正则化手段增加模型稀疏性，研究了门控变量与持续学习重放策略结合的特殊情况。在Pascal VOC2012数据集上的评估结果表明，在复杂场景10-2，生成对抗网络 (GAN)、Web的设置中，该文在全部增量步骤结束后的旧任务性能比基线分别提升了3.8%, 3.7%，在场景10-1中，相比于基线分别提升了2.7%, 1.3%。
- 持续学习 /
- 语义分割 /
- 重放策略 /
- 门控变量
Abstract: Due to the interference and background drift between new and old task parameters, semantic segmentation model based on deep neural networks promotes catastrophic forgetting of old knowledge. Furthermore, information frequently cannot be stored owing to privacy concerns, security concerns, and other issues, which leads to model failure. Therefore, a continual semantic segmentation method based on gating mechanism and replay strategy is proposed. First, without storing old data, generative adversarial network and webpage crawling are used as data sources, the label evaluation module is used to solve the unsupervised problem and the background self-drawing module is used to solve background drift problem. Then, catastrophic forgetting is mitigated by replay strategy; Finally, gated variables are used as a regularization means to increase the sparsity of the module and study the special case of gated variables combined with continual learning replay strategy. Our evaluation results on the Pascal VOC2012 dataset show that in the settings of complex scenario 10-2, Generative Adversarial Networks (GAN) and Web, the performance of the old task after all incremental steps are improved by 3.8% and 3.7% compared with the baseline, and in scenario 10-1, they are improved by 2.7% and 1.3% compared with the baseline, respectively.
- Continual learning /
- Semantic segmentation /
- Replay strategies /
- Gating variables

HTML全文

图 1 部分使用GAN生成的图片

下载: 全尺寸图片幻灯片

图 2 部分网页抓取的图片

下载: 全尺寸图片幻灯片

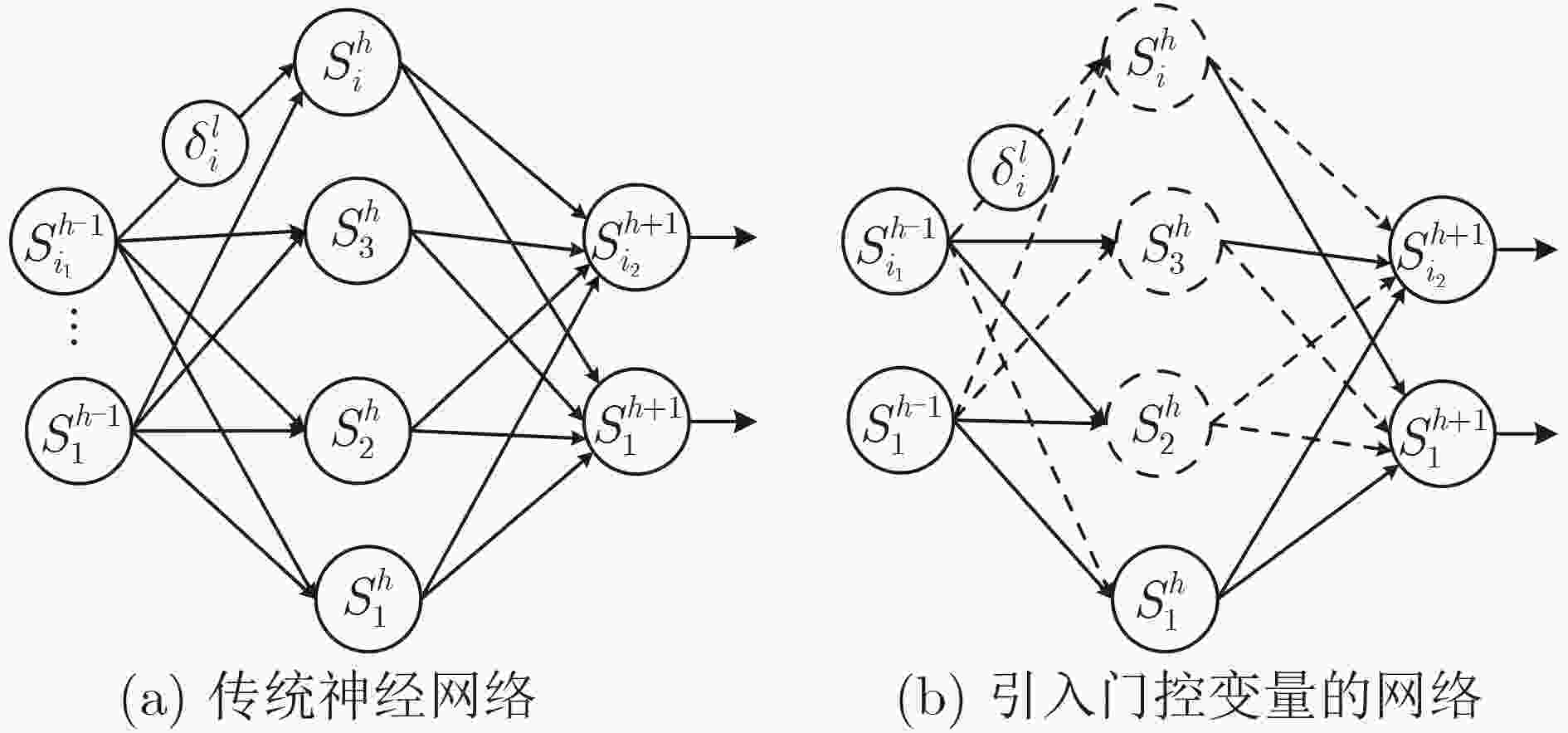

图 3 网络引入门控0-1伯努利变量的训练模式变化

下载: 全尺寸图片幻灯片

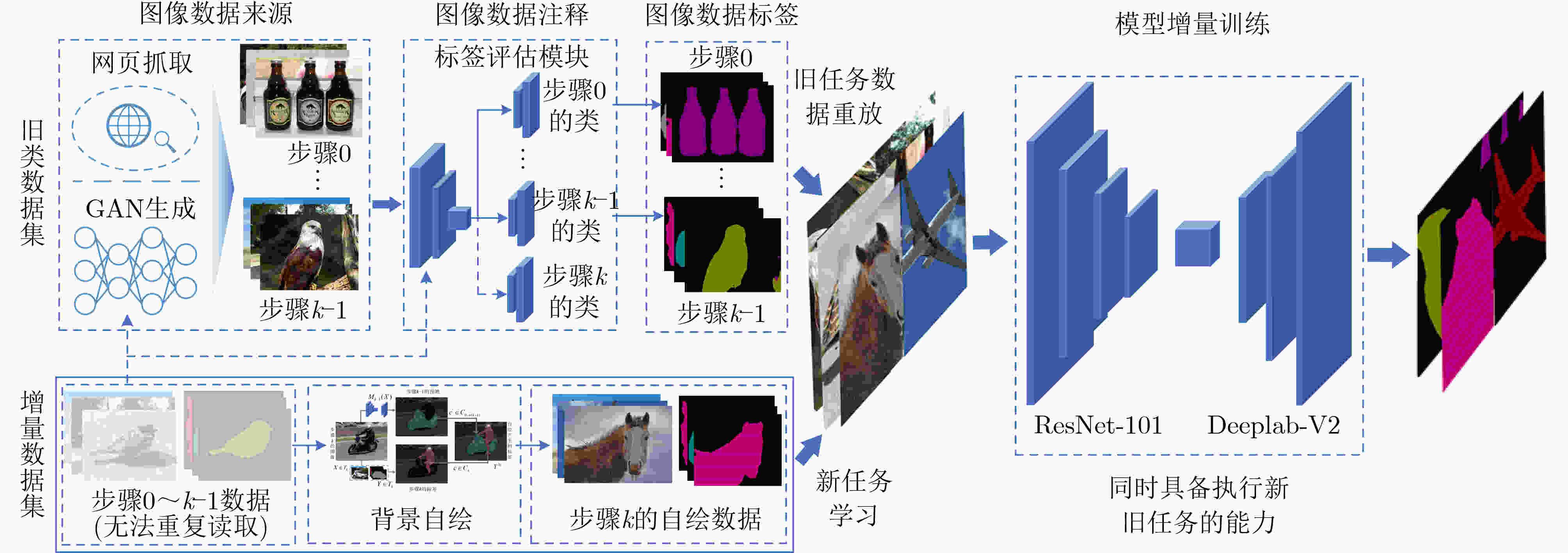

图 4 网络模型结构示意图

下载: 全尺寸图片幻灯片

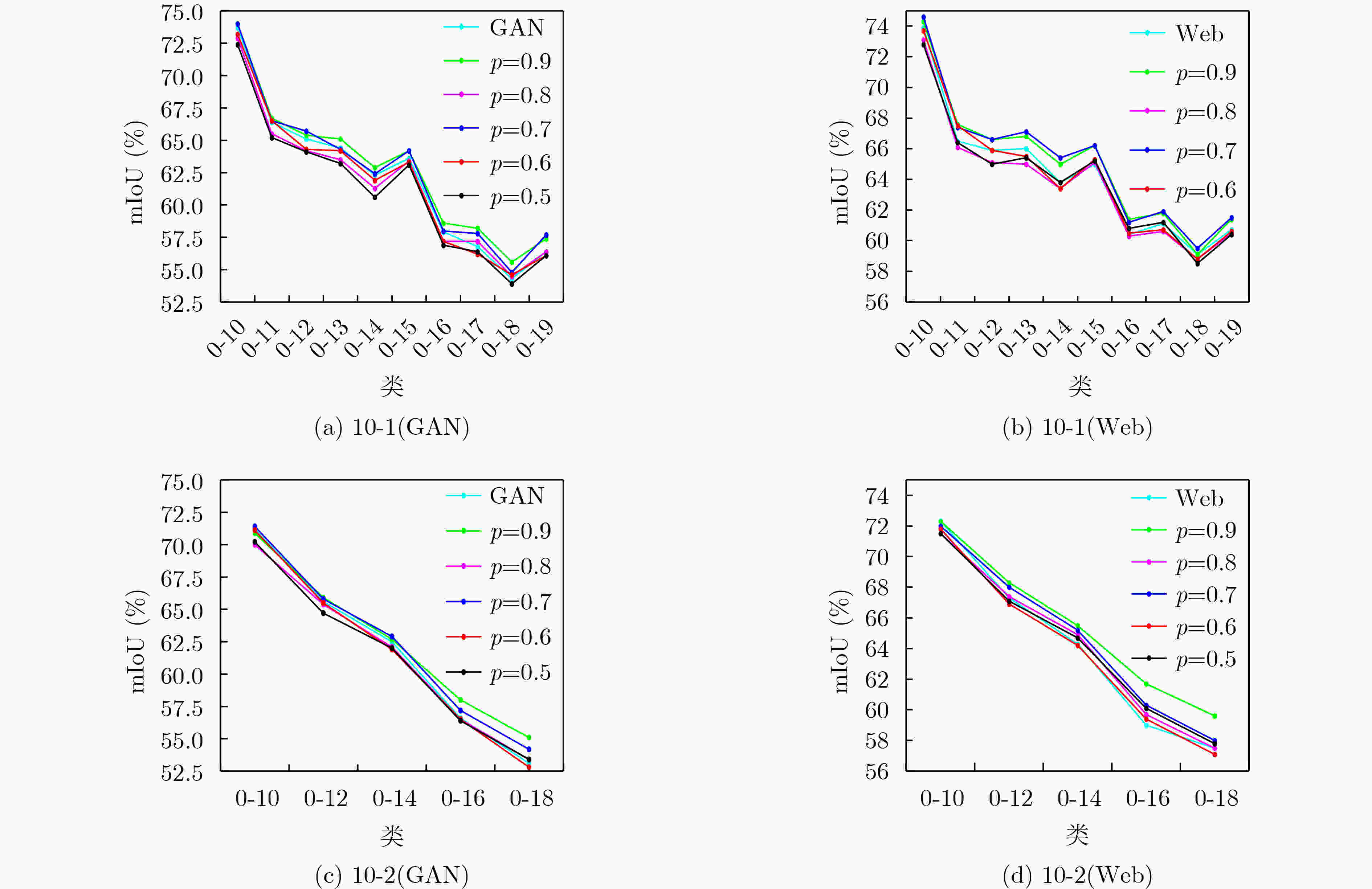

图 5 Overlapped场景中旧类mIoU的变化

下载: 全尺寸图片幻灯片

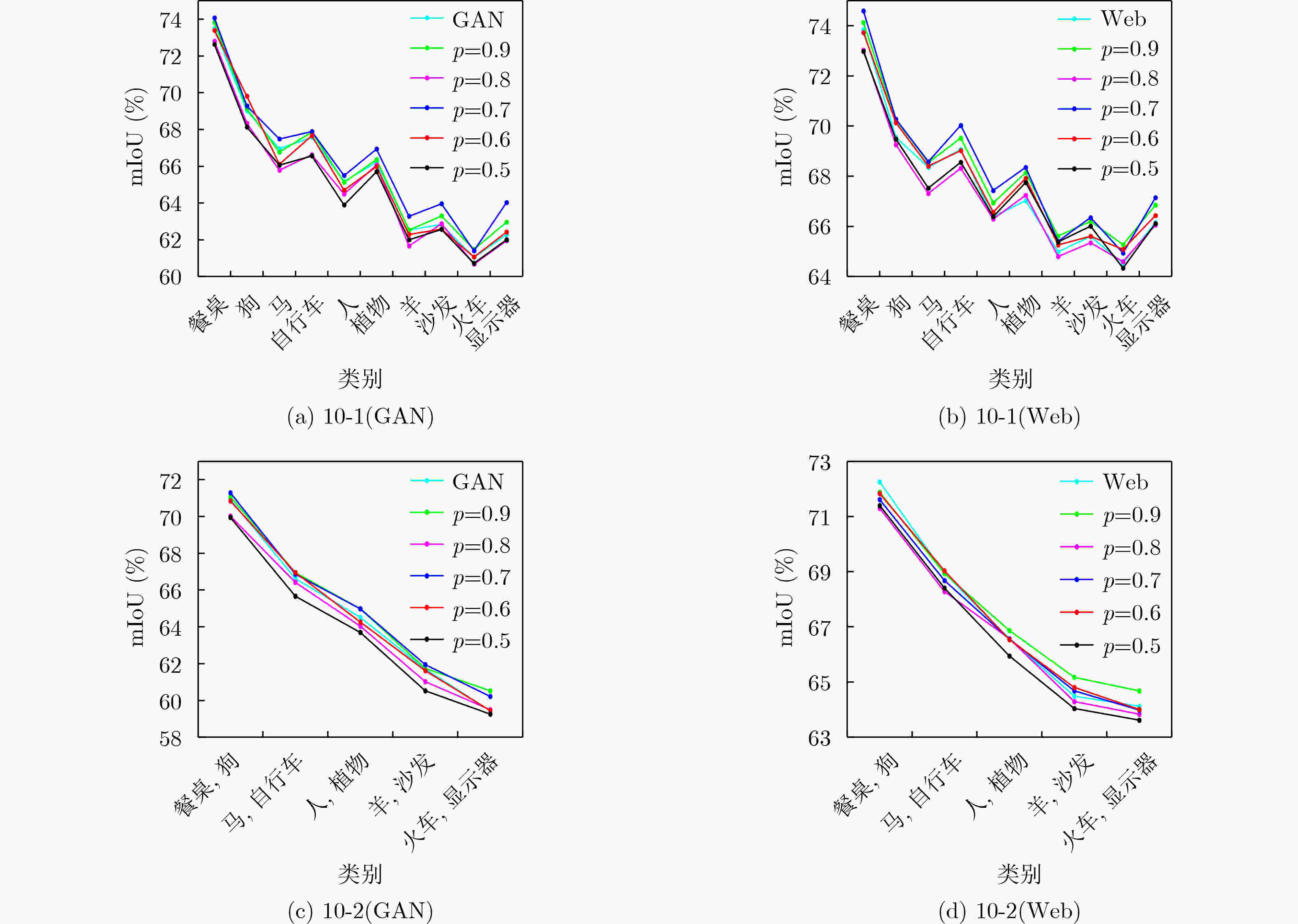

图 6 overlapped场景中0-10类mIoU的变化

下载: 全尺寸图片幻灯片

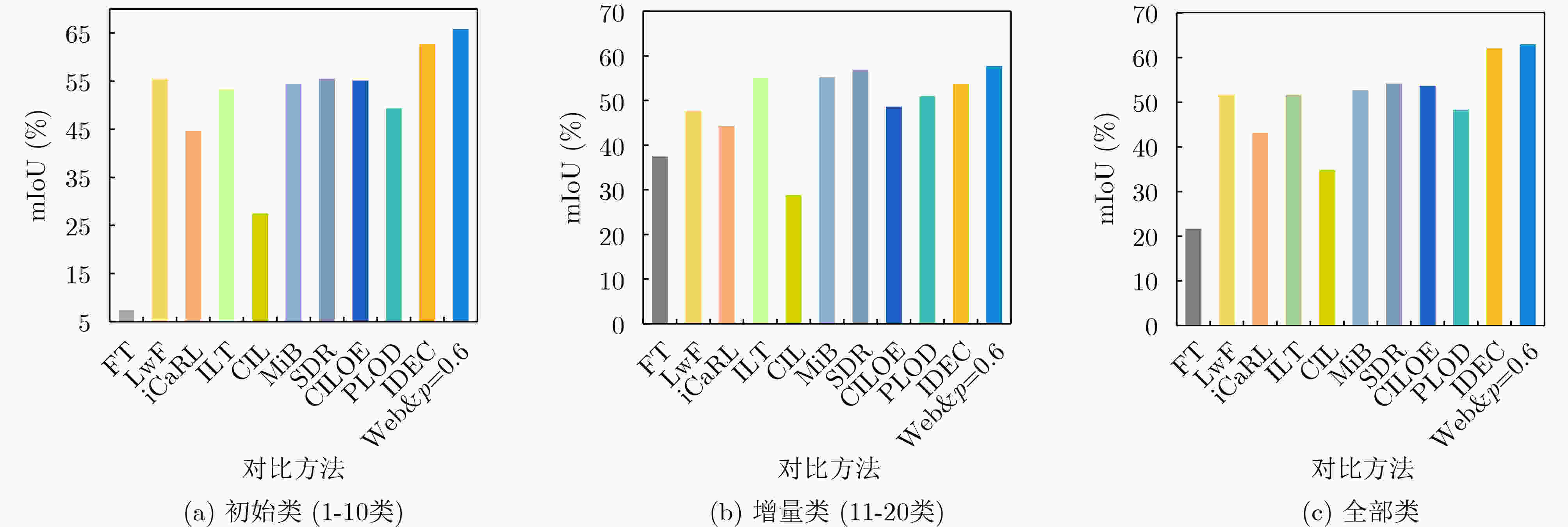

图 7 overlapped设置下场景10-5的方法对比结果(p=0.6)

下载: 全尺寸图片幻灯片

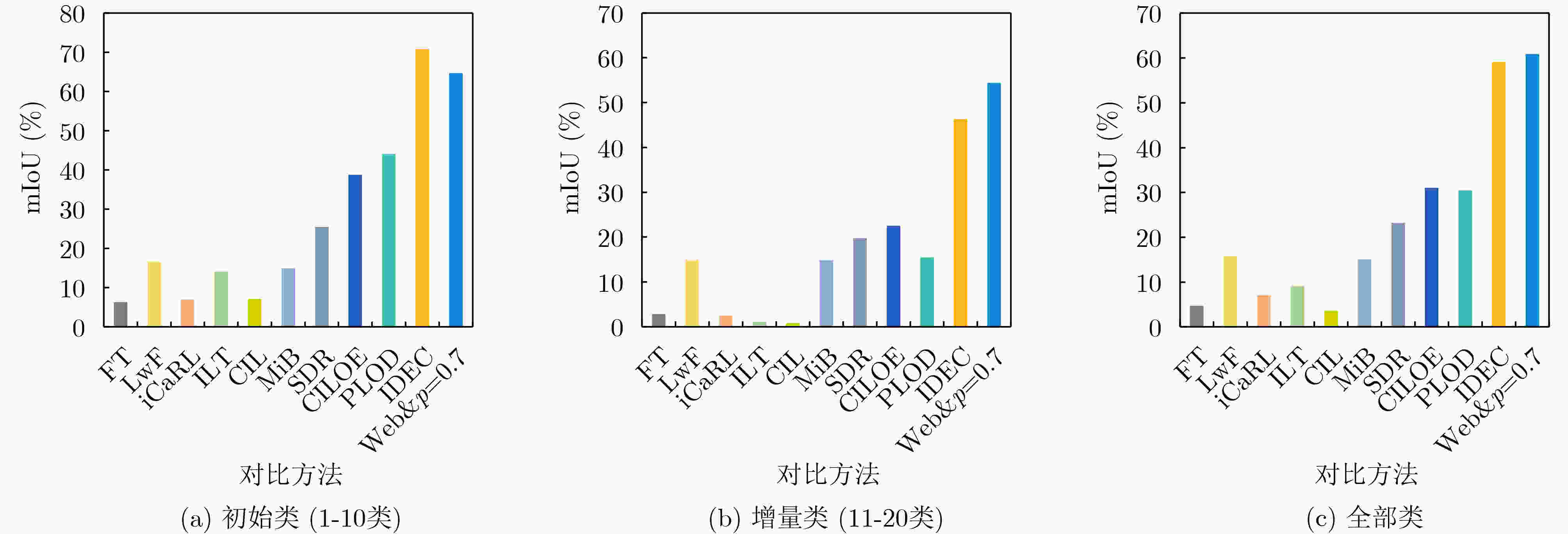

图 8 overlapped设置下场景10-1的方法对比结果(p=0.7)

下载: 全尺寸图片幻灯片

表 1 20个类的中英文类名

中文类名	飞机	自行车	鸟	船	瓶子	巴士汽车	汽车	猫	椅子	牛
英文类名	airplane	bicycle	bird	boat	bottle	bus	car	cat	chair	cow
中文类名	餐桌	狗	马	摩托车	人	盆栽	羊	沙发	火车	监视器
英文类名	dining table	dog	horse	motorbike	person	potted plant	sheep	sofa	train	monitor

下载: 导出CSV

表 2 门控0-1伯努利变量对模型稳定性-可塑性的影响

场景	类	GAN	p=0.9	p=0.8	p=0.7	p=0.6	p=0.5	Web	p=0.9	p=0.8	p=0.7	p=0.6	p=0.5
19-1	0-19	68.2±0.8	67.9±0.3	67.0±0.8	68.2±0.4	67.6±0.3	68.4±0.3	67.7±1.3	67.2±0.7	67.1±1.0	68.3±0.7	67.7±0.3	68.4±0.3
19-1	20	50.9±1.1	51.3±1.3	51.2±1.1	52.2±1.1	50.6±1.7	50.1±2.3	51.0±1.5	51.9±1.4	53.0±0.9	51.7±1.6	52.0±2.7	52.9±1.6
15-5	0-15	68.9±0.3	69.1±0.3	69.1±0.5	69.0±0.4	69.1±0.5	69.9±0.2	69.4±1.7	70.0±0.4	69.9±0.9	69.8±0.3	69.9±0.7	70.7±0.3
15-5	16-20	51.5±0.5	51.3±0.6	51.3±0.4	51.6±0.6	51.5±0.8	51.8±0.5	54.2±0.4	54.2±0.6	54.6±0.5	54.3±0.3	55.0±0.5	55.0±0.4
10-10	0-10	66.8±0.5	67.0±0.2	66.4±0.3	67.3±0.3	66.9±0.5	66.6±0.7	68.4±0.3	68.6±0.2	67.6±0.6	68.4±0.2	68.1±0.1	68.0±0.7
10-10	11-20	58.1±0.6	59.2±0.5	58.4±0.6	58.6±0.4	58.3±0.4	57.7±0.4	58.1±0.5	59.6±0.6	58.1±0.6	58.8±0.3	58.1±0.4	57.5±0.4
10-5	0-10	68.7±0.6	68.4±0.4	68.0±0.2	68.8±0.4	68.6±0.2	68.1±0.9	69.5±0.5	69.9±0.2	69.0±0.4	69.9±0.3	69.5±0.2	68.7±0.6
	11-15	63.1±0.3	63.8±1.2	63.0±0.7	63.3±0.7	63.2±0.9	63.0±0.5	63.7±0.8	65.0±0.7	63.9±0.4	64.3±0.3	63.9±1.1	63.7±1.1
	0-15	61.3±0.8	61.7±0.8	61.5±0.5	61.6±0.7	62.0±0.5	61.6±0.4	63.1±0.5	62.5±1.3	64.0±0.6	62.2±0.8	63.9±0.6	63.9±1.0
	16-20	49.3±0.5	50.0±1.1	49.2±0.6	48.4±0.2	48.7±1.1	49.0±0.1	53.0±0.4	54.1±0.8	53.1±0.5	53.0±0.3	53.4±0.9	53.2±0.3
10-2	0-10	71.2±0.7	70.9±0.8	70.0±0.3	71.4±0.6	71.1±0.4	70.2±1.0	72.3±0.4	72.3±0.4	71.5±0.6	72.0±1.1	71.8±0.4	71.5±1.0
	11-12	57.0±1.0	56.2±1.5	56.2±1.1	57.1±0.2	57.7±1.2	56.5±1.0	60.5±0.9	60.1±1.7	60.8±0.7	59.8±1.2	60.7±0.4	60.8±0.5
	0-12	65.6±1.3	65.9±0.7	65.4±0.6	65.8±0.6	65.5±0.3	64.7±0.5	67.3±0.9	68.3±1.1	67.4±0.2	68.0±1.0	66.9±0.6	67.1±0.6
	13-14	53.3±1.7	53.8±0.8	53.5±1.1	53.3±0.7	53.1±0.4	52.9±1.5	60.0±1.6	60.6±1.3	61.0±0.3	61.0±1.4	60.9±0.4	60.6±1.3
	0-14	62.5±1.3	62.7±0.6	62.1±0.6	62.9±0.6	61.9±0.5	62.0±0.9	64.3±1.6	65.5±0.6	64.9±0.6	65.2±0.3	64.2±1.2	64.7±0.7
	15-16	51.4±1.8	53.6±1.5	53.4±1.6	53.1±1.2	53.4±2.7	53.2±1.4	52.8±1.6	54.7±1.8	54.9±1.2	54.2±0.9	53.9±1.7	53.6±1.3
	0-16	56.6±0.9	58.0±1.1	56.5±0.8	57.2±0.3	56.5±0.7	56.4±0.6	59.0±1.1	61.7±0.9	59.7±0.2	60.3±0.3	59.4±0.8	60.1±0.9
	17-18	36.8±1.0	36.0±0.8	35.2±0.4	35.1±1	34.2±1.3	34.5±1.5	41.1±0.7	41.8±1.2	41.8±0.7	41.2±2.1	40.6±1.1	42.1±1.1
	0-18	53.1±0.8	55.1±1.2	53.4±0.8	54.2±0.2	52.8±0.3	53.4±0.6	57.5±0.7	59.6±0.7	57.5±0.6	58.0±0.4	57.1±0.7	57.8±1.1
	19-20	55.1±1.1	54.1±2.0	54.8±0.7	55.1±1	53.9±1.1	54.2±0.2	60.2±1.1	60.0±1.2	60.2±1.0	59.7±0.7	60.5±0.7	60.1±1.0
10-1	0-10	73.7±0.6	74.0±0.7	72.9±0.5	74±0.7	73.2±0.8	72.4±0.6	73.9±0.3	74.3±0.4	73.1±0.7	74.6±0.2	73.7±0.8	72.8±0.7
	11	31.8±1.3	33.8±2.9	32.1±2.4	33.5±2.1	35.9±3.6	35.0±3.2	31.5±3.4	34.2±3.9	34.0±1.2	32.4±1.5	38.2±1.7	34.4±3.0
	0-11	66.4±0.4	66.7±0.8	65.5±0.2	66.5±0.7	66.5±1.2	65.2±0.6	66.5±0.3	67.6±0.8	66.1±0.3	67.4±0.5	67.5±0.9	66.4±1.1
	12	60.1±2.6	59.1±3.5	60.5±1.0	57.2±2.6	60.1±2.4	57.5±0.4	63.8±1.8	65.2±2.7	65.2±3.1	62.2±1.2	66.0±1.7	65.8±2.9
	0-12	65.1±0.7	65.4±0.9	64.2±0.4	65.7±0.5	64.3±1.0	64.1±0.6	65.9±0.2	66.6±1.3	65.1±0.6	66.6±0.6	65.9±1.0	65.0±1.0
	13	38.8±1.5	39.3±1.9	39.4±1.5	39.5±0.6	39.0±1.3	40.2±2.2	45.5±1.6	45.2±3.2	43.3±2.3	44.9±1.9	45.4±1.6	47.6±1.1
	0-13	64.4±0.9	65.1±0.2	63.5±0.8	64.3±0.8	64.2±0.4	63.2±0.3	66.0±0.7	66.8±1.2	65.0±0.6	67.1±0.8	65.5±1.2	65.4±0.7
	14	57.2±1.3	58.2±1.4	58.9±0.9	59.4±1.5	57.9±0.4	56.4±2.2	62.8±2.7	64.7±1.5	64.6±0.3	65.6±1.9	64.7±2.9	62.3±2.5
	0-14	62.3±0.9	62.9±0.4	61.3±0.6	62.4±0.8	61.9±0.9	60.6±0.8	63.8±0.5	65.0±0.9	63.4±0.3	65.4±0.8	63.4±1.2	63.8±0.8
	15	67.3±0.5	68.7±1.0	68.9±0.3	69.1±0.6	68.2±0.6	68.5±0.6	68.4±0.5	68.4±0.3	69.2±0.1	68.3±0.6	69.1±0.7	69.4±0.5
	0-15	63.6±0.5	64.2±0.4	63.4±0.6	64.2±0.6	63.3±1.3	63.1±0.4	65.0±0.5	66.2±0.6	65.1±0.4	66.2±0.6	65.3±0.9	65.2±0.4
	16	26.5±4.0	28.2±1.2	27.7±3.2	26.4±1.6	26.2±1.3	25.6±1.9	37.1±1.8	35.6±1.6	37.2±2.7	36.4±1.6	36.5±1.7	38.2±1.6
	0-16	57.9±0.4	58.6±0.5	57.2±0.6	58±0.6	57.2±0.5	56.9±0.7	60.4±0.2	61.4±1.4	60.3±0.2	61.2±1.1	60.5±1.5	60.8±0.6
	17	33.6±1.3	34.0±0.5	32.4±1.9	33±0.8	31.1±1.4	33.0±0.3	42.3±2.9	44.7±2.2	43.6±2.7	42.2±1.9	43.2±2.0	45.6±1.4
	0-17	56.8±0.7	58.2±0.2	57.2±1.1	57.8±0.6	56.2±0.6	56.4±0.7	61.1±0.4	61.8±0.6	60.6±0.9	61.9±0.7	60.7±0.8	61.2±0.4
	18	24.1±0.9	23.7±0.9	25.3±0.6	24.7±1.7	23.7±1.7	23.9±1.2	23.9±0.9	24.4±0.5	25.2±0.4	24.2±0.6	25.4±2.0	24.8±0.6
	0-18	54.3±0.8	55.6±0.5	54.5±0.5	54.8±1	54.6±0.5	53.9±0.4	59.1±0.5	59.1±0.6	58.8±1.0	59.5±1.1	58.8±0.7	58.5±0.6
	19	49.4±1.8	51.4±2.0	52.4±3.2	50.5±1.5	50.6±0.4	50.7±0.6	57.1±1.0	59.7±1.6	60.0±1.9	57.3±1.5	57.6±3.1	57.1±1.9
	0-19	56.4±0.9	57.4±0.4	56.4±0.3	57.7±0.3	56.1±0.3	56.1±0.3	60.7±0.4	61.4±0.7	60.5±1.1	61.5±0.5	60.6±0.7	60.4±0.5
	20	45.1±2.2	42.5±2.3	43.9±1.1	43.9±2.6	44.0±2.7	43.9±1.6	51.4±1.5	50.6±1.0	49.5±2.0	50.2±1.6	48.4±2.2	48.8±1.4

下载: 导出CSV
