LLMA-GCN：语义增强的层次化时空图卷积动作识别网络

贾桂敏; 周熹龙

doi:10.11999/JEIT260154

LLMA-GCN：语义增强的层次化时空图卷积动作识别网络

doi: 10.11999/JEIT260154 cstr: 32379.14.JEIT260154

贾桂敏^{1, 2, ,},
周熹龙^{1, 2}

1.
中国民航大学电子信息与自动化学院天津 300300
2.
中国民航大学天津市智能信号与图像处理重点实验室天津 300300

基金项目: 天津市自然科学基金联合基金(25JCLMJC00930)

详细信息

作者简介:
贾桂敏：女，副教授，硕士生导师，研究方向为模式识别，多模态信息融合认知

周熹龙：男，硕士，研究方向为多模态特征融合和动作识别

通讯作者:
贾桂敏　gmjia@cauc.edu.cn

中图分类号: TN911.73; TP391.41; TP18
计量
- 文章访问数: 9
- HTML全文浏览量: 4
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2026-02-05
- 修回日期: 2026-05-29
- 录用日期: 2026-05-29
- 网络出版日期: 2026-06-10

LLMA-GCN: Semantic-Enhanced Hierarchical Spatiotemporal Graph Convolutional Network for Action Recognition

JIA Guimin^{1, 2
, ,},
ZHOU Xilong^{1, 2}

1.
School of Electronic Information and Automation, Civil Aviation University of China, Tianjin 300300, China
2.
Tianjin Key Lab for Advanced Signal Processing, Civil Aviation University of China, Tianjin 300300, China

摘要

摘要: 针对当前骨架动作识别方法在引入大语言模型(LLM)时存在的语义引导与空间拓扑学习脱节、时间建模缺乏层次化语义支持、传统分类范式泛化能力不足的三大问题，本文提出一种基于LLM增强的骨架动作识别新方法(LLMA-GCN)。该方法首先提出一种基于LLM的混合图拓扑学习策略，将物理骨架结构先验知识与LLM提取的动作语义信息深度融合以指导空间建模；其次，将混合图拓扑学习策略与层次化视觉序列编码器相结合，通过设计的LLM精炼块实现语义引导下的多尺度时空特征提取；最后，构建了LLM驱动的文本原型引导决策学习机制，实现语义引导的视觉-文本对齐和分类决策联合学习，从而提升模型整体性能。在NTU RGB+D 60、NTU RGB+D 120以及PKU-MMD公开数据集上进行了大量对比实验及消融实验，证明了新方法的有效性和先进性。
- 骨架动作识别 /
- 大语言模型 /
- 语义增强 /
- 视觉-语言对齐 /
- 时空图卷积
Abstract: Objective Current Large Language Model based methods for skeleton-based action recognition struggle with decoupling semantic guidance from spatial topology, lacking hierarchical semantic support in temporal modeling, and limited generalization in traditional classification. To address these issues, we propose a Large Language Model-Augmented Graph Convolutional Network (LLMA-GCN). This framework integrates LLM reasoning with graph convolutional networks to achieve robust, semantically-guided spatiotemporal feature learning and improve action classification. Methods LLMA-GCN processes visual skeleton modalities and semantic inputs via a dual-stream strategy. To avoid catastrophic forgetting, we use frozen LLMs with prompt engineering to pre-calculate semantic adjacency matrices and text prototypes. The framework features three key components: (1) An LLM-based Hybrid Graph Topology Learning Strategy adaptively fuses semantic adjacency matrices with physical skeleton priors to capture both physical and semantic correlations. (2) An LLM Refinement Block (LRB) combines this hybrid topology with a hierarchical temporal feature extraction module to capture multi-scale spatiotemporal patterns. (3) An LLM-driven decision learning mechanism aligns visual features with LLM-generated semantic vectors in a shared space. A joint loss function optimizes both branches, transforming traditional visual classification into text prototype-guided visual-semantic alignment. Results and Discussions (1) Experiments on three datasets show that LLMA-GCN achieves competitive or superior performance compared to the SOTA methods. (2) Ablation studies confirm the critical roles of the hybrid graph topology and the LRB. (3) Model parameter efficiency analysis demonstrates the framework's potential for practical application. Conclusions (1) Fusing semantic and physical adjacency matrices allows action semantics to directly guide graph convolutions, enhancing the model's semantic perception. (2) The LRB effectively embeds semantic information into the hierarchical extraction of spatiotemporal features, improving the capture of complex actions. (3) The LLM-driven decision mechanism successfully shifts action recognition from traditional classification to a visual-text alignment problem. Overall, LLMA-GCN deeply integrates visual and semantic features, providing a robust and generalizable new approach for skeleton-based action recognition.
- Skeleton-based action recognition /
- Semantic enhancement /
- Large Language Model /
- Visual-language alignment /
- Spatio-temporal graph convolution

HTML全文

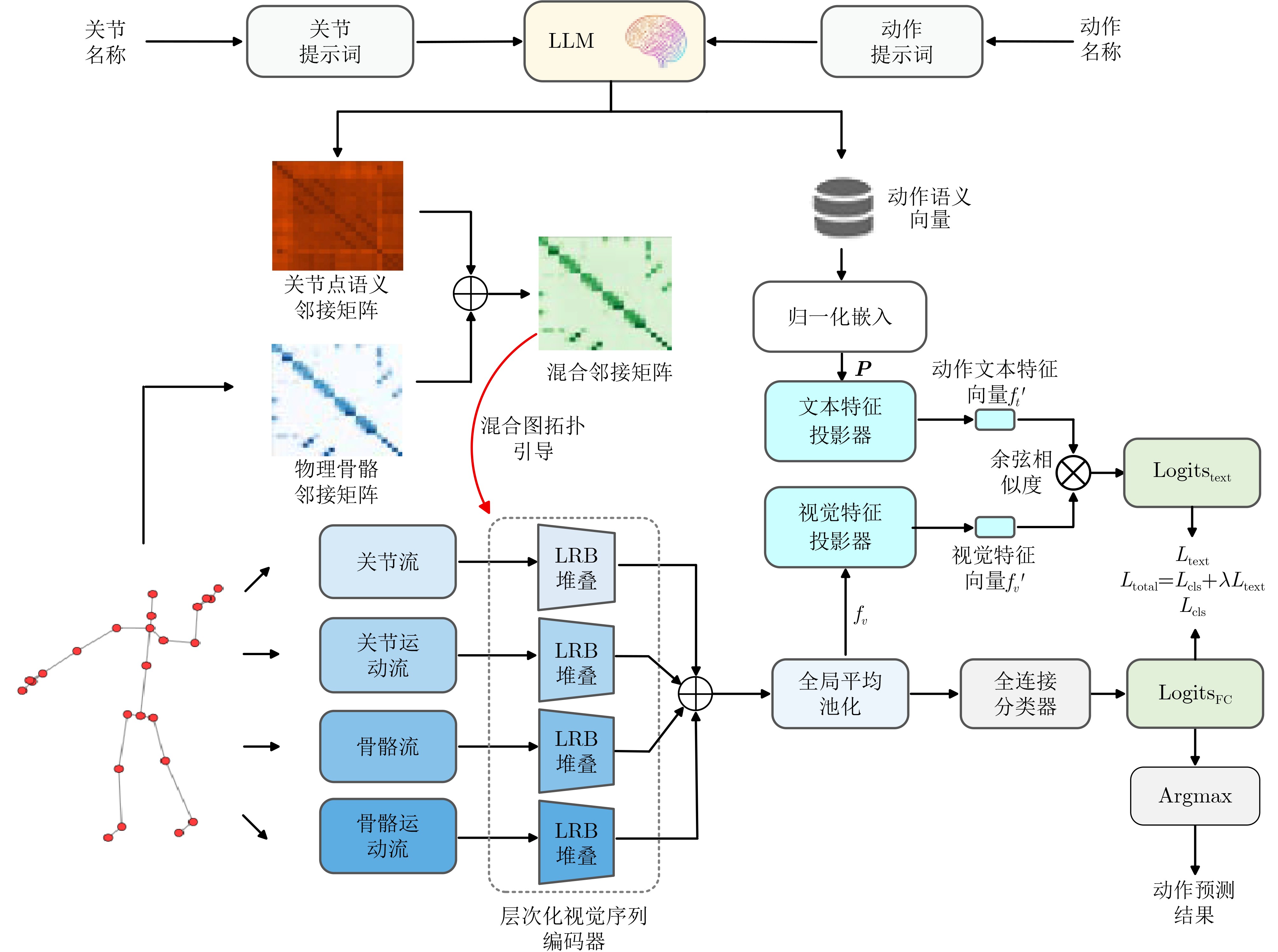

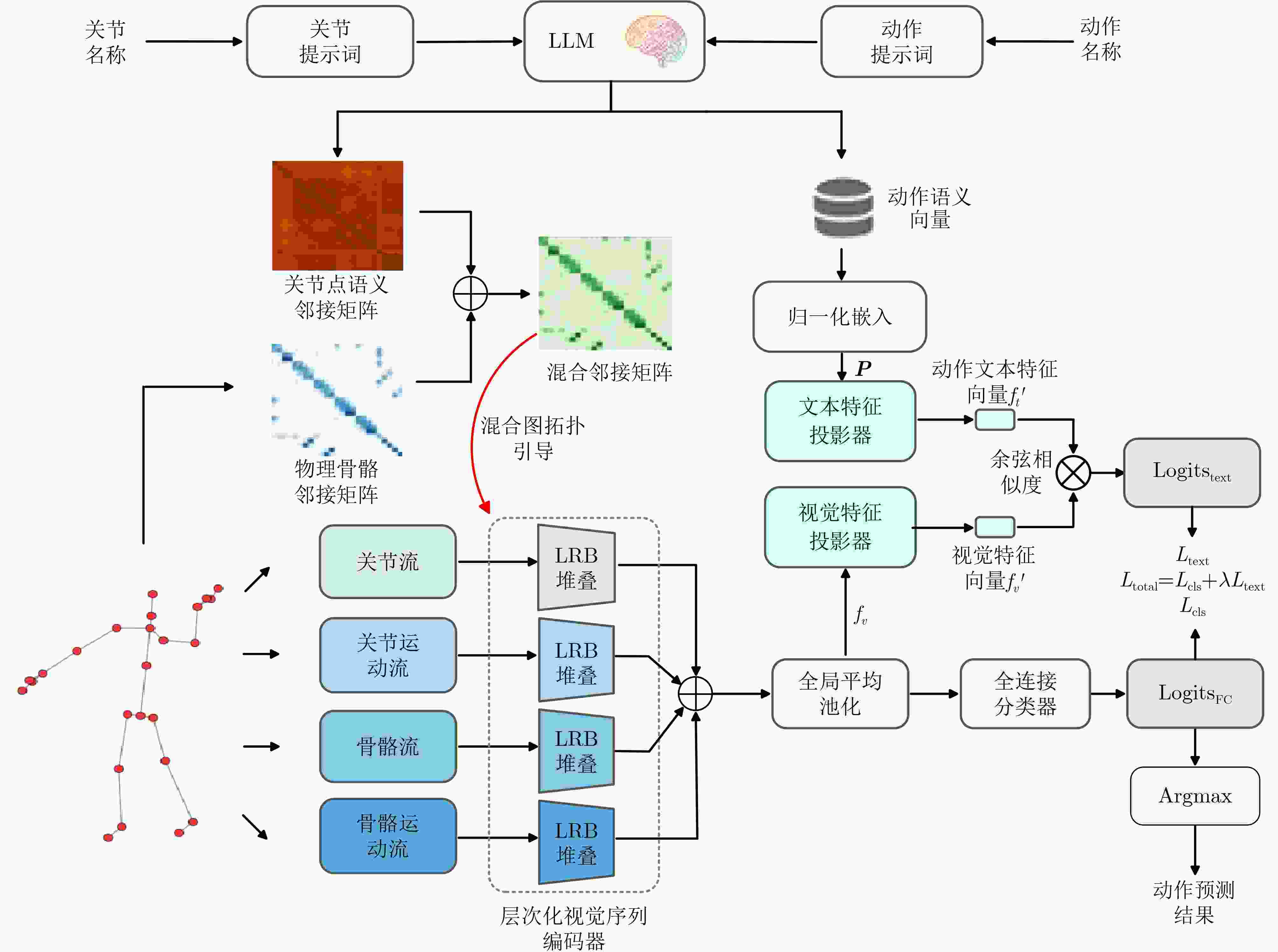

图 1 LLMA-GCN整体结构图

下载: 全尺寸图片幻灯片

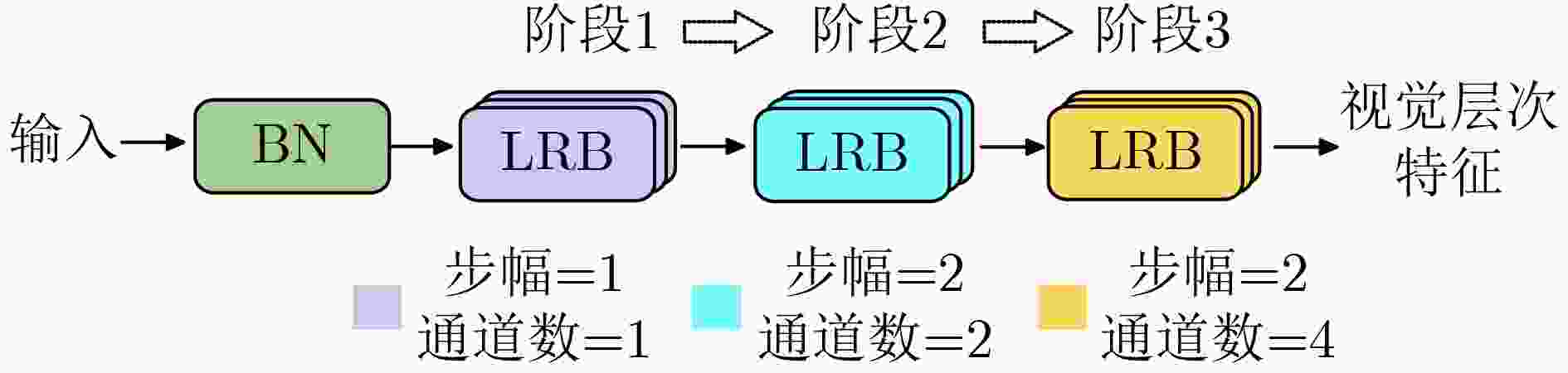

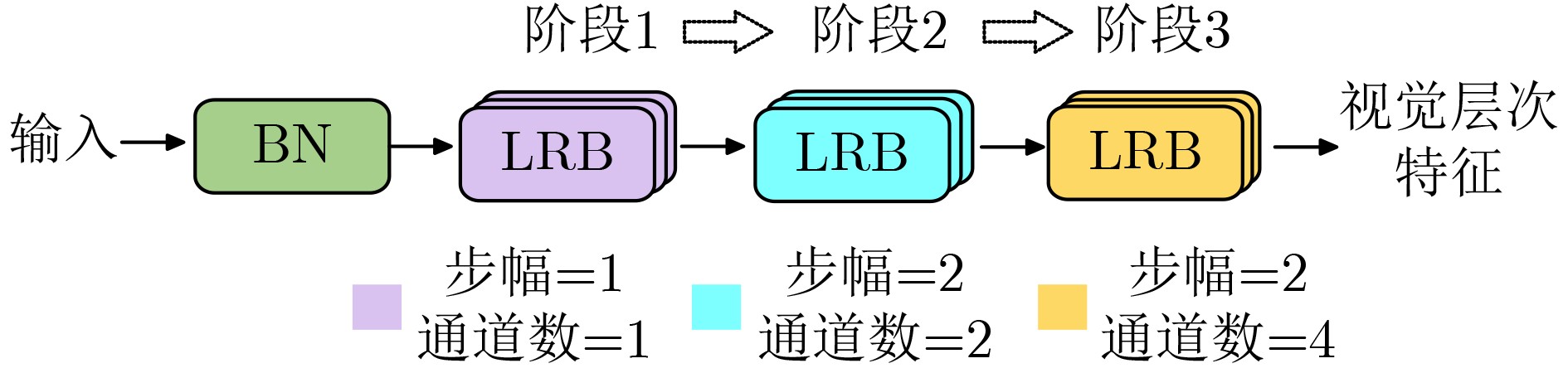

图 2 层次化视觉序列编码器结构图

下载: 全尺寸图片幻灯片

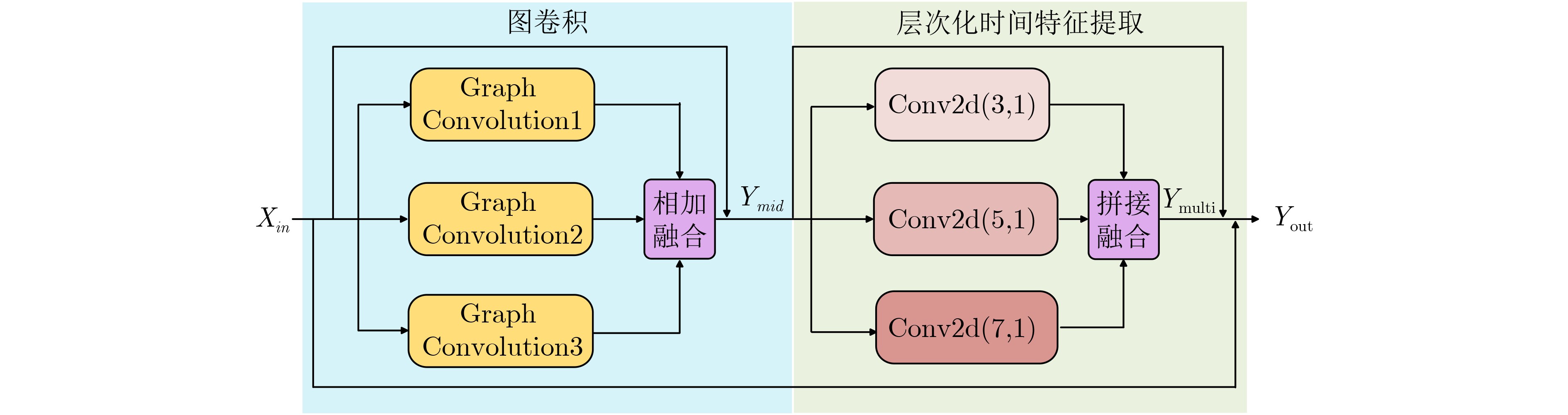

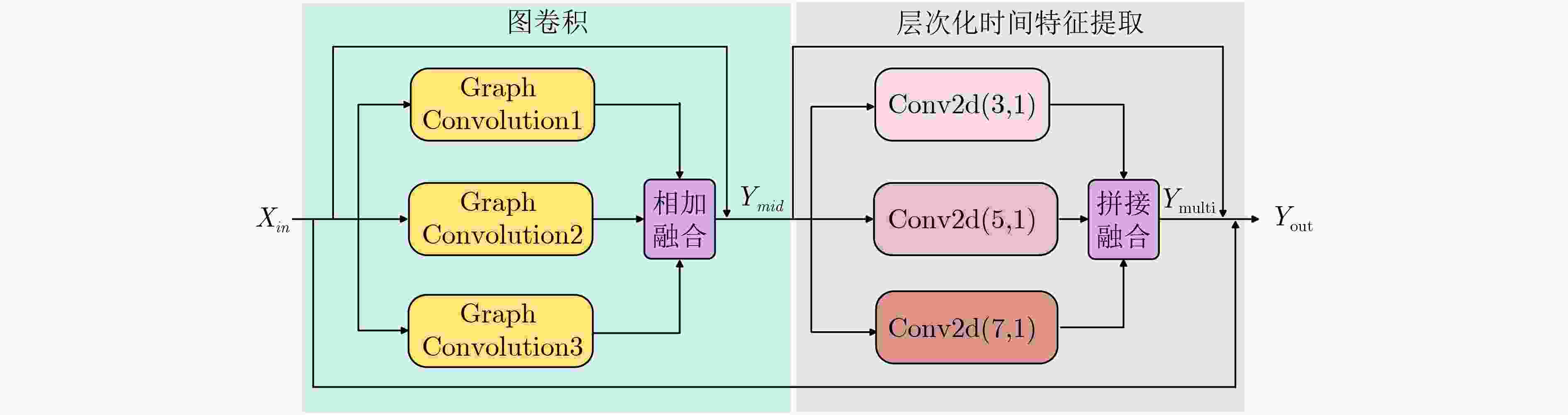

图 3 LRB精炼块结构图

下载: 全尺寸图片幻灯片

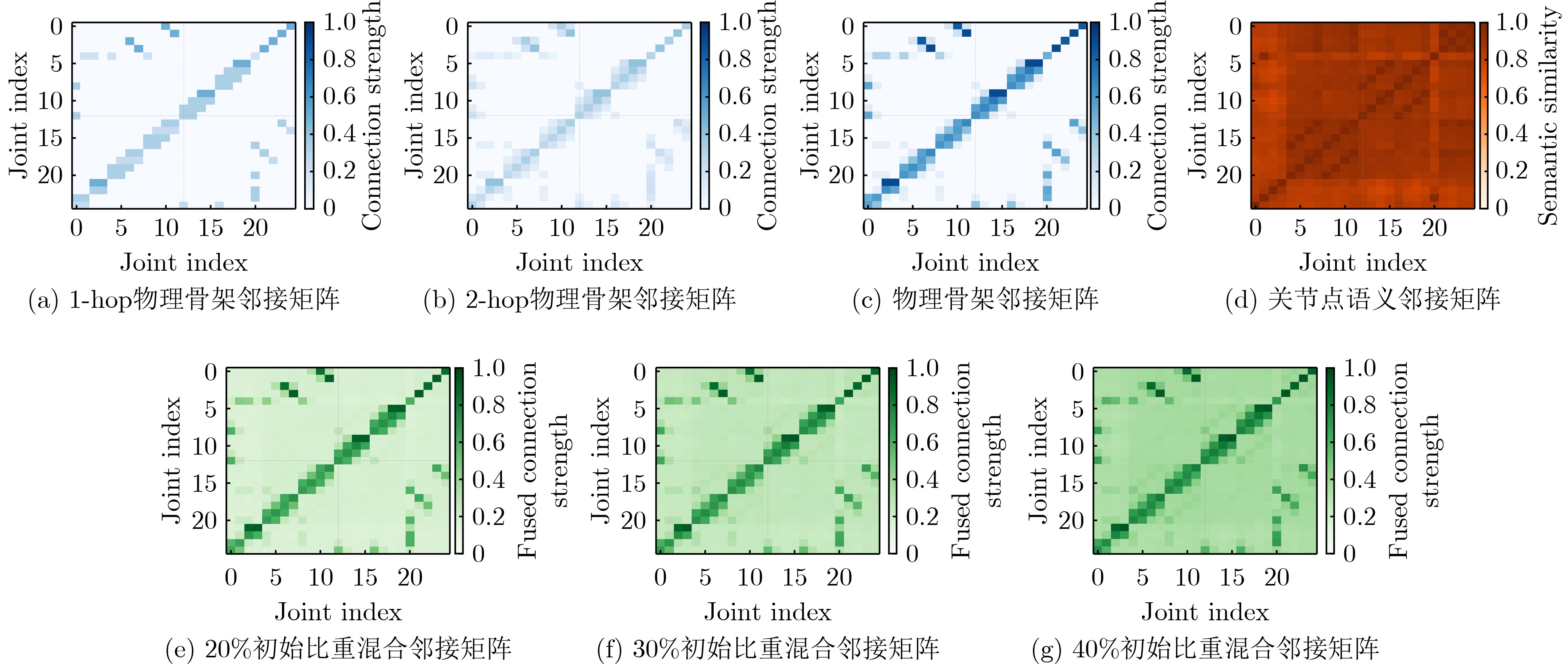

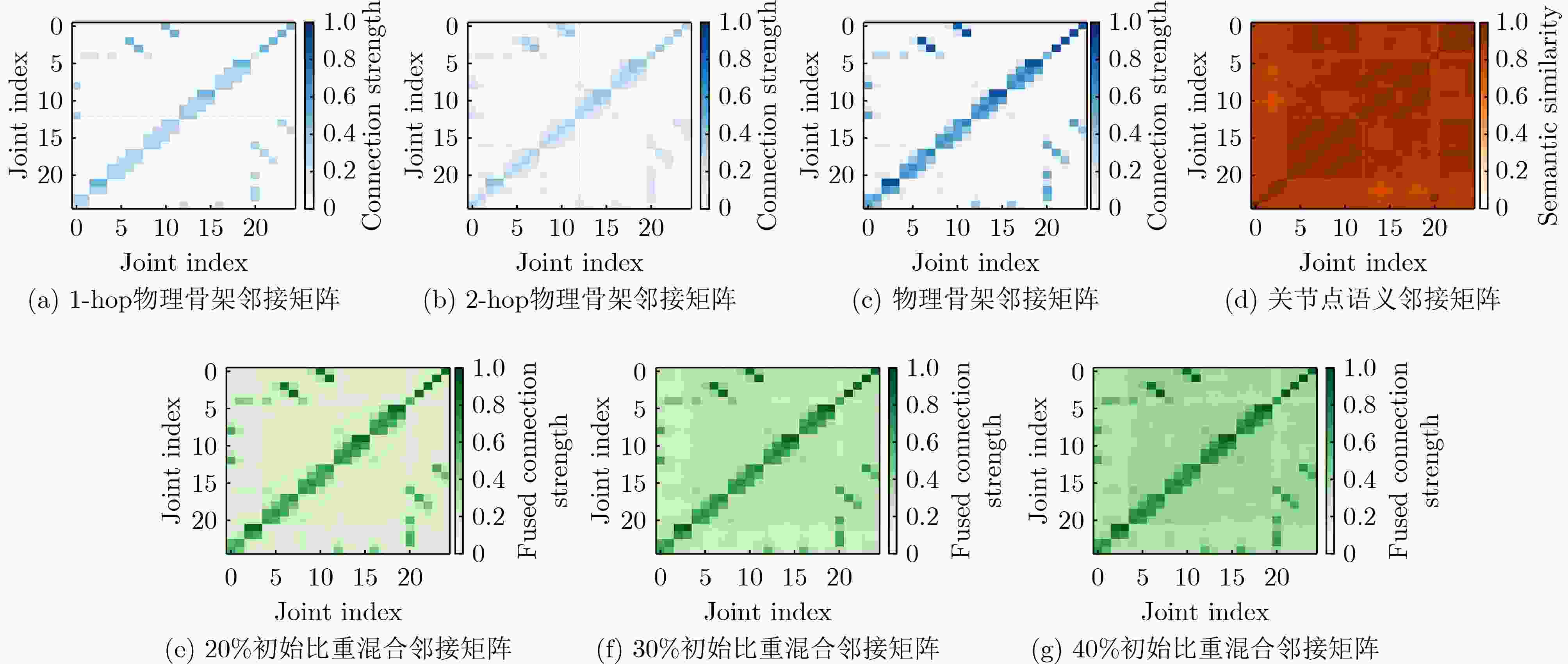

图 4 邻接矩阵可视化结果

下载: 全尺寸图片幻灯片

表 1 动作文本原型提示词配置

构建维度	提示词模板	侧重点
描述性	"Describe the action '{action name}': A person is performing {action name}."	动作的执行过程与动态流程
观察性	"What does '{action name}' look like? Someone is doing {action name}."	动作的视觉表征与外观特征
陈述性	"Action description for '{action name}': The person is {action name}."	动作的定义与状态

下载: 导出CSV

表 2 三个公开数据集上的对比实验结果(%)

动作识别模型	NTU RGB+D 60		NTU RGB+D 120		PKU-MMDⅠ
动作识别模型	X-sub	X-view	X-sub	X-set	X-sub	X-view
ST-GCN^[8](2018)	81.5	88.3	70.7	73.2	-	-
DS-STGCN^[10](2024)	93.2	97.5	89.4	91.2	-	-
DSDC-GCN^[22](2024)	93.0	97.1	89.9	90.6	97.6	-
STA-GCN-Transformer^[9](2025)	86.0	91.9	-	-	-	-
BlockGCN^[27](2024)	93.1	97.0	90.3	91.5	-	-
SMS-GCN^[28](2025)	92.6	96.9	89.3	90.7	-	-
TSGCNeXt^[29](2025)	93.2	97.0	90.2	91.7	-	-
GAP+CTR-GCN^[11](2023)	92.9	97.0	89.9	91.1	-	-
MICA^[12](2025)	85.3	90.6	77.4	76.0	93.0	-
CEPCLR^[13](2025)	86.9	91.3	80.5	81.9	95.3	-
HS-Rep^[14](2025)	87.8	93.7	78.9	82.2	-	-
LLM-AR^[15](2024)	95.0	98.4	88.7	91.5	-	-
KEHCN^[23](2025)	93.5	97.3	90.4	91.8	-	-
MMNet^[24](2025)	96.0	98.8	92.9	94.4	97.4	98.6
MMINet^[25](2022)	94.3	96.5	91.7	92.6	93.6	94.2
TBCNet^[26](2025)	96.3	97.1	91.5	92.9	93.8	93.6
LLMA-GCN	96.5	97.5	91.8	92.5	98.3	97.4

下载: 导出CSV

表 3 LLMA-GCN框架消融实验结果(%)

实验设置	M	S	T	X-sub	实验设置	M	S	T	X-sub
B	×	×	×	90.8	B+M+S	√	√	×	97.0
B+M	√	×	×	93.9	B+M+T	√	×	√	97.3
B+S	×	√	×	96.8	B+S+T	×	√	√	97.8
B+T	×	×	√	94.3	LLMA-GCN	√	√	√	98.3

下载: 导出CSV

表 4 混合邻接矩阵中融合权重实验分析结果(%)

α初始值	α固定取值	α自动学习
0.20	93.53	96.1
0.30	93.23	98.3
0.40	92.71	95.6

下载: 导出CSV

表 5 层次化时间特征提取模块细粒度消融实验结果(%)

具体设置	3	5	7	9	11	(3,5)	(3,7)	(5,7)	(3,5,7)	(5,7,9)	(3,5,9)	(3,7,11)
准确率	94.56	95.12	95.23	94.23	94.05	94.23	94.93	95.19	98.30	95.04	94.93	93.57

下载: 导出CSV

表 6 模型参数量及计算量分析实验结果

方法	模型参数量(M)	GFLOPs	方法	模型参数量(M)	GFLOPs
DS-STGCN^[10]	5.64	7.88	TSGCNeXt^[29]	15.24	7.05
DSDC-GCN^[22]	7.72	9.42	GAP+CTR-GCN^[11]	8.48	34.40
LLMA-GCN	14.61	19.37

下载: 导出CSV
