面向铁路双无人机协同巡检轨迹优化的多智能体强化学习方法

黄高勇; 宋俊; 方旭明; 闫莉; 何蓉

doi:10.11999/JEIT251321

面向铁路双无人机协同巡检轨迹优化的多智能体强化学习方法

doi: 10.11999/JEIT251321 cstr: 32379.14.JEIT251321

黄高勇^{1, 2, ,},
宋俊¹,
方旭明¹,
闫莉^{1, 2},
何蓉¹

1.
西南交通大学信息编码与传输四川省重点实验室成都 610031
2.
四川省列车运行控制技术工程研究中心成都 611756

基金项目: 国家自然科学基金(62071393)

详细信息

作者简介:
黄高勇：男，讲师，研究方向为轨道交通无线通信网络优化

宋俊：男，硕士生，研究方向为无人机辅助通信

方旭明：男，教授，研究方向为无线与移动通信网络、交通通信与信息系统等

闫莉：女，副教授，研究方向为铁路5G-R移动通信

何蓉：女，副教授，研究方向为通感算一体化网络

通讯作者:
黄高勇　gyhuang@swjtu.edu.cn

中图分类号: TN929.5
计量
- 文章访问数: 22
- HTML全文浏览量: 13
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-03-24
- 录用日期: 2026-03-24
- 网络出版日期: 2026-04-19

Multi-Agent Reinforcement Learning Method for Dual-UAV Cooperative Trajectory Optimization in Railway Inspection

HUANG Gaoyong^{1, 2
, ,},
SONG Jun¹,
FANG Xuming¹,
YAN Li^{1, 2},
HE Rong¹

1.
Sichuan Province Key Laboratory of Information Coding and Transmission, Southwest Jiaotong University, Chengdu 610031, China
2.
Sichuan Provincial Engineering Research Center for Train Operation Control Technology, Chengdu 611756, China

Funds: The National Natural Science Foundation of China (62071393)

摘要

摘要: 传统的铁路人工巡检和轨道车巡检方式存在效率低下、劳动强度大、存在安全隐患等问题，难以满足未来铁路智能化运维需求，而现有单无人机巡检方案在铁路保护区限制下存在覆盖盲区、数据同步性差等局限。为此，该文以任务质量最大化为目标，提出一种基于深度强化学习的双无人机协同巡检轨迹优化方法。为了解决能耗、避障、通信和编队保持等多重约束条件之间的耦合问题，该文构建了双无人机协同巡检优化模型，并设计了一种两阶段分层求解框架。第一阶段采用粒子群优化(PSO)算法为各巡检任务确定最优协同观测位置；第二阶段构建基于多智能体深度强化学习的轨迹优化模型，引入风险自适应探索噪声以提升强约束环境下的训练收敛稳定性，并提出一种改进的多智能体双延迟深度确定性策略梯度(MATD3)算法进行求解。仿真结果表明，相较于多种基准算法，所提方案在双机协同巡检场景下，无人机飞行路径长度缩短了约4.5%，累计能耗降低了8.9%，双机协同到达时间差缩短了30.3%，有效提升了复杂环境下的铁路巡检任务完成质量。
- 铁路智能巡检 /
- 双无人机协同 /
- 路径规划 /
- 多智能体深度强化学习 /
- 粒子群优化
Abstract: Objective The rapid expansion of the global railway infrastructure necessitates advanced and efficient inspection methods to replace conventional manual or dedicated vehicle-based approaches, which suffer from inefficiency, limited coverage, and safety risks, especially in hazardous or inaccessible areas. Unmanned Aerial Vehicles (UAVs) offer a promising alternative; however, their deployment in strictly regulated railway protection zones presents significant challenges. Single-UAV operations are often constrained by limited perspectives and data asynchrony. A cooperative dual-UAV inspection framework in this paper is proposed to address these challenges. The primary optimization objective is to solve the complex optimization problem of jointly planning the flight trajectories and inspection sequences for two UAVs to maximize the quality of task completion while satisfying multiple coupled constraints, including energy consumption, obstacle avoidance, communication range, and formation synchronization. Methods To tackle this high-dimensional, non-convex, NP-hard optimization problem, a two-stage hierarchical framework is proposed to decompose the coupled multi-constraint model into tractable sub-problems. In the first stage, the framework decouples the problem by determining the optimal cooperative observation positions for each inspection task. A Particle Swarm Optimization (PSO) algorithm is employed to identify the ideal 3D coordinates for both UAVs, maximizing sensor coverage and data quality. In the second stage, the joint optimization of continuous flight trajectories and the discrete task sequence is formulated as a Multi-Agent Deep Reinforcement Learning (MADRL) problem. To ensure robust convergence under strict safety constraints, a Risk-Adaptive Exploration Noise Mechanism (RAENM) is integrated into the training process. The problem is then solved by the improved Multi-Agent Twin Delayed Deep Deterministic Policy Gradient (MATD3) algorithm under a Centralized Training with Decentralized Execution (CTDE) paradigm. Each UAV acts as an independent agent with a state space encompassing its kinematic data, target location, remaining energy, and obstacle proximity. The action space defines UAV control inputs, while a meticulously designed multi-component reward function balances competing objectives: rewarding efficient navigation toward targets, penalizing high energy consumption, enforcing safety via penalties for entering railway protection zones and approaching obstacles, and incentivizing collaborative behavior through rewards for synchronized task execution. Results and Discussions The proposed framework was rigorously evaluated through comprehensive simulations against state-of-the-art baseline algorithms. Results demonstrate the significant advantages of the proposed improved MATD3 approach. Benefiting from the enhanced training stability provided by the risk-adaptive mechanism, the proposed improved MATD3 approach demonstrated superior convergence and scalability in complex multi-agent scenarios, consistently achieving higher cumulative rewards, particularly as the number of inspection tasks increased. In path planning, the proposed improved MATD3 algorithm generated more compact and efficient trajectories, consistently achieving the shortest total path lengths (e.g., 13,025 meters in a two-task scenario, outperforming the next best algorithm by approximately 4.5%). Furthermore, the proposed improved MATD3 algorithm excelled in energy efficiency, yielding the lowest cumulative energy consumption across all scenarios. It also maintained the smallest navigation error and time difference between UAV arrivals at shared inspection points, confirming high control precision and superior spatiotemporal coordination. Consequently, by minimizing positional deviations and ensuring synchronized coverage, the proposed MATD3 achieved the highest final inspection task quality scores in all evaluations. Conclusions An effective two-stage hierarchical framework for optimizing dual-UAV cooperative trajectories in railway infrastructure inspection is proposed in this paper, integrating the PSO algorithm to determine optimal perceptual positions and the improved MATD3 algorithm for learning dynamic collaborative flight policies. Extensive experiments demonstrate that the proposed solution significantly outperforms state-of-the-art baselines across multiple key performance indicators, including path efficiency, energy conservation, collision avoidance, and inspection coverage. This work provides a solid foundation for deploying intelligent multi-UAV systems in critical infrastructure monitoring. Future work will focus on enhancing robustness by incorporating real-world uncertainties, such as communication delays, and dynamic environmental conditions.
- Railway intelligent inspection /
- Dual-UAV cooperation /
- Path planning /
- Multi-agent Deep Reinforcement Learning (MADRL) /
- Particle Swarm Optimization (PSO)

HTML全文

图 1 基于双无人机协同的铁路巡检场景示意图

下载: 全尺寸图片幻灯片

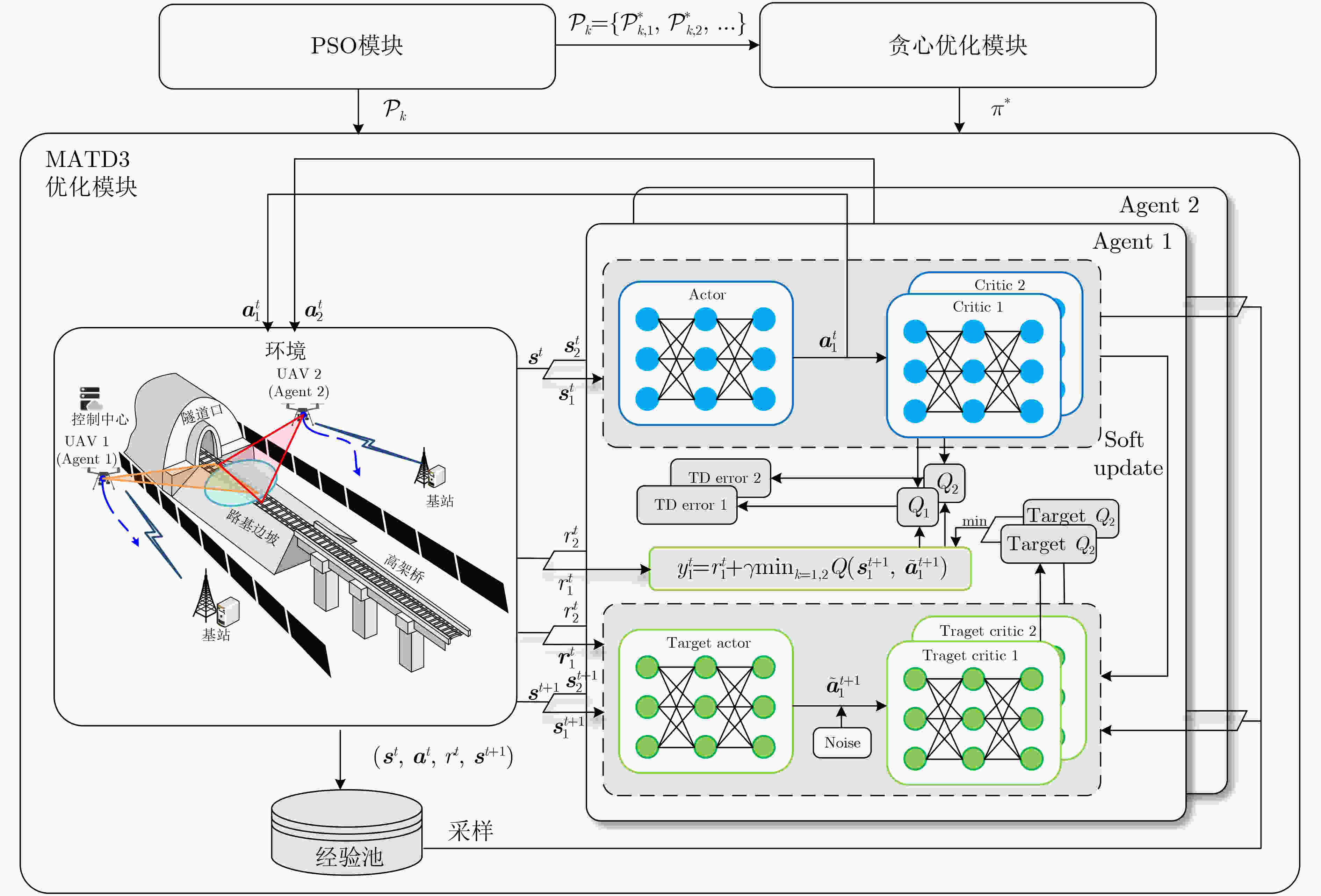

图 2 基于MATD3双无人机协同巡检轨迹优化算法框图

下载: 全尺寸图片幻灯片

图 3 风险自适应噪声机制消融实验收敛性能对比

下载: 全尺寸图片幻灯片

图 4 不同巡检任务数量下各算法收敛性能对比

下载: 全尺寸图片幻灯片

图 5 不同巡检任务数量下各算法双无人机巡检优化轨迹3D图

下载: 全尺寸图片幻灯片

图 6 各算法的无人机累计能耗对比

下载: 全尺寸图片幻灯片

图 7 各算法的无人机导航误差对比

下载: 全尺寸图片幻灯片

图 8 各算法的巡检任务完成质量对比

下载: 全尺寸图片幻灯片

图 9 各算法的双无人机到达同一巡检点的时间步长差对比

下载: 全尺寸图片幻灯片

表 1 仿真参数

参数	数值
空气密度$ \rho $	1.225 kg/m³
旋翼表面积$ A $	0.5 m²
尖端速度$ {U}_{tip} $	120 m/s
无人机叶片产生的功率$ {P}_{0} $	59.03 W
悬停功率$ {P}_{1} $	79.07 W
平均转子速度	3.6 m/s
无人机最大速度$ v_{\max }^{} $	10 m/s
无人机最大加速度$ a_{\max }^{} $	2 m/s²
视距链路衰减因子$ {\xi }_{\text{LoS}} $	3db
非视距链路衰减因子$ {\xi }_{\text{NLoS}} $	23 db
总带宽$ B $	2 MHz

下载: 导出CSV

表 2 不同任务数量下各算法规划的无人机路径长度表(单位：m)

算法	任务数量=1	任务数量=2	任务数量=3
DDPG	9402	15393	16342
SAC	9413	14077	17838
TD3	9581	14019	17771
MASAC	9524	13643	17499
MATD3	9355	13025	17395

下载: 导出CSV
