智能反射面通信近邻互耦模型与可调阻抗优化方法

吴炜; 王文鼐

doi:10.11999/JEIT251109

智能反射面通信近邻互耦模型与可调阻抗优化方法

doi: 10.11999/JEIT251109 cstr: 32379.14.JEIT251109

吴炜^{1, 2},
王文鼐^{1, 2, ,}

1.
南京邮电大学通信与信息工程学院南京 210000
2.
宽带无线通信与传感技术教育部重点实验室南京 210000

基金项目: 南京邮电大学校引进人才科研启动基金项目(自然科学)(NY222118)

详细信息

作者简介:
吴炜：女，讲师，研究方向为无线宽带通信网络、移动通信

王文鼐：男，教授，研究方向为无线宽带通信网络、网络仿真与性能评估

通讯作者:
王文鼐　wangwn@njupt.edu.cn

中图分类号: TN92
计量
- 文章访问数: 23
- HTML全文浏览量: 11
- PDF下载量: 1
- 被引次数: 0
出版历程
- 修回日期: 2025-12-02
- 录用日期: 2025-12-02
- 网络出版日期: 2025-12-10

Neighboring Mutual-Coupling Channel Model and Tunable-Impedance Optimization Method for Reconfigurable-Intelligent-Surface Aided Communications

WU Wei^{1, 2},
WANG Wennai^{1, 2
, ,}

1.
College of Telecommunication and Information Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210000, China
2.
Key Laboratory of Broadband Wireless Communication and Sensor Network Technology, Ministry of Education, Nanjing University of Posts and Telecommunications, Nanjing 210000, China

Funds: Natural Science Research Start-up Foundation of Recruiting Talents of Nanjing University of Posts and Telecommunications (NY222118)

摘要

摘要: 智能反射面(RIS)通常由大量可编程反射单元密集排布而成，当反射单元间距小于入射信号半波长时，电磁互耦效应会显著影响RIS部署的整体性能。为此，该文针对RIS通信系统研究基于近邻互耦矩阵的简化信道模型以及可调阻抗优化方法。首先，依据互阻抗强度随间隔单元数增加而快速衰减的电磁特性，提取紧邻和次紧邻互耦参数，并结合对应的映射矩阵构建近邻互耦矩阵；其次，在远场条件下，基于等效耦合距离对收发端与RIS间互阻抗计算表达式进行简化，进而建立低复杂度互耦感知信道模型。进一步，基于简化模型并采用阻抗分解法，推导RIS可调阻抗的最优闭式解，其求解复杂度显著低于诺伊曼级数近似算法，并且不受反射单元间距和数量影响。仿真结果表明，所提信道模型和阻抗优化方法在反射单元间距小于四分之信号波长时具备良好的准确性和有效性。
- 智能反射面 /
- 互耦效应 /
- 信道建模 /
- 可调阻抗优化
Abstract: Objective Reconfigurable Intelligent Surfaces (RIS) have attracted significant attention due to their capability to intelligently manipulate electromagnetic wave propagation. A typical RIS comprises a dense array of reflecting elements (REs) spaced no more than half a wavelength apart, where electromagnetic mutual-coupling inevitably arises between adjacent REs. This mutual-coupling effect becomes particularly pronounced when the RE spacing is less than half the wavelength, substantially influencing the performance and efficiency of RIS-assisted systems. Therefore, accurate modeling of mutual-coupling is crucial for RIS optimization. However, existing mutual-coupling-aware channel models often incur high computational complexity owing to the large dimensionality of the mutual impedance matrix, which limits their practical applicability. To address this issue, this paper proposes a simplified mutual-coupling-aware channel model based on a sparse neighboring mutual-coupling matrix, together with an efficient optimization method for configuring the tunable impedances of the RIS. Methods First, a simplified mutual-coupling-aware channel model is developed through two key steps: (1) constructing a neighboring mutual-coupling matrix based on the exponentially decaying nature of mutual impedance with distance, and (2) deriving a closed-form approximation for mutual impedance between the transmitter/receiver and reflecting elements under far-field conditions. Specifically, by leveraging the rapid decay of mutual impedance with increasing inter-element spacing, only eight or three mutual-coupling parameters are retained, along with one self-impedance parameter. These parameters are systematically organized into a neighboring mutual-coupling matrix using predefined support matrices. Furthermore, to reduce the computational complexity in evaluating mutual impedance, the distance term is approximated by a central value under far-field assumptions, allowing the integral expression to be simplified into a compact analytical form. Building upon this simplified channel model, we then propose an efficient optimization scheme for the RIS tunable impedances. Using an impedance decomposition approach, we analytically derive a closed-form expression for the optimal tunable impedance matrix. This enables low-complexity configuration of the RIS, with a computational cost independent of the number of RIS elements. Results and Discussions The accuracy and computational efficiency of the proposed simplified models, together with the effectiveness of the proposed impedance optimization method, are verified through numerical simulations. First, the two proposed simplified models are compared with the reference model. The first simplified model employs a neighboring mutual-coupling matrix that accounts for interactions among elements separated by no more than one intermediate unit, whereas the second model considers only the immediately adjacent elements. Results show that the channel gain increases as the RE spacing decreases, with more rapid growth observed at smaller spacings (Fig. 4). The modeling error between the simplified models and the reference model remains below 0.1 when the RE spacing does not exceed $ \lambda /4 $; however, the error increases noticeably when the spacing reaches a larger value. In addition, the error curves indicate that the modeling errors of both simplified models become negligible when the spacing is below $ \lambda /4 $, suggesting that the second model can be adopted to further reduce complexity (Fig. 6). Second, the computational complexity of the proposed models is compared with that of the reference model. It is shown that when the number of REs exceeds 4, the complexity of computing the mutual-coupling matrix in the reference model begins to exceed that of the proposed adjacent mutual-coupling matrix. Moreover, as the number of REs increases, the complexity of the reference model grows rapidly, whereas that of the proposed model remains constant (Fig. 5). Finally, the proposed impedance optimization method is compared with two benchmark approaches (Fig. 7, Fig. 8). Results show that when the RE spacing is no more than $ \lambda /4 $, the channel gain achieved by the proposed method is close to that of the algorithm introduced in [18]. However, as the spacing increases beyond that range, a noticeable performance gap emerges between the two methods. Furthermore, the performance of the proposed method consistently exceeds that of the coherent phase-shift optimization method. Conclusions The integration of numerous densely arranged REs in a RIS introduces significant mutual-coupling effects. These effects can considerably impact system performance and therefore should be accounted for in channel modeling and impedance optimization. To address this challenge, this paper has proposed a simplified mutual-coupling-aware channel model based on a neighboring mutual-coupling matrix, together with an efficient optimization method for configuring the tunable impedances. Specifically, a low-complexity channel model has been developed by incorporating the neighboring mutual-coupling matrix and a simplified mutual-impedance expression derived under far-field assumptions. Furthermore, based on this model and through an impedance decomposition approach, a closed-form solution for the optimal RIS tunable impedances has been derived. Simulation results demonstrate that the proposed channel model and impedance optimization method maintain satisfactory accuracy and effectiveness when the element spacing does not exceed $ \lambda /4 $. This work provides a practical theoretical framework and useful design insights for analyzing and optimizing RIS-assisted systems in the presence of mutual-coupling effects.
- Reconfigurable Intelligent Surface (RIS) /
- Mutual-coupling effect /
- Channel modeling /
- Mutual impedance optimization

HTML全文

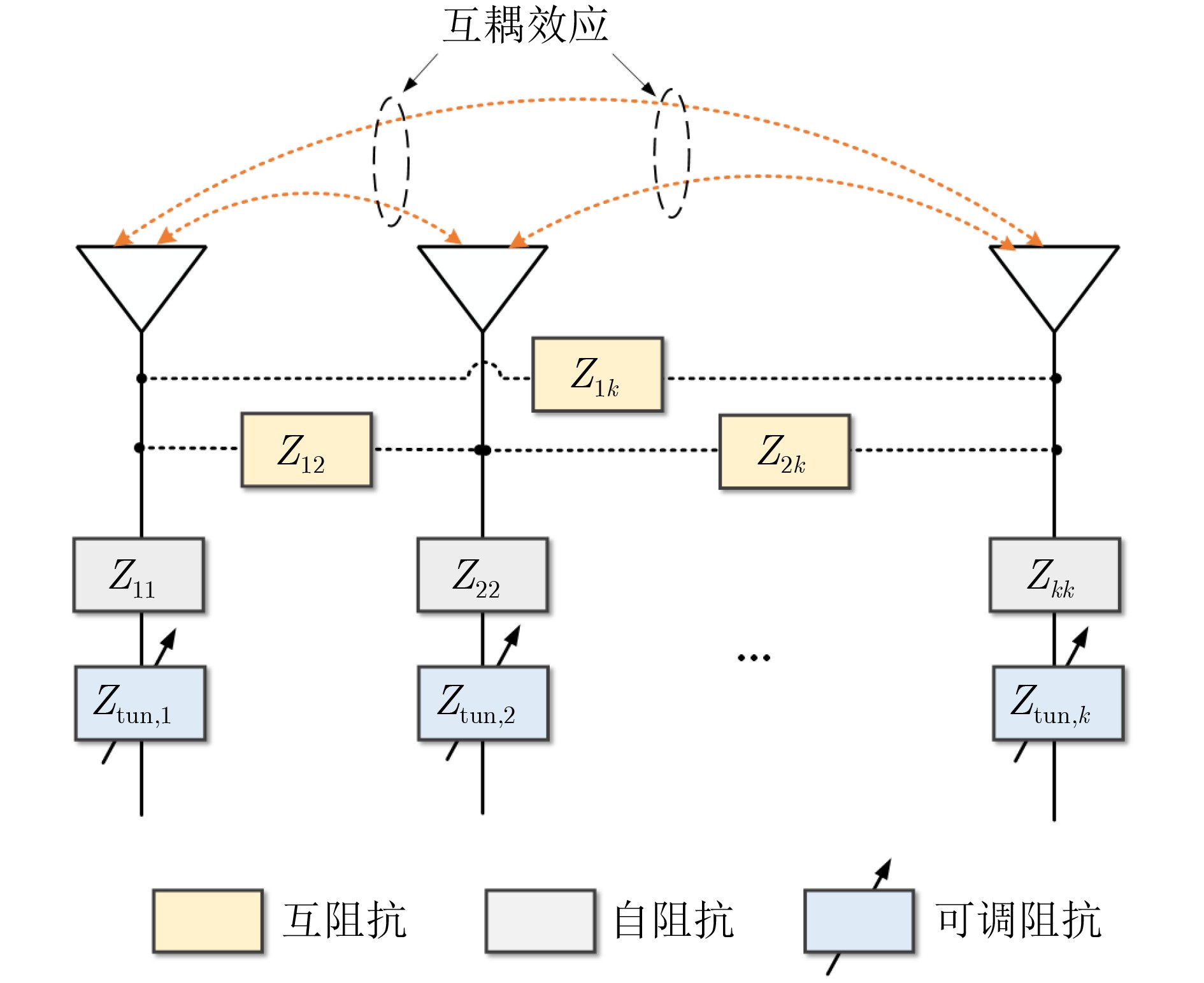

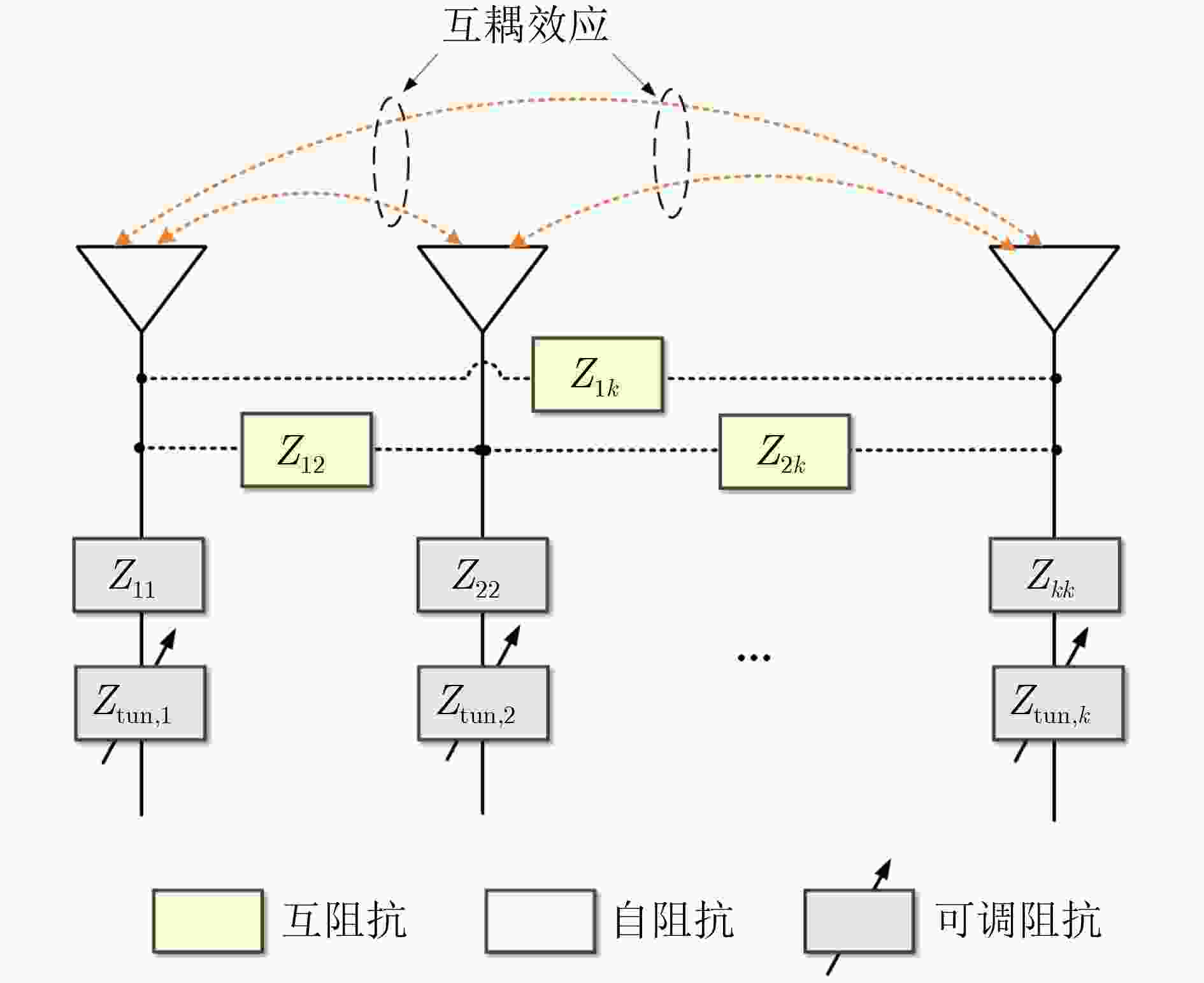

图 1 RE间互耦效应及等效阻抗示意图

下载: 全尺寸图片幻灯片

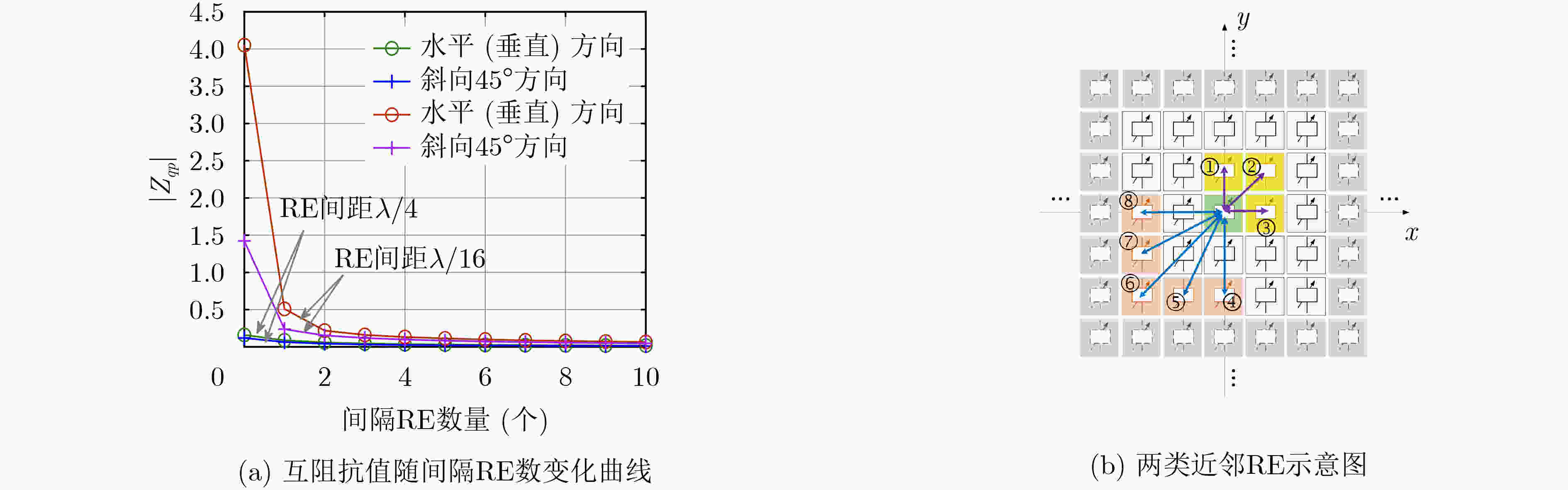

图 2 互耦强度随间隔单元数变化趋势及近邻RE示意图

下载: 全尺寸图片幻灯片

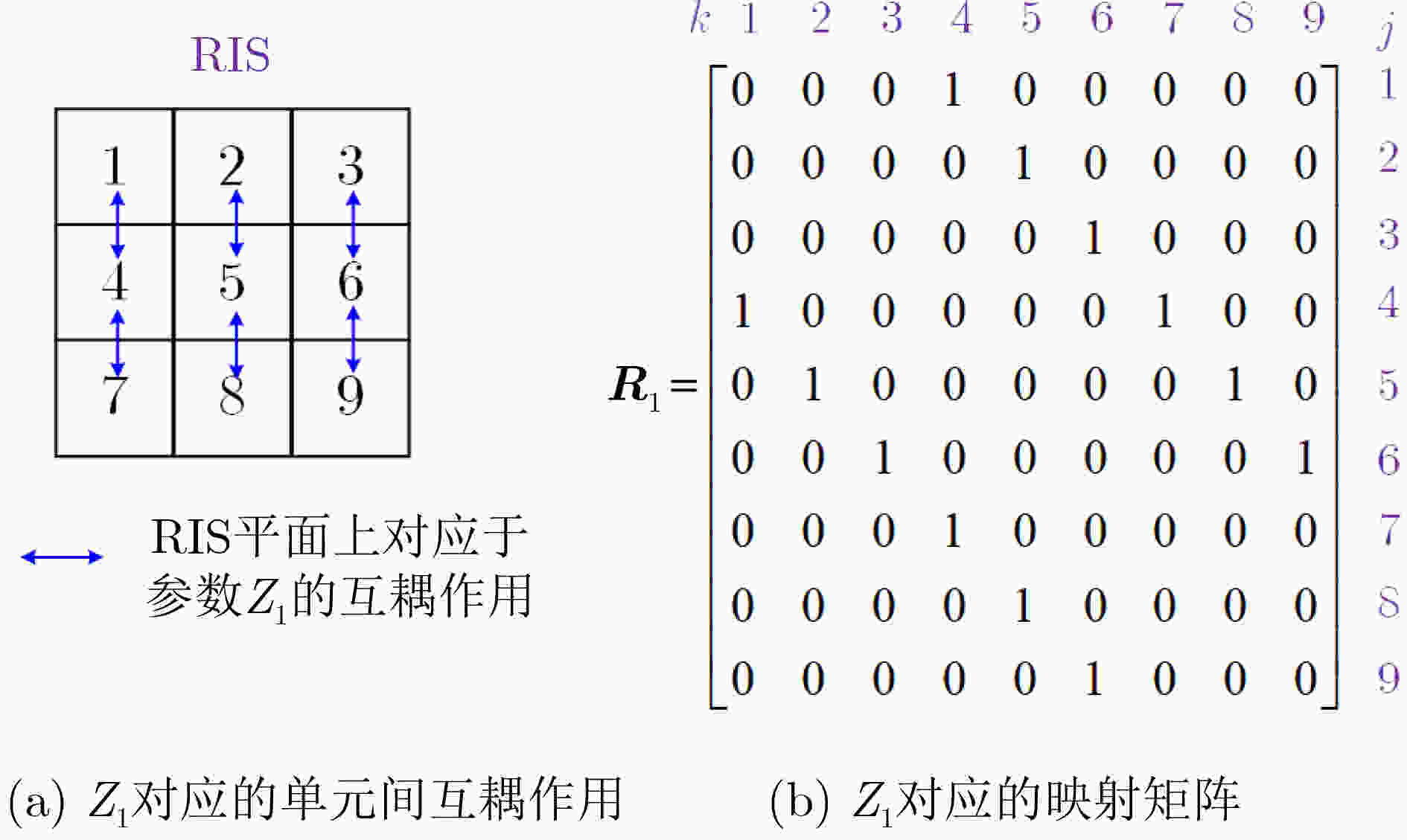

图 3 映射矩阵构造示例

下载: 全尺寸图片幻灯片

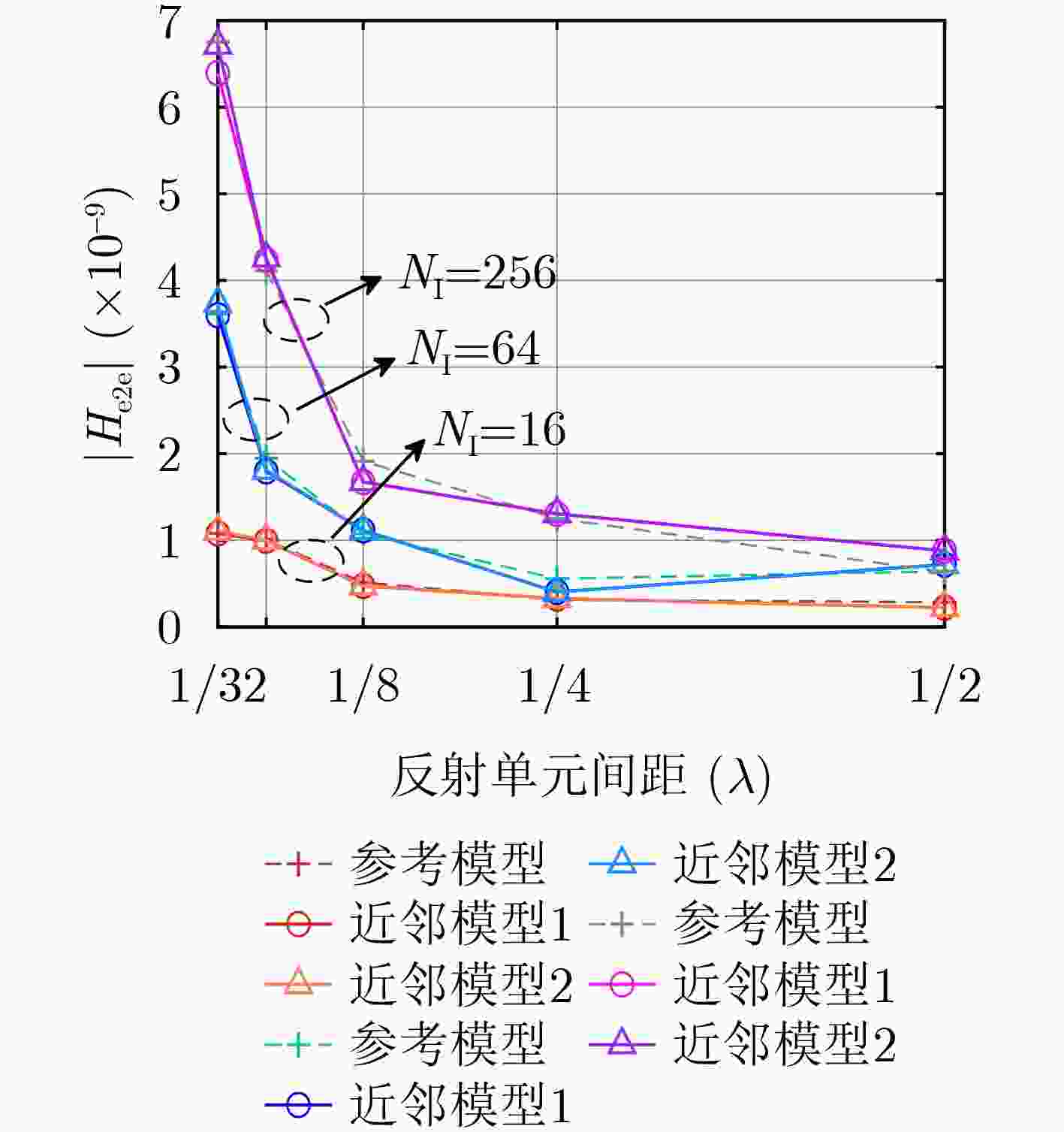

图 4 本文所提近邻互耦模型与参考模型[18]对比

下载: 全尺寸图片幻灯片

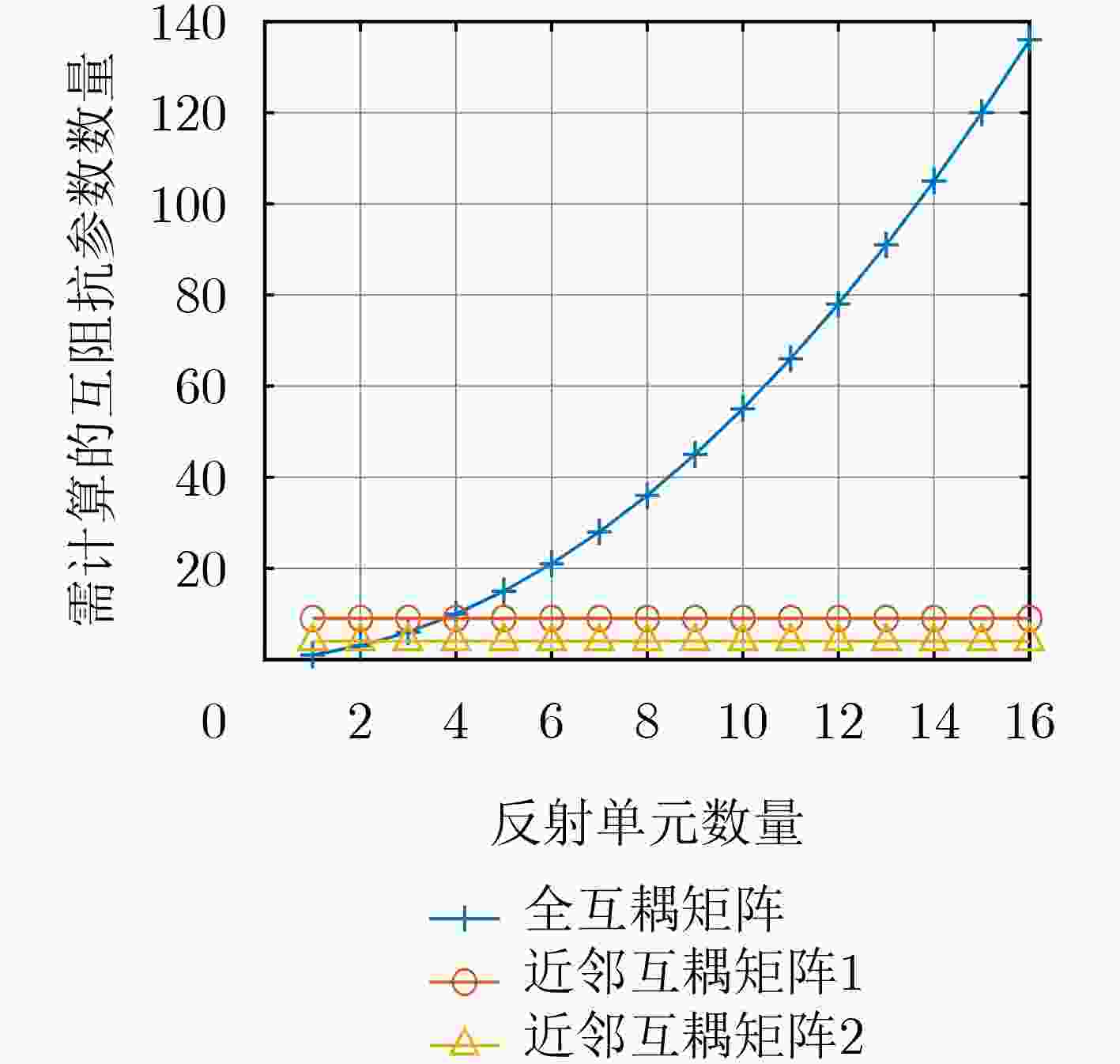

图 5 近邻矩阵与全互耦矩阵计算复杂度对比

下载: 全尺寸图片幻灯片

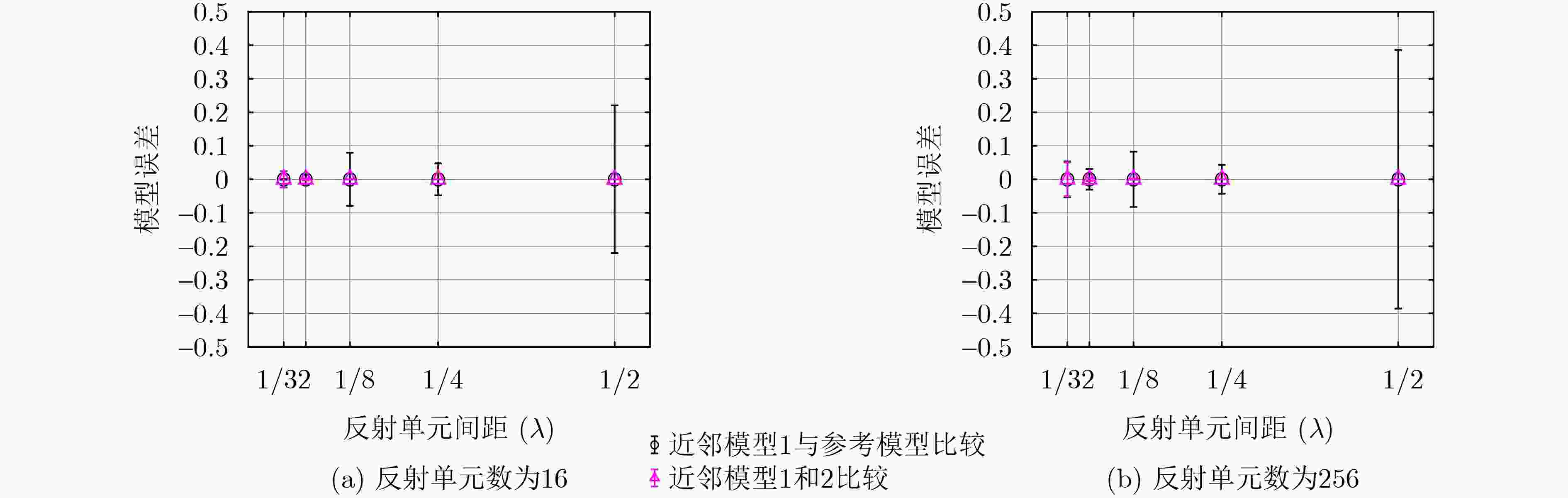

图 6 本文所提近邻模型与参考模型误差比较

下载: 全尺寸图片幻灯片

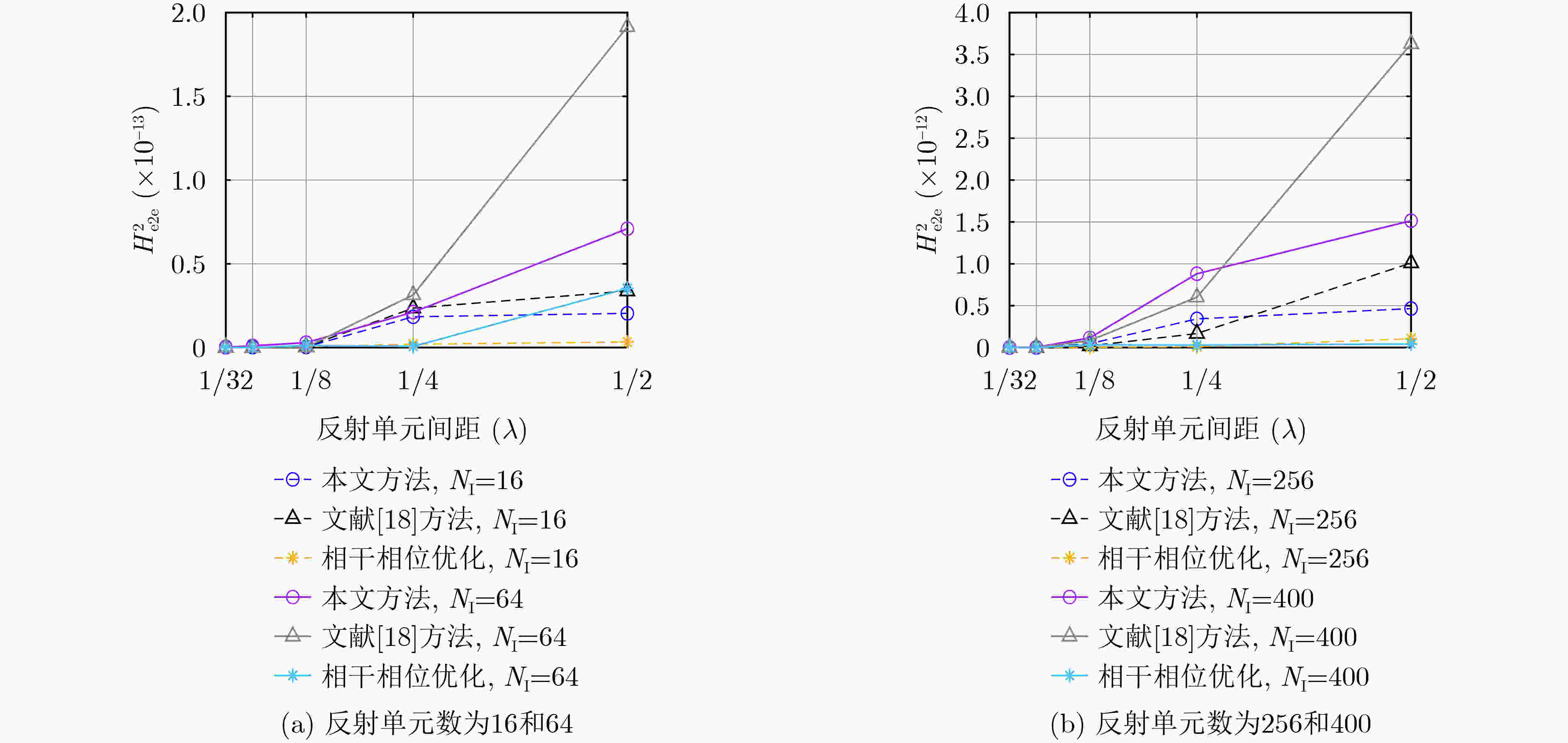

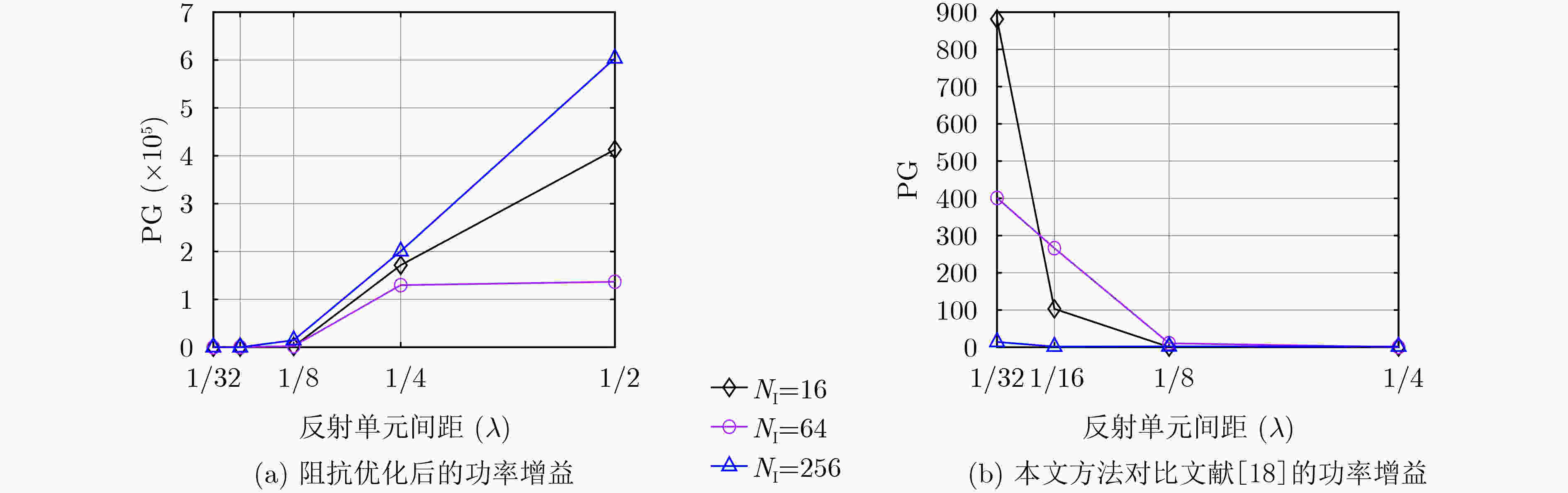

图 7 本文所提可调阻抗优化方法与文献方法对比
