面向移动边缘计算的协作NOMA安全卸载能耗优化

陈健; 马天瑞; 杨龙; 吕璐; 徐勇军

doi:10.11999/JEIT250606

面向移动边缘计算的协作NOMA安全卸载能耗优化

doi: 10.11999/JEIT250606 cstr: 32379.14.JEIT250606

陈健¹,
马天瑞¹,
杨龙^1, ,,
吕璐¹,
徐勇军²

1.
西安电子科技大学通信工程学院西安 710071
2.
重庆邮电大学通信与信息工程学院重庆 400065

基金项目: 国家自然科学基金(62271368)，陕西省重点产业创新链(群)(2023-ZDLGY-50)，陕西省青年科技新星人才(2024ZC-KJXX-080)

详细信息

作者简介:
陈健：男，教授，研究方向为协作通信、无线资源管理等

马天瑞：男，硕士生，研究方向为协作边缘计算及物理层安全

杨龙：男，教授，研究方向为安全通信、边缘计算、通信对抗等

吕璐：男，副教授，研究方向为非正交多址接入、物理层安全等

徐勇军：男，教授，研究方向为移动边缘计算、非正交多址接入等

通讯作者:
杨龙　lyang@xidian.edu.cn

中图分类号: TN929.5; TN915.08
计量
- 文章访问数: 55
- HTML全文浏览量: 19
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-26
- 修回日期: 2025-11-17
- 录用日期: 2025-11-17
- 网络出版日期: 2025-11-22

Energy Consumption Optimization of Cooperative NOMA Secure Offload for Mobile Edge Computing

1.
School of Communication Engineering, Xidian University, Xi’an 710000, China
2.
School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (62271368), The Key Research and Development Program of Shaanxi (023-ZDLGY-50), The Innovation Capability Support Program of Shaanxi (2024ZC-KJXX-080)

摘要

摘要: 为降低移动边缘计算(MEC)网络安全卸载过程的能耗，该文设计一种基于协作非正交多址(NOMA)的安全卸载模式，利用协作节点的通信和计算能力置换系统的安全性能。考虑设备计算和通信等资源分配的联合设计，该文提出保密中断概率(SOP)约束下的系统加权总能耗最小化问题。针对该非凸优化问题，将其分解为时隙与任务分配和功率分配两个子问题，并提出一种基于交替和逐次凸逼近(SCA)的迭代算法求解，依据信道状态和计算资源调整用户节点与协作节点之间的负载、功率和时隙分配。理论分析与仿真结果表明，所提算法收敛且具有低复杂度，相比于现有的NOMA转发卸载方案、友好干扰方案和NOMA迁移计算方案，可显著降低系统能耗，同时具备更高负载能力和更强的抗窃听能力，实现了节点在通信、计算和安全之间的权衡折衷。
- 移动边缘计算 /
- 非正交多址接入 /
- 物理层安全 /
- 用户协作 /
- 计算卸载
Abstract: Objective Mobile Edge Computing (MEC) is used to strengthen the computational capability and response speed of mobile devices by shifting computing and caching functions to the network edge. Non-Orthogonal Multiple Access (NOMA) further supports high spectral efficiency and large-scale connectivity. Because wireless channels are broadcast, the MEC offload transmission process is exposed to potential eavesdropping. To address this risk, physical-layer security is integrated into a NOMA-MEC system to safeguard secure offloading. Existing studies mainly optimize performance metrics such as energy use, latency, and throughput, or improve security through NOMA-based co-channel interference and cooperative interference. However, the combined effect of performance and security has not been fully examined. To reduce the energy required for secure offloading, a cooperative NOMA secure offload scheme is designed. The distinctive feature of the proposed scheme is that cooperative nodes provide forwarding and computational assistance at the same time. Through joint local computation between users and cooperative nodes, the scheme strengthens security in the offload process while reducing system energy consumption. Methods The joint design of computational and communication resource allocation for the nodes is examined by dividing the offloading procedure into two stages: NOMA offloading and cooperative offloading. Offloading strategies for different nodes in each stage are considered, and an optimization problem is formulated to minimize the weighted total system energy consumption under secrecy outage constraints. To handle the coupled multi-variable and non-convex structure, secrecy transmission rate constraints and secrecy outage probability constraints, originally expressed in probabilistic form, are first transformed. The main optimization problem is then separated into two subproblems: slot and task allocation, and power allocation. For the non-convex power allocation subproblem, the non-convex constraints are replaced with bilinear substitutions, and sequential convex approximations are applied. An alternating iterative resource allocation algorithm is ultimately proposed, allowing the load, power, and slot assignment between users and cooperative nodes to be adjusted according to channel conditions so that energy consumption is minimized while security requirements are satisfied. Results and Discussions Theoretical analysis and simulation results show that the proposed scheme converges quickly and maintains low computational complexity. Relative to existing NOMA full-offloading schemes, assisted computing schemes, and NOMA cooperative interference schemes, the proposed offloading design reduces system energy consumption and supports a higher load under identical secrecy constraints. The scheme also demonstrates strong robustness, as its performance is less affected by weak channel conditions or increased eavesdropping capability. Conclusions The study shows that system energy consumption and security constraints are closely coupled. In the MECg offloading process, communication, computation, and security are not independent. Performance and security can be improved at the same time through the effective use of cooperative nodes. When cooperative nodes are present, NOMA and forwarding cooperation can reduce the effects of weak channel conditions or high eavesdropping risks on secure and reliable transmission. Cooperative nodes can also share users’ local computational load to strengthen overall system performance. Joint local computation between users and cooperative nodes further reduces the security risks associated with long-distance wireless transmission. Thus, secure offloading in MEC is not only a Physical Layer Security issue in wireless transmission but also reflects the coupled relationship between communication and computation that is specific to MEC. By making full use of idle resources in the network, cooperative communication and computation among idle nodes can enhance system security while maintaining performance.
- Mobile Edge Computing (MEC) /
- Non-Orthogonal Multiple Access (NOMA) /
- Physical Layer Security /
- User Cooperation /
- Computation Offloading

HTML全文

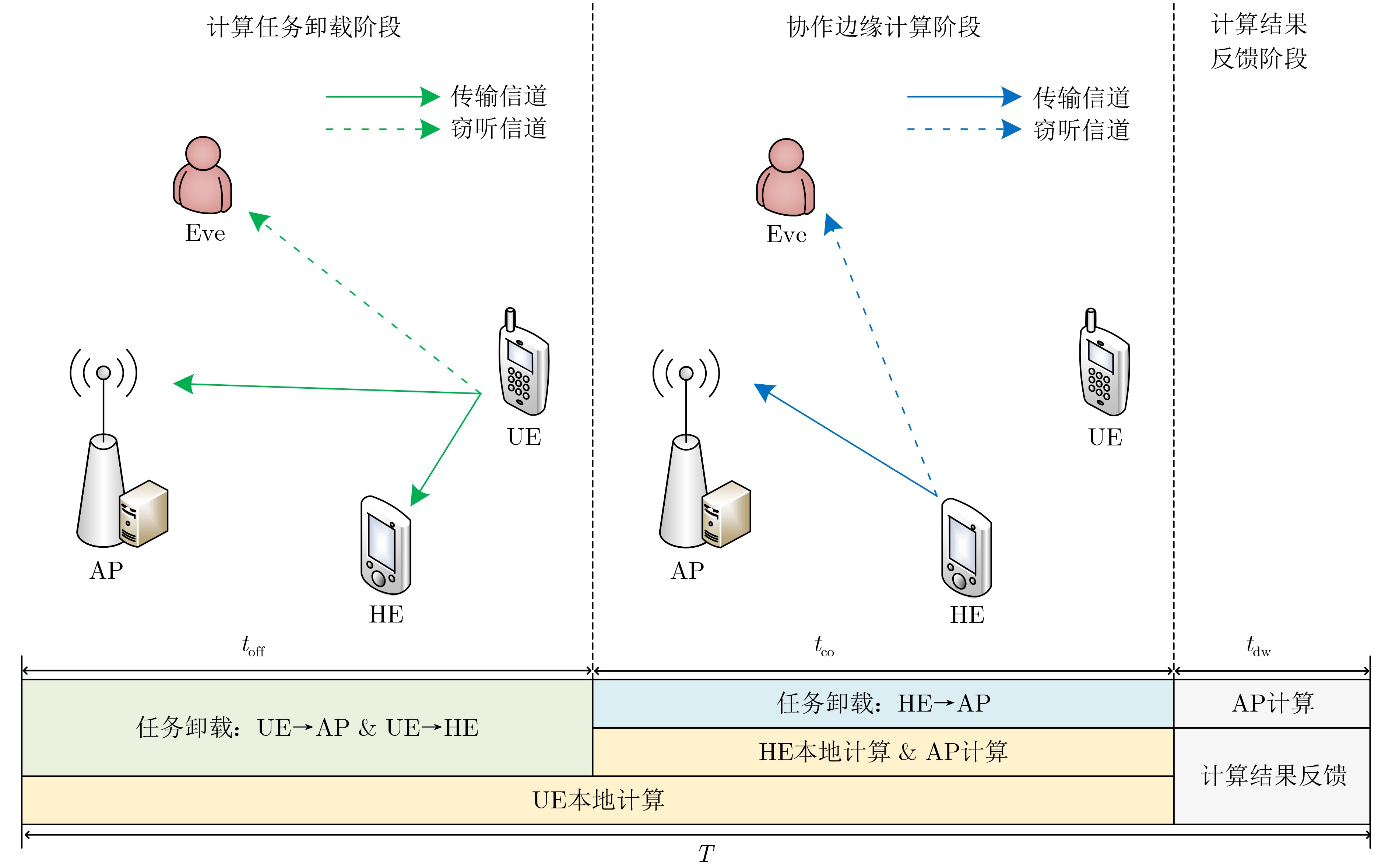

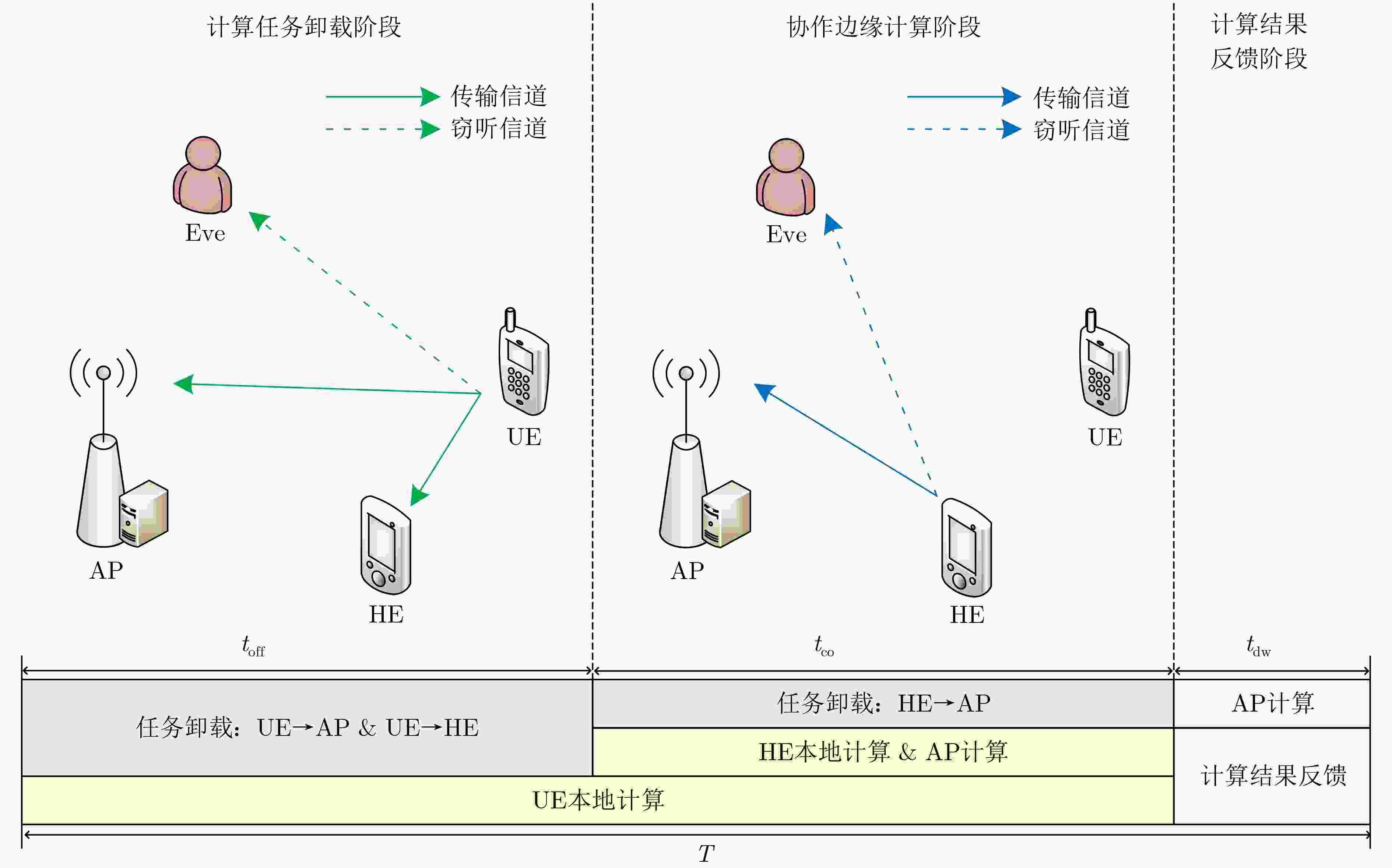

图 1 协作NOMA-MEC安全卸载系统模型

下载: 全尺寸图片幻灯片

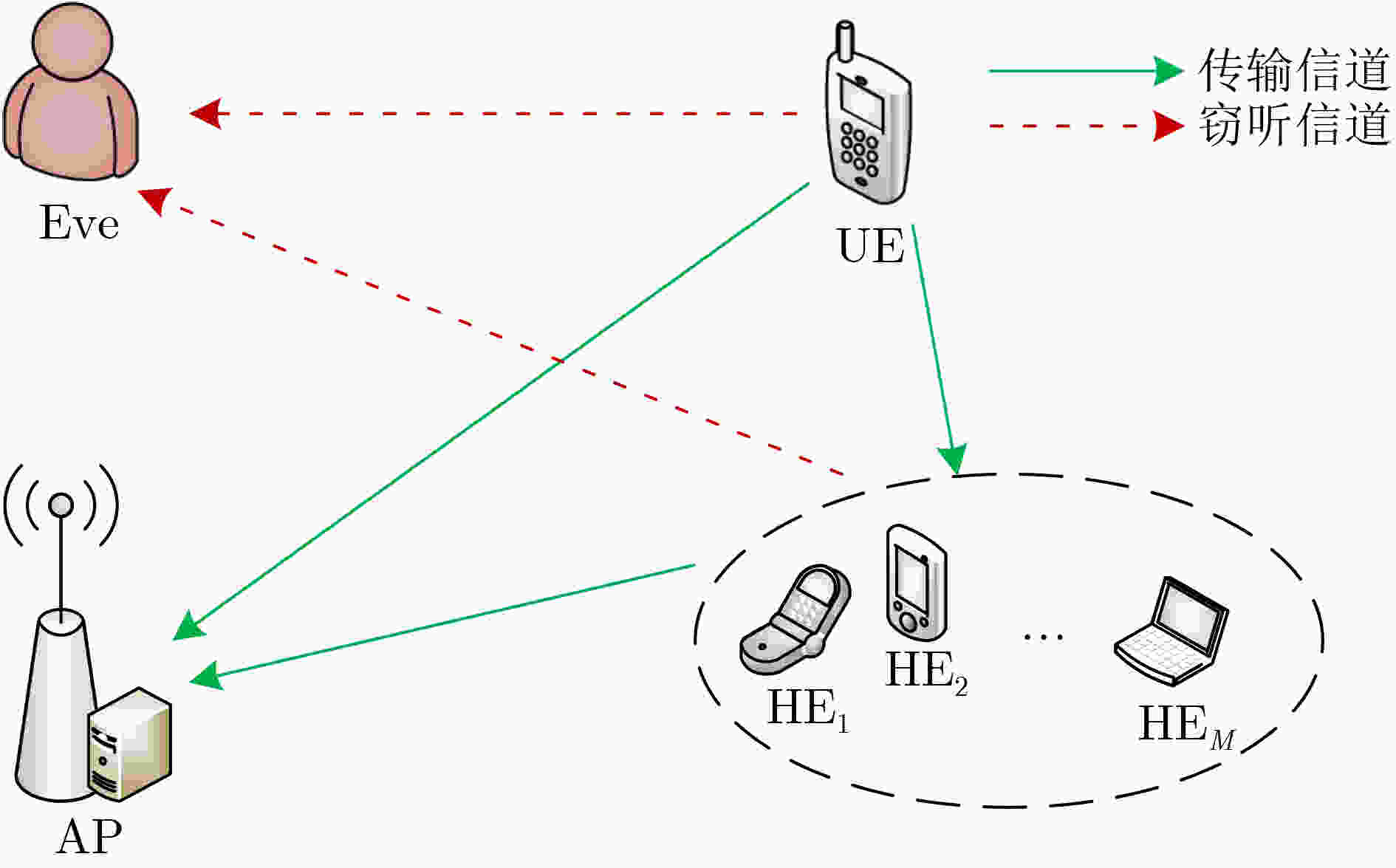

图 2 多节点协作NOMA-MEC安全卸载系统模型

下载: 全尺寸图片幻灯片

图 3 总能耗随迭代次数的变化关系

下载: 全尺寸图片幻灯片

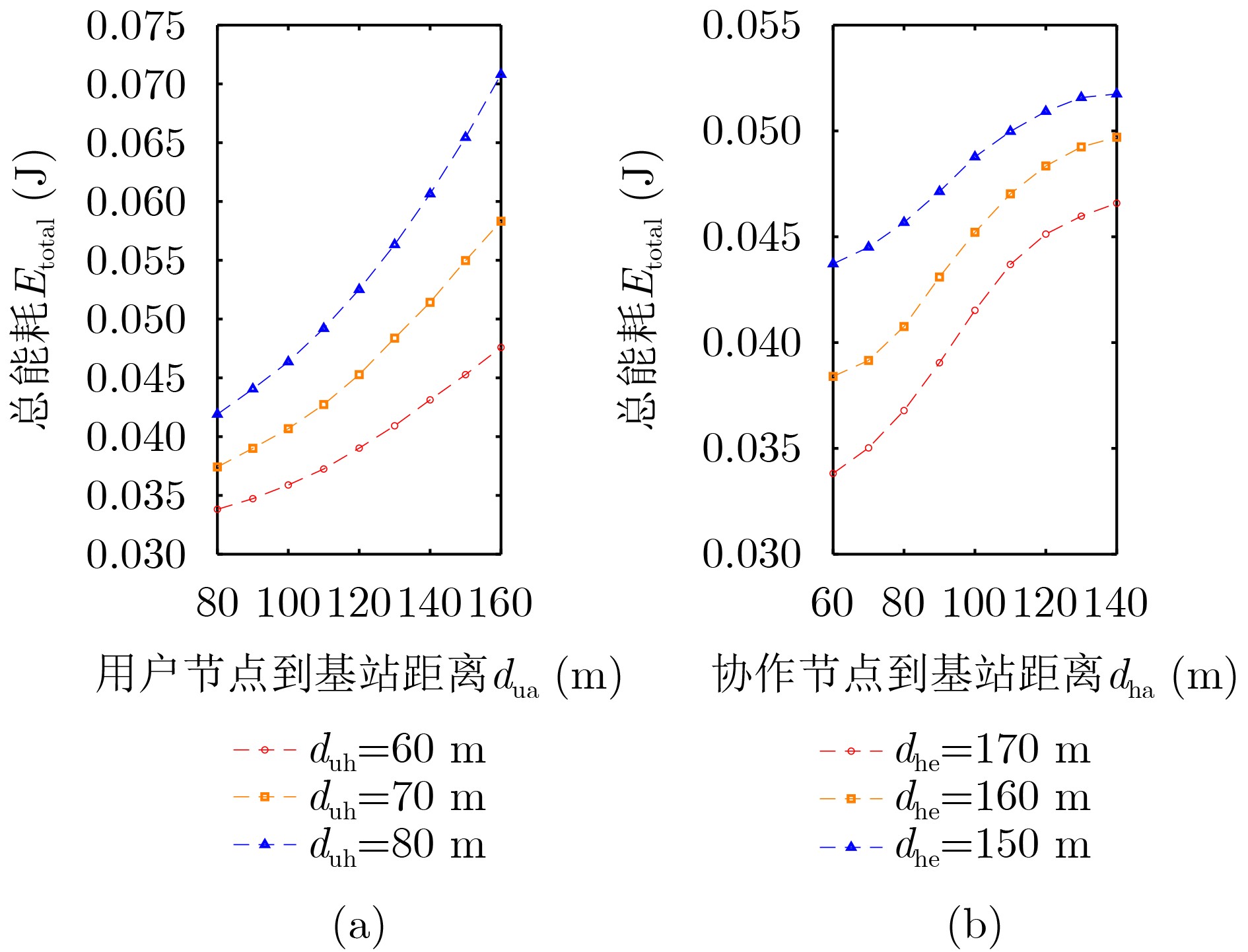

图 4 总能耗随节点到基站距离的变化关系

下载: 全尺寸图片幻灯片

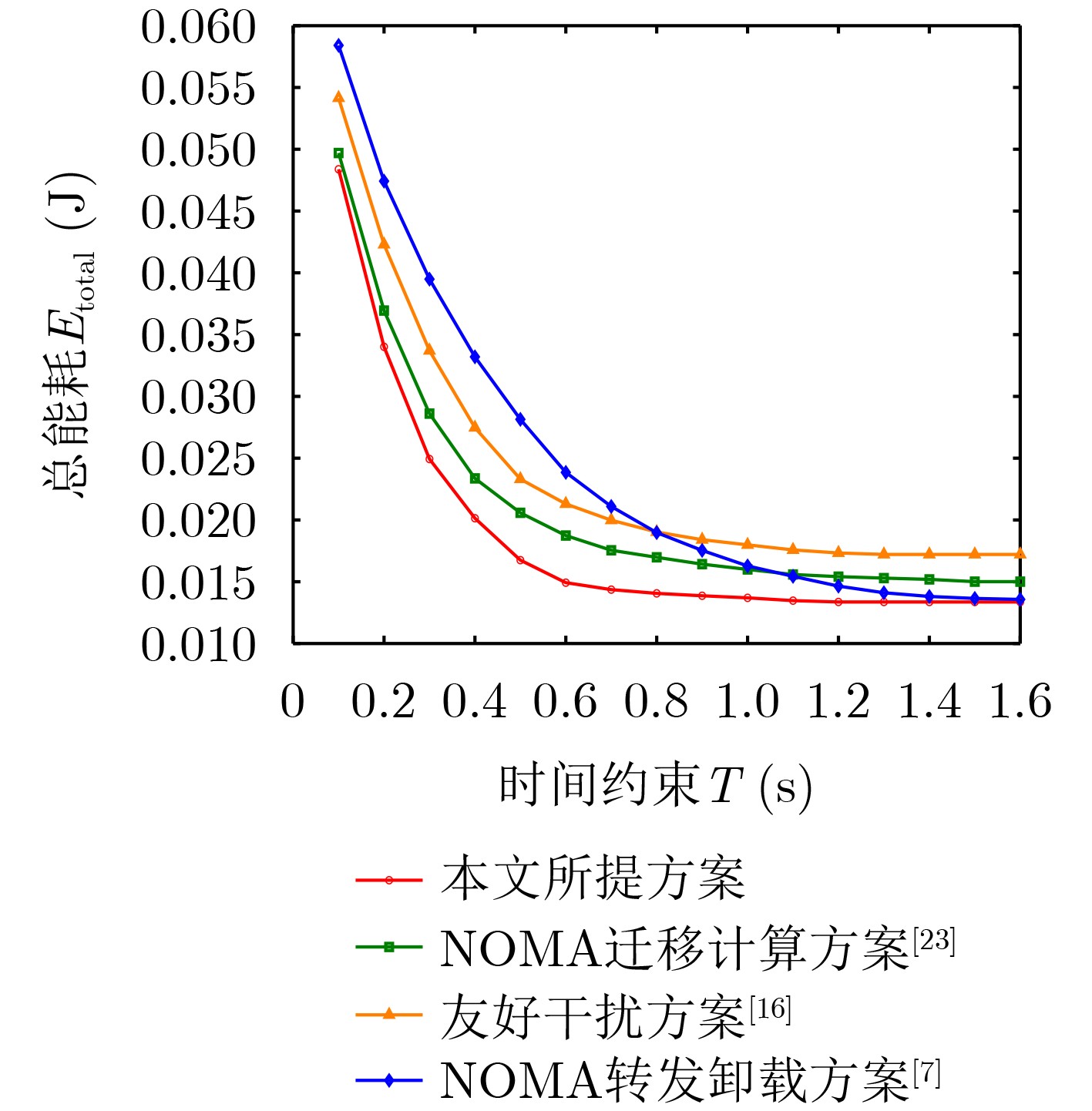

图 5 总能耗随时间约束的变化关系

下载: 全尺寸图片幻灯片

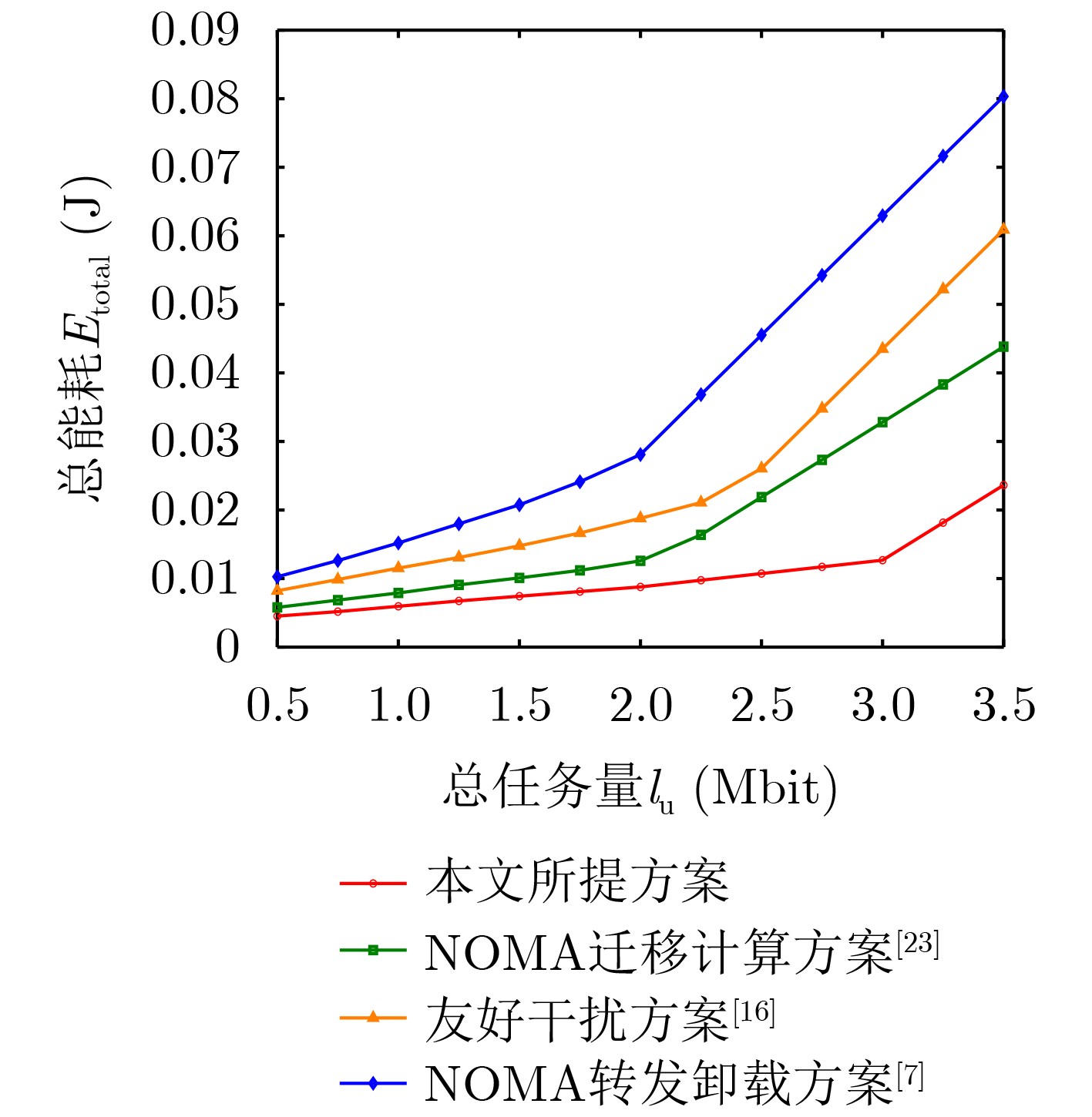

图 6 总能耗随总任务量的变化关系

下载: 全尺寸图片幻灯片

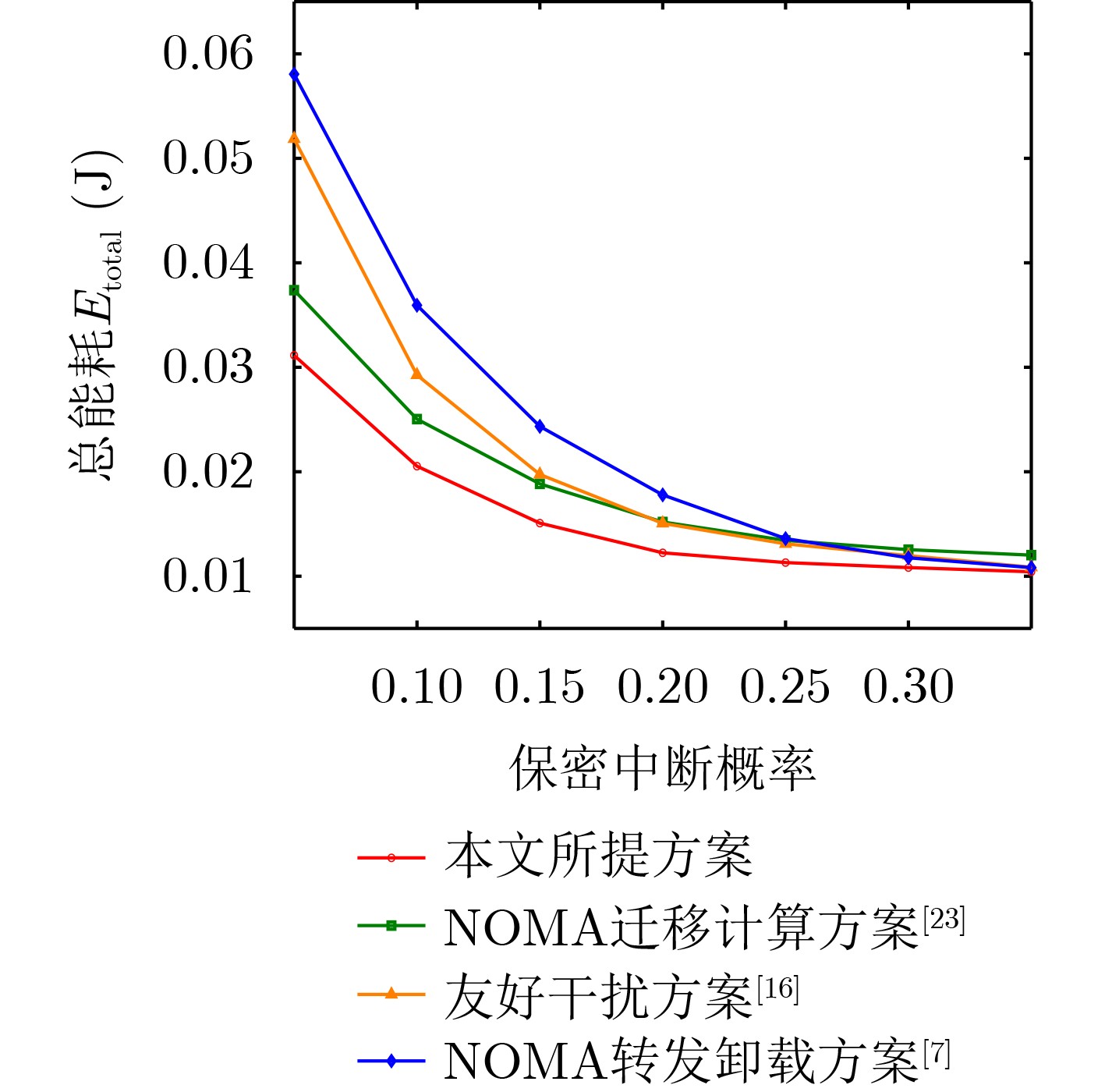

图 7 总能耗随保密中断概率的变化关系

下载: 全尺寸图片幻灯片

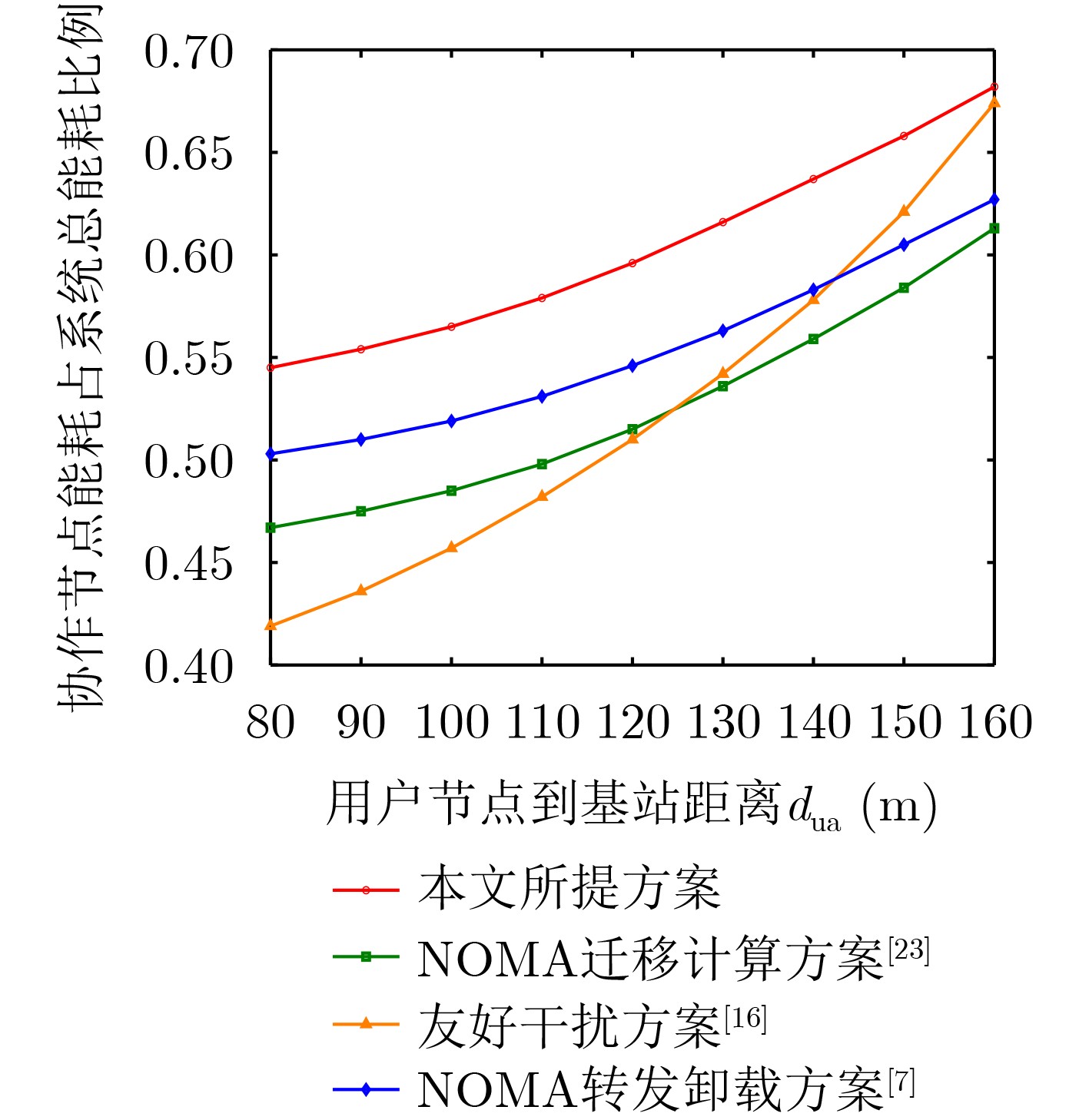

图 8 协作节点耗能比例随用户节点到基站距离的变化关系

下载: 全尺寸图片幻灯片

1 基于交替迭代的通算资源分配算法

1. 选取初始向量$ {{\boldsymbol{t}}_0} $、$ {{\boldsymbol{l}}_0} $，设置交替优化的迭代次数$ i = 0 $，最大　迭代次数$ {D_0} \gt 0 $和精度$ \delta _0^{{\text{tar}}} \gt 0 $, $ \delta _0^{{var} } \gt 0 $;
2. FOR $ i = 0:{D_0} $
3. 　内点法求解问题$ {\text{P1 - 1}} $，得到解$ {{\boldsymbol{t}}_{i + 1}} $和$ {{\boldsymbol{l}}_{i + 1}} $;
4. 　选取初始向量$ {{\boldsymbol{p}}_0} $，设置SCA的迭代次数$ j = 0 $，最大迭代次　数$ {D_1} \gt 0 $和精度$ \delta _1^{{\text{tar}}} \gt 0 $, $ \delta _1^{{var} } \gt 0 $;
5. 　FOR $ j = 0:{D_1} $
6. 　　内点法求解问题$ {\text{P1 - }}{{\text{2}}^{\boldsymbol{'}}} $，得到解$ {{\boldsymbol{p}}_{j + 1}} $，并更新　　　　$ {{\boldsymbol{p}}_{i + 1}} = {{\boldsymbol{p}}_{j + 1}} $;
7. 　　IF $ \left\| {{E_{{\text{total}}}}({{\boldsymbol{p}}_j}) - {E_{{\text{total}}}}({{\boldsymbol{p}}_{j + 1}})} \right\| \le \delta _1^{{\text{tar}}} $或　　　　$ \left\\| {{{\boldsymbol{p}}_j} - {{\boldsymbol{p}}_{j + 1}}} \right\\| \le \delta _1^{{var} } $
8. 　　　获得问题$ {\text{P1-2}} $的解$ {{\boldsymbol{p}}_{i + 1}} $，BREAK;
9. 　　ELSE $ j = j + 1 $;
10. 　 END IF
11. END FOR
12. IF $ \left\| {{E_{{\text{total}}}}({{\boldsymbol{t}}_i},{{\boldsymbol{l}}_i}) - {E_{{\text{total}}}}({{\boldsymbol{t}}_{i + 1}},{{\boldsymbol{l}}_{i + 1}})} \right\| \le \delta _0^{{\text{tar}}} $或　　　 $ \left\\| {[{{\boldsymbol{t}}_i},{{\boldsymbol{l}}_i}] - [{{\boldsymbol{t}}_{i + 1}},{{\boldsymbol{l}}_{i + 1}}]} \right\\| \le \delta _0^{{var} } $
13. 　获得问题$ {\text{P1}} $的解$ {{\boldsymbol{t}}_{i + 1}} $，$ {{\boldsymbol{p}}_{i + 1}} $，$ {{\boldsymbol{l}}_{i + 1}} $，BREAK;
14. ELSE $ i = i + 1 $;
15. END IF
16. END FOR

下载: 导出CSV

2 基于VIKOR的协作节点调度算法

1. 依据节点数目$ M $和属性维度$ N $构建VIKOR决策矩阵　$ {{\boldsymbol{W}}_{M \times N}} $；
2. 归一化属性评估值$ {\sigma _{ij}} $;
3. FOR $ j = 0:N $
4. 　FOR $ i = 0:M $
5. 　得到正理想解$ \sigma _j^ + = \{ {\max _i}{\sigma _{ij}}\} $和负理想解$ \sigma _j^ - = \{ {\min _i}{\sigma _{ij}}\} $;
6. 　END FOR
7. END FOR
8. FOR $ i = 0:M $
9. 　计算的群体效用值$ {S_i} $和个体遗憾值$ {{\text{R}}_i} $以及HE_i的权重值$ {{\text{Q}}_i} $;
10. END FOR
11. 选取最优的协作节点$ {\text{argmin}}{{\text{Q}}_i},i \in M $;

下载: 导出CSV
