A Waveform Design for Integrated Radar and Jamming Based on Intra-Pulse and Inter-Pulse Multiple-Phase Modulation
-
摘要: 一体化雷达干扰系统的核心在于一体化干扰波形设计。现有雷达干扰一体化信号存在设计自由度局限，其探测与干扰的综合性能尚未达最优。该文提出基于脉内-脉间多相调制的雷达干扰一体化波形：探测方面，通过回波信号的相位补偿与互补合成技术生成线性调频(LFM)信号，使该波形具备理想探测性能；干扰方面，借助脉内-脉间多参数调制机制，可显著提升对敌方探测结果中距离-多普勒图干扰能量分布的调控自由度。仿真分析与实验结果证实，该波形在探测-干扰综合性能方面具有显著优势。Abstract:

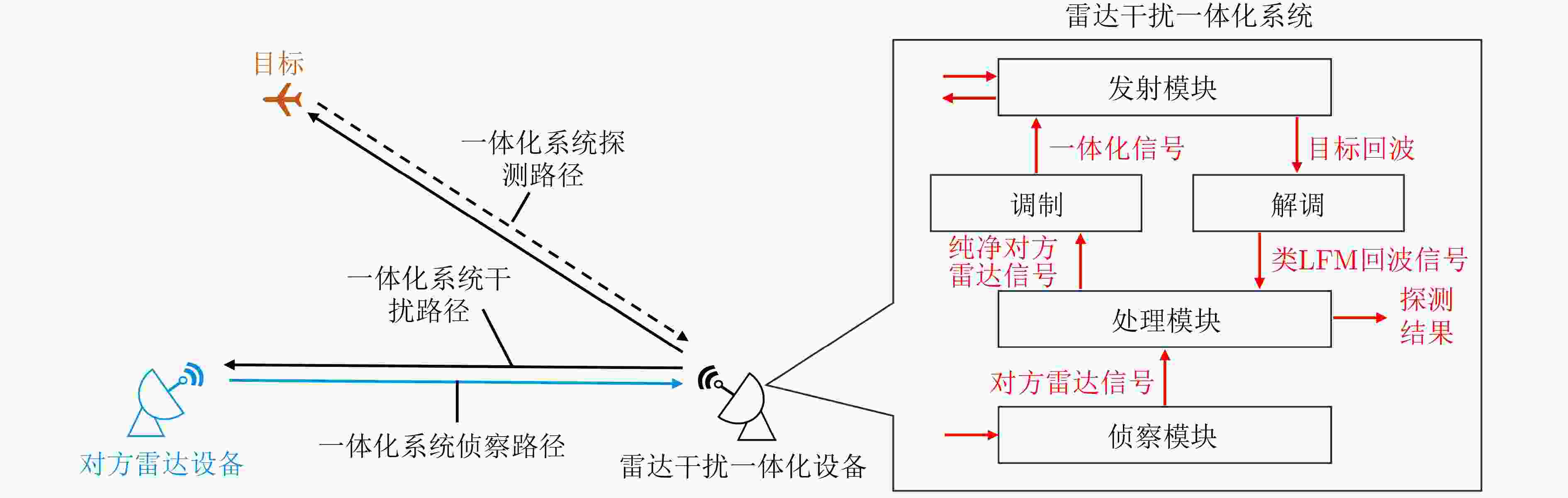

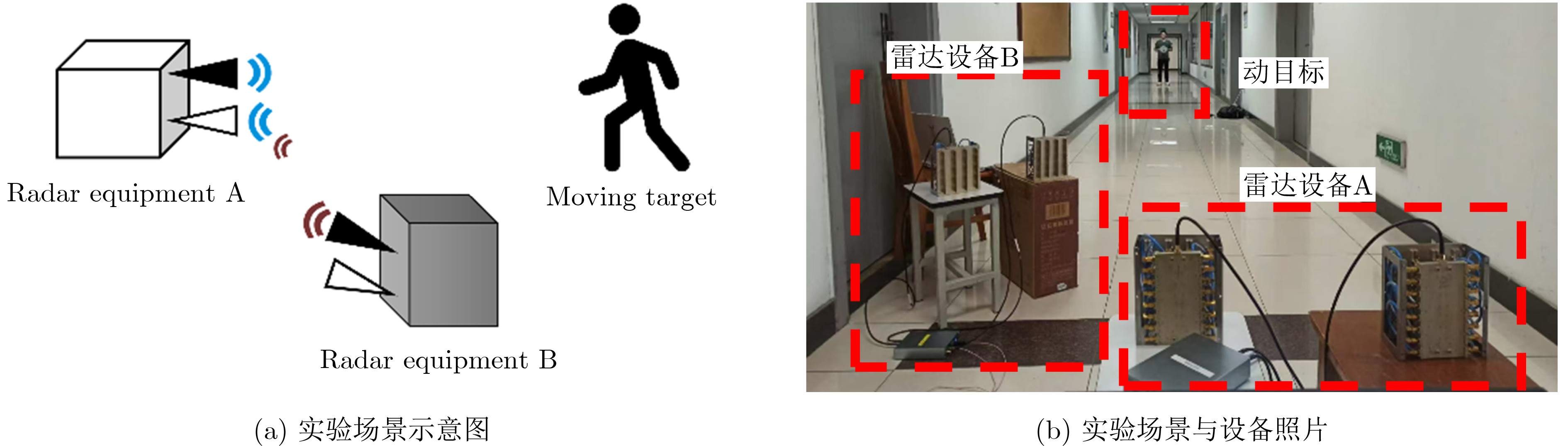

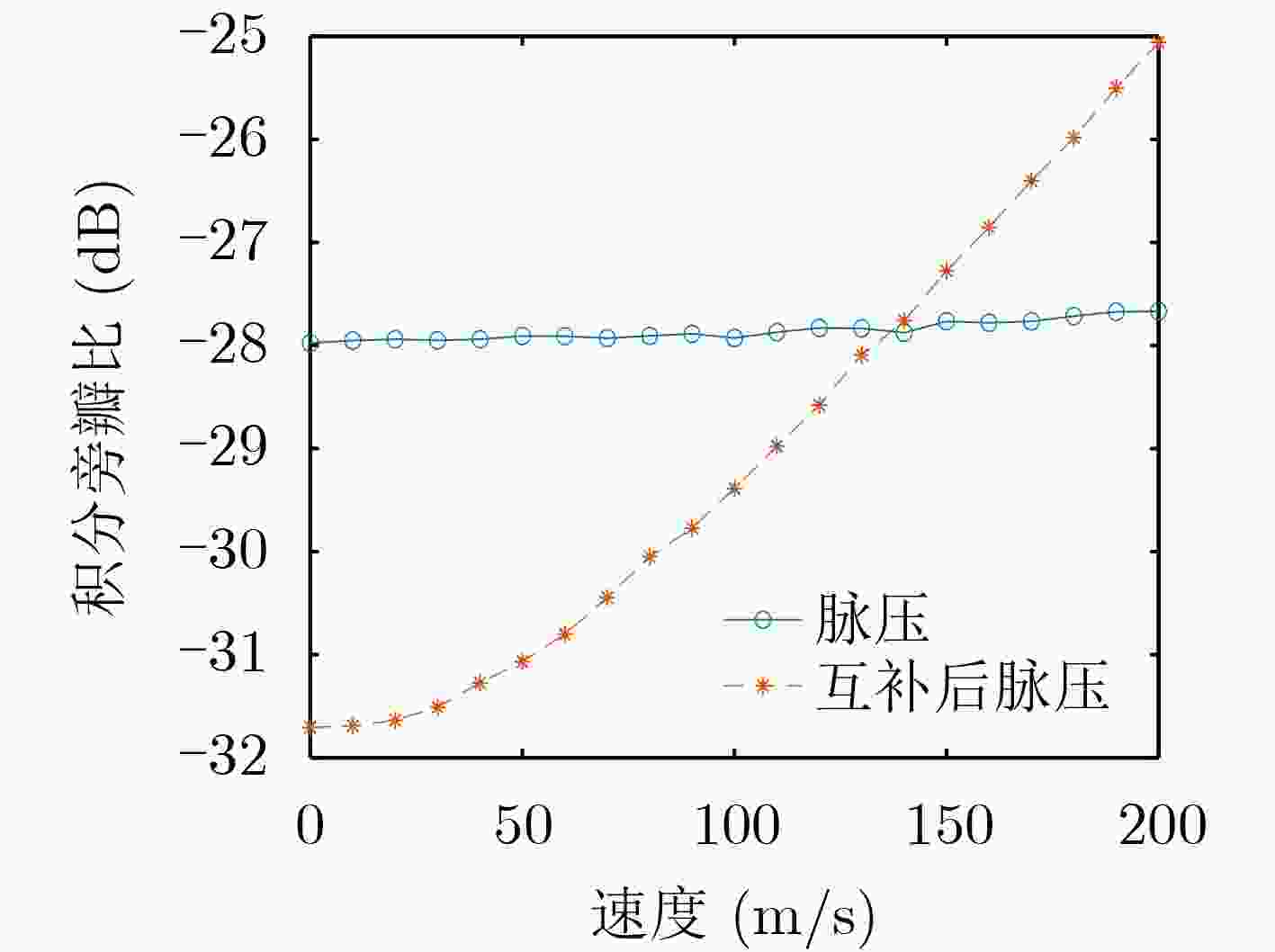

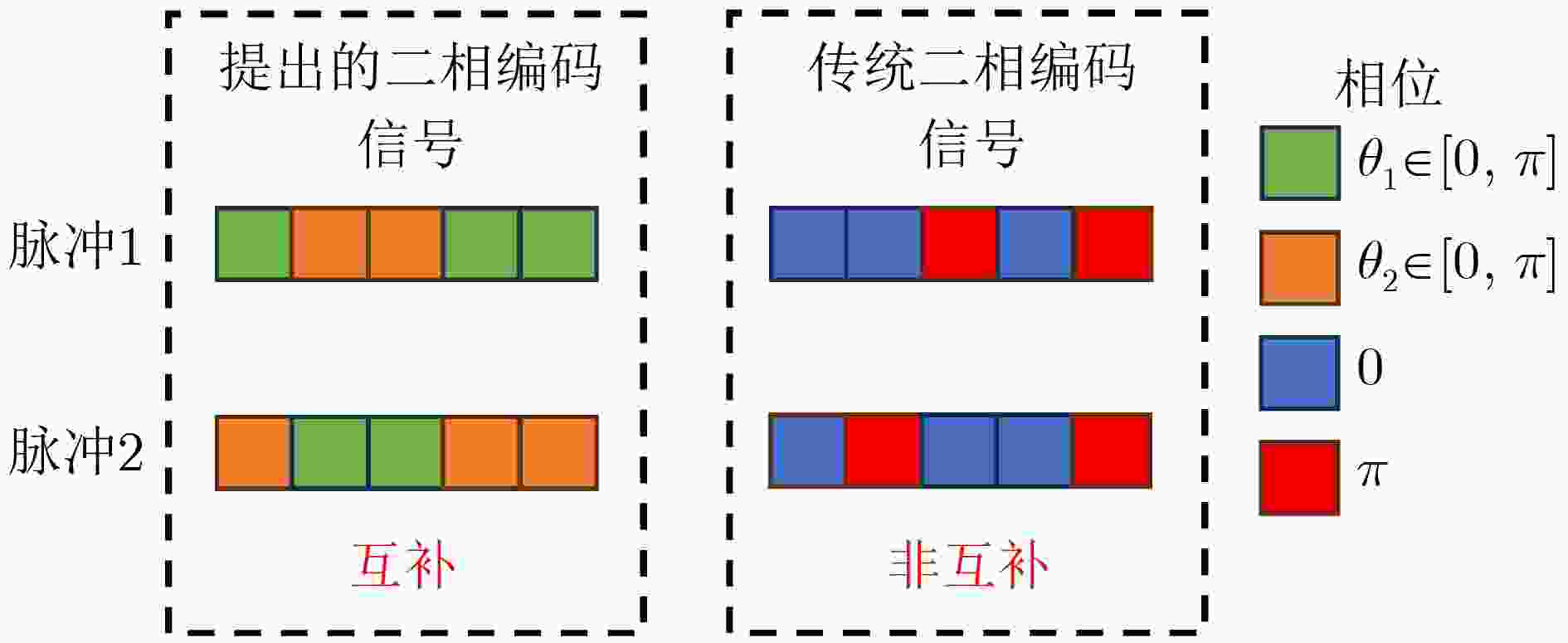

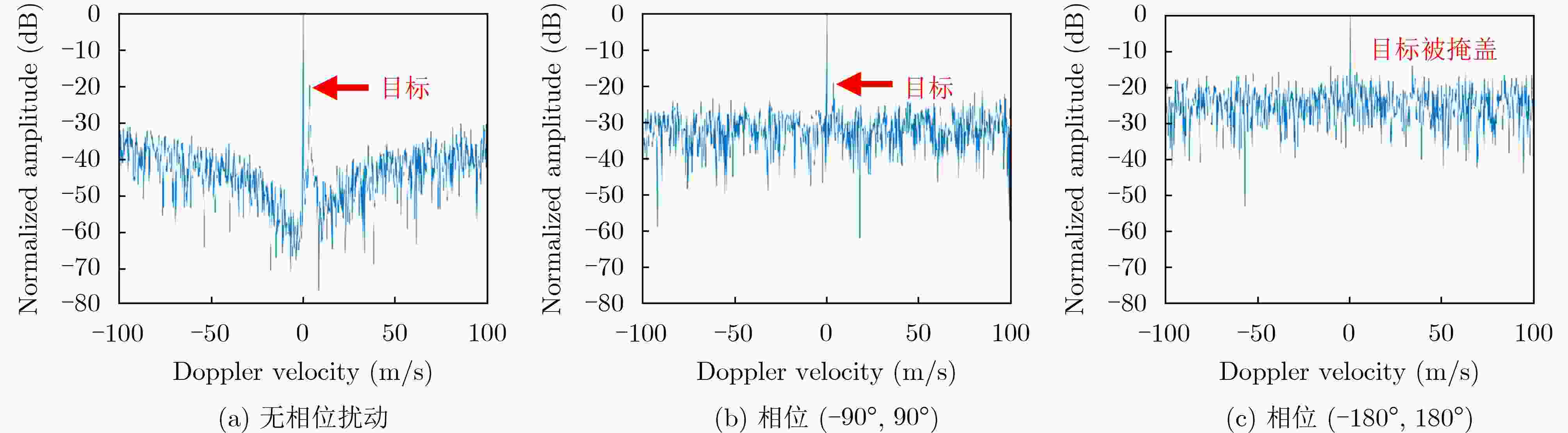

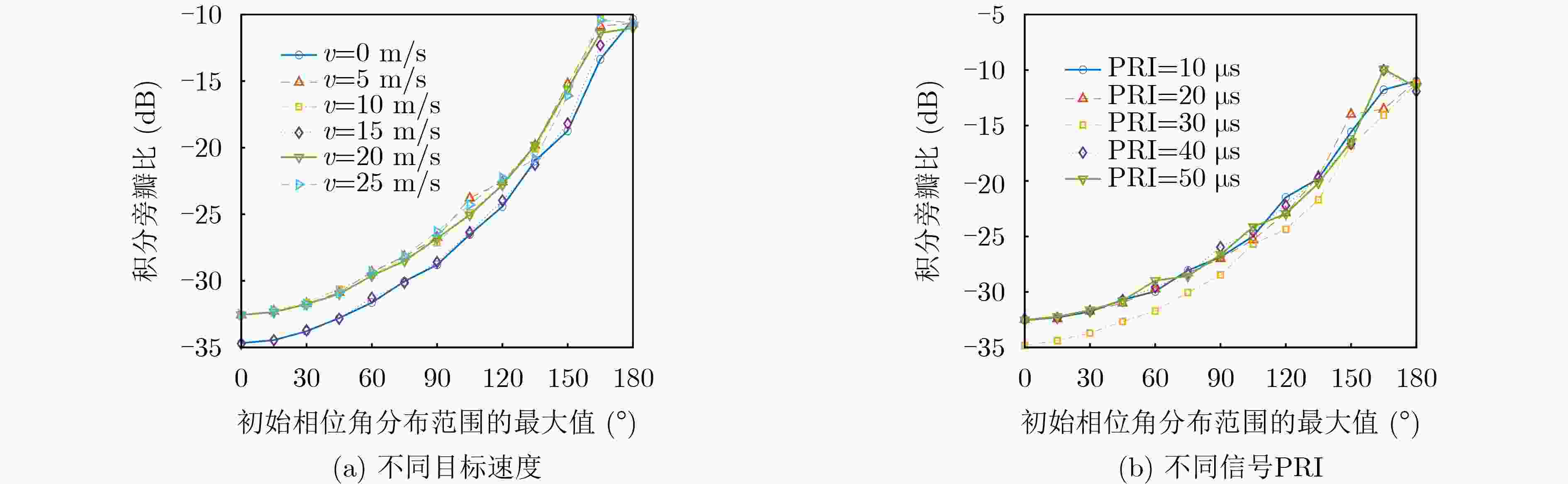

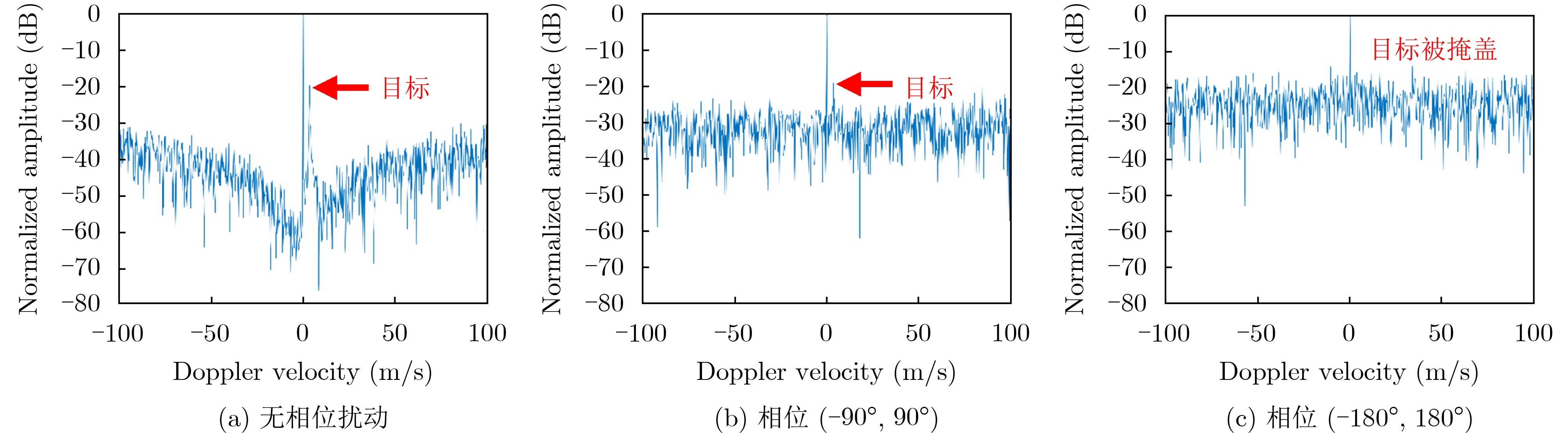

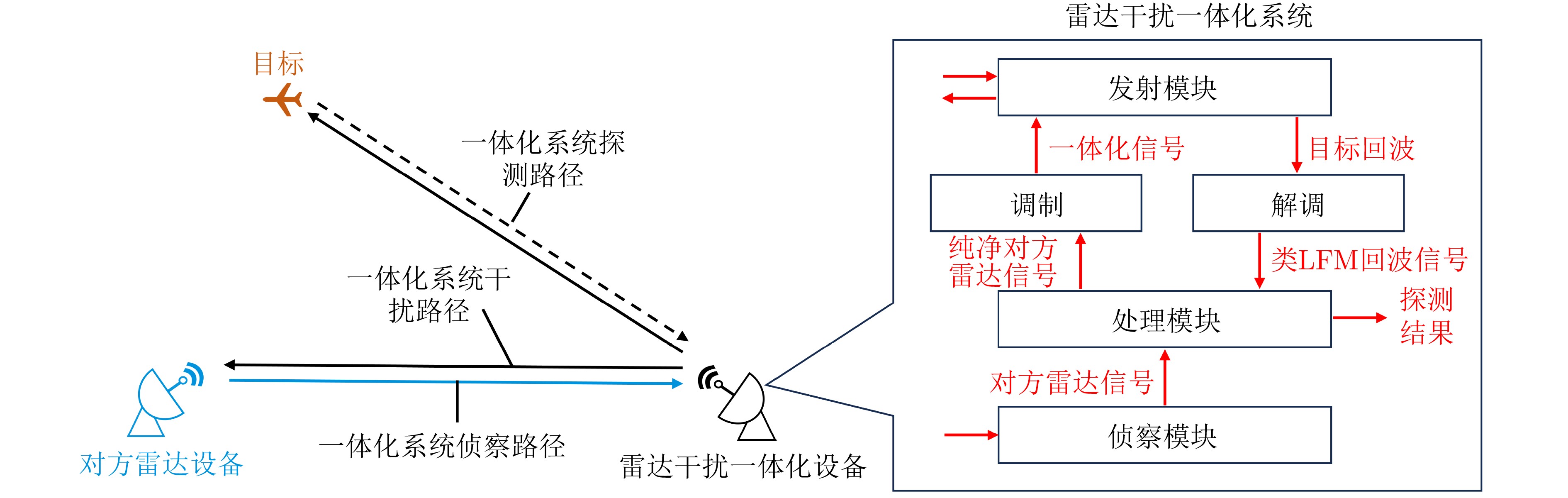

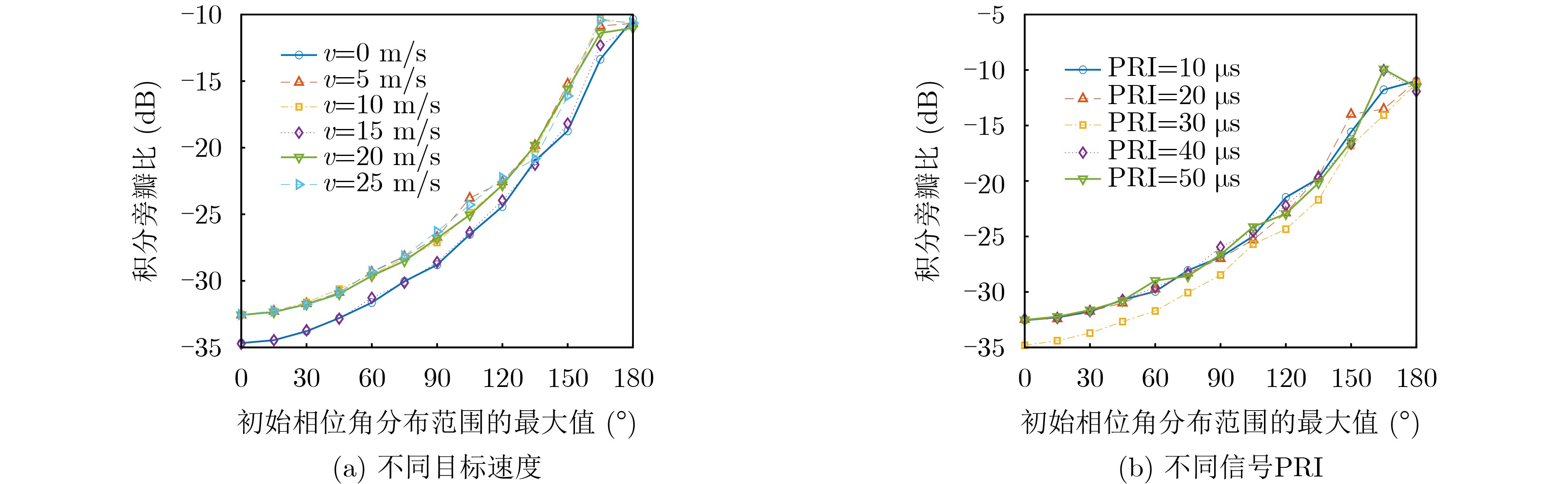

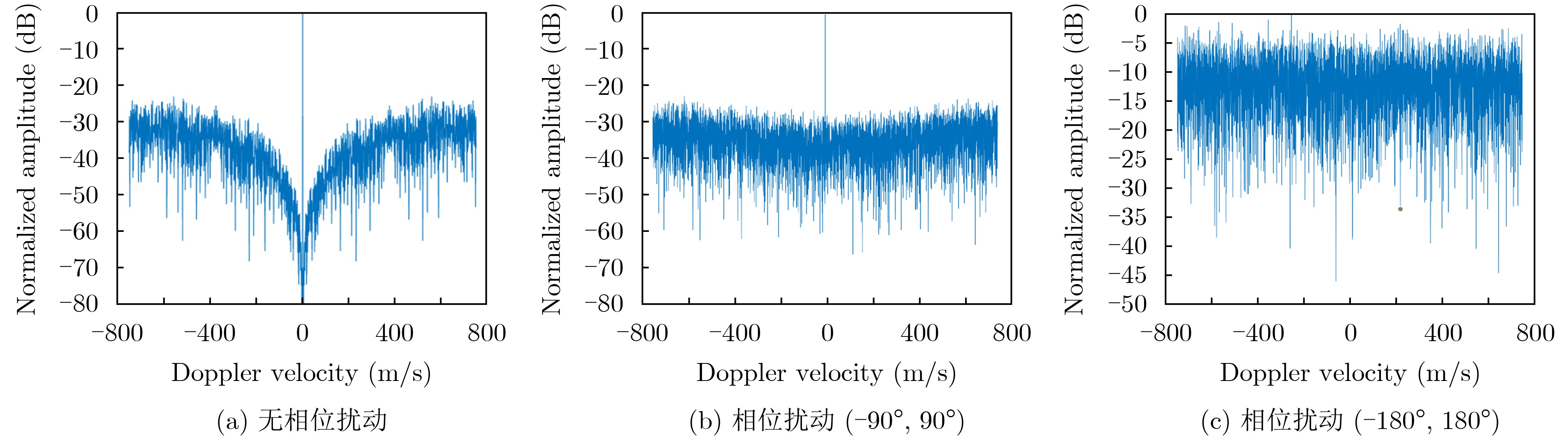

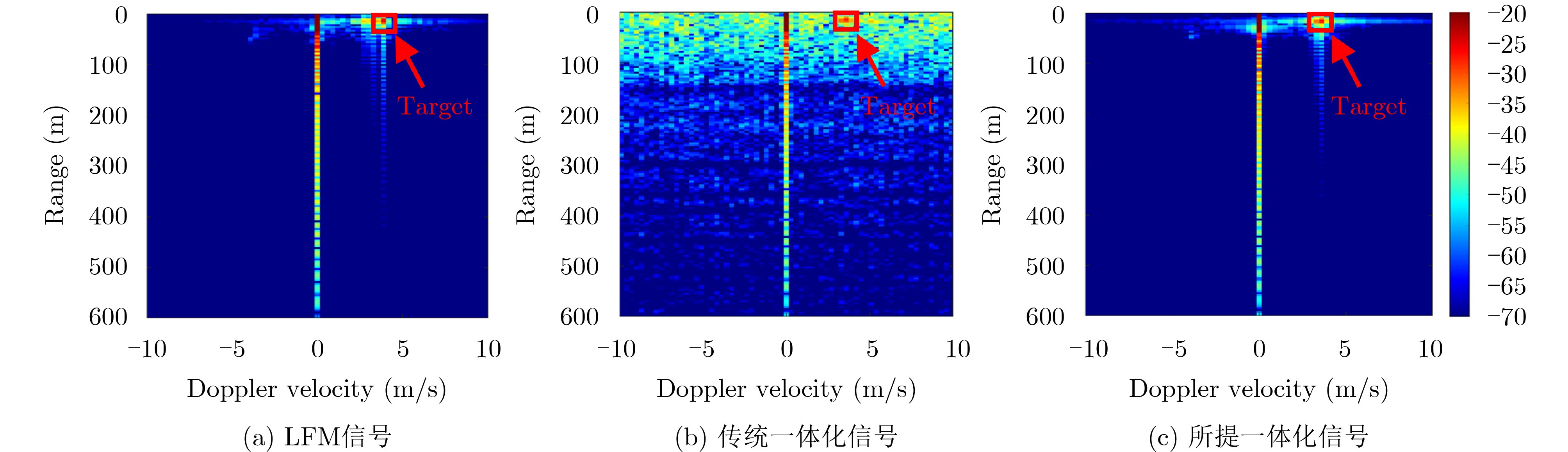

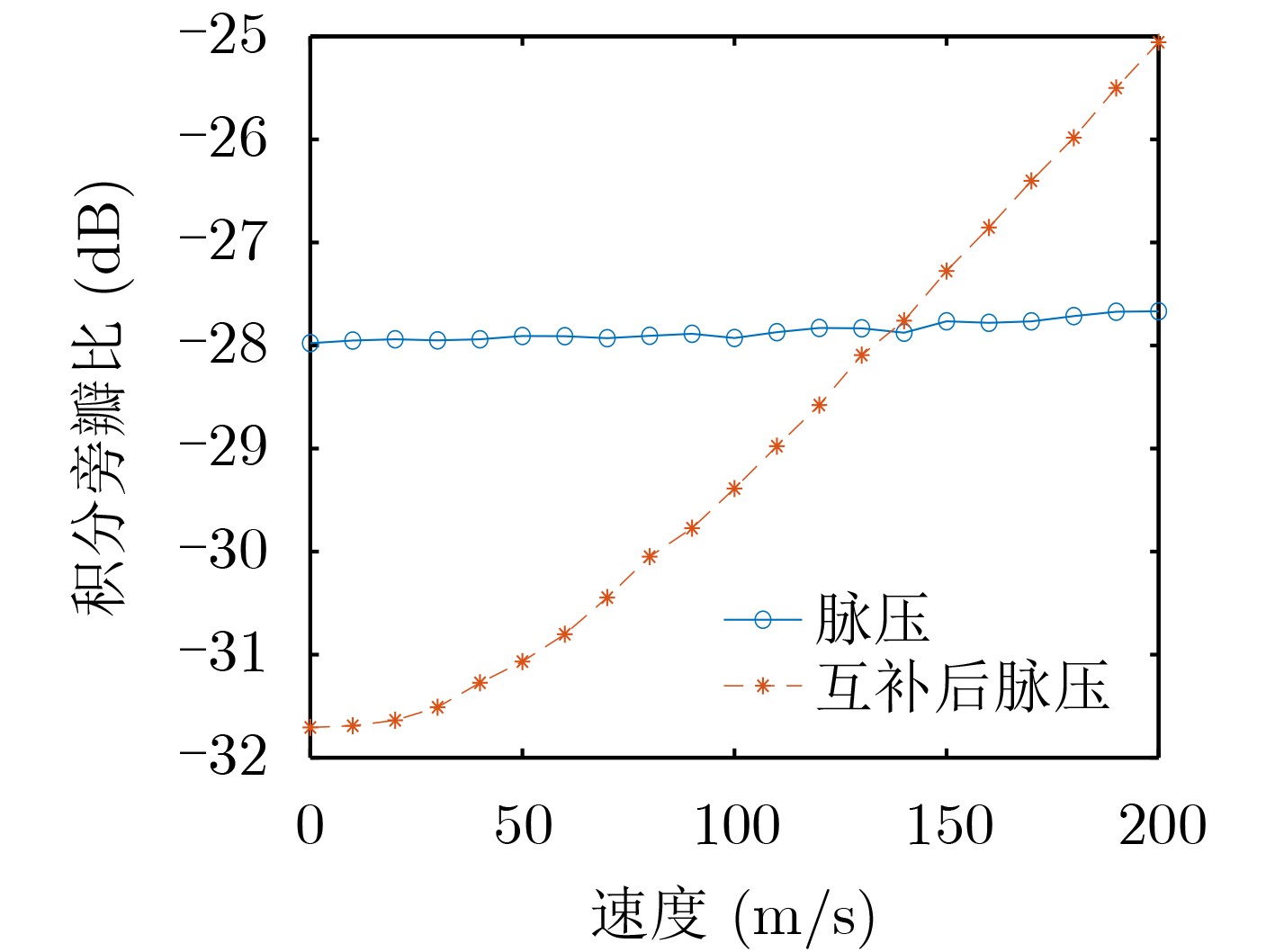

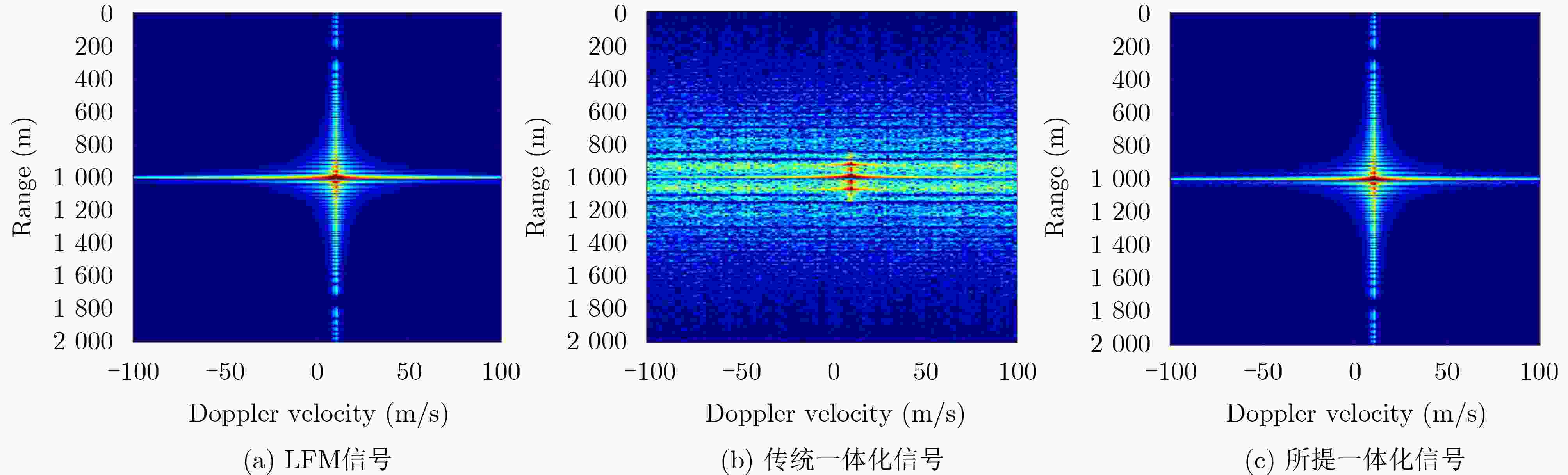

Objective The key to the integrated radar jamming system lies in the design of the integrated jamming waveforms. Existing integrated radar and jamming signals have low design freedom, and there is room for optimization in their overall performance in detection and jamming. We propose an integrated radar and jamming waveform based on intra-pulse and inter-pulse multiple-phase modulation. In terms of detection, phase compensation and complementary synthesis of echo signals can be employed to generate linear frequency modulation (LFM) signals, thus the proposed integrated waveform can achieve ideal detection performance. In terms of jamming, the proposed integrated waveform significantly enhances the flexibility of controlling the energy distribution of jamming in the range-Doppler map of the adversary's detection results through multiple-parameter modulation both within and between pulses. Simulation analysis and experimental results have confirmed that this waveform exhibits significant advantages in terms of overall performance in detection and jamming. Methods This paper presents a novel integrated waveform that adopts both intra-pulse and inter-pulse multi-phase modulation. By strategically introducing well-designed phase perturbations between pulses, the proposed method effectively prevents the jamming energy from being overly concentrated at zero Doppler, thereby enabling more precise control over the Doppler distribution of the jamming energy. Additionally, during echo processing, phase compensation techniques are employed to eliminate the introduced inter-pulse phase perturbations, facilitating the reconstruction of a complete LFM signal through inter-pulse complementarity and ensuring robust detection performance. Compared with earlier integrated waveforms, our approach incorporates binary phase-coded sequences within each pulse along with additional inter-pulse phase modulation. This integration yields a waveform characterized by multiple adjustable parameters and higher degrees of freedom, which not only achieves low-sidelobe detection performance similar to that of LFM signals but also offers enhanced flexibility in managing the Doppler distribution of jamming energy. Results and Discussions The comprehensive performance of the proposed integrated waveform has been validated through simulations and practical experiments. In terms of detection, this waveform achieves a signal-to-clutter-noise ratio of 63.46 dB for moving target detection, representing a 25.25 dB improvement over traditional integrated waveforms while narrowing the gap with LFM (67.03 dB) to merely 3.57 dB. This demonstrates that the phase compensation and waveform complementarity mechanisms significantly enhance target detection capabilities. Regarding jamming performance, adjusting the range of random phase perturbations between pulses effectively manipulates jamming energy distribution: when phase perturbation range is zero degrees, jamming energy concentrates in the zero-Doppler main lobe with limited target masking effectiveness; expanding the phase range to $ \pm 90$ degrees visibly flattens the spectrum, nearly concealing the target; further extending the phase perturbation range to $ \pm 180$ degrees completely eliminates the zero-frequency main peak, enabling uniform diffusion of jamming energy across the Doppler domain, thus expanding phase modulation freedom breaks through conventional limitations. The proposed design not only maintains detection performance approaching optimal signals but also achieves flexible jamming energy control through phase modulation freedom, delivering a versatile solution for radar-jamming integrated systems that combines efficient detection with adaptive jamming capabilities. Conclusions This paper is based on an already proposed integrated radar and jamming waveform. The primary focus of this paper is to analyze and address the issue of uneven jamming energy distribution in the unoptimized waveform. By modulating between pulses with a random phase sequence, we propose an integrated radar and jamming waveform based on intra-pulse and inter-pulse multiple-phase modulation. The detection performance of the proposed integrated waveform is comparable to that of LFM signals and it can flexibly adjust jamming effects through multiple parameters, making it a waveform template with high design freedom. Theoretical analysis indicates that relying solely on intra-pulse modulation is not sufficiently flexible. By adding random phases with different distribution ranges between pulses on the basis of intra-pulse modulation, the distribution of jamming energy can be adjusted more flexibly. Simulation analysis shows that the detection performance of the proposed waveform is similar to that of LFM signals. As the distribution range of the inter-pulse random phases increases, the degree of diffusion of the jamming energy also gradually increases. Therefore, by adjusting the distribution range of the inter-pulse modulation phases, the distribution of jamming energy can be flexibly regulated, allowing the integrated waveform to achieve greater degrees of freedom. Experimental results demonstrate the proposed waveform exhibits good overall performance in detection and jamming. The waveform proposed in this paper still has certain limitations in terms of application scenarios and practicality, which will be the primary focus of our future research. -
[1] YANG Zhongping, ZHANG Boyang, ZHANG Kedi, et al. Efficient waveform design with jamming characteristics for precision electronic warfare[J]. Signal Processing, 2023, 212: 109162. doi: 10.1016/j.sigpro.2023.109162. [2] SU Yang, CHENG Ting, HE Zishu, et al. Joint waveform control and resource optimization for maneuvering targets tracking in netted colocated MIMO radar systems[J]. IEEE Systems Journal, 2022, 16(3): 3960–3971. doi: 10.1109/JSYST.2021.3098622. [3] SHAN Chengzhao, SHI Jun, MA Yongkui, et al. Power loss suppression for time-modulated arrays in radar-communication integration[J]. IEEE Journal of Selected Topics in Signal Processing, 2021, 15(6): 1365–1377. doi: 10.1109/JSTSP.2021.3118896. [4] GU Yabin, ZHANG Linrang, ZHOU Yu, et al. Waveform design for integrated radar and communication system with orthogonal frequency modulation[J]. Digital Signal Processing, 2018, 83: 129–138. doi: 10.1016/j.dsp.2018.08.014. [5] CHEN Li, WANG Zhiqin, JIANG Jiamo, et al. Full-duplex SIC design and power allocation for dual-functional radar-communication systems[J]. IEEE Wireless Communications Letters, 2023, 12(2): 252–256. doi: 10.1109/LWC.2022.3222197. [6] WU Haozheng, JIN Biao, XU Zhaoyang, et al. Waveform design and signal processing for integrated radar-communication system based on frequency diversity array[J]. Digital Signal Processing, 2023, 133: 103839. doi: 10.1016/j.dsp.2022.103839. [7] SHI Qiao, WANG Yujie, ZHOU Zhengchun, et al. Waveform designs for integrated sensing and communication with low probability of intercept based on the cyclic spectrum[J]. IEEE Transactions on Vehicular Technology, 2025, 74(7): 10439–10451. doi: 10.1109/TVT.2025.3543223. [8] ZHOU Yu, SHI Qiao, ZHOU Zhengchun, et al. Waveform and filter design for integrated sensing and communication against signal-dependent modulated jamming[J]. IEEE Transactions on Vehicular Technology, 2025, 74(8): 12480–12495. doi: 10.1109/TVT.2025.3554376. [9] WANG Ying, LIU Guikun, MA Xile, et al. A convolution modulation jamming method based on the optimal combination of noise templates[J]. IEEE Geoscience and Remote Sensing Letters, 2024, 21: 4008905. doi: 10.1109/LGRS.2024.3386976. [10] XU Cuichun and CHEN Tianqi. Conception of "signal sharing" in integrated radar and jammer system and the integrated signal design[C]. IEEE 2002 International Conference on Communications, Circuits and Systems and West Sino Expositions, Chengdu, China, 2002: 502–505. doi: 10.1109/ICCCAS.2002.1180668. [11] ZHANG Xinxiang and CHEN Tianqi. Noise-linear frequency modulation shared waveform for integrated radar and jammer system[C]. 2007 International Conference on Communications, Circuits and Systems, Kokura, Japan, 2007: 644–648. doi: 10.1109/ICCCAS.2007.4348136. [12] ZHOU Feng, SUN Guangcai, BAI Xueru, et al. A novel method for adaptive SAR barrage jamming suppression[J]. IEEE Geoscience and Remote Sensing Letters, 2012, 9(2): 292–296. doi: 10.1109/LGRS.2011.2166753. [13] LI Chunyang, WU Guangxin, LI Gui, et al. Shared waveform design for integrated detection and jamming signal based on smart noise jamming of convolution modulation[C]. 2023 8th International Conference on Signal and Image Processing, Wuxi, China, 2023: 564–569. doi: 10.1109/ICSIP57908.2023.10270918. [14] SHI Qingzhan, WU Shuang, HUANG Jingjian, et al. A novel jamming method against LFM radar using pseudo-random code phase modulation[C]. 2017 IEEE International Conference on Signal Processing, Communications and Computing, Xiamen, China, 2017: 1–5. doi: 10.1109/ICSPCC.2017.8242394. [15] LI Chunyang and WU Guangxin. A shared waveform design and processing method for integrated radar detection and coherent jamming signal[C]. 2022 IEEE 10th Joint International Information Technology and Artificial Intelligence Conference, Chongqing, China, 2022: 373–380. doi: 10.1109/ITAIC54216.2022.9836823. [16] LI Chunyang, WU Guangxin, and LI Gui. A shared waveform design for integrated detection and jamming signal based on LFM-Costas intra-pulse frequency stepping[C]. 2022 7th International Conference on Communication, Image and Signal Processing, Chengdu, China, 2022: 347–354. doi: 10.1109/CCISP55629.2022.9974268. [17] LAN Lan, ROSAMILIA M, AUBRY A, et al. FDA-MIMO transmitter and receiver optimization[J]. IEEE Transactions on Signal Processing, 2024, 72: 1576–1589. doi: 10.1109/TSP.2024.3366438. [18] XU Leilei, ZHOU Shenghua, and LIU Hongwei. Simultaneous optimization of radar waveform and mismatched filter with range and delay-Doppler sidelobes suppression[J]. Digital Signal Processing, 2018, 83: 346–358. doi: 10.1016/j.dsp.2018.09.009. [19] YAN Huabin, ZHANG Shiyuan, LU Xingyu, et al. A waveform design for integrated radar and jamming based on smart modulation and complementary coding[J]. Remote Sensing, 2024, 16(15): 2725. doi: 10.3390/rs16152725. [20] LANG Ping, FU Xiongjun, DONG Jian, et al. Random interpulse frequency and PRT joint agile waveform design based on whales optimization algorithm[J]. IEEE Transactions on Aerospace and Electronic Systems, 2025, 61(5): 15028–15036. doi: 10.1109/TAES.2025.3567965. [21] ZHANG Shiyuan, LU Xingyu, YANG Jianchao, et al. Enhanced signal processing method for integrated detection and jamming system considering the complex environment[C]. 2021 CIE International Conference on Radar, Haikou, China, 2021: 2233–2237. doi: 10.1109/Radar53847.2021.10028047. -
