联合聚焦度量与上下文引导滤波的聚焦深度估计

蒋颖; 邓慧萍; 向森; 吴谨

doi:10.11999/JEIT250540

联合聚焦度量与上下文引导滤波的聚焦深度估计

doi: 10.11999/JEIT250540 cstr: 32379.14.JEIT250540

武汉科技大学电子信息学院武汉 430081

详细信息

作者简介:
蒋颖：女，硕士生，研究方向为图形图像处理、深度估计

邓慧萍：女，副教授，研究方向为3D视频与图像的处理、机器学习、3维信息测量、视频图像质量评估

向森：男，副教授，研究方向为3D视频与图像的处理、机器学习、3维信息测量、视频图像质量评估

吴谨：女，教授，研究方向为图像处理与模式识别、信号处理与多媒体通信、检测技术与自动化装置

通讯作者:
邓慧萍　denghuiping@wust.edu.cn

中图分类号: TN911.73; TP391.41
计量
- 文章访问数: 29
- HTML全文浏览量: 17
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-09
- 修回日期: 2025-10-09
- 网络出版日期: 2025-10-16

Joint Focus Measure and Context-Guided Filtering for Depth From Focus

School of Electronic Information, Wuhan University of Science and Technology, Wuhan 430081, China

摘要

摘要: 聚焦深度估计(DFF)通过分析图像中各像素的焦点变化来推断场景深度，任务的关键在于定位焦堆栈中的最佳聚焦像素点。然而弱纹理区域中焦点变化通常较为细微，导致聚焦区域检测困难，影响深度估计的准确性。因此，该文提出了一种结合聚焦度量与上下文信息的焦堆栈深度估计网络，方法能够精确识别焦堆栈中最佳聚焦像素，并推断出可靠的深度图。文中将聚焦度量算子概念融入深度学习框架，通过增强聚焦区域的特征表达，提升网络对弱纹理区域细微焦点变化的感知能力。此外，文章引入语义上下文引导机制，利用整合的场景语义信息，指导焦点体积的滤波优化。这使网络能同时捕获局部焦点细节与全局上下文信息，实现对弱纹理区域焦点状态的全面推断。综合实验结果，所提出的模型在主观质量和客观指标相比其他算法都有明显提升，具有良好的泛化能力。
- 聚焦深度估计 /
- 焦点度量 /
- 上下文信息
Abstract: Objective Depth from Focus (DFF) seeks to determine scene depth by analyzing the focus variation of each pixel in an image. A key challenge in DFF is identifying the best-focused slice within the focal stack. However, focus variation in weakly textured regions is often subtle, making it difficult to detect focused areas, which adversely affects the accuracy of depth maps. To address this issue, this study proposes a depth estimation network that integrates focus measures and contextual information from the focal stack. The network accurately locates the best-focused pixels and generates a reliable depth map. By explicitly incorporating focus cues into a Convolutional Neural Network (CNN) and thoroughly considering spatial correlations within the scene, the approach facilitates comprehensive inference of focus states in weakly textured regions. This enables the network to capture both local focus-related details and global contextual information, thereby enhancing the accuracy and efficiency of depth estimation in challenging regions. Methods The proposed network consists of two main components. The first is focus region detection, which extracts focus-related features from the focal stack. A focus measure operator is introduced into the network during learning, yielding the maximum response when an image region is in sharp focus. After identifying the best-focused slices within the stack, the detected focus features are fused with those extracted by a 2D CNN. Because focus variations in weakly textured regions are often subtle, the representation of focus regions is enhanced to improve sensitivity to such changes. The second component comprises a semantic network and a semantic context module. A semantic context network is used to extract semantic cues, and semantic-guided filtering is then applied to the focus volume, integrating target features (focus volume) with guiding features (semantic context features). When local focus cues are indistinguishable, the global semantic context allows reliable inference of the focus state. This framework combines the strengths of deep learning and traditional methods while accounting for the specific characteristics of DFF and CNN architectures. Therefore, it produces robust and accurate depth maps, even in challenging regions. Results and Discussions The proposed architecture is evaluated through quantitative and qualitative comparisons on two public datasets. Prediction reliability is assessed using multiple evaluation metrics, including Mean Squared Error (MSE) and squared relative error (Sqr.rel.). Quantitative results (Tables 1 and 2) show that the proposed method consistently outperforms existing approaches on both datasets. The small discrepancy between predicted and ground-truth depths indicates precise depth estimation with reduced prediction errors. In addition, higher accuracy is achieved while computational cost remains within a practical range. Qualitative analysis (Figures 10 and 11) further demonstrates superior depth reconstruction and detail preservation, even when a limited number of focal stack slices is used. The generalization ability of the network is further examined on the unlabeled Mobile Depth dataset (Figure 12). The results confirm that depth can be reliably recovered in diverse unseen scenes, indicating effectiveness for real-world applications. Ablation studies (Table 3) validate the contribution of each proposed module. Optimal performance is obtained when both the Focus Measure (FM) and the Semantic Context-Guided Module (SCGM) are applied. Parameter count comparisons further indicate that the proposed approach achieves a balance between performance and complexity, delivering robust accuracy without excessive computational burden. Conclusions This study proposes a CNN–based DFF framework to address the challenge of depth estimation in weakly textured regions. By embedding focus measure operators into the deep learning architecture, the representation of focused regions is enhanced, improving focus detection sensitivity and enabling precise capture of focus variations. In addition, the introduction of semantic context information enables effective integration of local and global focus cues, further increasing estimation accuracy. Experimental results across multiple datasets show that the proposed model achieves competitive performance compared with existing methods. Visual results on the Mobile Depth dataset further demonstrate its generalization ability. Nonetheless, the model shows limitations in extremely distant regions. Future work could incorporate multimodal information or frequency-domain features to further improve depth accuracy in weakly textured scenes.
- Depth from focus /
- Focus measure /
- Contextual information

HTML全文

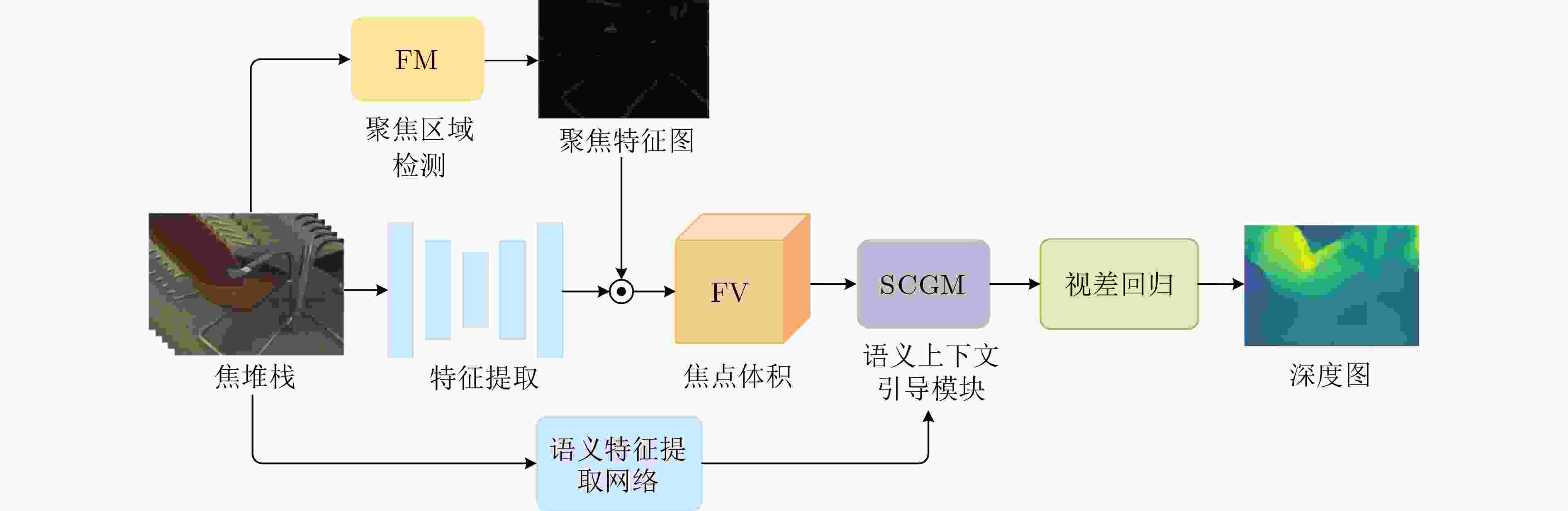

图 1 网络整体框架

下载: 全尺寸图片幻灯片

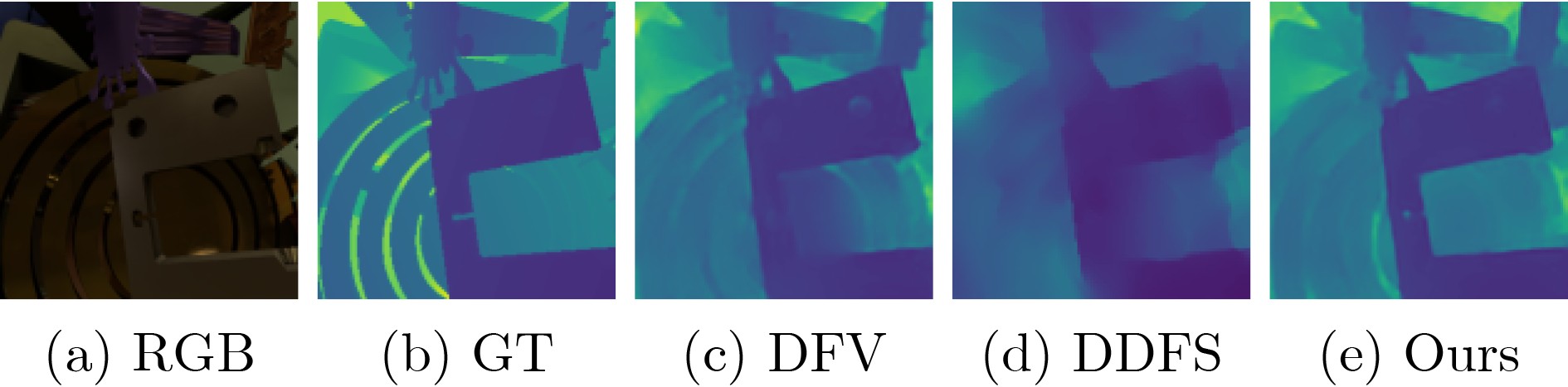

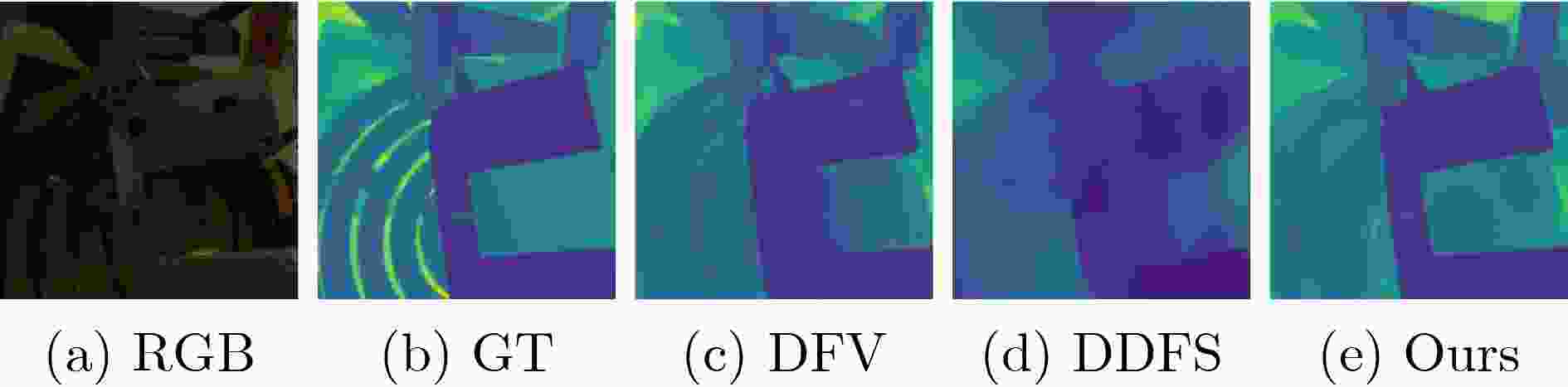

图 2 加入聚焦区域检测后与其他方法对比

下载: 全尺寸图片幻灯片

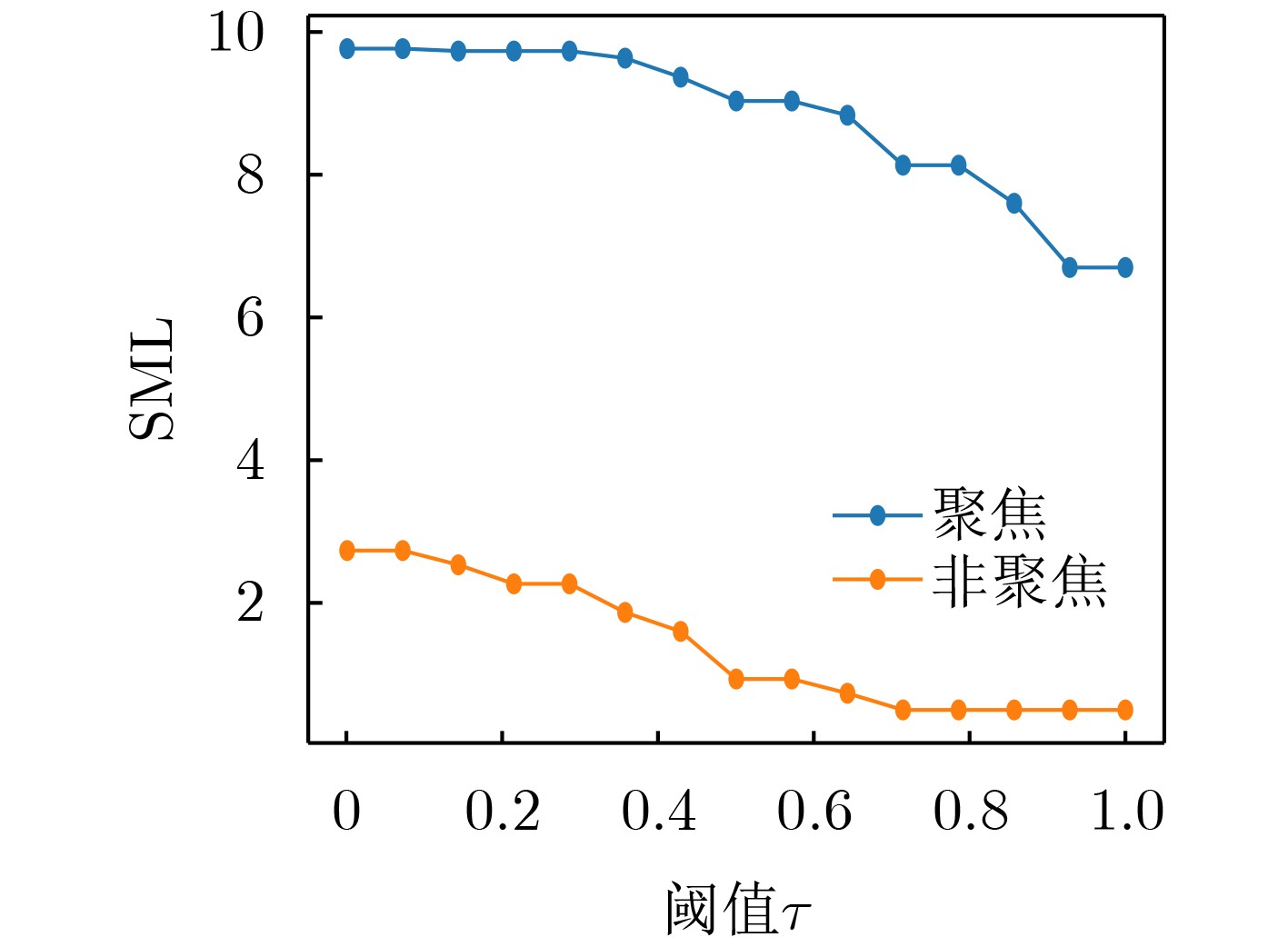

图 3 不同阈值下聚焦与非聚焦图的响应差异

下载: 全尺寸图片幻灯片

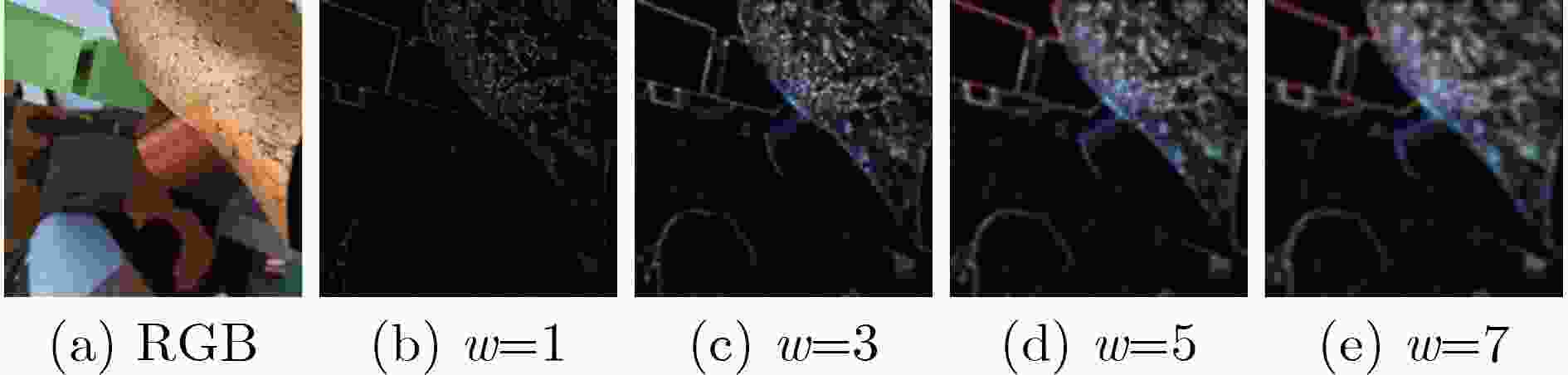

图 4 窗口大小对聚焦响应的影响

下载: 全尺寸图片幻灯片

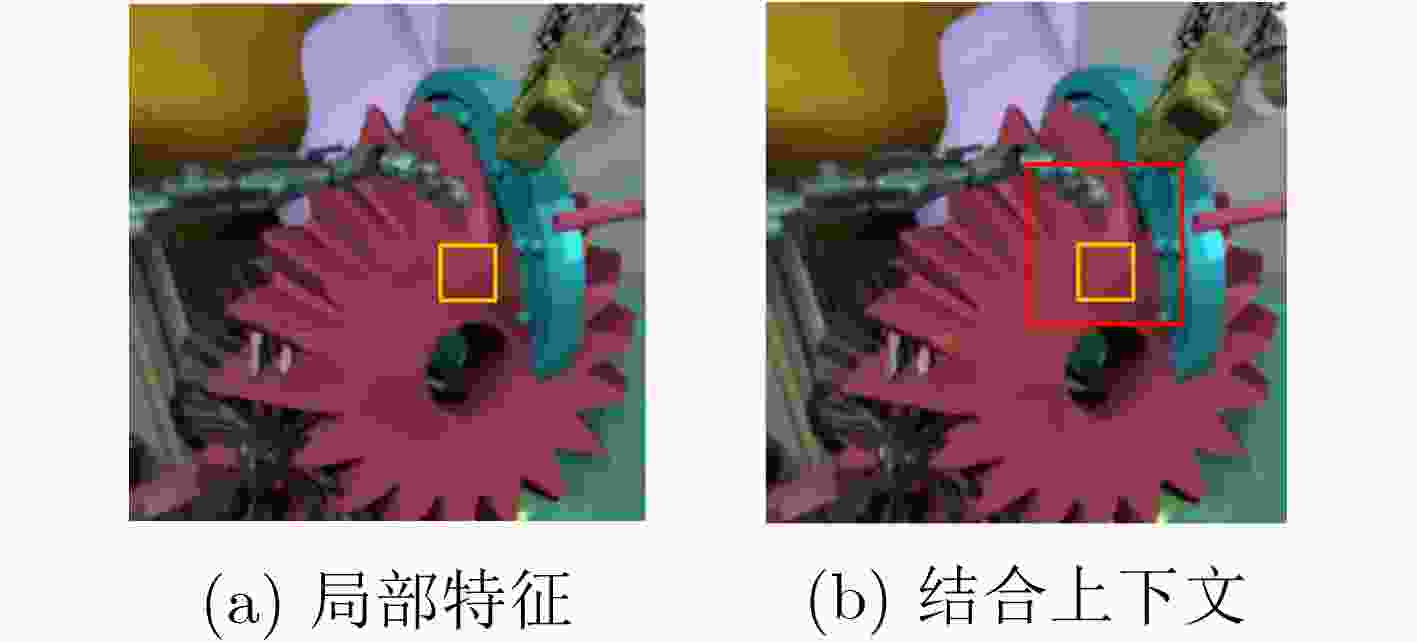

图 5 利用上下文信息感知弱纹理聚焦程度

下载: 全尺寸图片幻灯片

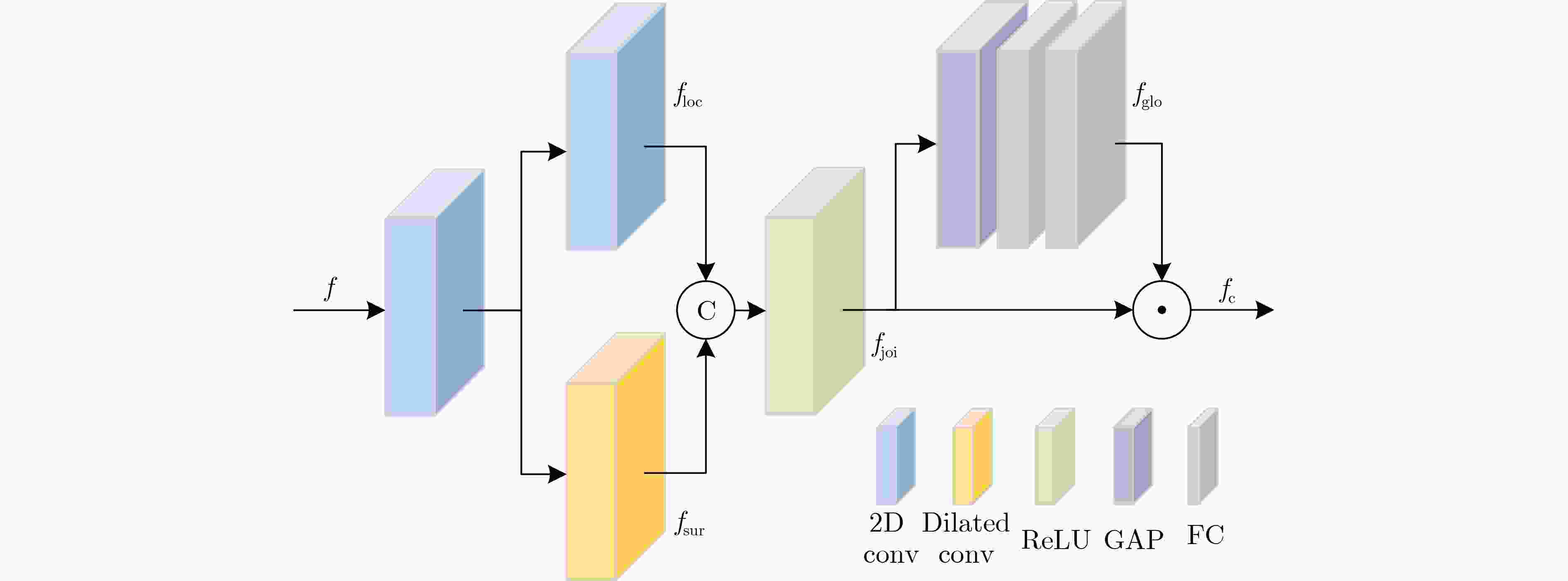

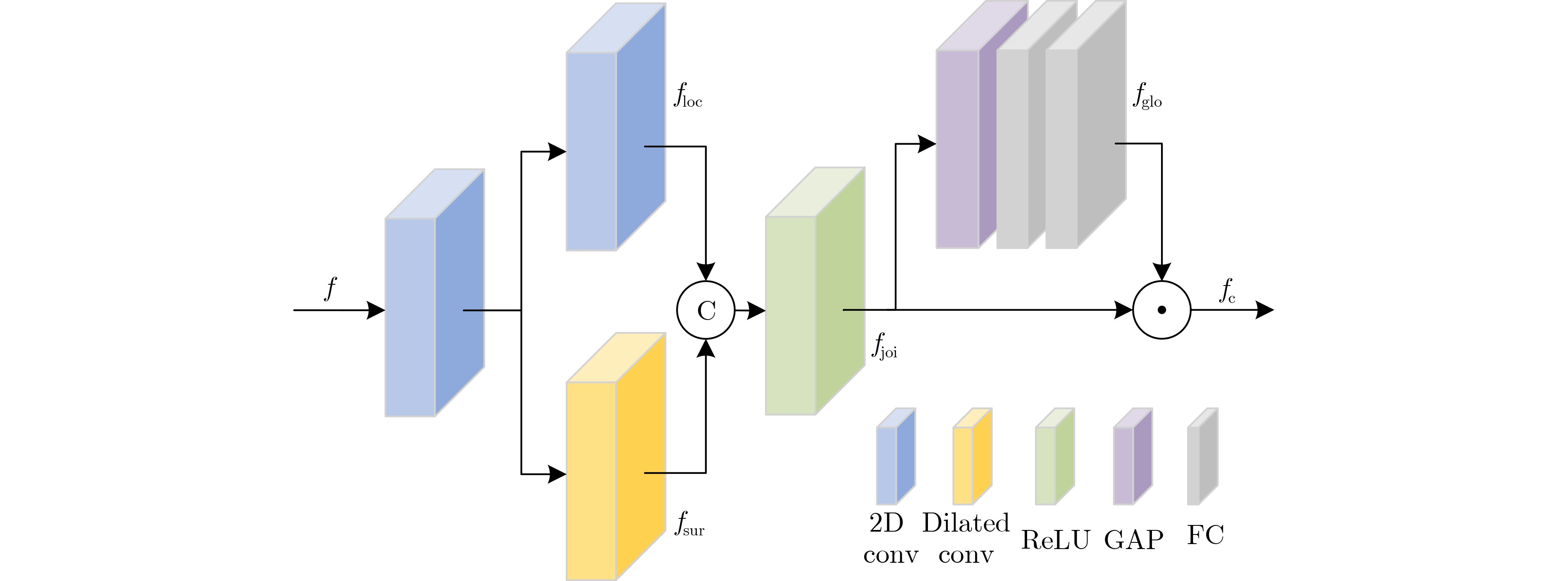

图 6 语义特征提取网络

下载: 全尺寸图片幻灯片

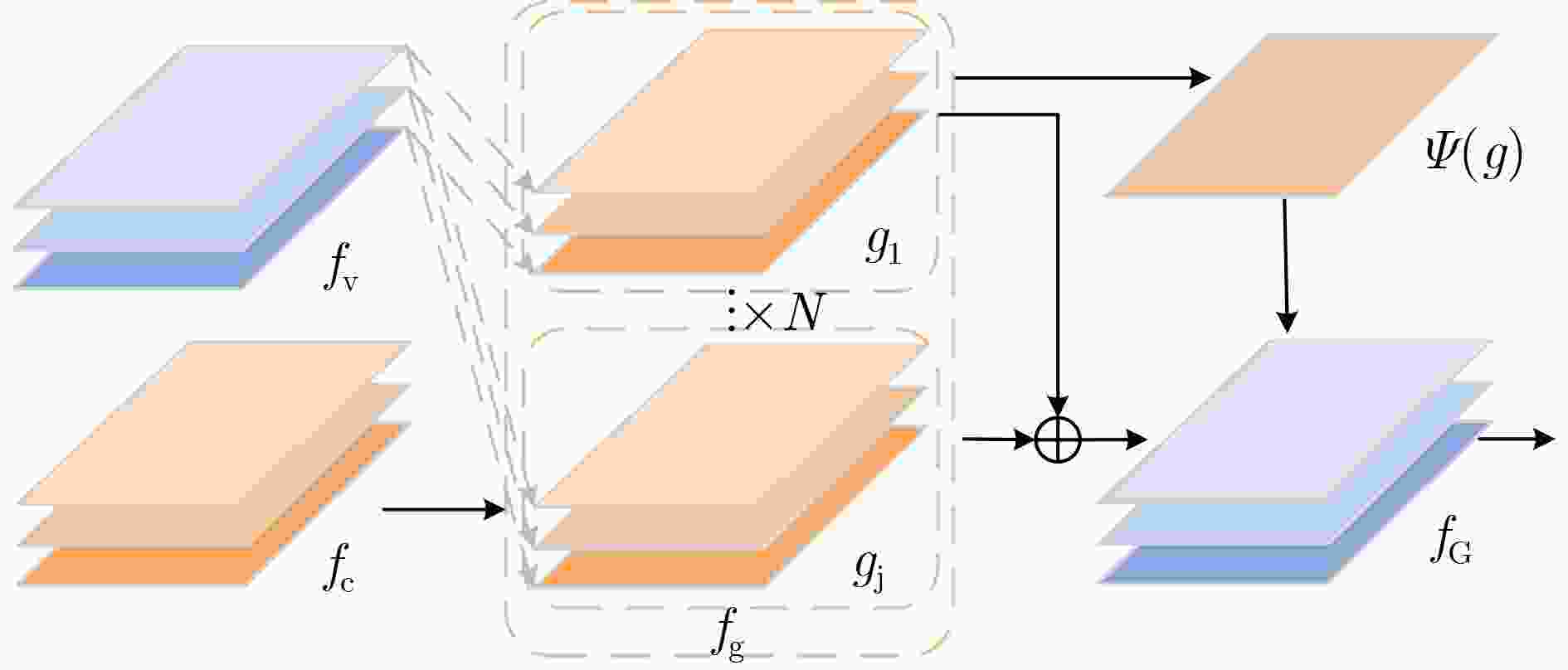

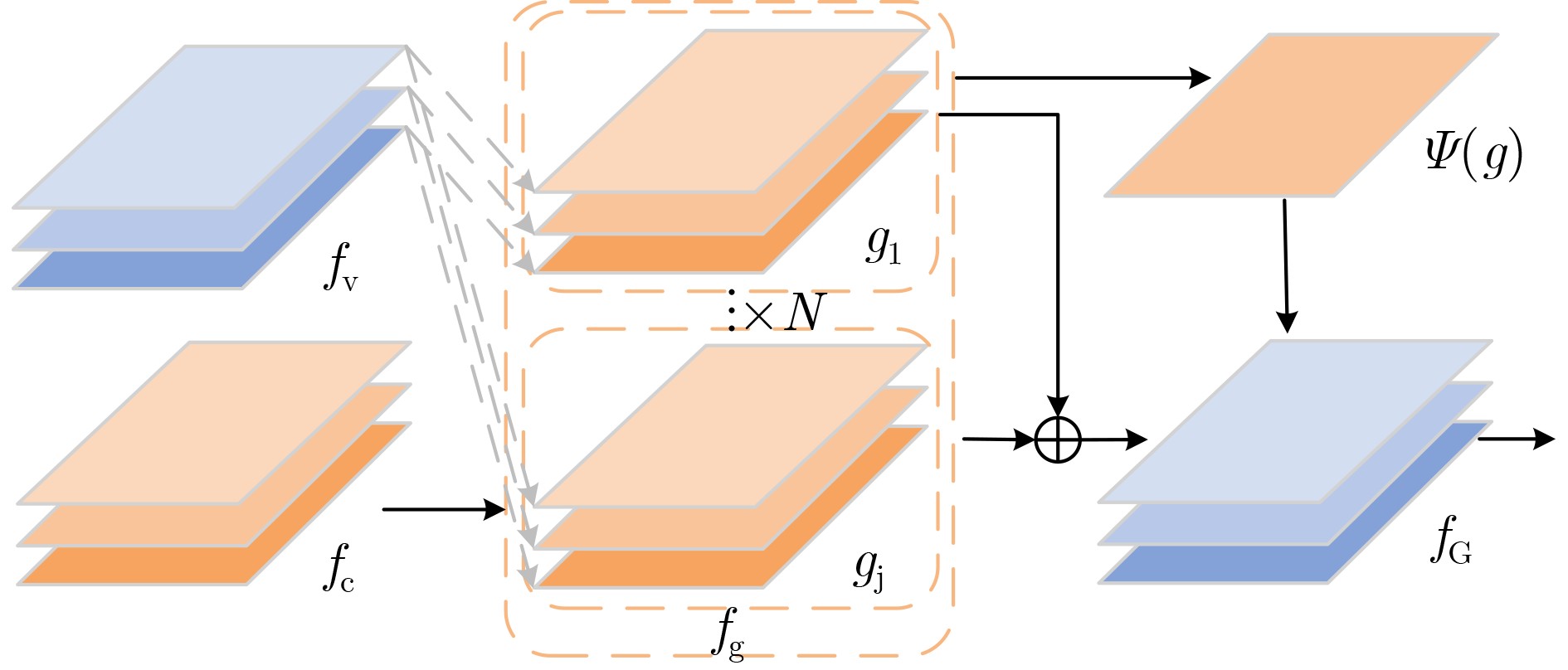

图 7 语义上下文引导模块

下载: 全尺寸图片幻灯片

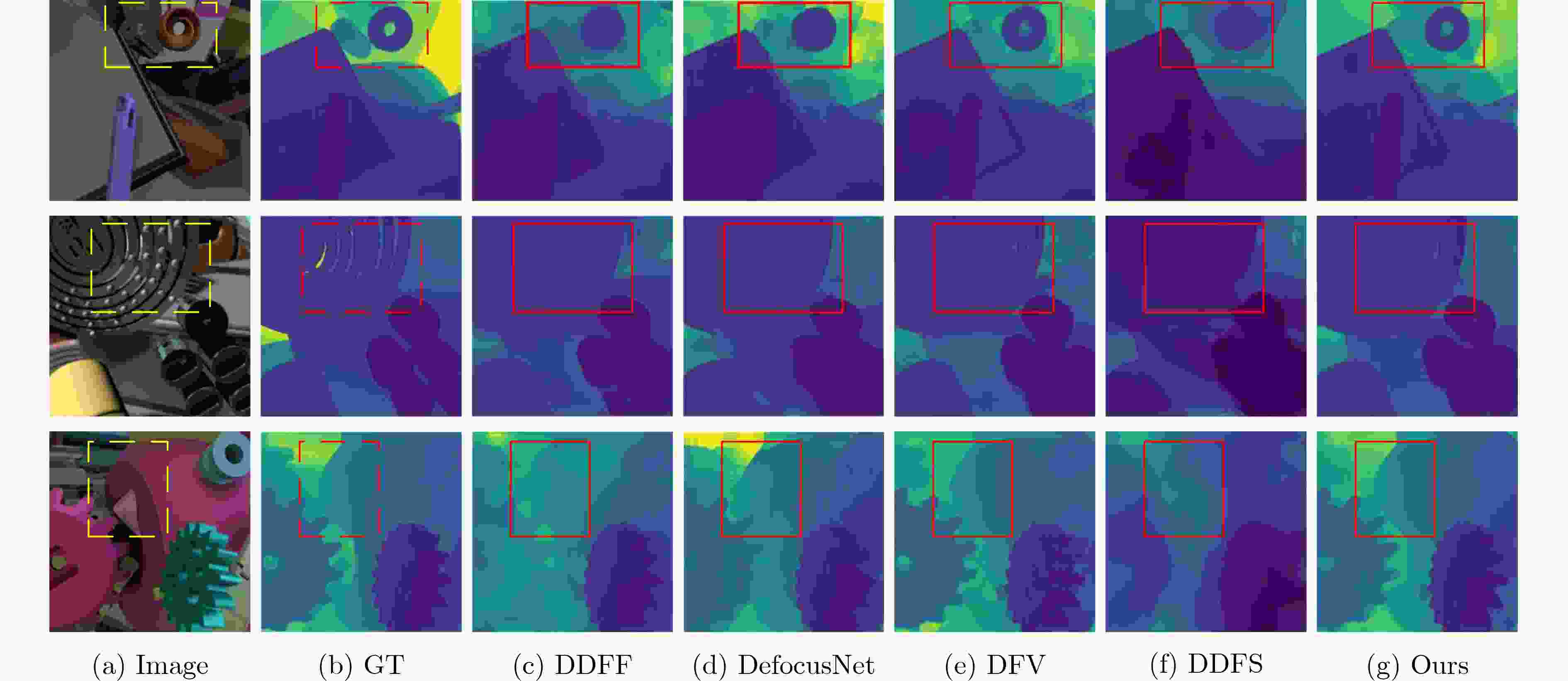

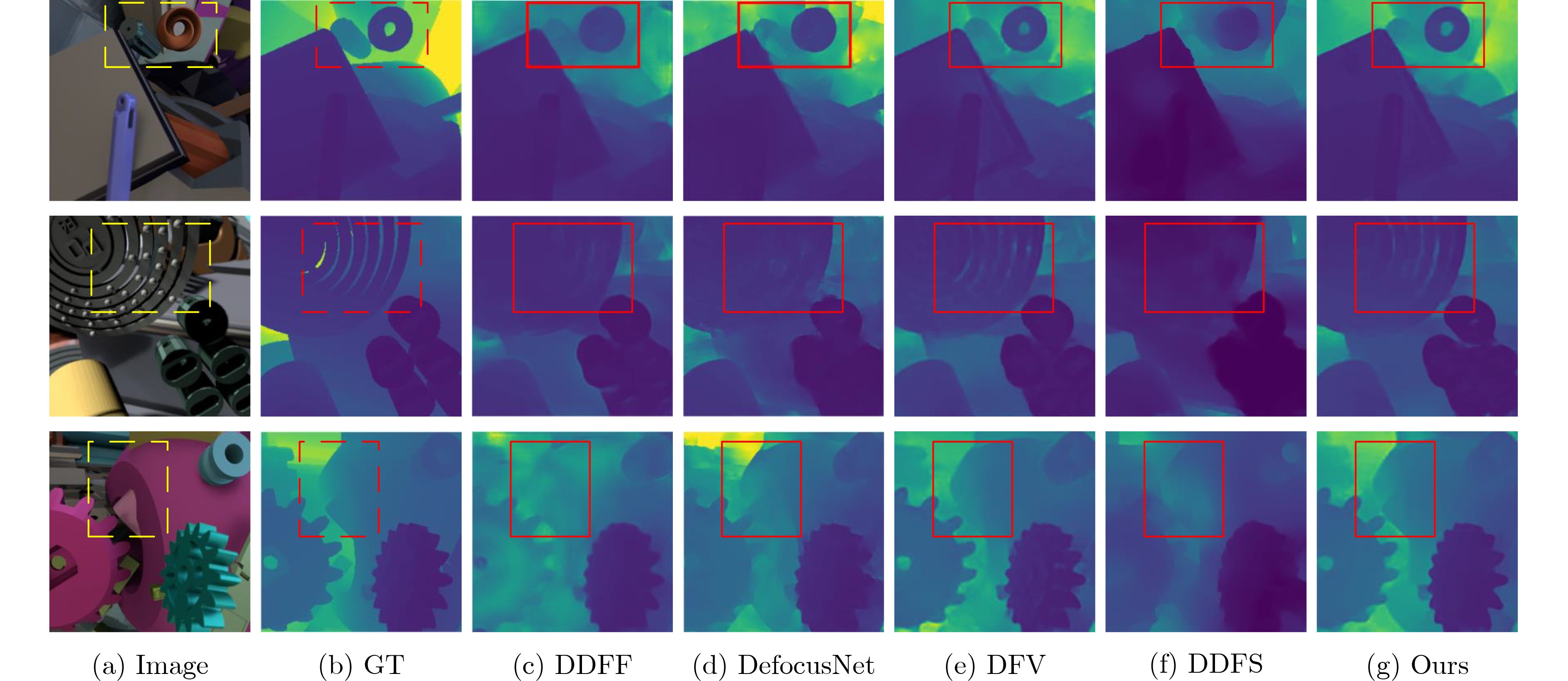

图 8 在FoD500上的定性结果

下载: 全尺寸图片幻灯片

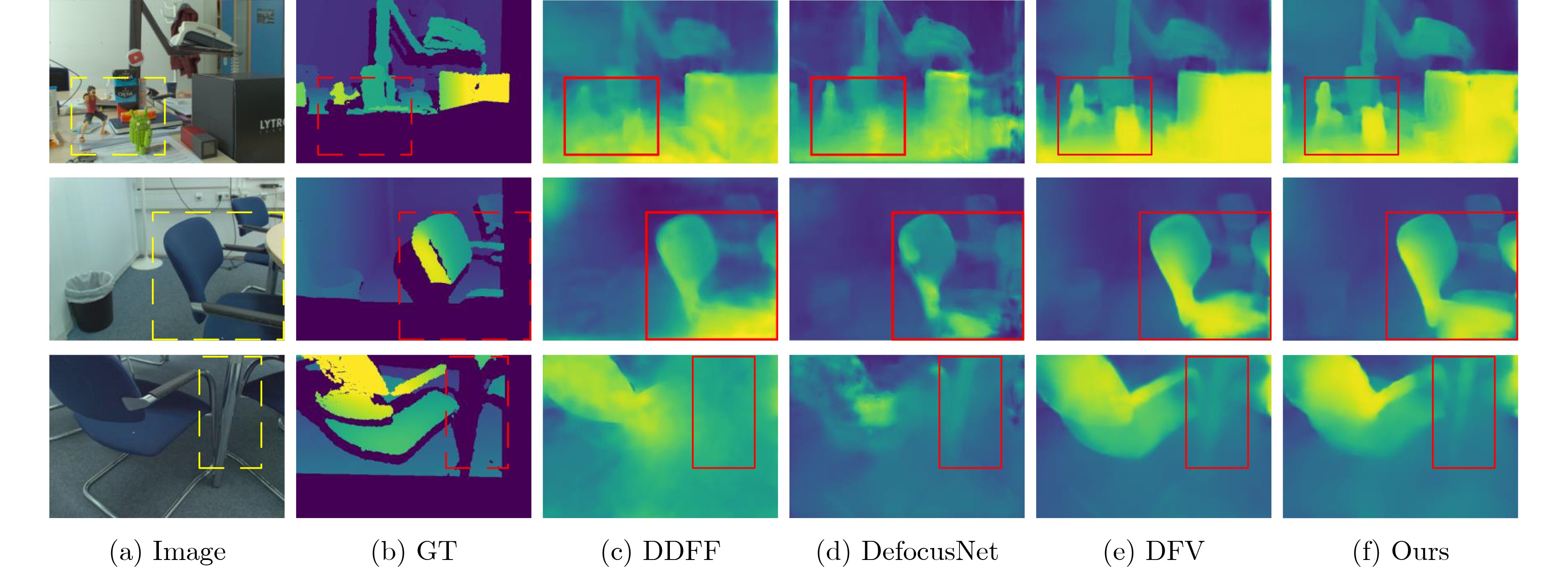

图 9 在DDFF-12上的定性结果

下载: 全尺寸图片幻灯片

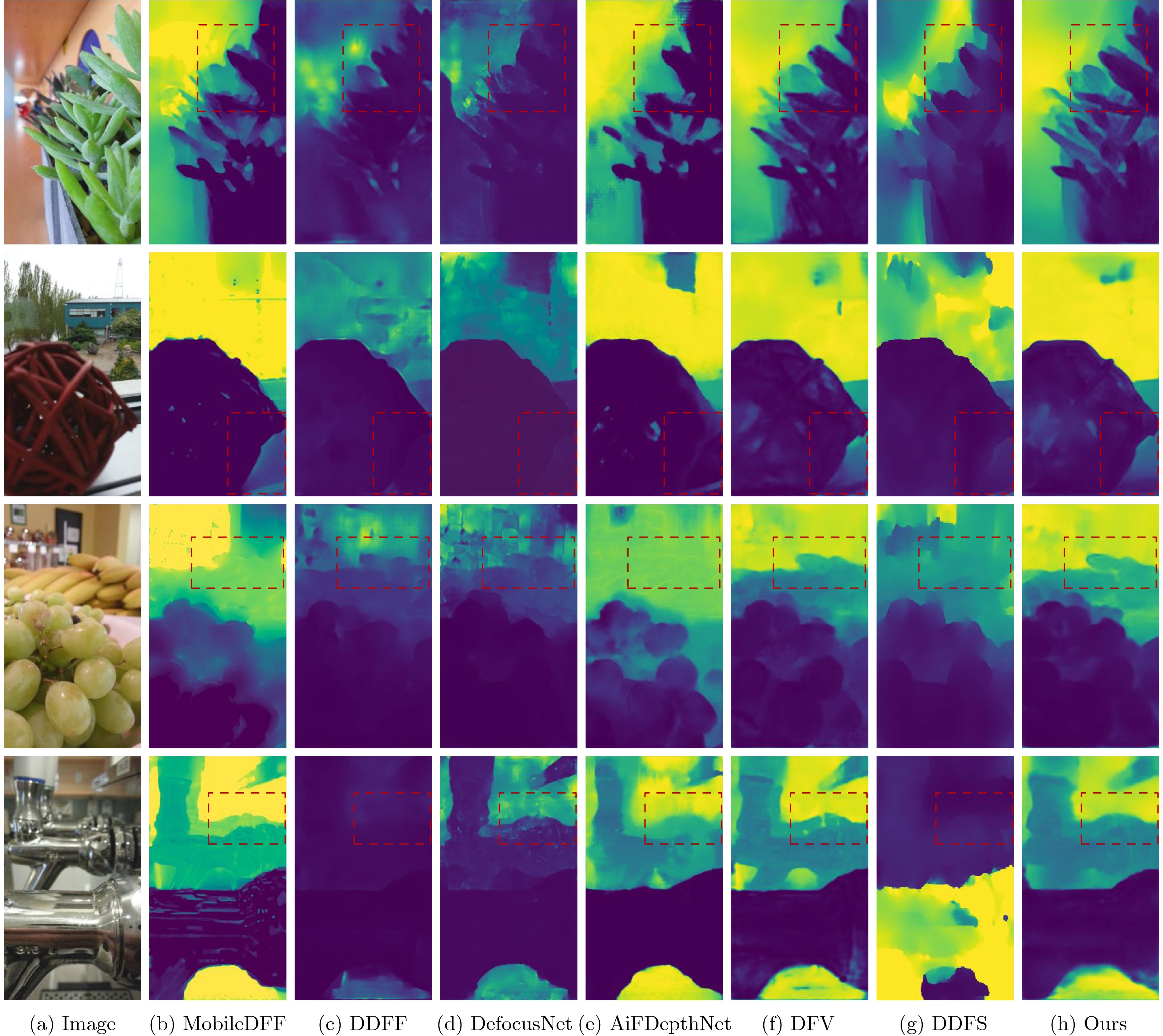

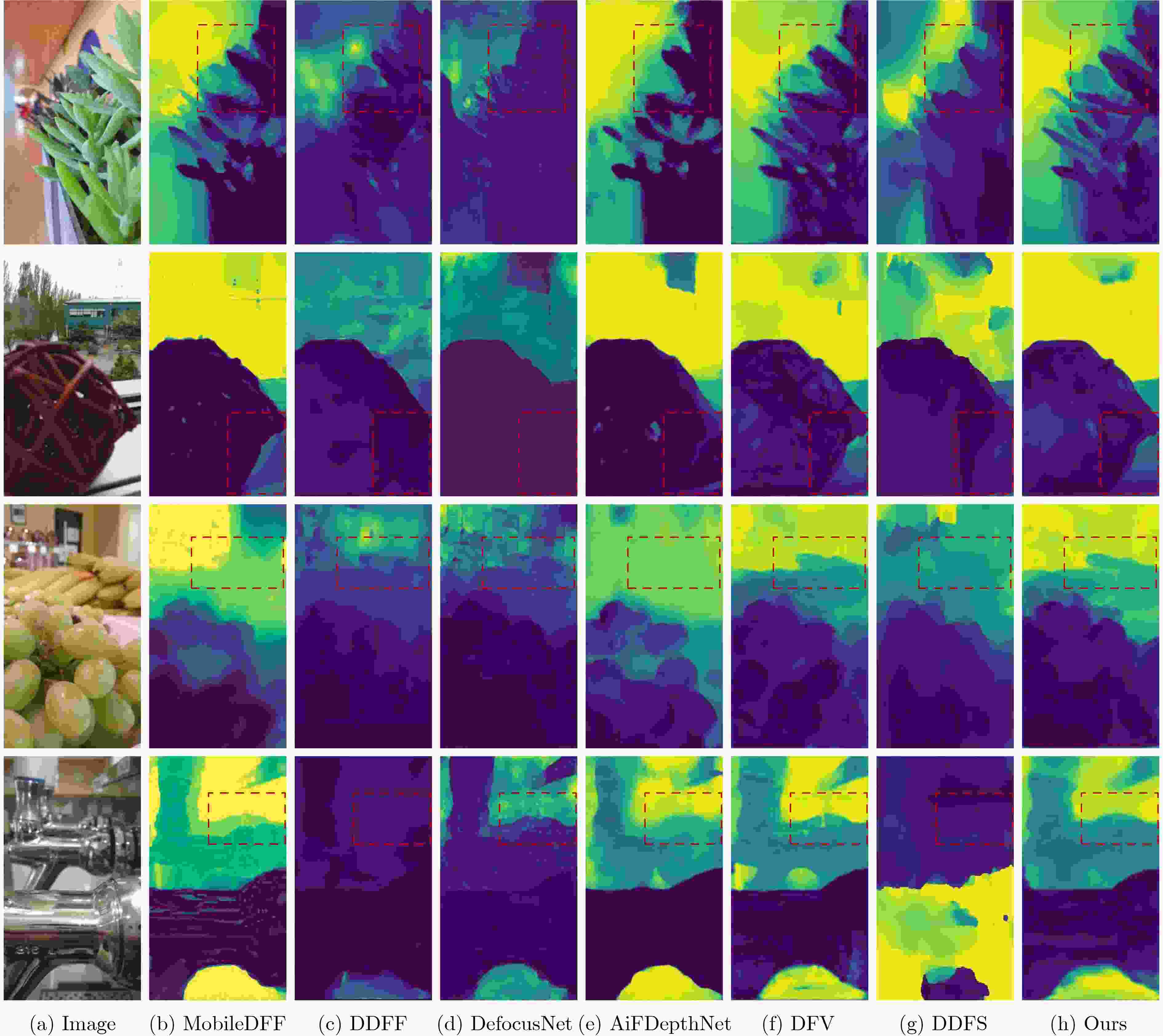

图 10 Mobile depth数据集上的定性结果

下载: 全尺寸图片幻灯片

表 1 FoD500数据集各算法指标评估

方法	MSE↓	RMS↓	logRMS↓	Abs.rel.↓	Sqr.rel.↓	δ↑	δ²↑	δ³↑	Bump.↓	avgUnc.↓	时间(ms)↓
VDFF(2015)	29.66×e^–2	5.05×e^–1	0.87	1.18	85.62×e^–2	17.92	32.66	50.31	1.12	-	-
RDF(2019)	11.15×e^–2	3.22×e^–1	0.71	0.46	23.95×e^–2	39.48	64.65	76.13	1.54	-	-
DDFF(2018)	3.34×e^–2	1.67×e^–1	0.27	0.17	3.56×e^–2	72.82	89.96	96.26	1.74	-	50.6
DefousNet(2020)	2.18×e^–2	1.34×e^–1	0.24	0.15	3.59×e^–2	81.14	93.31	96.62	2.52	-	24.7
FV(2022)	1.88×e^–2	1.25×e^–1	0.21	0.14	2.43×e^–2	81.16	94.97	98.08	1.45	0.24	18.1
DFV(2022)	2.05×e^–2	1.29×e^–1	0.21	0.13	2.39×e^–2	81.90	94.68	98.05	1.43	0.17	18.2
DDFS(2024)	3.08×e^–2	1.49×e^–1	0.22	0.11	2.55×e^–2	87.02	94.38	96.99	-	-	22.8
Our	1.79×e^–2	1.20×e^–1	0.20	0.13	2.29×e^–2	83.24	95.44	98.21	1.42	0.16	29.2

下载: 导出CSV

表 2 DDFF-12数据集各算法指标评估

方法	MSE↓	RMS↓	logRMS↓	Abs.rel.↓	Sqr.rel.↓	δ↑	δ²↑	δ³↑	Bump.↓	avgUnc.↓	时间(ms)↓
VDFF(2015)	156.55×e^–4	12.14×e^–2	0.98	1.38	241.2×e^–3	15.26	29.46	44.89	0.43	-	-
RDF(2019)	91.18×e^–4	9.41×e^–2	0.91	1.00	139.4×e^–3	15.65	33.08	47.48	1.33	-	-
DDFF(2018)	8.97×e^–4	2.76×e^–2	0.28	0.24	9.47×e^–3	61.26	88.70	96.49	0.52	-	191.7
DefousNet(2020)	8.61×e^–4	2.55×e^–2	0.23	0.17	6.00×e^–3	72.56	94.15	97.92	0.46	-	34.3
FV(2022)	6.49×e^–4	2.28×e^–2	0.23	0.18	7.10×e^–3	71.93	92.80	97.86	0.42	5.20×e^–2	33.2
DFV(2022)	5.70×e^–4	2.13×e^–2	0.21	0.17	6.26×e^–3	76.74	94.23	98.14	0.42	4.99×e^–2	33.3
Our	5.28×e^–4	2.05×e^–2	0.20	0.16	5.53×e^–3	77.95	95.59	98.36	0.41	4.47×e^–2	39.7

下载: 导出CSV

表 3 消融实验

模型	FM	SCGM	DDFF-12			FoD500
模型	FM	SCGM	MSE↓	Sqr.rel.↓	δ↑	MSE↓	Sqr.rel.↓	δ↑
Baseline			5.70×e^–4	6.26×e^–3	76.74	2.05×e^–2	2.39×e^–2	81.90
w/o FM	√		5.31×e^–4	5.98×e^–3	80.01	2.01×e^–2	2.29×e^–2	82.36
w/o SCGM		√	5.65×e^–4	6.21×e^–3	76.95	1.85×e^–2	2.26×e^–2	82.98
w/ all	√	√	5.28×e^–4	5.53×e^–3	77.95	1.79×e^–2	2.29×e^–2	83.24

下载: 导出CSV

表 4 各算法参数量比较

方法	参数量(M)↓
DefocusNet	3.728
DFV	19.522
DDFS	32.528
Baseline	20.826
Baseline+FM+SCGM	22.094

下载: 导出CSV

表 5 不同通道扩展数量的影响

扩张率	DDFF-12		FoD500
扩张率	MSE↓	Sqr.rel.↓	MSE↓	Sqr.rel.↓
1	5.40×e^–4	6.06×e^–3	2.01×e^–2	2.28×e^–2
2	5.38×e^–4	5.56×e^–3	1.85×e^–2	2.26×e^–2
3	5.28×e^–4	5.53×e^–3	1.79×e^–2	2.29×e^–2

下载: 导出CSV
