高阶矩匹配的动态分布自适应电池组故障诊断方法

官思伟; 何志伟; 董哲康; 童宏涛; 马沈辉; 高明裕

doi:10.11999/JEIT250226

高阶矩匹配的动态分布自适应电池组故障诊断方法

doi: 10.11999/JEIT250226 cstr: 32379.14.JEIT250226

官思伟¹,
何志伟^{1, 2, ,},
董哲康^{1, 2},
童宏涛¹,
马沈辉¹,
高明裕^{1, 2}

1.
杭州电子科技大学电子信息学院杭州 310018
2.
全省智能汽车电子研究重点实验室杭州 310018

基金项目: 国家重点研发计划(2023YFB2504100)，国家自然科学基金(62171170, 62227802)

详细信息

作者简介:
官思伟：博士生，研究方向为锂电池故障诊断、健康状态估计

何志伟：教授，研究方向为新能源汽车、电池管理系统

董哲康：副教授，研究方向为电池管理、深度学习

童宏涛：博士生，研究方向为锂电池故障诊断、残值估计

马沈辉：博士生，研究方向为锂电池异常检测

高明裕：教授，研究方向为电池管理系统、能源转换与储能

通讯作者:
何志伟　zwhe@hdu.edu.cn

中图分类号: TN911; TP183
计量
- 文章访问数: 17
- HTML全文浏览量: 13
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-01
- 修回日期: 2025-09-12
- 网络出版日期: 2025-09-16

Dynamic Distribution Adaptation with Higher-Order Moment Matching for Battery Pack Multi-Fault Diagnosis

GUAN Siwei¹,
HE Zhiwei^{1, 2
, ,},
DONG Zhekang^{1, 2},
TONG Hongtao¹,
MA Shenhui¹,
GAO Mingyu^{1, 2}

1.
School of Electronics Information, Hangzhou Dianzi University, Hangzhou 310018, China
2.
Provincial Key Laboratory of Intelligent Automotive Electronics Research, Hangzhou 310018, China

Funds: The National Key Research and Development Program of China (2023YFB2504100), The National Natural Science Foundation of China (62171170, 62227802)

摘要

摘要: 锂离子电池作为是一种具有高度复杂电化学反应的系统，为了满足电动汽车的功率和能量需求，需要将大量电池串并联组成电池组。然而，电池组的安全问题成为其广泛应用的关键挑战。现有电池组诊断方法在实际应用中存在不足，主要受限于运行条件的多变性和故障样本的稀缺性。此外，电池组电压呈现复杂的非高斯分布，使得基于差异的领域自适应方法仅能表征有限的故障统计特征。针对上述问题，该文提出一种高阶矩匹配的动态分布自适应电动汽车电池组多故障诊断方法，该方法在源域中学习可迁移特征，从而实现目标域中的故障诊断，可诊断的故障类型包括内部短路、电压传感器漂移故障、电压传感器噪声故障和电池不一致故障。所提方法通过动态因子评估边缘和条件分布的相对重要性，动态学习域不变特征。此外，该方法还利用高阶矩匹配对非高斯分布的电池放电特征进行精细化领域对齐。在3种不同的电动汽车标准运行工况下进行的跨域故障诊断实验结果表明，该方法优于现有的基线方法，并实现了平均 95% F1分数的故障诊断性能。
- 电池故障诊断 /
- 新能源汽车 /
- 动态分布自适应 /
- 高阶矩匹配
Abstract: Objective Electric vehicle battery pack fault diagnosis is challenged by diverse operating conditions, the scarcity of fault data, and the domain shift caused by the non-Gaussian distribution of battery features. Conventional fault diagnosis methods struggle to address multiple fault types, lack the capability for fault isolation, and fail to account for distribution shifts between training and test data. Domain adaptation approaches enable robust multi-fault diagnosis across operating conditions without relying on accurate cell models or abundant labeled data. However, current methods remain limited. (1) They typically assume that aligning global and fine-grained subdomain distributions is equally important, which may not hold in practice. (2) Knowledge transfer cannot be fully achieved by aligning only low-order statistical features; higher-order statistical features are needed to capture the non-Gaussian characteristics of battery discharge profiles. To address these issues, a method is proposed in which global domains and subdomains are dynamically aligned while higher-order statistical moments are extracted to represent complex non-Gaussian distributions, thereby achieving fine-grained domain alignment and effective knowledge transfer. Methods This study proposes a dynamic distribution adaptation method with higher-order moment matching for multi-fault diagnosis of battery packs. The approach consists of three components: (1) Dynamic distribution adaptation. A feature extractor based on a one-dimensional convolutional network with residual connectivity and a multilayer perceptron classifier is constructed. The global distributions of source and target domains are aligned using Maximum Mean Discrepancy (MMD), while subdomain distributions of similar faults are aligned using Local Maximum Mean Discrepancy (LMMD). A dynamic factor is introduced to automatically adjust the relative weights of global and local alignment according to the inter-domain discrepancy, thereby adapting to distribution shifts under different operating conditions. (2) Higher-order moment matching. To address the non-Gaussian characteristics of battery data, higher-order statistical moment matching is incorporated into MMD. Computational complexity in high-dimensional tensors is reduced by random sampling, which enables fine-grained domain alignment across multi-order statistics and enhances the transferability of non-Gaussian distribution features. (3) Multi-fault diagnosis with domain adaptation. Experimental data from three standard vehicle operating conditions are used to jointly optimize classification loss and domain adaptation loss. This enables the diagnosis of multiple faults, including internal short circuit, sensor drift/noise, and battery inconsistency, across operating conditions while reducing reliance on manual annotation. By dynamically integrating global and local feature alignment, the method improves generalization performance under complex operating conditions and non-Gaussian distribution scenarios. Results and Discussions Systematic experiments validate the superiority of the proposed dynamic distribution adaptation with higher-order moment matching for multi-fault diagnosis in electric vehicle battery packs. As shown in Table 3, the results from six transfer tasks under three operating conditions demonstrate that the proposed method achieves an average F1 score of 95%, which is 13.3% higher than that of the best-performing baseline model (DSAN). The confusion matrix in Fig. 6 indicates that the method achieves the lowest misclassification rate in distinguishing similar faults. Feature visualization results (Fig. 7) show that the method effectively reduces cross-domain feature distances of similar faults by dynamically adjusting the weights of global and local distribution alignment. Moreover, it successfully captures non-Gaussian discharge characteristics through higher-order moment matching, thereby achieving fine-grained domain adaptation. In terms of efficiency, the proposed method attains an average diagnosis time of 0.404 3 seconds (Table 4), satisfying real-time on-board application requirements. Nonetheless, optimization of computational resource consumption remains necessary for deployment on edge devices. Importantly, the method does not require labeled data from the target domain and overcomes the generalization bottleneck of traditional methods under domain shift and non-Gaussian conditions. However, some cross-domain features (Fig. 7) are not completely overlapped, and lightweight model design is still required for practical implementation on edge devices. Conclusions The battery pack is recognized as a critical component of electric vehicles, and reliable multi-fault diagnosis is regarded as essential for safe operation. Considering the unknown and diverse nature of real operating conditions, fault diagnosis is investigated across three driving cycles: UDDS, FUDS, and US06. A dynamic distribution adaptation with higher-order moment matching (DDAMD) is proposed for diagnosing multiple faults in series-connected battery packs. The method dynamically evaluates the relative importance of conditional and marginal distributions to align source and target domains, while non-Gaussian features from charge–discharge curves are effectively extracted for fine-grained alignment. Experimental results across six transfer tasks confirm that DDAMD achieves the highest diagnostic performance. Detailed analyses present diagnostic accuracy for each fault type as well as the diagnostic speed, while feature visualization further improves interpretability by demonstrating how the algorithm extracts domain-invariant and discriminative fault features across domains. Future research will extend this work in two directions: (1) incorporating additional operating conditions and a broader set of fault categories, and (2) exploring transfer tasks from simulation to real-world applications to facilitate data acquisition and labeling.
- Battery fault diagnosis /
- Electric vehicles /
- Dynamic distribution adaptation /
- Higher-order moment matching

HTML全文

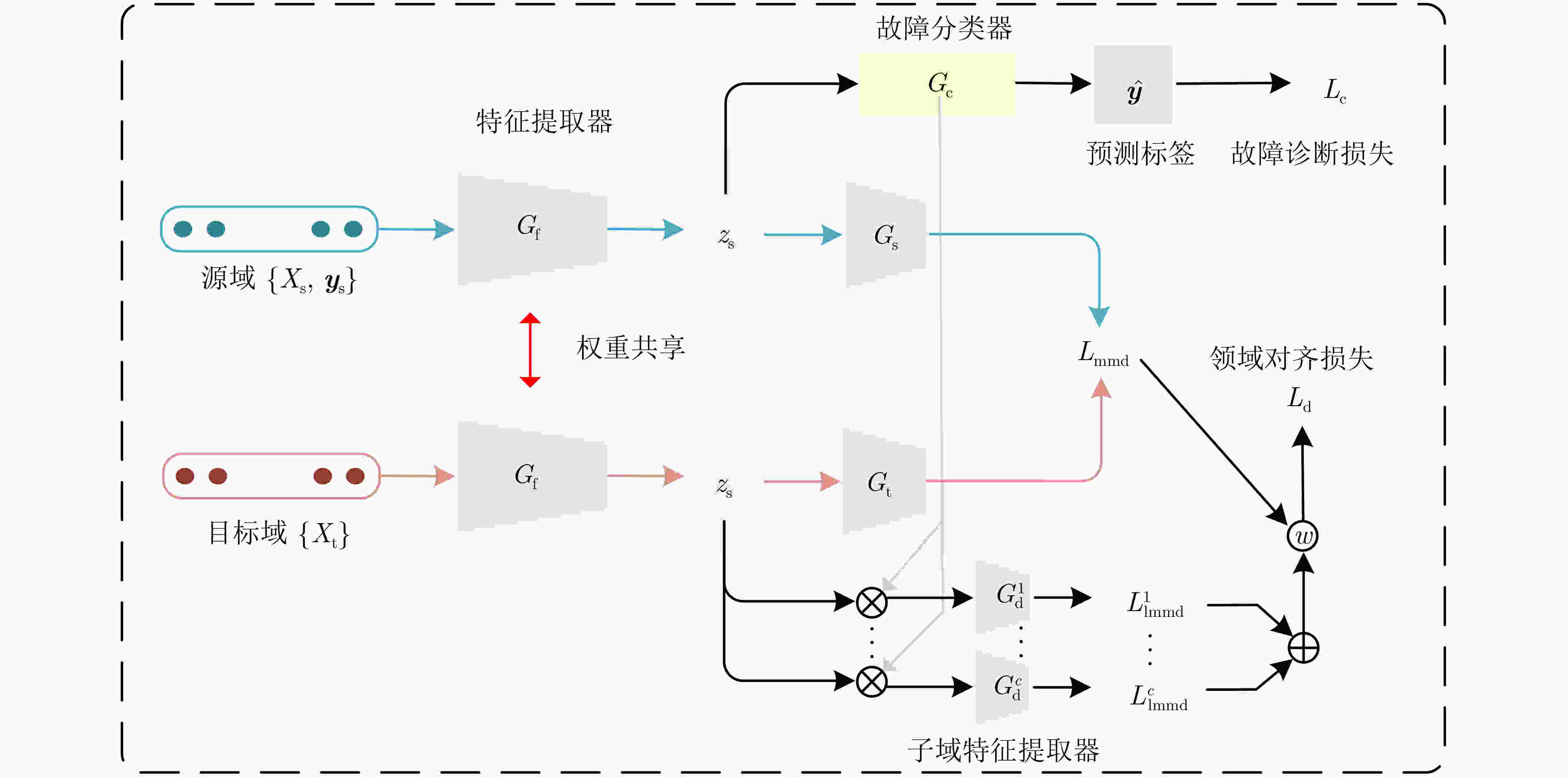

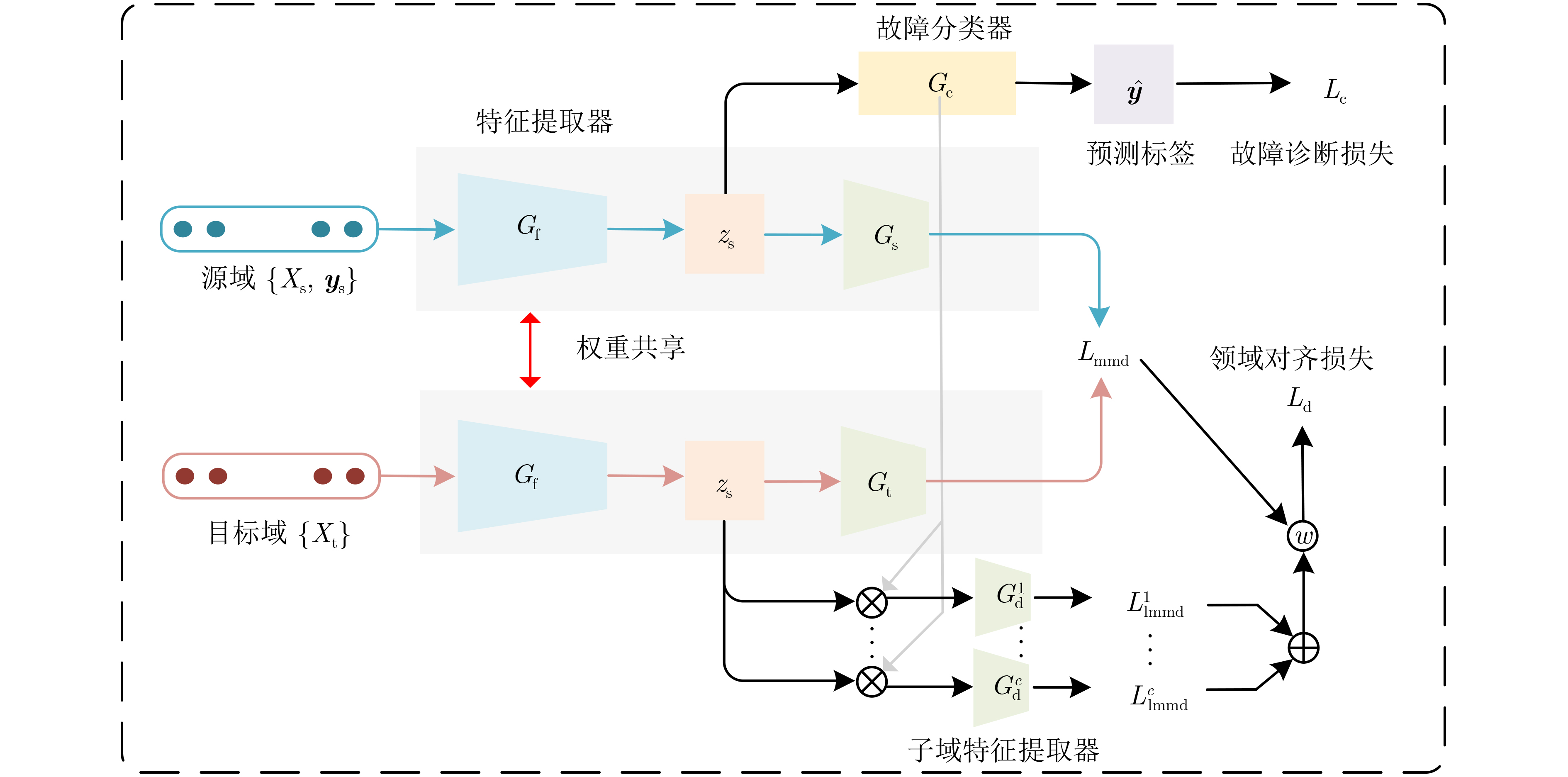

图 1 DDAMD电池故障诊断架构。

下载: 全尺寸图片幻灯片

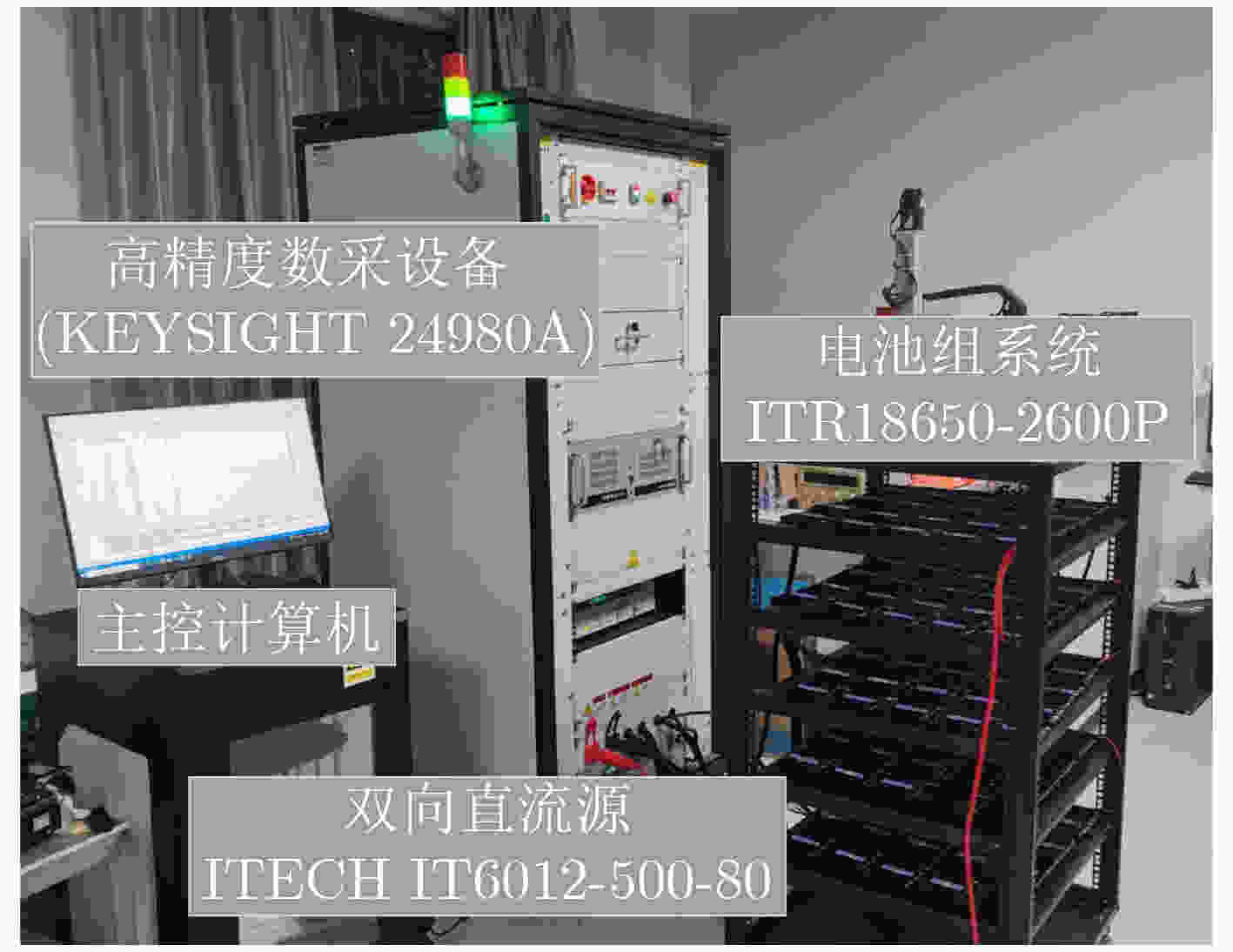

图 2 实验平台

下载: 全尺寸图片幻灯片

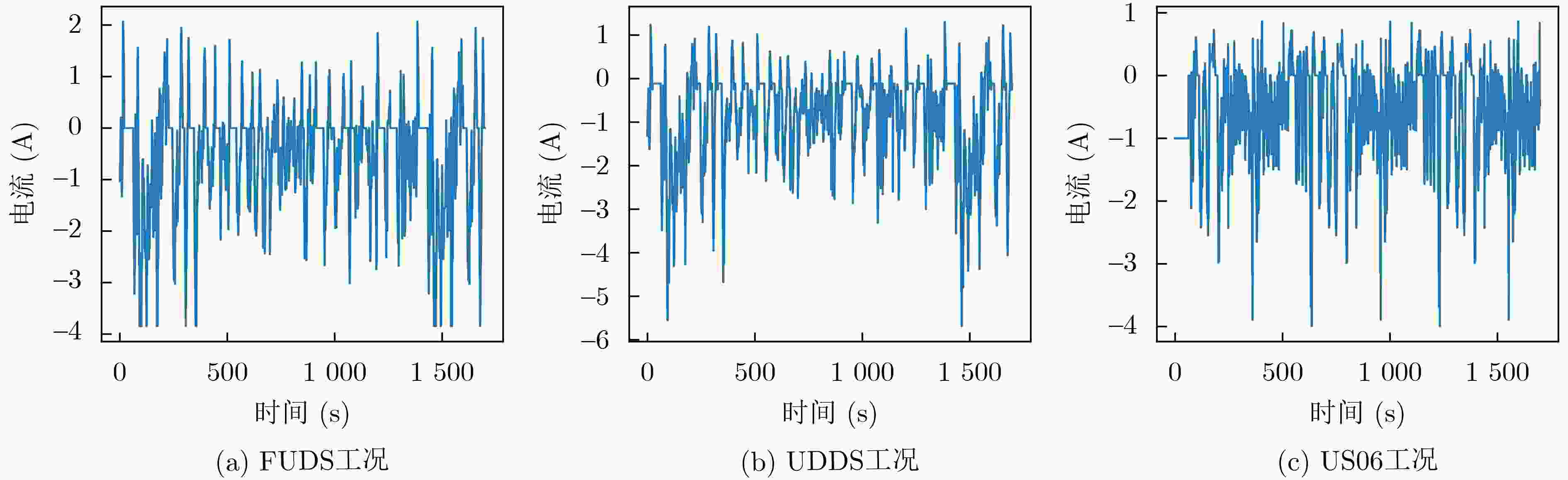

图 3 3种汽车标准运行工况

下载: 全尺寸图片幻灯片

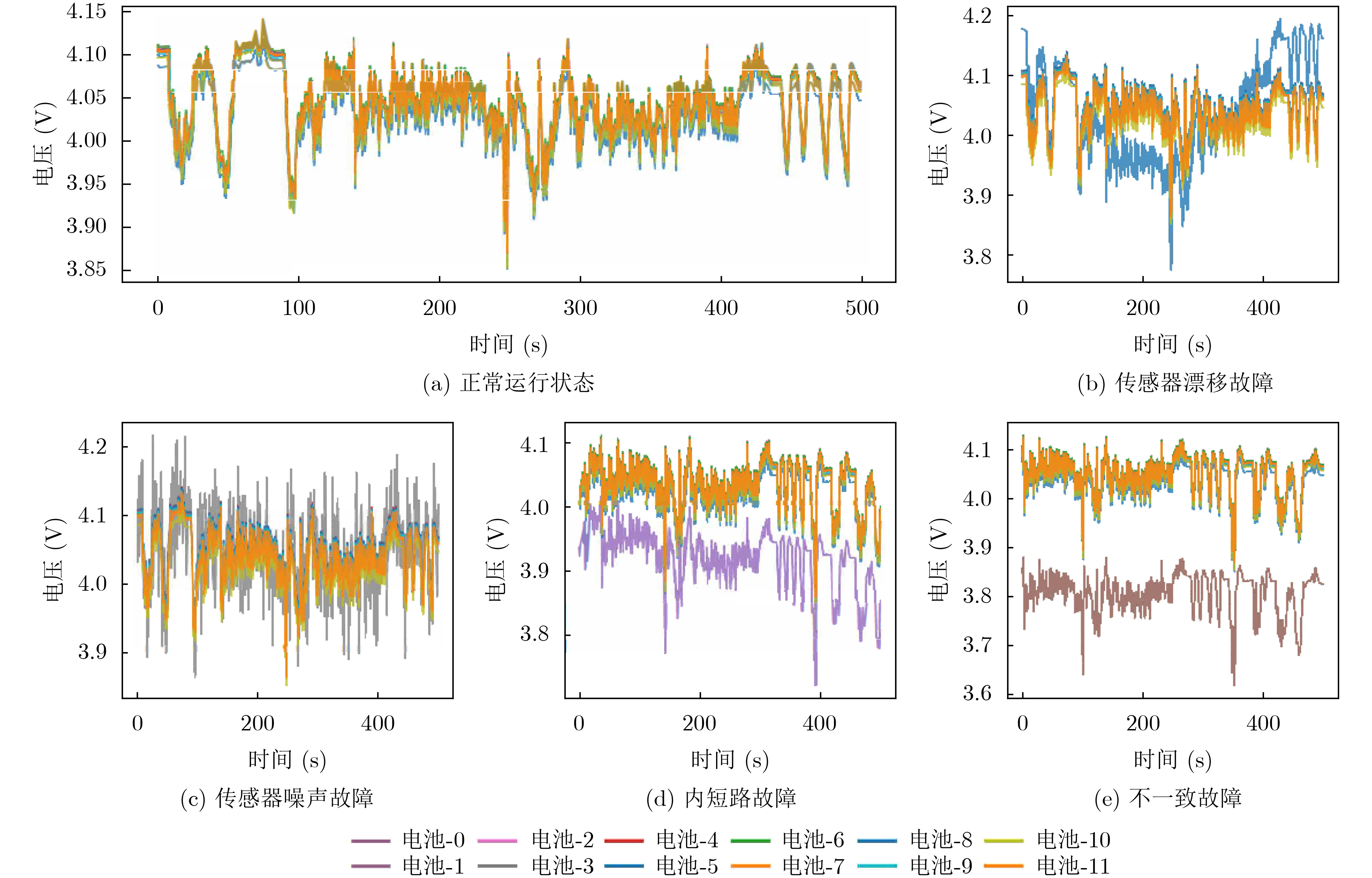

图 4 在FUDS运行工况下的电池包电压曲线

下载: 全尺寸图片幻灯片

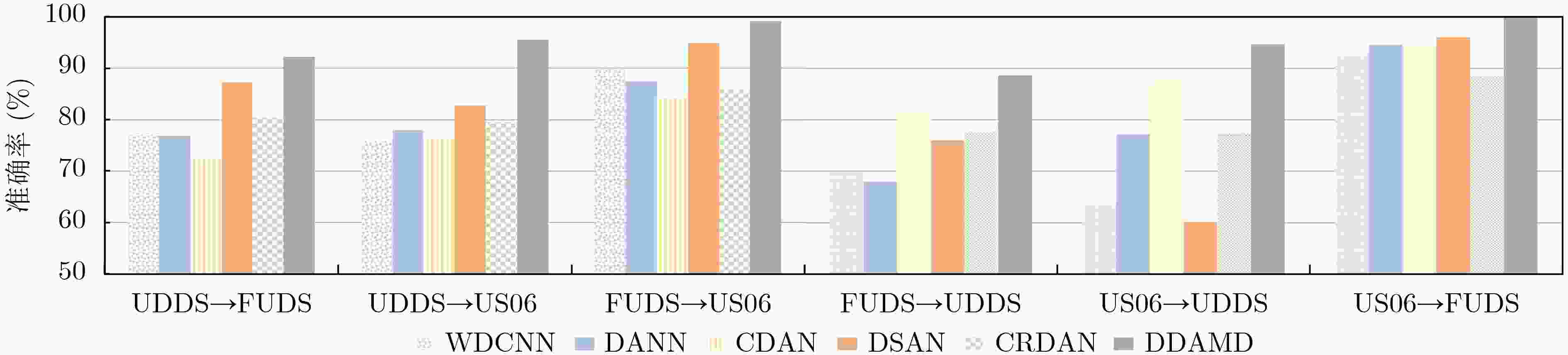

图 5 所有模型在6个迁移任务的准确率(%)

下载: 全尺寸图片幻灯片

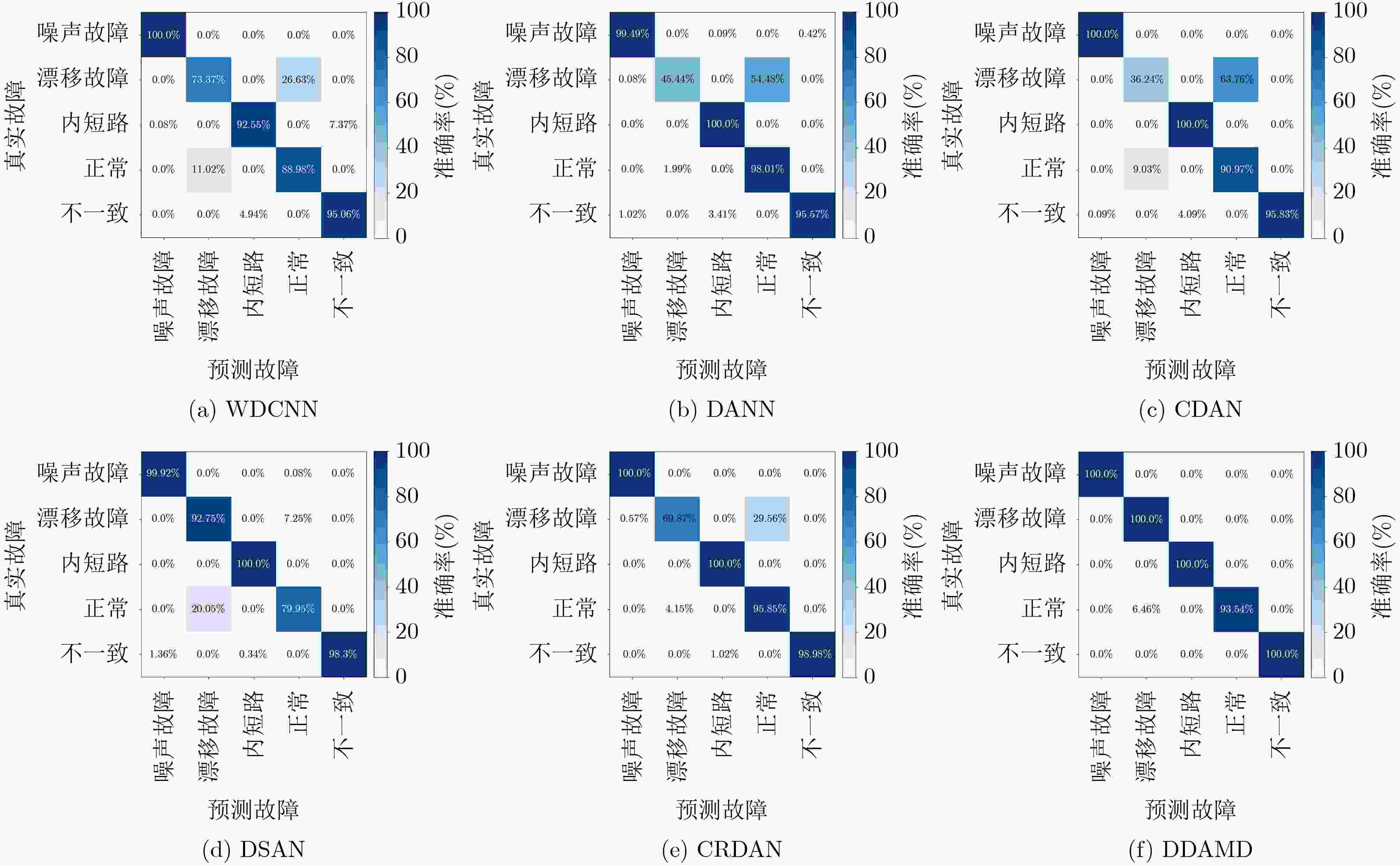

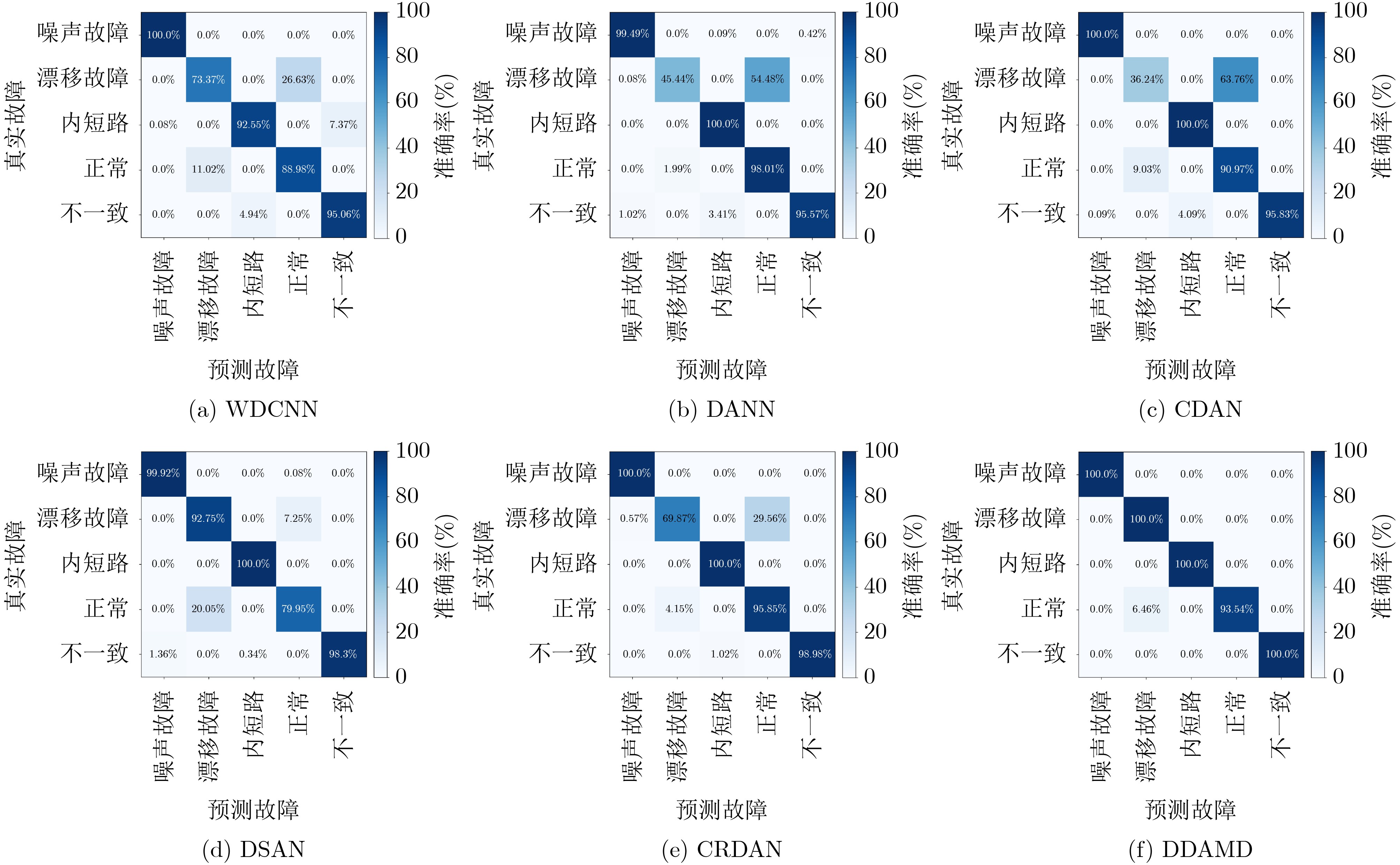

图 6 模型在FUDS→US06迁移任务的混淆矩阵

下载: 全尺寸图片幻灯片

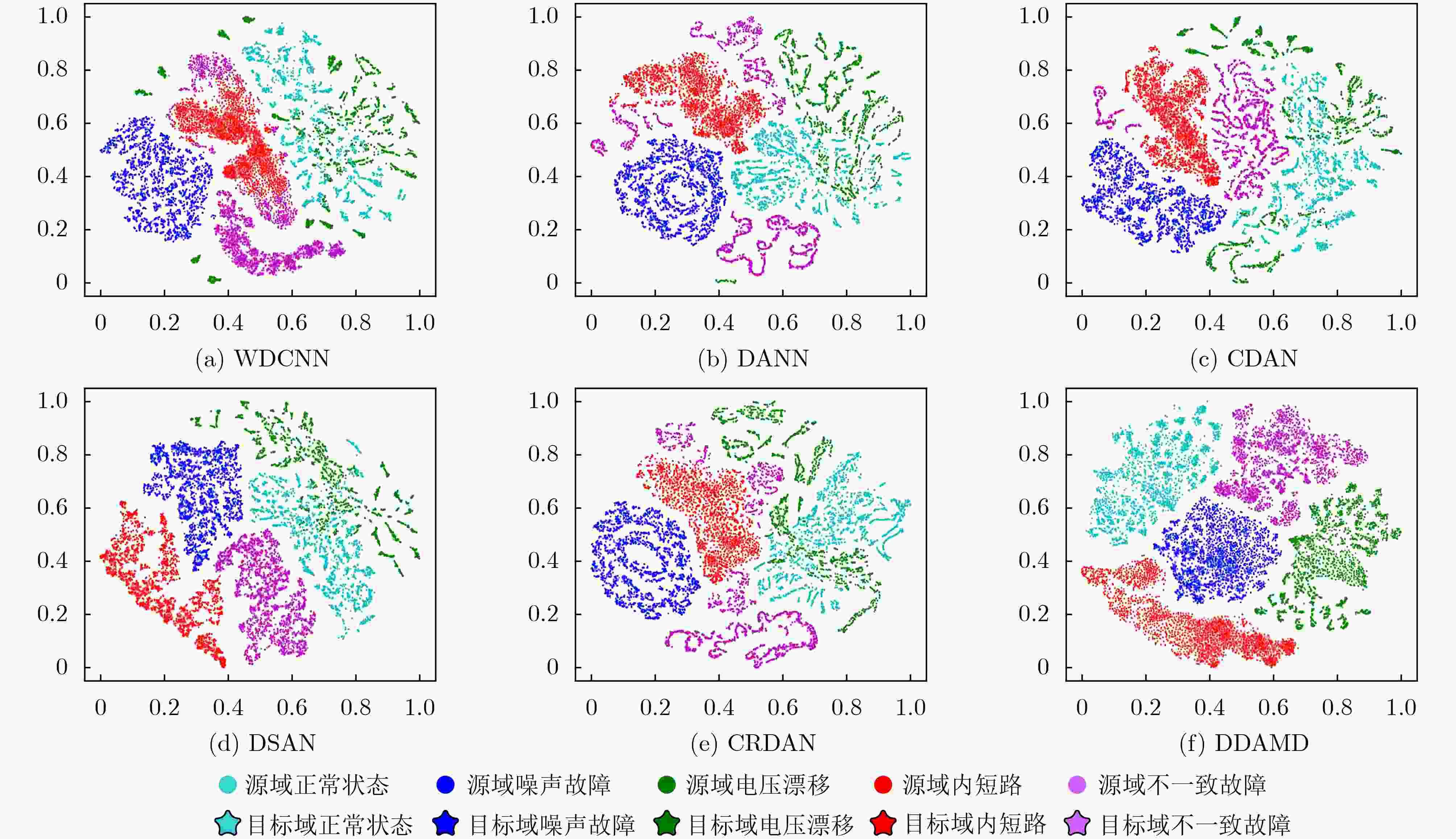

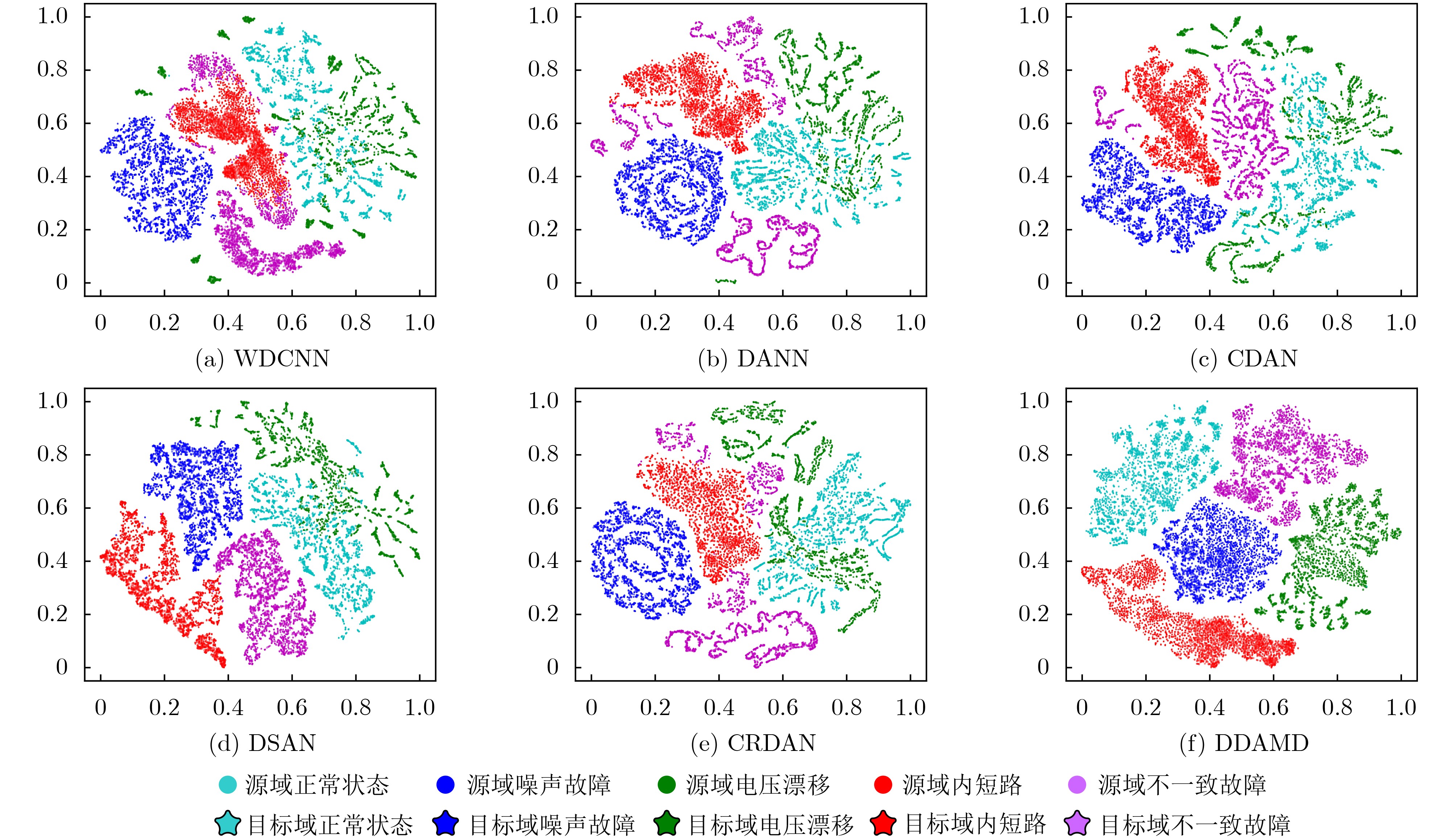

图 7 所有模型在US06→FUDS迁移任务源域和目标域样本的特征分布

下载: 全尺寸图片幻灯片

表 1 电池规格

参数	配置
尺寸	18.6×65.2 mm
额定电压	3.7 V
额定容量	2 000 mAh
充电截止电压	4.2 V
放电截止电压	2.5 V
重量	48 g
内阻	≤60 mΩ

下载: 导出CSV

表 2 故障参数具体设置

类型	描述	参数
内短路	电池内部短路	1/5/10 Ω
传感器漂移故障	传感器受到低频信号干扰	1 Hz
传感器噪声故障	电压传感器受噪声干扰	0.1 V
不一致故障	在电池组中容量不一致	0.2 V

下载: 导出CSV

表 3 模型在6个迁移任务上的性能对比结果(%)

方法	UDDS→FUDS			UDDS→US06			FUDS→US06
方法	精度	召回率	F1分数	精度	召回率	F1分数	精度	召回率	F1分数
WDCNN	79.00	77.37	77.75	78.92	75.85	74.96	90.28	89.99	89.92
DANN	76.40	77.09	76.57	78.89	78.28	78.46	90.98	87.70	86.81
CDAN	73.67	72.44	70.99	77.33	76.66	74.06	86.95	84.61	83.38
DSAN	87.22	87.38	87.21	84.01	83.13	82.16	95.56	94.93	94.91
CRDAN	79.47	80.53	79.76	79.42	79.78	79.40	87.13	86.08	85.53
DDAMD	93.09	92.35	92.25	95.62	95.53	95.51	98.81	98.71	98.72
方法	UDDS→FUDS			UDDS→US06			FUDS→US06
方法	精度	召回率	F1分数	精度	召回率	F1分数	精度	召回率	F1分数
WDCNN	79.65	69.68	67.06	68.60	63.60	64.25	93.20	92.31	92.28
DANN	68.61	68.02	65.36	84.19	77.56	76.43	94.80	94.58	94.57
CDAN	86.46	80.93	77.17	89.26	87.37	87.39	94.79	94.46	94.47
DSAN	85.48	75.78	74.73	79.14	60.47	54.43	96.09	96.05	96.04
CRDAN	87.10	77.56	75.18	79.17	77.84	74.55	90.34	88.17	87.89
DDAMD	90.43	88.54	87.96	94.74	94.65	94.66	99.89	99.88	99.88

下载: 导出CSV

表 4 所有模型的平均诊断时间(s)

模型	WDCNN	DANN	CDAN	DSAN	CRDAN	DDAMD
诊断时间	0.192 3	0.187 3	0.201 6	0.414 2	0.203 2	0.404 3

下载: 导出CSV
