GNN-driven Beamforming and Resource Allocation for RIS-assisted MISO-OFDMA Multi-group Multicasting System

MA Yu; DING Chunxia; JIN Weijie; LI Xiao; JIN Shi

doi:10.11999/JEIT251381

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2026 >

MA Yu, DING Chunxia, JIN Weijie, LI Xiao, JIN Shi. GNN-driven Beamforming and Resource Allocation for RIS-assisted MISO-OFDMA Multi-group Multicasting System[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251381

Citation:

MA Yu, DING Chunxia, JIN Weijie, LI Xiao, JIN Shi. GNN-driven Beamforming and Resource Allocation for RIS-assisted MISO-OFDMA Multi-group Multicasting System[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT251381

Citation:

PDF( 4570 KB)

GNN-driven Beamforming and Resource Allocation for RIS-assisted MISO-OFDMA Multi-group Multicasting System

doi: 10.11999/JEIT251381 cstr: 32379.14.JEIT251381

School of Information Science and Engineering, Southeast University, Nanjing 210096, China

Funds: National Natural Science Foundation of China (62231009)

Received Date: 2025-12-30
Accepted Date: 2026-04-23
Rev Recd Date: 2026-02-24

Available Online: 2026-05-16

Abstract

Abstract

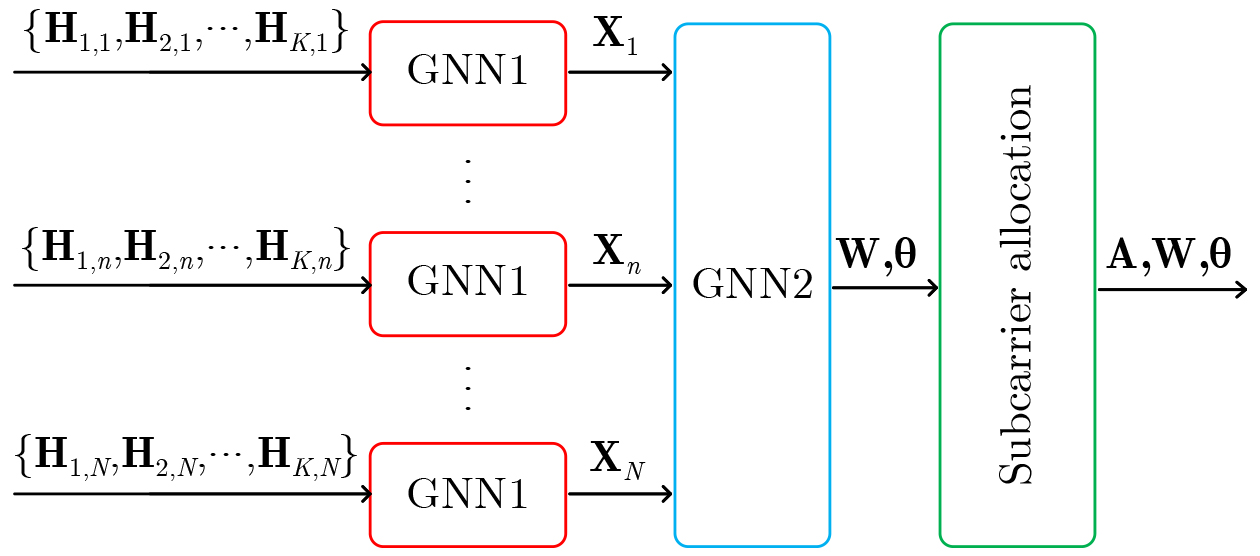

Objective Reconfigurable intelligent surfaces (RISs) have shown strong potential for enhancing coverage and spectral efficiency (SE) in future wireless networks. However, when they are applied to wideband multiple-input single-output (MISO)-orthogonal frequency division multiple access (OFDMA) systems, their practical benefits are limited by two key challenges: the frequency-selective mismatch of RIS reflection coefficients across subcarriers, and the strong coupling among subcarrier allocation, base station (BS) active beamforming, and RIS passive beamforming. These issues become even more critical in multi-group multicast scenarios, where shared data streams intensify inter-group interference. Therefore, this article proposes a graph neural network (GNN)-driven optimization framework that maximizes the system SE by jointly designing active and passive beamforming together with resource allocation. Methods To overcome the optimization difficulties caused by the tight coupling among subcarrier allocation, BS active beamforming, and RIS passive beamforming in RIS-assisted multi-user MISO-OFDMA systems, this work develops a model-driven GNN-based joint optimization framework with the objective of maximizing the system SE.First, a complete system model involving the BS, RIS, and multi-group multicast users is established (Figure 1). The formulation explicitly incorporates practical constraints, including the BS transmit power limit, the unit-modulus constraint of RIS elements, and the binary nature of subcarrier assignment. To reflect the multicast requirement, the SE of each group is defined as the minimum SE among its users, which further increases the non-convexity of the optimization problem.The first component of GNN, GNN1 (Figure 3), consists of an initialization layer followed by a message-update layer. For each subcarrier $ n\in \mathcal{N} $, every user is modeled as a node, and the input to GNN1 is the set of channel matrices $ \left\{{\mathbf{H}}_{k,n},k\in \mathcal{K}\right\} $. Since standard GNNs operate on real-valued features, each complex channel vector is decomposed into its real and imaginary parts and used as the node feature representation. The group-level (Figure 4) and RIS-level (Figure 5) aggregations are subsequently performed.GNN2 (Figure 6) takes as input the set of subcarrier-wise embeddings generated by GNN1 and constructs an expanded graph that explicitly incorporates group nodes (Figure 7) and RIS nodes (Figure 8). By aggregating messages among subcarrier nodes, group nodes, and the RIS node, GNN2 performs cross-subcarrier information fusion and captures the global coupling structure across all system components. Based on the integrated representation, GNN2 outputs the BS active beamforming vectors and RIS passive phase shifts, while ensuring satisfaction of all physical constraints through output-layer normalization.Finally, given the beamforming parameters, subcarrier assignment is performed using a greedy max-SE rule. The overall learning objective is defined as maximizing the total SE. Results and Discussions The proposed GNN algorithm consistently outperforms all random allocation schemes, including APG-randAllocate, APG-randActive, and APG-randPassive, across the entire transmit power range from 0 to 20 dBm. This clear superiority indicates that the proposed method is effective in dynamically handling subcarrier assignment and joint active–passive beamforming optimization, and can maintain stable and superior performance even when the transmit power varies significantly. From the overall trend, the system spectral efficiency (SE) of all schemes increases monotonically with the BS transmit power, since higher transmit power improves the received signal-to-noise ratio and thus increases the achievable rate. Compared with the benchmark methods, GNN can adaptively coordinate BS active beamforming and RIS passive beamforming at different power levels and better exploit the reflection gain provided by the RIS. As a result, GNN maintains a consistent performance advantage over the entire power range. In addition, even in the high-power region, GNN still outperforms APG and LAO, which further demonstrates its robustness (Figure 10).When the number of RIS elements varies, GNN maintains a clear performance advantage over both APG and LAO. In general, the system SE increases with the number of RIS elements, since a larger RIS provides higher array gain and improves the equivalent channel conditions. According to the numerical results, the proposed GNN achieves a spectral efficiency of 2.0665 bps/Hz, outperforming LAO and APG by approximately 6.94% and 3.65%, respectively. Meanwhile, the average computational time of GNN is only about 0.0075 s, which is approximately 4% of that required by the benchmark methods. These results demonstrate that the proposed GNN can effectively utilize the performance gains brought by RIS scaling, while achieving a good balance between performance and computational complexity (Figure 11 and Table II).The system SE versus the number of user groups under given settings of the number of transmit antennas and users is then examined. It can be observed that the overall SE decreases as the number of user groups increases, mainly because more multicast groups lead to stronger inter-group interference and the limited subcarrier resources have to be shared among more groups. Under all considered scenarios, the proposed GNN consistently outperforms LAO. Although its SE is slightly lower than that of APG, GNN still achieves about 98% of APG’s performance while requiring only about 4% of the computational time. This indicates that the proposed method can significantly reduce computational overhead while maintaining near-optimal system performance, which is particularly desirable for real-time or large-scale deployment (Figure 12).The generalization capability of the proposed GNN is further evaluated by training the model at a fixed transmit power level and testing it over a wide transmit power range from 0 to 20 dBm. The training and testing curves almost overlap, which indicates that the proposed GNN generalizes well to unseen transmit power levels. Over the entire power range, GNN consistently outperforms the LAO and APG benchmarks, further confirming its robustness and adaptability under different transmission conditions (Figure 13). Conclusions For the RIS-assisted MISO-OFDMA system, this paper formulates a joint optimization of subcarrier allocation, BS active beamforming, and RIS passive beamforming to maximize system SE. To this end, a model-driven GNN is proposed. To validate the effectiveness of the proposed method, comparative experiments were conducted against benchmark algorithms. The results demonstrate that the proposed GNN algorithm consistently outperforms LAO and APG in overall performance. Moreover, it exhibits strong robustness under different number of groups and transmit power settings, further highlighting its potential for practical deployment in complex engineering scenarios.
- graph neural network,
- orthogonal frequency division multiple access,
- reconfigurable intelligent surface,
- resource allocation

FullText(HTML)

References(15)

References

[1]	SANG Jian, YUAN Yifei, TANG Wankai, et al. Coverage enhancement by deploying RIS in 5G commercial mobile networks: Field trials[J]. IEEE Wireless Communications, 2024, 31(1): 172–180. doi: 10.1109/MWC.011.2200356.
[2]	陈真, 杜晓宇, 唐杰, 等. 基于深度强化学习的RIS辅助通感融合网络: 挑战与机遇[J]. 电子与信息学报, 2024, 46(9): 3467–3473. doi: 10.11999/JEIT240086. CHEN Zhen, DU Xiaoyu, TANG Jie, et al. DRL-based RIS-assisted ISAC network: Challenges and opportunities[J]. Journal of Electronics & Information Technology, 2024, 46(9): 3467–3473. doi: 10.11999/JEIT240086.
[3]	费丹, 陈晨, 郑鹏, 等. 基于智能超表面的室内覆盖增强技术研究与实验验证[J]. 电子与信息学报, 2022, 44(7): 2374–2381. doi: 10.11999/JEIT220068. FEI Dan, CHEN Chen, ZHENG Peng, et al. Research and experimental verification of reconfigurable intelligent surface in indoor coverage enhancement[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2374–2381. doi: 10.11999/JEIT220068.
[4]	徐勇军, 徐然, 周继华, 等. 面向窃听用户的RIS-MISO系统鲁棒资源分配算法[J]. 电子与信息学报, 2022, 44(7): 2253–2263. doi: 10.11999/JEIT211537. XU Yongjun, XU Ran, ZHOU Jihua, et al. Robust resource allocation algorithm for RIS-assisted MISO systems with eavesdroppers[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2253–2263. doi: 10.11999/JEIT211537.
[5]	曾嵘, 邵智敏. 零前缀OFDM中智能反射表面环境下干扰抑制算法研究[J]. 电子与信息学报, 2022, 44(7): 2358–2365. doi: 10.11999/JEIT211389. ZENG Rong and SHAO Zhimin. Research on interference suppression algorithm in reconfigurable intelligent surface environment in ZP-OFDM[J]. Journal of Electronics & Information Technology, 2022, 44(7): 2358–2365. doi: 10.11999/JEIT211389.
[6]	WU Qingqing and ZHANG Rui. Intelligent reflecting surface enhanced wireless network via joint active and passive beamforming[J]. IEEE Transactions on Wireless Communications, 2019, 18(11): 5394–5409. doi: 10.1109/TWC.2019.2936025.
[7]	GUO Huayan, LIANG Yingchang, CHEN Jie, et al. Weighted sum rate maximization for reconfigurable intelligent surface aided wireless networks[J]. IEEE Transactions on Wireless Communications, 2020, 19(5): 3064–3076. doi: 10.1109/TWC.2020.2970061.
[8]	FENG Keming, LI Xiao, HAN Yu, et al. Joint beamforming optimization for reconfigurable intelligent surface-enabled MISO-OFDM systems[J]. China Communications, 2021, 18(3): 63–79. doi: 10.23919/JCC.2021.03.006.
[9]	MA Yu, ZHOU Xingyu, LI Xiao, et al. Unsupervised learning-based joint resource allocation and beamforming design for RIS-assisted MISO-OFDMA systems[J]. IEEE Transactions on Cognitive Communications and Networking, 2026, 12: 2251–2264. doi: 10.1109/TCCN.2025.3592931.
[10]	YUE Mingyang, LIU Lei, and YUAN Xiaojun. RIS-aided multiuser MIMO-OFDM with linear precoding and iterative detection: Analysis and optimization[J]. IEEE Transactions on Wireless Communications, 2023, 22(11): 7606–7619. doi: 10.1109/TWC.2023.3253699.
[11]	DING Chunxia, JIN Weijie, LI Xiao, et al. Multi-group Multicasting using reconfigurable intelligent surfaces: A deep learning approach[J]. IEEE Transactions on Wireless Communications, 2025, 24(6): 5337–5351.
[12]	CHEN Hongzhi, MI De, CLERCKX B, et al. Joint power and subcarrier allocation optimization for multigroup multicast systems with rate splitting[J]. IEEE Transactions on Vehicular Technology, 2020, 69(2): 2306–2310. doi: 10.1109/TVT.2019.2957994.
[13]	CHEN Zhengchuan, CHEN Li, TIAN Zhong, et al. Ergodic rate of reconfigurable intelligent surface-assisted multigroup multicast system[J]. IEEE Transactions on Vehicular Technology, 2023, 72(4): 5485–5490. doi: 10.1109/TVT.2022.3228794.
[14]	TAO Meixia, LIANG Yingchang, and ZHANG Fan. Resource allocation for delay differentiated traffic in multiuser OFDM systems[J]. IEEE Transactions on Wireless Communications, 2008, 7(6): 2190–2201. doi: 10.1109/TWC.2008.060882.
[15]	FAROOQ M, KUMAR V, JUNTTI M, et al. On the achievable rate of IRS-assisted multigroup multicast systems[C]. Proceedings of 2022 IEEE Global Communications Conference, Rio de Janeiro, Brazil, 2022: 5844–5849. doi: 10.1109/GLOBECOM48099.2022.10001087.
