A one-dimensional 5G millimeter-wave wide-angle Scanning Array Antenna Using AMC Structure

MA Zhangang; ZHANG Qing; FENG Sirun; ZHAO Luyu

doi:10.11999/JEIT250719

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

MA Zhangang, ZHANG Qing, FENG Sirun, ZHAO Luyu. A one-dimensional 5G millimeter-wave wide-angle Scanning Array Antenna Using AMC Structure[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250719

Citation:

MA Zhangang, ZHANG Qing, FENG Sirun, ZHAO Luyu. A one-dimensional 5G millimeter-wave wide-angle Scanning Array Antenna Using AMC Structure[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250719

Citation:

PDF( 5141 KB)

A one-dimensional 5G millimeter-wave wide-angle Scanning Array Antenna Using AMC Structure

doi: 10.11999/JEIT250719 cstr: 32379.14.JEIT250719

1.
The Thirteenth Research of China Electronics Technology Corporation, Shijiazhuang 050000, China
2.
Anhui University, Hefei 230601, China

Received Date: 2025-07-31
Rev Recd Date: 2025-09-08

Available Online: 2025-09-23

Abstract

Abstract

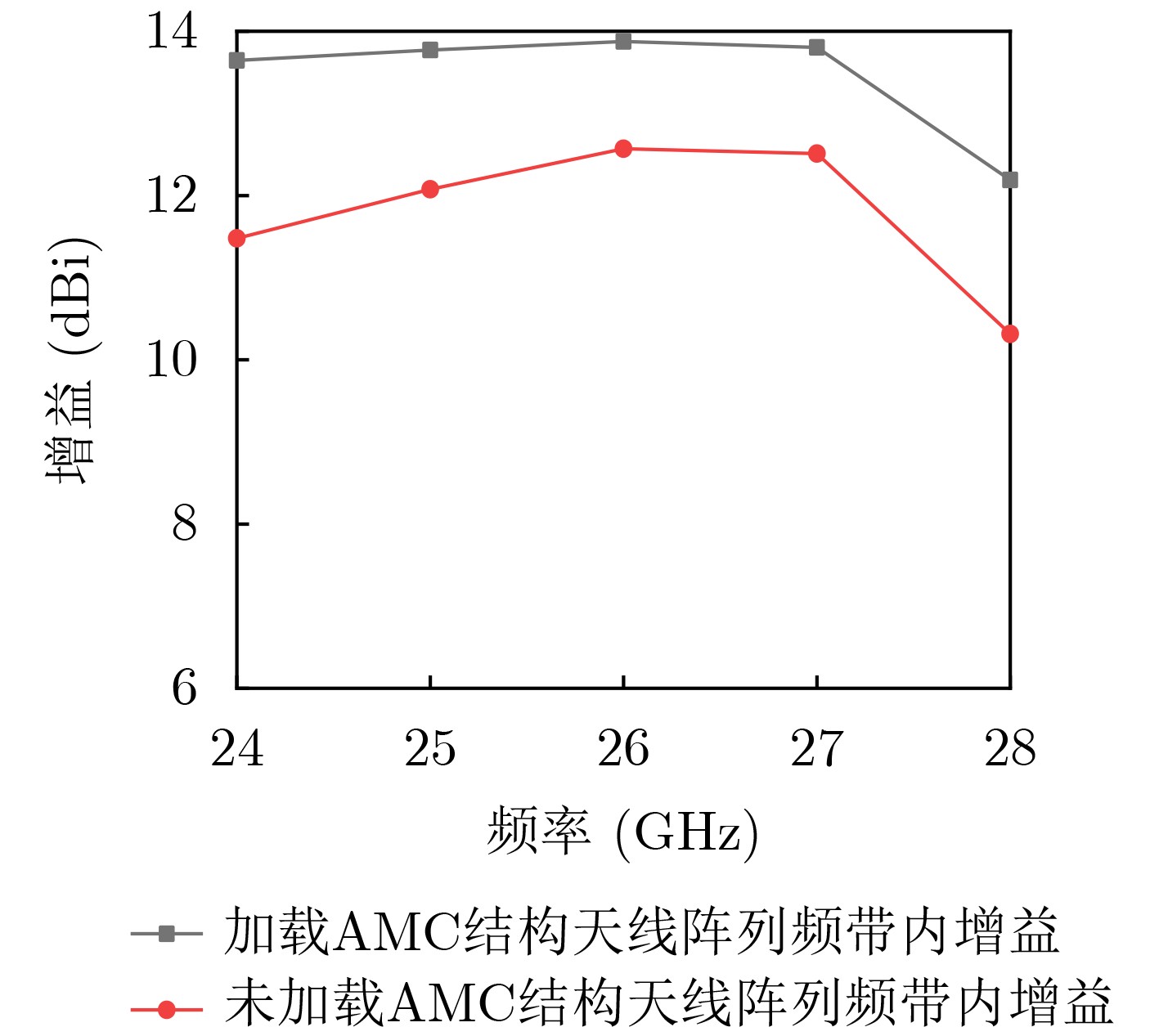

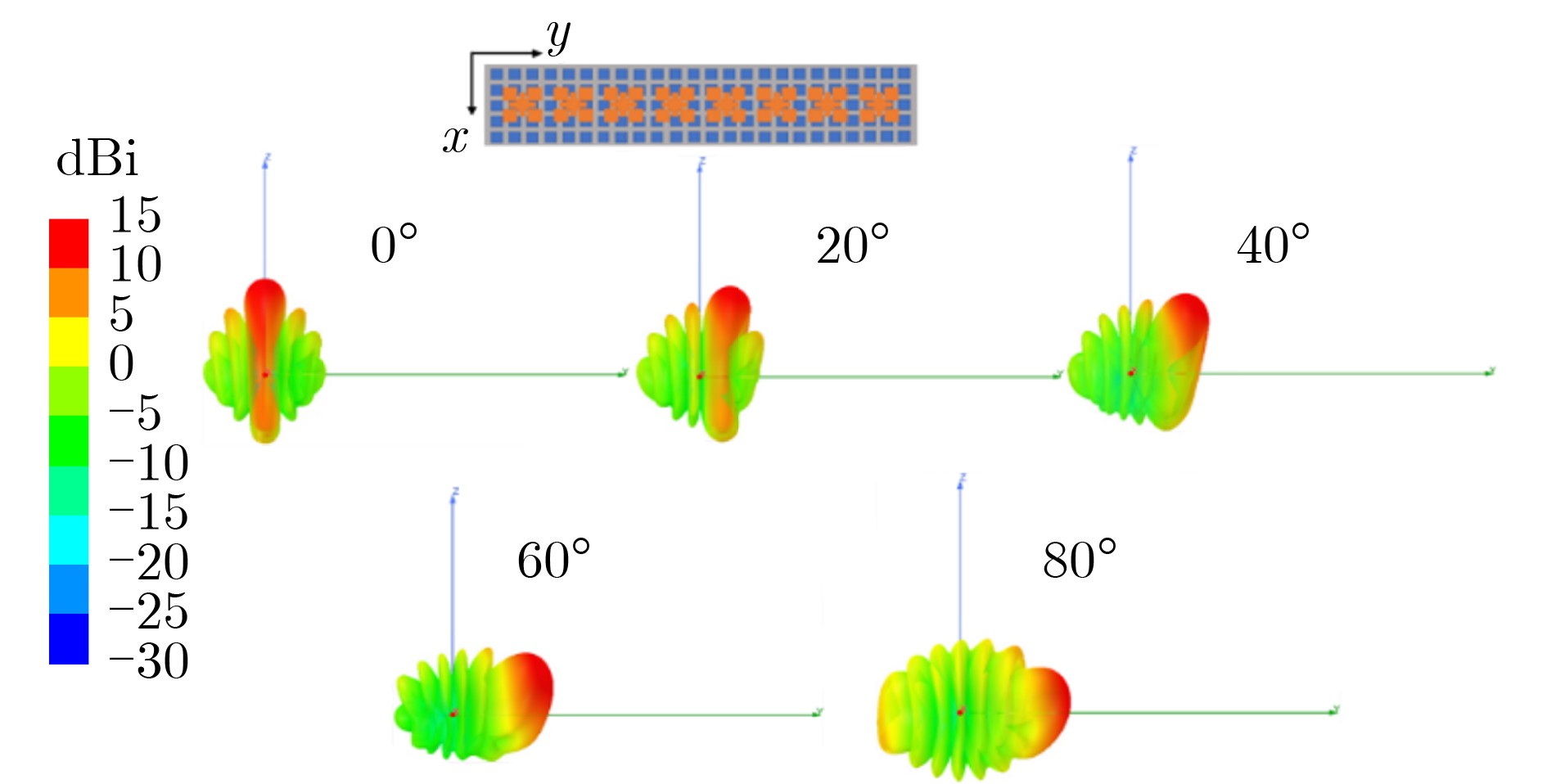

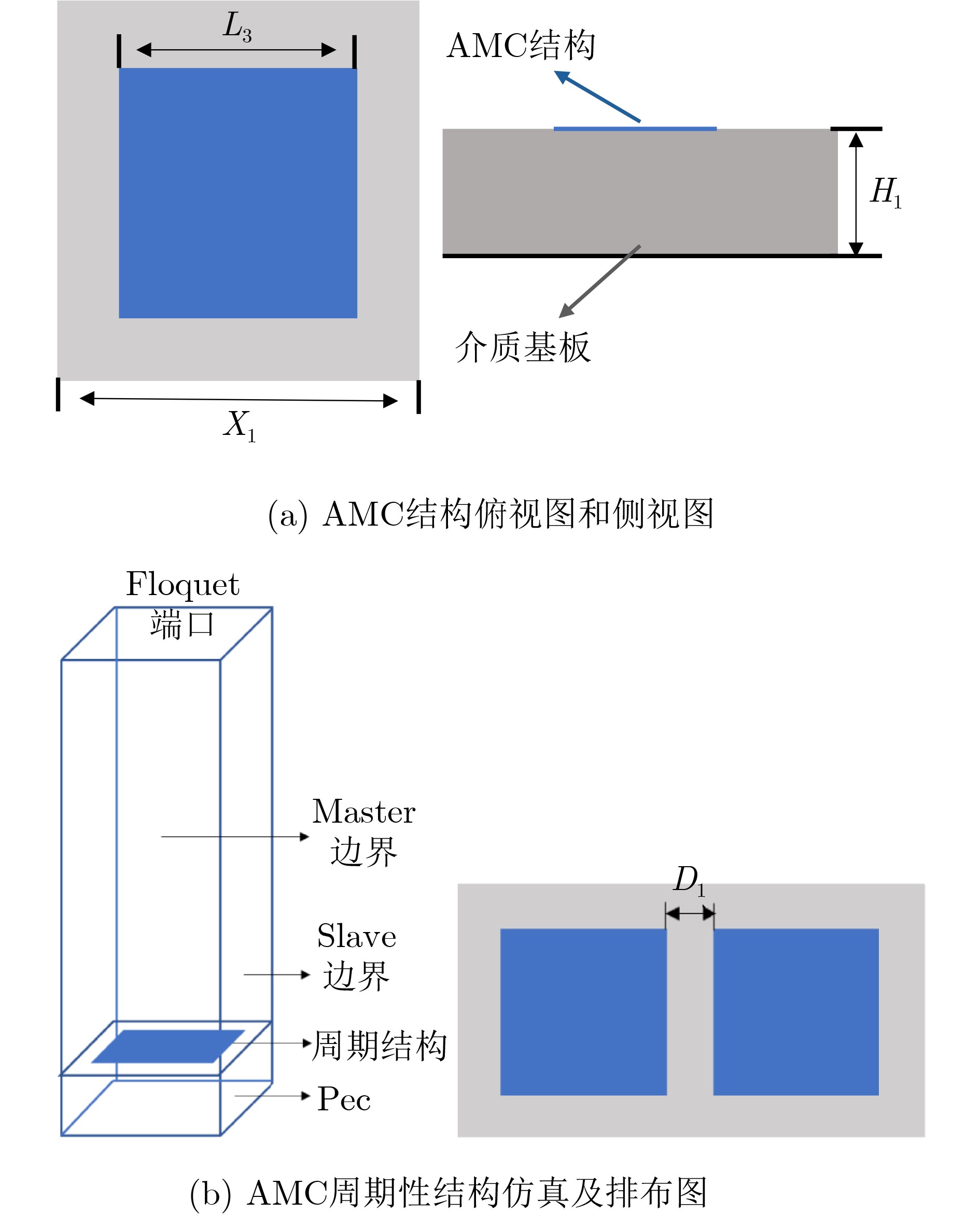

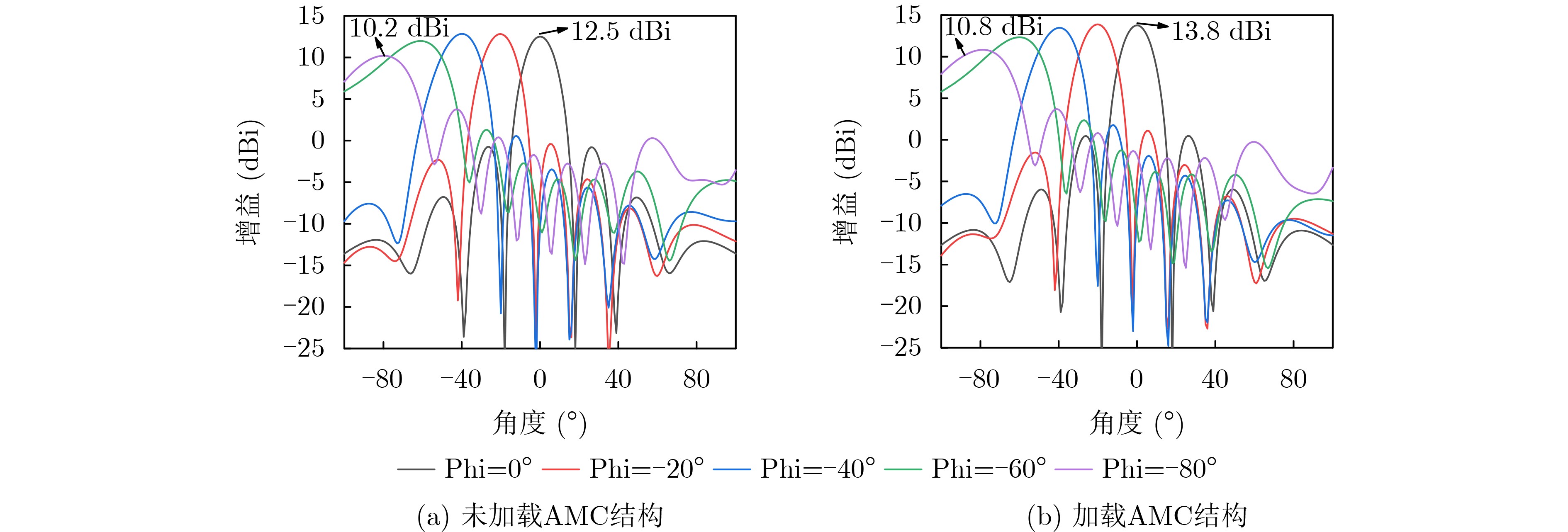

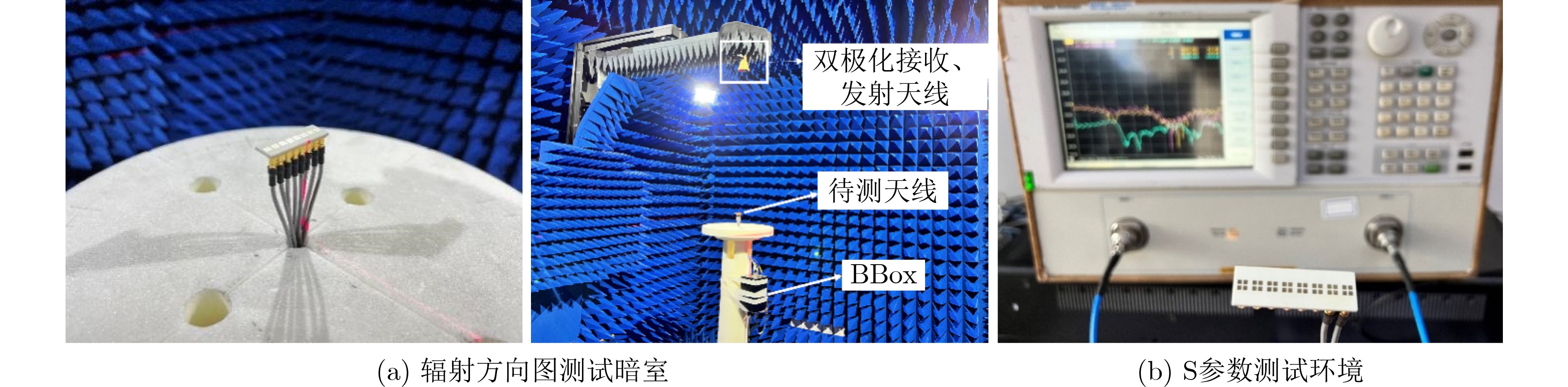

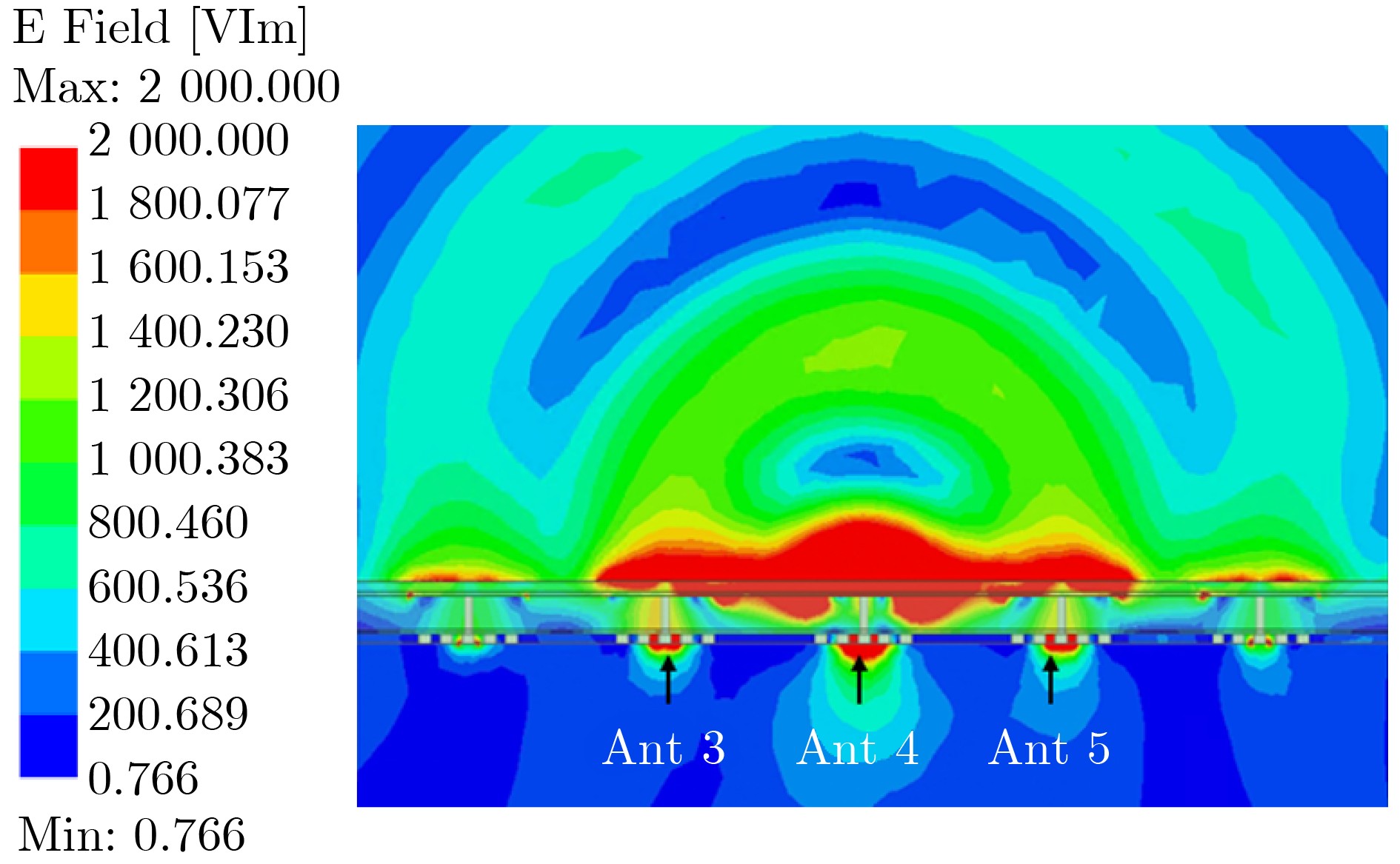

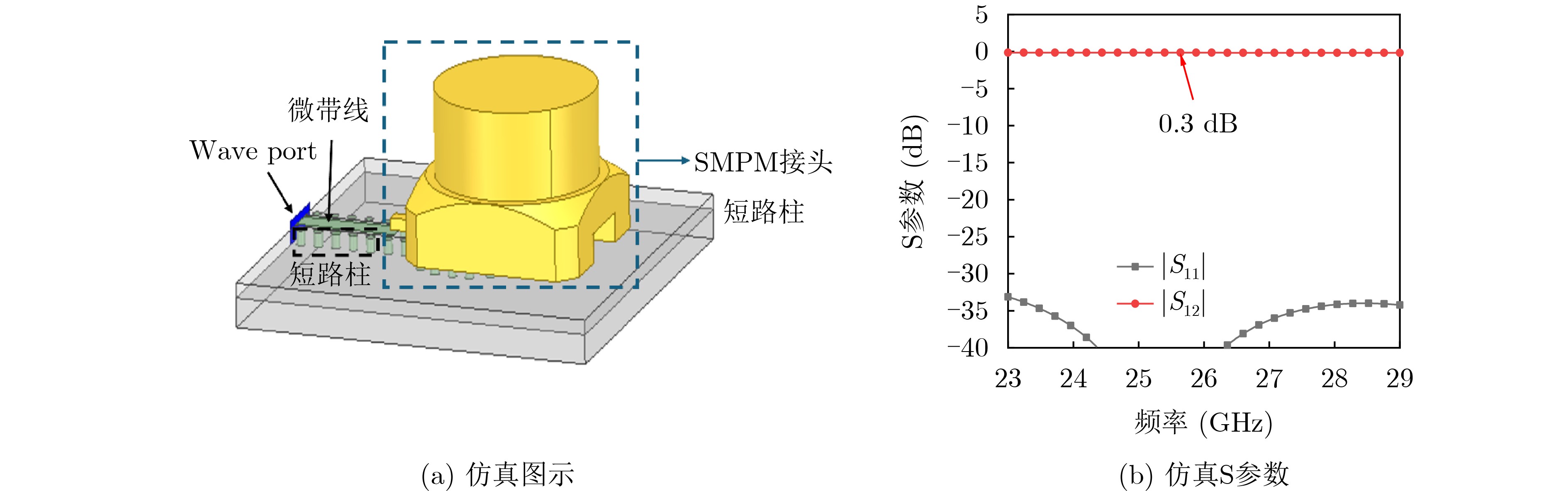

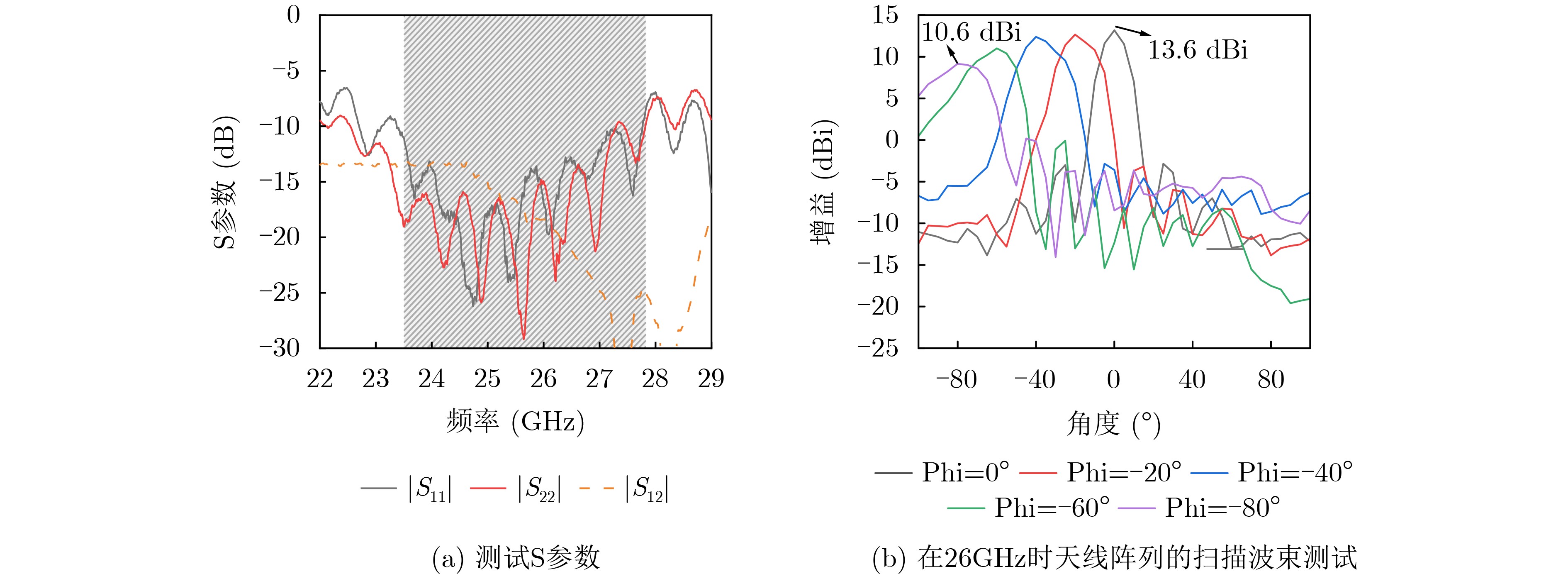

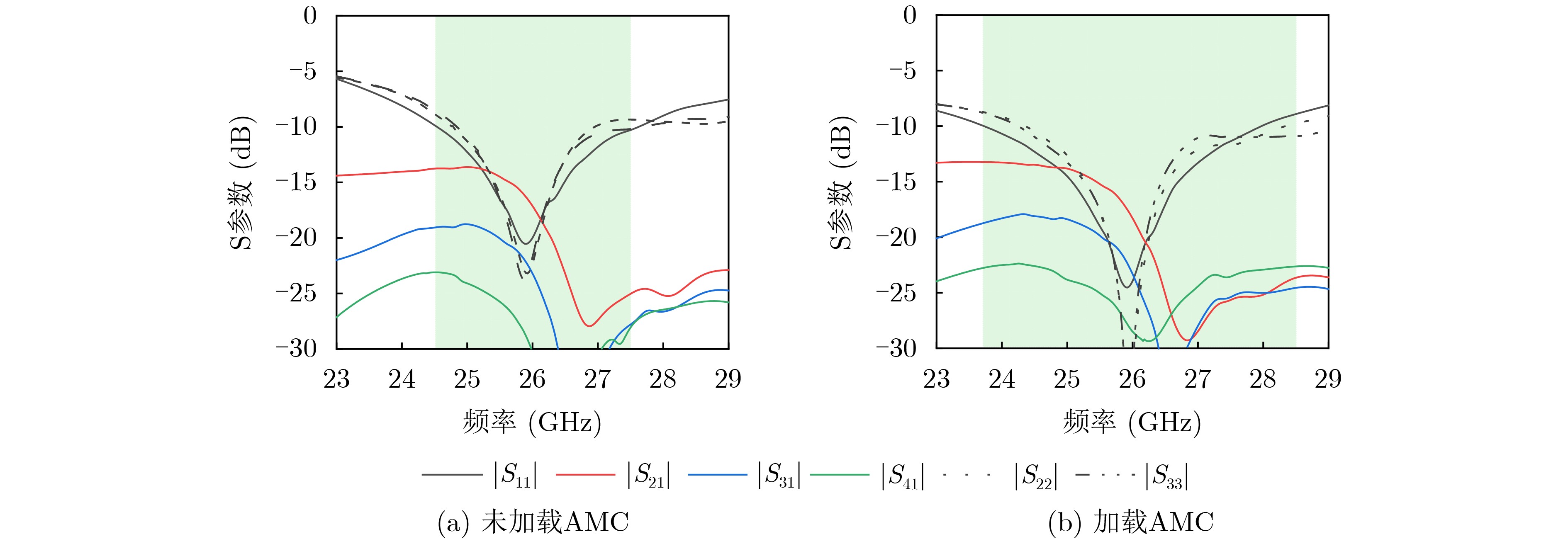

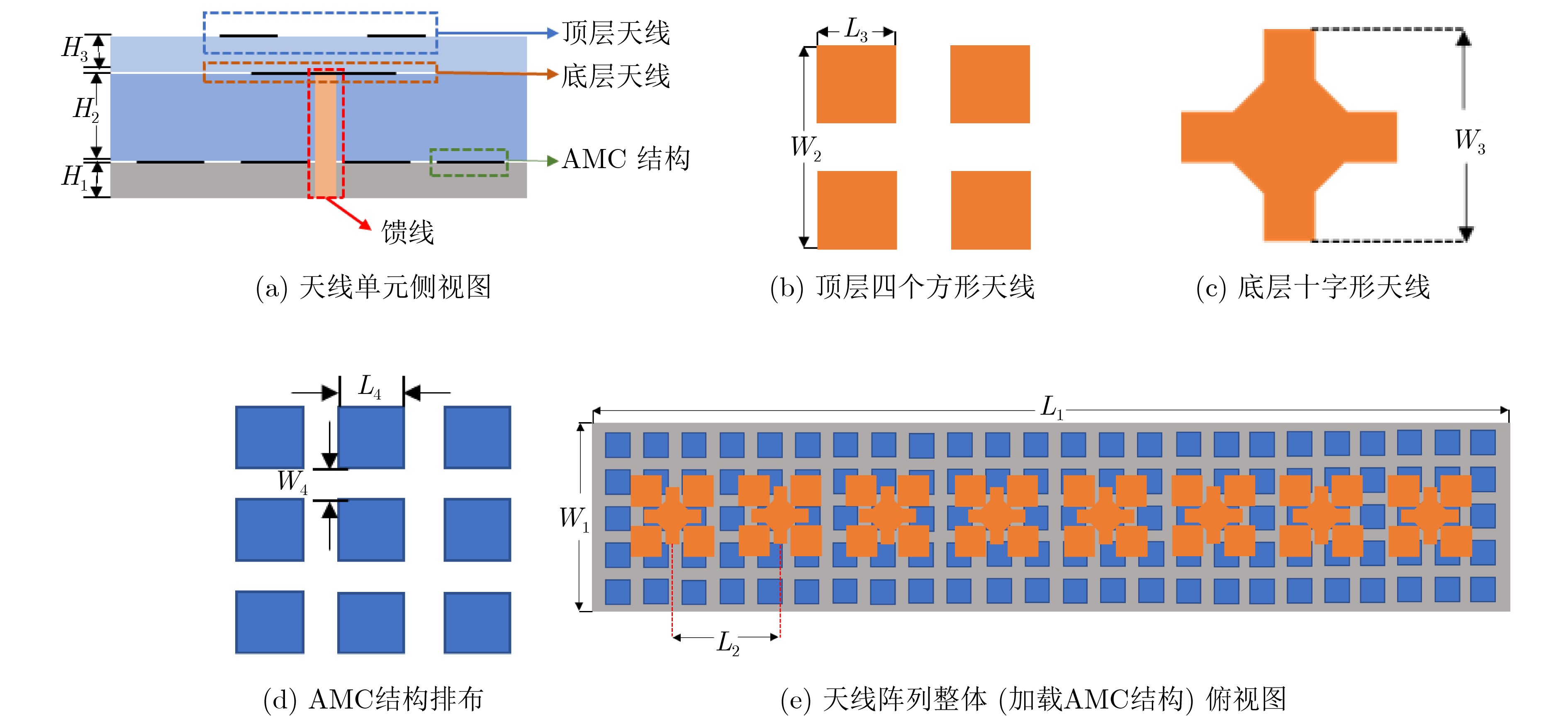

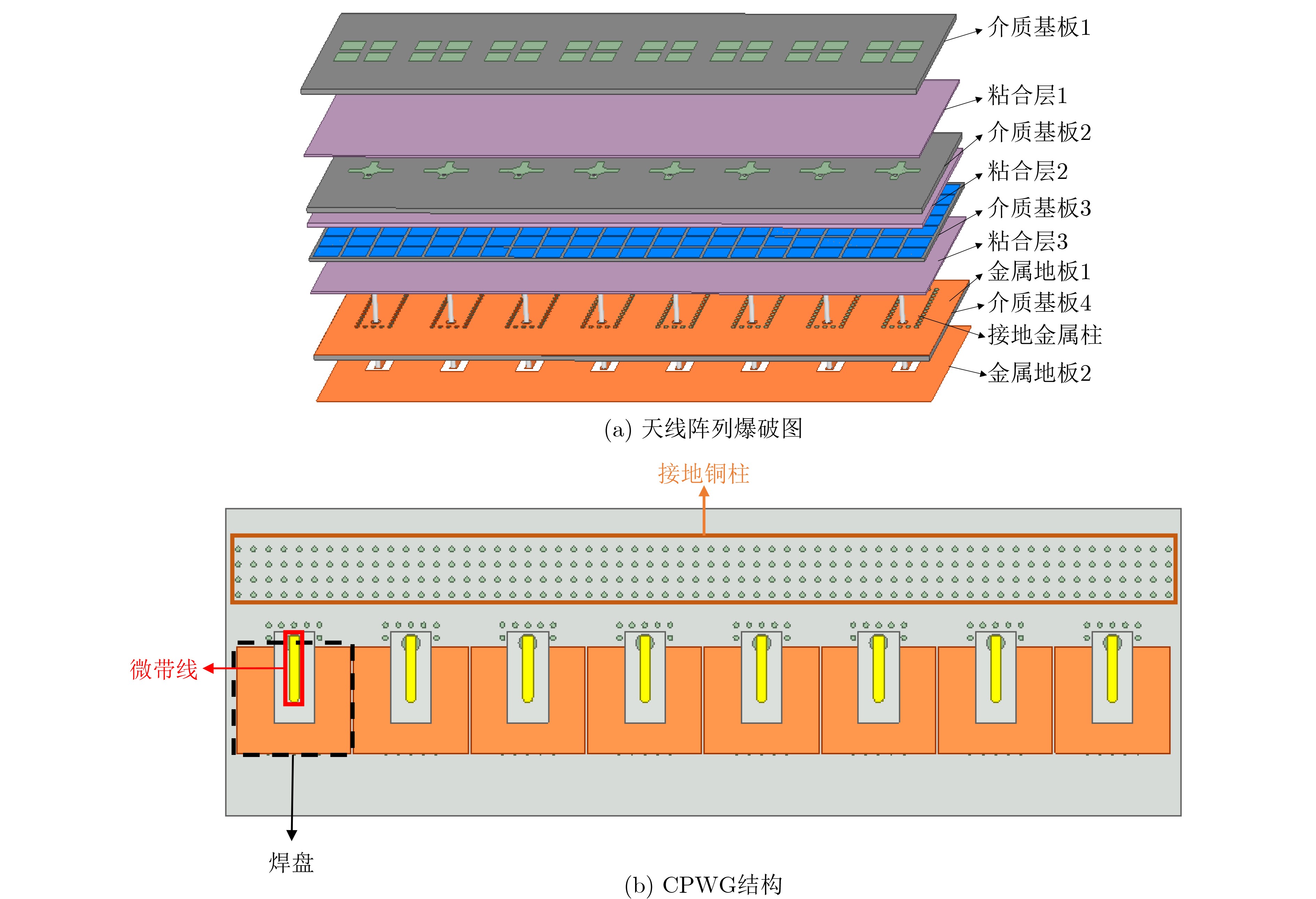

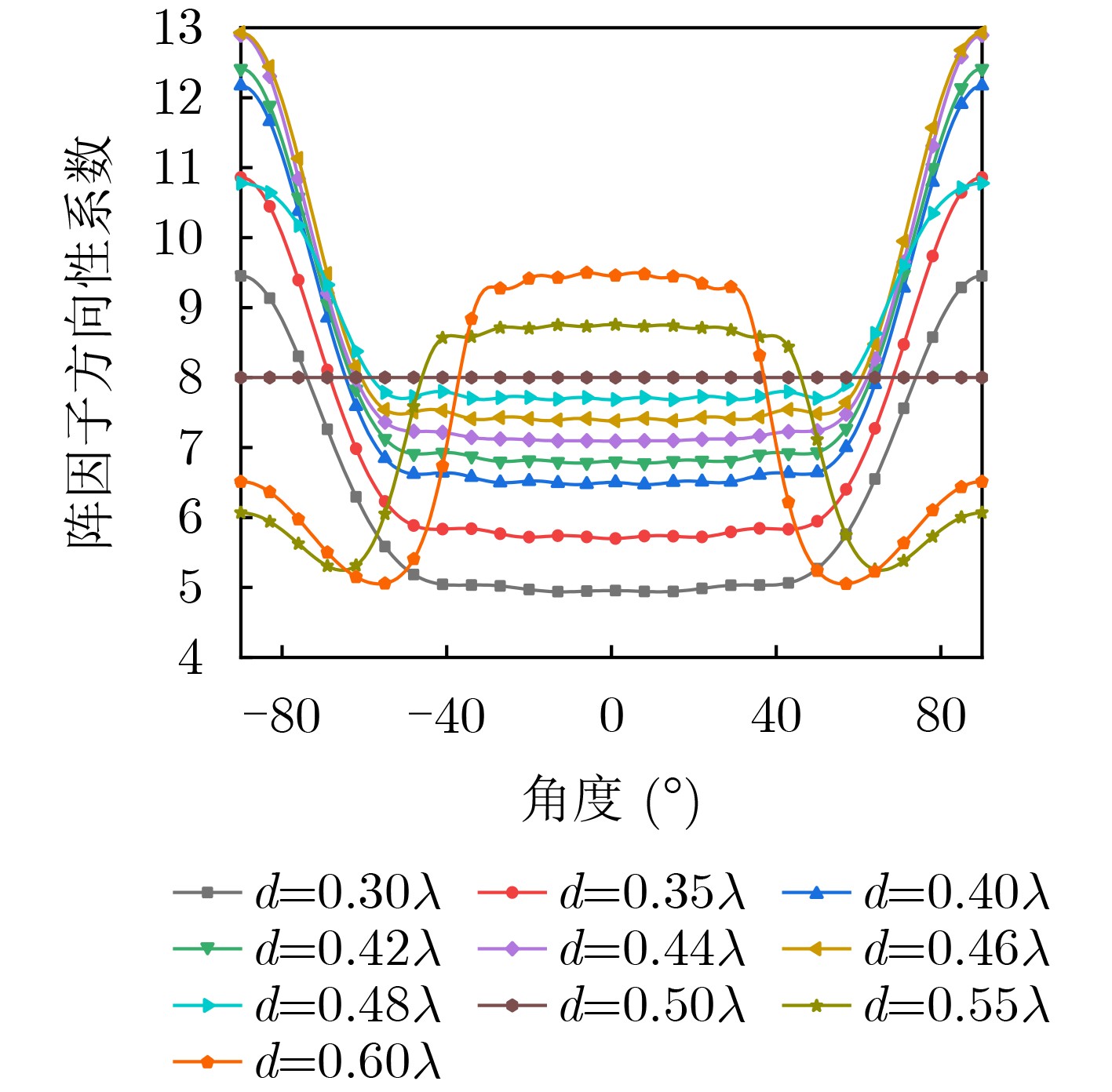

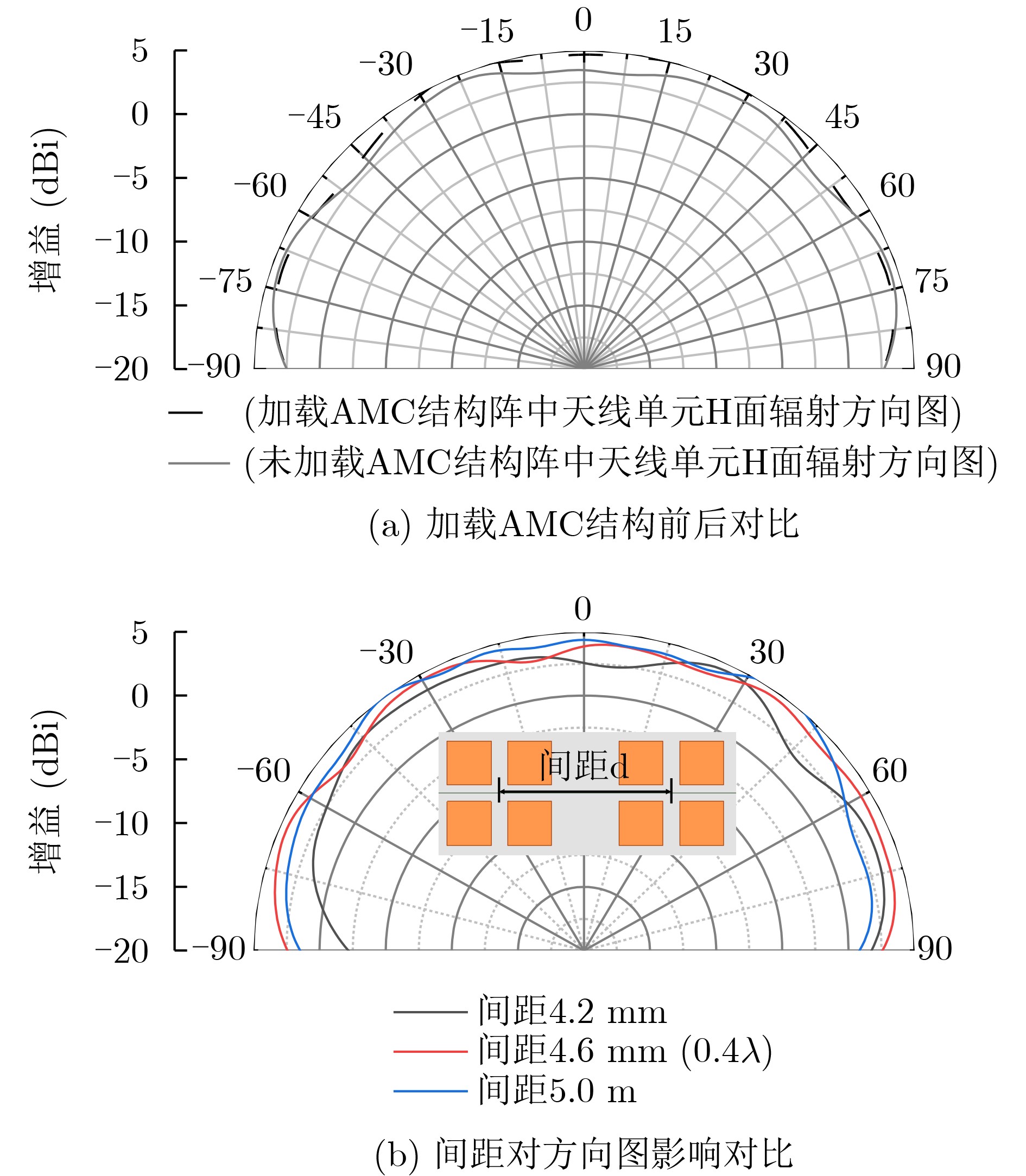

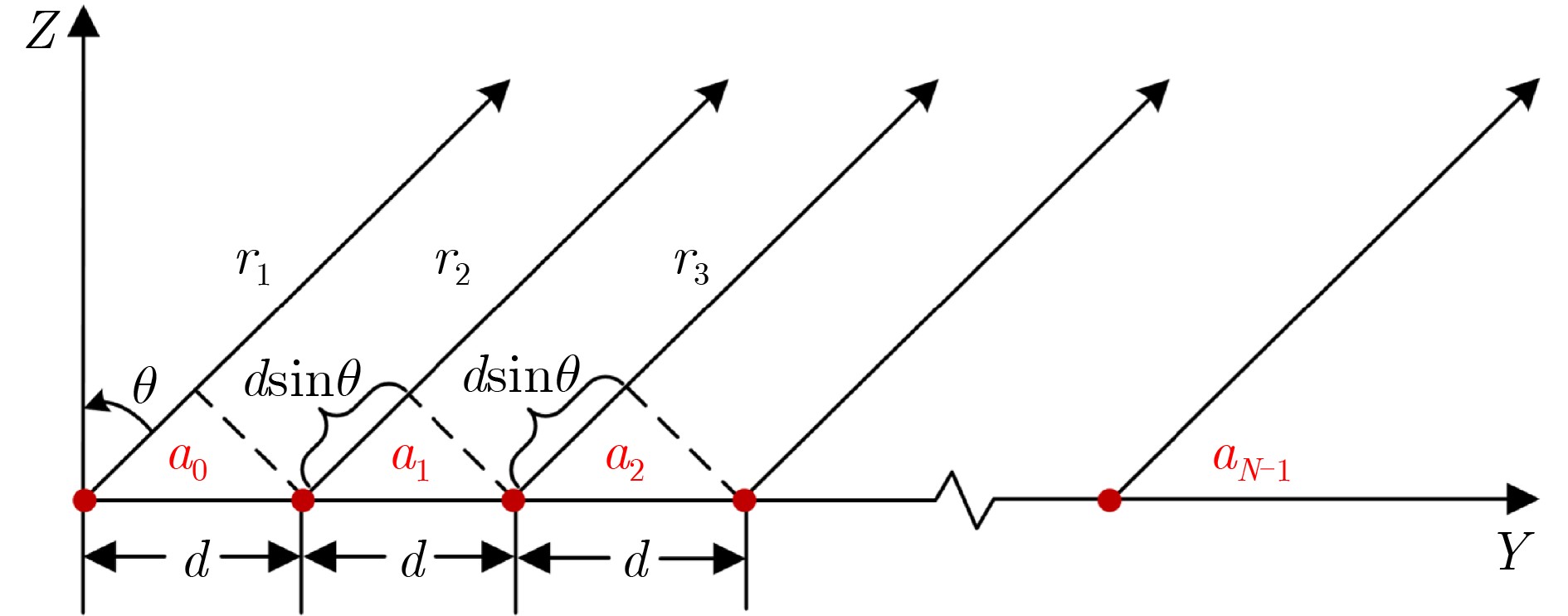

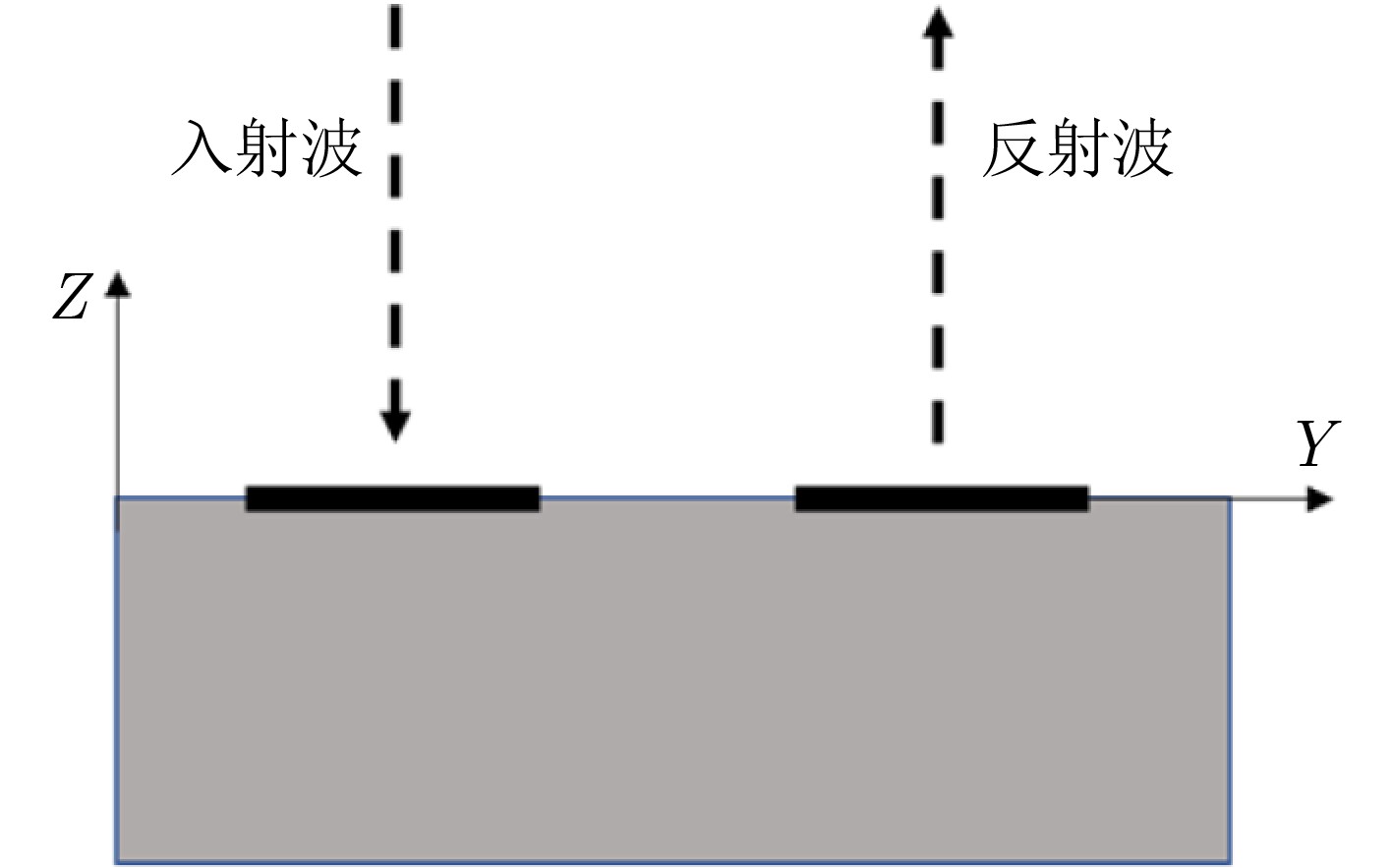

Objective With the rapid advancement of 5G millimeter-wave technology, antennas are required to achieve high gain, wide beam coverage, and compact size, particularly in environments characterized by strong propagation loss and blockage. Conventional millimeter-wave arrays often face difficulties in reconciling wide-angle scanning with high gain and broadband operation due to element coupling and narrow beamwidths. To overcome these challenges, this study proposes a one-dimensional linear array antenna incorporating an Artificial Magnetic Conductor (AMC) structure. The AMC’s in-phase reflection is exploited to improve bandwidth and gain while enabling wide-angle scanning of ±80° at 26 GHz. By adopting a 0.4-wavelength element spacing and stacked topology, the design provides an effective solution for 5G millimeter-wave terminals where spatial constraints and performance trade-offs are critical. The findings highlight the potential of AMC-based arrays to advance antenna technology for future high-speed, low-latency 5G applications by combining broadband operation, high directivity, and broad coverage within compact form factors. Methods This study develops a high-performance single-polarized one-dimensional linear millimeter-wave array antenna through a multi-layered structural design integrated with AMC technology. The design process begins with theoretical analysis of the pattern multiplication principle and array factor characteristics, which identify 0.4-wavelength element spacing as an optimal balance between wide-angle scanning and directivity. A stacked three-layer antenna unit is then constructed, consisting of square patch radiators on the top layer, a cross-shaped coupling feed structure in the middle layer, and an AMC-loaded substrate at the bottom. The AMC provides in-phase reflection in the 21–30 GHz band, enhancing bandwidth and suppressing surface wave coupling. Full-wave simulations (HFSS) are performed to optimize AMC dimensions, feed networks, and array layout, confirming bandwidth of 23.7–28 GHz, peak gain of 13.9 dBi, and scanning capability of ±80°. A prototype is fabricated using printed circuit board technology and evaluated with a vector network analyzer and anechoic chamber measurements. Experimental results agree closely with simulations, demonstrating an operational bandwidth of 23.3–27.7 GHz, isolation better than −15 dB, and scanning coverage up to ±80°. These results indicate that the synergistic interaction between AMC-modulated radiation fields and the array coupling mechanism enables a favorable balance among wide bandwidth, high gain, and wide-angle scanning. Results and Discussions The influence of array factor on directional performance is analyzed, and the maximum array factor is observed when the element spacing is between 0.4λ and 0.46λ (Fig. 2). The in-phase reflection of the AMC structure in the 21–30 GHz range significantly enhances antenna characteristics, broadening the bandwidth by 50% compared with designs without AMC and increasing the gain at 26 GHz by 1.5 dBi (Fig. 10, Fig. 13). The operational bandwidth of 23.3–27.7 GHz is confirmed by measurements (Fig. 17a). When the element spacing is optimized to 4.6 mm (0.4λ) and the coupling radiation mechanisms are adjusted, the H-plane half-power beamwidth (HPBW) of the array elements is extended to 180° (Fig. 8, Fig. 9), with a further gain improvement of 0.6 dBi at the scanning edges (Fig. 11b). The three-layer stacked structure—comprising the radiation, isolation, and AMC layers—achieves isolation better than –15 dB (Fig. 17a). Experimental validation demonstrates wide-angle scanning capability up to ±80°, showing close agreement between simulated and measured results (Fig. 11, Fig. 17b). The proposed antenna is therefore established as a compact, high-performance solution for 5G millimeter-wave terminals, offering wide bandwidth, high gain, and broad scanning coverage. Conclusions A one-dimensional linear wide-angle scanning array antenna based on an AMC structure is presented for 5G millimeter-wave applications. Through theoretical analysis, simulation optimization, and experimental validation, balanced improvement in broadband operation, high gain, and wide-angle scanning is achieved. Pattern multiplication theory and array factor analysis are applied to determine 0.4-wavelength element spacing as the optimal compromise between scanning angle and directivity. A stacked three-layer configuration is adopted, and the AMC’s in-phase reflection extends the bandwidth to 23.7–28.5 GHz, representing a 50% increase. Simulation and measurement confirm ±80° scanning at 26 GHz with a peak gain of 13.8 dBi, which is 1.3 dBi higher than that of non-AMC designs. The close consistency between experimental and simulated results verifies the feasibility of the design, providing a compact and high-performance solution for millimeter-wave antennas in mobile communication and vehicular systems. Future research is expected to explore dual-polarization integration and adaptation to complex environments.
- 5G millimeter-wave,
- AMC structure,
- wide-angle scanning,
- high gain,
- array antenna

FullText(HTML)

References(17)

References

[1]	LI Yujian and LUK K M. A multibeam end-fire magnetoelectric dipole antenna array for millimeter-wave applications[J]. IEEE Transactions on Antennas and Propagation, 2016, 64(7): 2894–2904. doi: 10.1109/TAP.2016.2554601.
[2]	DENG Changjiang, LIU Di, YEKTAKHAH B, et al. Series-fed beam-steerable millimeter-wave antenna design with wide spatial coverage for 5G mobile terminals[J]. IEEE Transactions on Antennas and Propagation, 2020, 68(5): 3366–3376. doi: 10.1109/TAP.2019.2963583.
[3]	OZPINAR H, AKSIMSEK S, and TOKAN N T. A novel compact, broadband, high gain millimeter-wave antenna for 5G beam steering applications[J]. IEEE Transactions on Vehicular Technology, 2020, 69(3): 2389–2397. doi: 10.1109/TVT.2020.2966009.
[4]	LUO Yong, XU Jiayou, CHEN Yuanqing, et al. A zero-mode induced mmWave patch antenna with low-profile, wide-bandwidth and large-angle scanning for 5G mobile terminals[J]. IEEE Access, 2019, 7: 177607–177615. doi: 10.1109/ACCESS.2019.2958120.
[5]	GU Lizheng, YANG Wanchen, LIAO Shaowei, et al. Novel coupling cancellation method by loading planar path for wideband high-isolation wide-scanning millimeter-wave phased array[J]. IEEE Transactions on Antennas and Propagation, 2022, 70(11): 10520–10530. doi: 10.1109/TAP.2022.3195456.
[6]	何宇奇. 5G毫米波高性能天线阵列[D]. [硕士论文], 西安电子科技大学, 2022. doi: 10.27389/d.cnki.gxadu.2022.001839. HE Yuqi. 5G millimeter wave high-performance antenna array[D]. [Master dissertation], Xidian University, 2022. doi: 10.27389/d.cnki.gxadu.2022.001839.
[7]	魏文元, 宫德明, 陈必森. 天线原理[M]. 北京: 国防工业出版社, 1985: 64–78. WEI Wenyuan, GONG Deming, and CHEN Bisen. Antenna Principle[M]. Beijing: National Defense Industry Press, 1985: 64–78. (查阅网上资料, 未找到本条文献英文翻译, 请确认).
[8]	翟孟云. 阵列天线理论导引[M]. 北京: 国防工业出版社, 1980: 175–236. ZHAI Mengyun. Array Antenna Theory Guidance[M]. Beijing: National Defense Industry Press, 1980: 175–236. (查阅网上资料, 未找到本条文献英文翻译, 请确认).
[9]	NI Shucheng, LI Xiangqiang, QIAO Xiaobin, et al. A compact dual-wideband magnetoelectric dipole antenna for 5G millimeter-wave applications[J]. IEEE Transactions on Antennas and Propagation, 2022, 70(10): 9112–9119. doi: 10.1109/TAP.2022.3184550.
[10]	LIU Chunmei, XIAO Shaoqiu, and ZHANG Xiaolin. A compact, low-profile wire antenna applied to wide-angle scanning phased array[J]. IEEE Antennas and Wireless Propagation Letters, 2018, 17(3): 389–392. doi: 10.1109/LAWP.2018.2791286.
[11]	张璇. 人工磁导体结构在天线设计及RCS缩减中的应用研究[D]. [硕士论文], 长安大学, 2023. doi: 10.26976/d.cnki.gchau.2023.000314. ZHANG Xuan. Research on the application of artificial magnetic conductor structure in antenna design and RCS reduction[D]. [Master dissertation], Chang’an University, 2023. doi: 10.26976/d.cnki.gchau.2023.000314.
[12]	苏小珂. 基于人工磁导体的阵列天线低散射技术研究[D]. [硕士论文], 电子科技大学, 2024. doi: 10.27005/d.cnki.gdzku.2024.003635. SU Xiaoke. Research on low scattering technology of array antenna based on artificial magnetic conductor[D]. [Master dissertation], University of Electronic Science and Technology of China, 2024. doi: 10.27005/d.cnki.gdzku.2024.003635.
[13]	王新庄. 加载人工磁导体的WLAN圆极化天线研究[D]. [硕士论文], 西安理工大学, 2024. doi: 10.27398/d.cnki.gxalu.2024.000368. WANG Xinzhuang. Research on WLAN circular polarized antennas loaded with artificial magnetic conductors[D]. [Master dissertation], Xi’an University of Technology, 2024. doi: 10.27398/d.cnki.gxalu.2024.000368.
[14]	HONG Wei, JIANG Zhihao, YU Chao, et al. Multibeam antenna technologies for 5G wireless communications[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(12): 6231–6249. doi: 10.1109/TAP.2017.2712819.
[15]	MA Wenyu, CAO Wenquan, HONG Rentang, et al. Planar broadband higher-order mode millimeter-wave microstrip patch antenna array with low sidelobe level[J]. IEEE Antennas and Wireless Propagation Letters, 2021, 20(12): 2225–2229. doi: 10.1109/LAWP.2021.3103532.
[16]	周路捷. 基于人工磁导体结构的LTCC毫米波阵列天线[D]. [硕士论文], 电子科技大学, 2023. doi: 10.27005/d.cnki.gdzku.2023.003105. ZHOU Lujie. Millimeter wave antenna array using artificial magnetic conductor structures Based on LTCC technology[D]. [Master dissertation], University of Electronic Science and Technology of China, 2023. doi: 10.27005/d.cnki.gdzku.2023.003105.
[17]	SHEN Xiumei, LIU Yujia, ZHAO Luyu, et al. A miniaturized microstrip antenna array at 5G millimeter-wave band[J]. IEEE Antennas and Wireless Propagation Letters, 2019, 18(8): 1671–1675. doi: 10.1109/LAWP.2019.2927460.
