A Two-Stage Framework for CAN Bus Attack Detection by Fusing Temporal and Deep Features

TAN Mingming; ZHANG Heng; WANG Xin; LI Ming; ZHANG Jian; YANG Ming

doi:10.11999/JEIT250651

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

TAN Mingming, ZHANG Heng, WANG Xin, LI Ming, ZHANG Jian, YANG Ming. A Two-Stage Framework for CAN Bus Attack Detection by Fusing Temporal and Deep Features[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250651

Citation:

TAN Mingming, ZHANG Heng, WANG Xin, LI Ming, ZHANG Jian, YANG Ming. A Two-Stage Framework for CAN Bus Attack Detection by Fusing Temporal and Deep Features[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250651

Citation:

PDF( 1656 KB)

A Two-Stage Framework for CAN Bus Attack Detection by Fusing Temporal and Deep Features

doi: 10.11999/JEIT250651 cstr: 32379.14.JEIT250651

1.
School of Computer Engineering, Jiangsu Ocean University, Lianyungang 222005, China
2.
Department of Computer Science and Technology, Qilu University of Technology, Jinan 250061, China

Funds: The National Natural Science Foundation of China (61873106, 62303109, 12401679), The Nature Science Foundation of Jiangsu Province for Distinguished Young Scholars (BK20200049)

Received Date: 2025-07-09
Rev Recd Date: 2025-09-04

Available Online: 2025-09-09

Abstract

Abstract

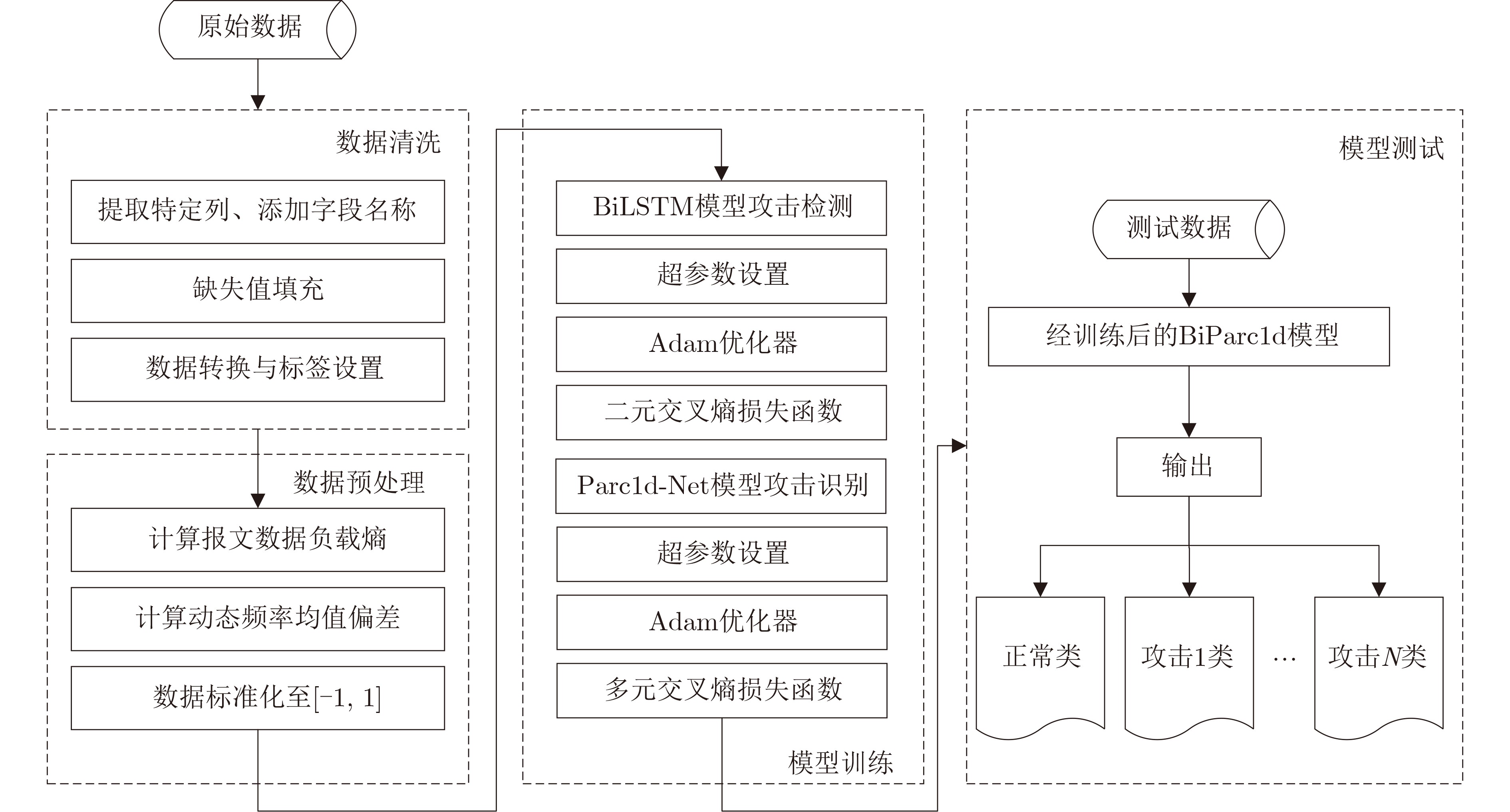

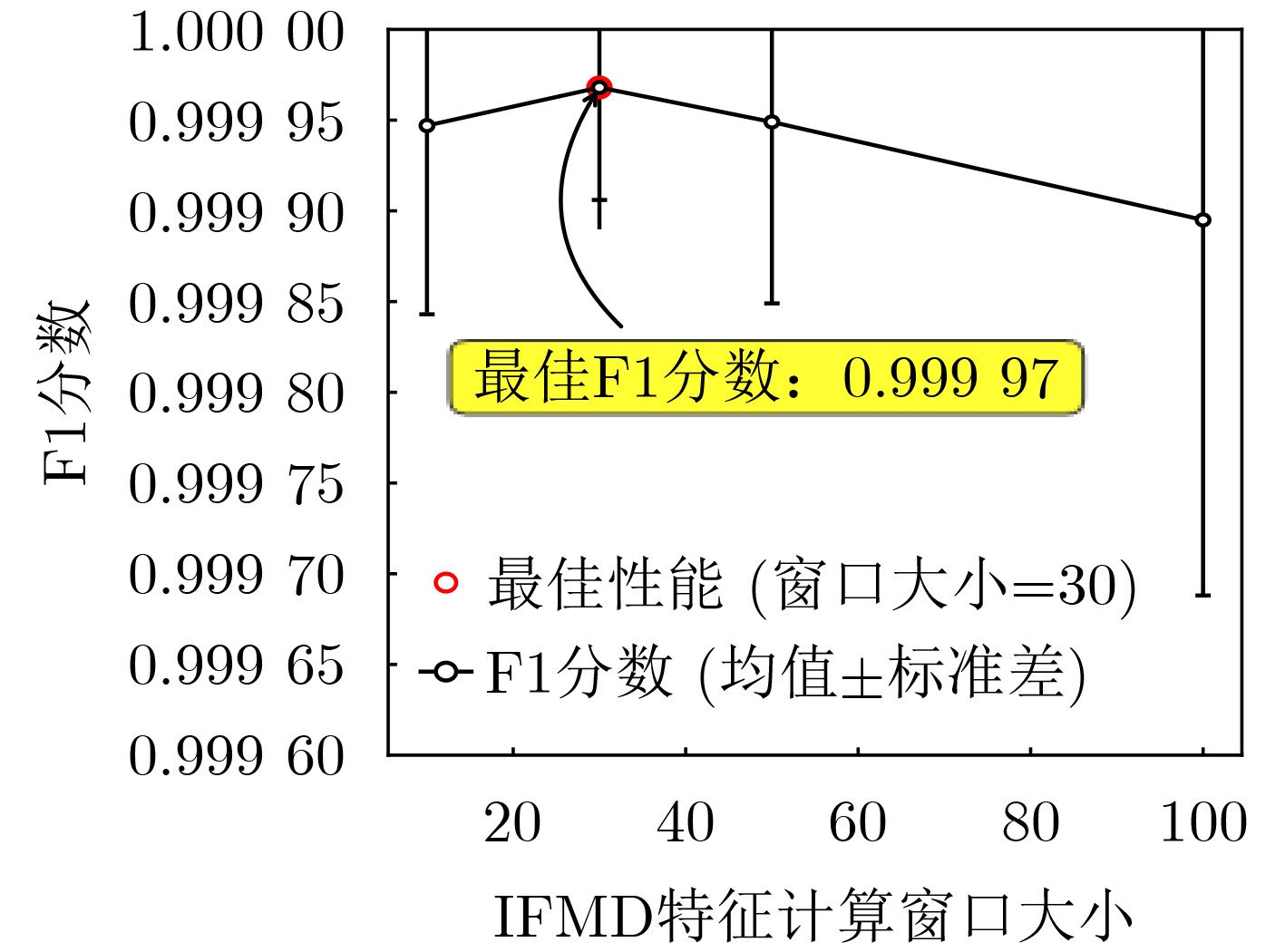

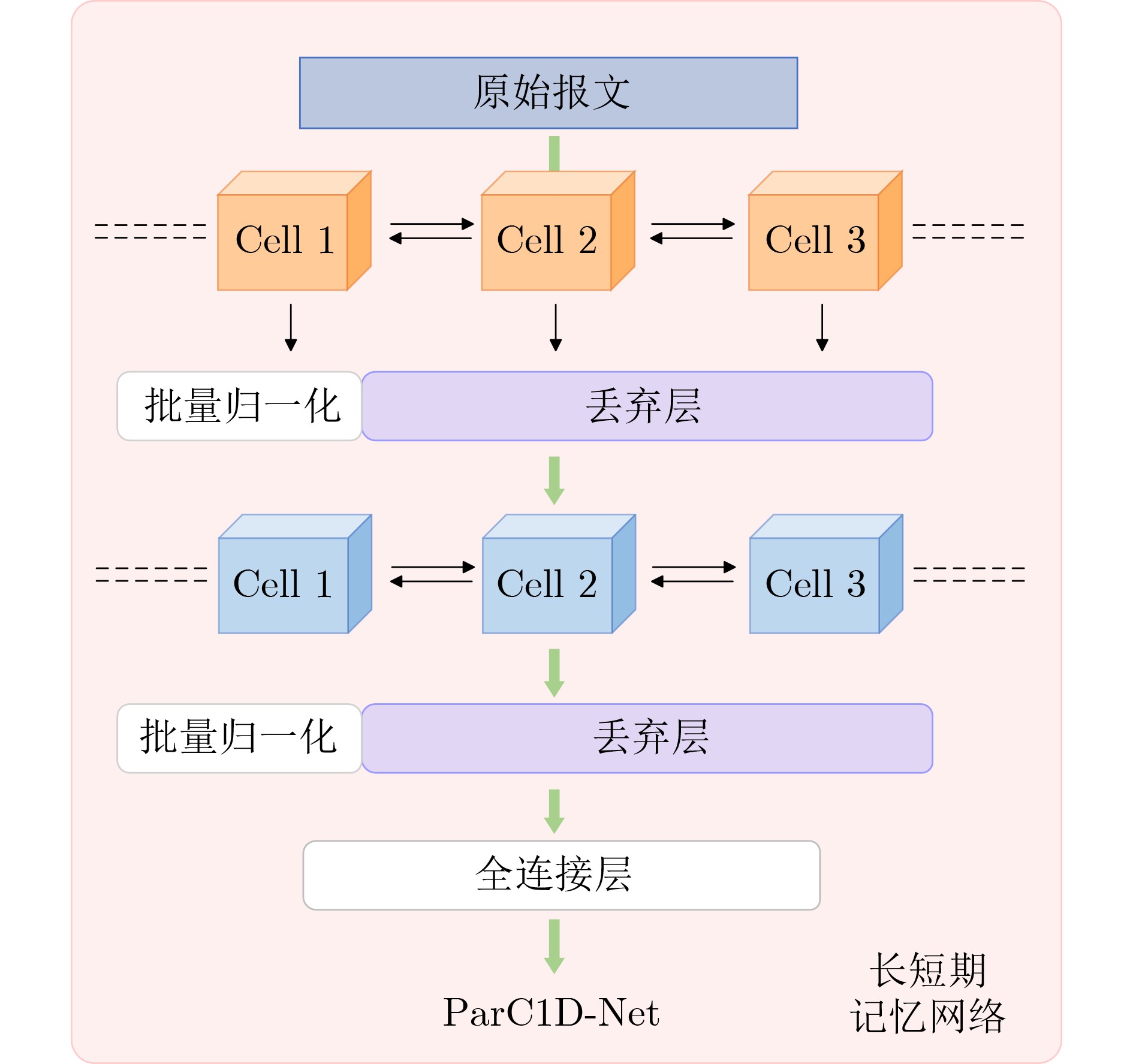

Objective The Controller Area Network (CAN), the de facto standard for in-vehicle communication, is inherently vulnerable to cyberattacks. Existing Intrusion Detection Systems (IDSs) face a fundamental trade-off: achieving fine-grained classification of diverse attack types often requires computationally intensive models that exceed the resource limitations of on-board Electronic Control Units (ECUs). To address this problem, this study proposes a two-stage attack detection framework for the CAN bus that fuses temporal and deep features. The framework is designed to achieve both high classification accuracy and computational efficiency, thereby reconciling the tension between detection performance and practical deployability. Methods The proposed framework adopts a “detect-then-classify” strategy and incorporates two key innovations. (1) Stage 1: Temporal Feature-Aware Anomaly Detection. Two custom features are designed to quantify anomalies: Payload Data Entropy (PDE), which measures content randomness, and ID Frequency Mean Deviation (IFMD), which captures behavioral deviations. These features are processed by a Bidirectional Long Short-Term Memory (BiLSTM) network that exploits contextual temporal information to achieve high-recall anomaly detection. (2) Stage 2: Deep Feature-Based Fine-Grained Classification. Triggered only for samples flagged as anomalous, this stage employs a lightweight one-dimensional ParC1D-Net. The core ParC1D Block (Fig. 4) integrates depthwise separable one-dimensional convolution, Squeeze-and-Excitation (SE) attention, and a Feed-Forward Network (FFN), enabling efficient feature extraction with minimal parameters. Stage 1 is optimized using BCEWithLogitsLoss, whereas Stage 2 is trained with Cross-Entropy Loss. Results and Discussions The efficacy of the proposed framework is evaluated on public datasets. (1) State-of-the-art performance. On the Car-Hacking dataset (Table 5), an accuracy and F1-score of 99.99% are achieved, exceeding advanced baselines. On the more challenging Challenge dataset (Table 6), superior accuracy (99.90%) and a competitive F1-score (99.70% are also obtained. (2) Feature contribution analysis. Ablation studies (Tables 7 and 8) confirm the critical role of the proposed features. Removal of the IFMD feature results in the largest performance reduction, highlighting the importance of behavioral modeling. A synergistic effect is observed when PDE and IFMD are applied together. (3) Spatiotemporal efficiency. The complete model remains lightweight at only 0.39 MB. Latency tests (Table 9) demonstrate real-time capability, with average detection times of 0.62 ms on a GPU and 0.93 ms on a simulated CPU (batch size = 1). A system-level analysis (Section 3.5.4) further shows that the two-stage framework is approximately 1.65 times more efficient than a single-stage model in a realistic sparse-attack scenario. Conclusions This study establishes the two-stage framework as an effective and practical solution for CAN bus intrusion detection. By decoupling detection from classification, the framework resolves the trade-off between accuracy and on-board deployability. Its strong performance, combined with a minimal computational footprint, indicates its potential for securing real-world vehicular systems. Future research could extend the framework and explore hardware-specific optimizations.
- Intrusion detection,
- Controller Area Network (CAN),
- Two-stage framework,
- Feature extraction

FullText(HTML)

References(18)

References

[1]	钱志鸿, 田春生, 郭银景, 等. 智能网联交通系统的关键技术与发展[J]. 电子与信息学报, 2020, 42(1): 2–19. doi: 10.11999/JEIT190787. QIAN Zhihong, TIAN Chunsheng, GUO Yinjing, et al. The key technology and development of intelligent and connected transportation system[J]. Journal of Electronics & Information Technology, 2020, 42(1): 2–19. doi: 10.11999/JEIT190787.
[2]	LAMPE B and MENG W Z. Intrusion detection in the automotive domain: A comprehensive review[J]. IEEE Communications Surveys & Tutorials, 2023, 25(4): 2356–2426. doi: 10.1109/COMST.2023.3309864.
[3]	WANG L X, ZHAO Q C, LEE W B, et al. Deploying intrusion detection on in-vehicle networks: Challenges and opportunities[J]. IEEE Network, 2025, 39(1): 306–312. doi: 10.1109/MNET.2024.3486220.
[4]	WU W F, LI R F, XIE G Q, et al. A survey of intrusion detection for in-vehicle networks[J]. IEEE Transactions on Intelligent Transportation Systems, 2020, 21(3): 919–933. doi: 10.1109/TITS.2019.2908074.
[5]	KHEZRI E, HASSANZADEH H, YAHYA R O, et al. Security challenges in internet of vehicles (IoV) for ITS: A survey[J]. Tsinghua Science and Technology, 2025, 30(4): 1700–1723. doi: 10.26599/TST.2024.9010083.
[6]	LAMPE B and MENG W Z. A survey of deep learning-based intrusion detection in automotive applications[J]. Expert Systems with Applications, 2023, 221: 119771. doi: 10.1016/j.eswa.2023.119771.
[7]	ZHANG H K, HU W Z, and WANG X Y. ParC-Net: Position aware circular convolution with merits from ConvNets and transformer[C]. Proceedings of the 17th European Conference on Computer Vision, Tel Aviv, Israel, 2022: 613–630. doi: 10.1007/978-3-031-19809-0_35.
[8]	SEO E, SONG H M, and KIM H K. GIDS: GAN based intrusion detection system for in-vehicle network[C]. Proceedings of 2018 16th Annual Conference on Privacy, Security and Trust (PST), Belfast, Ireland, 2018: 1–6. doi: 10.1109/PST.2018.8514157.
[9]	KANG H, KWAK B I, LEE Y H, et al. Car hacking and defense competition on in-vehicle network[C]. Proceedings of Workshop on Automotive and Autonomous Vehicle Security (AutoSec) 2021, San Diego, CA, USA, 2021, 2021: 25. doi: 10.14722/autosec.2021.23035. (查阅网上资料,未找到本条文献出版地信息,请确认).
[10]	KHAN I A, MOUSTAFA N, PI D C, et al. An enhanced multi-stage deep learning framework for detecting malicious activities from autonomous vehicles[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23(12): 25469–25478. doi: 10.1109/TITS.2021.3105834.
[11]	ALMUTLAQ S, DERHAB A, HASSAN M M, et al. Two-stage intrusion detection system in intelligent transportation systems using rule extraction methods from deep neural networks[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(12): 15687–15701. doi: 10.1109/TITS.2022.3202869.
[12]	CHOUGULE A, KULKARNI I, ALLADI T, et al. HybridSecNet: In-vehicle security on controller area networks through a hybrid two-step LSTM-CNN model[J]. IEEE Transactions on Vehicular Technology, 2024, 73(10): 14580–14591. doi: 10.1109/TVT.2024.3413849.
[13]	ALJABRI W, HAMID M A, and MOSLI R. Enhancing real-time intrusion detection system for in-vehicle networks by employing novel feature engineering techniques and lightweight modeling[J]. Ad Hoc Networks, 2025, 169: 103737. doi: 10.1016/j.adhoc.2024.103737.
[14]	李思涌, 吴书汉, 孙伟. 基于注意力机制的CNN-LSTM网络车内CAN总线入侵检测技术[J]. 信息安全研究, 2023, 9(10): 961–967. doi: 10.12379/j.issn.2096-1057.2023.10.05. LI S Y, WU S H, and SUN W. A CNN-LSTM method based on attention mechanism for in-vehicle CAN bus intrusion detection[J]. Journal of Information Security Research, 2023, 9(10): 961–967. doi: 10.12379/j.issn.2096-1057.2023.10.05.
[15]	JEONG Y, KIM H, LEE S, et al. In-vehicle network intrusion detection system using CAN frame-aware features[J]. IEEE Transactions on Intelligent Transportation Systems, 2024, 25(5): 3843–3853. doi: 10.1109/TITS.2023.3323622.
[16]	陈彦彬, 刘桂雄. 双线性自注意力机制CAN总线入侵检测方法研究[J]. 电子测量技术, 2025, 48(2): 122–130. doi: 10.19651/j.cnki.emt.2417438. CHEN Y B and LIU G X. Study on bilinear self-attention mechanism for CAN bus intrusion detection method[J]. Electronic Measurement Technology, 2025, 48(2): 122–130. doi: 10.19651/j.cnki.emt.2417438.
[17]	CHENG P Z, XU K, LI S M, et al. TCAN-IDS: Intrusion detection system for internet of vehicle using temporal convolutional attention network[J]. Symmetry, 2022, 14(2): 310. doi: 10.3390/sym14020310.
[18]	ALMUTLAQ S, DERHAB A, HASSAN M M, et al. Two-stage intrusion detection system in intelligent transportation systems using rule extraction methods from deep neural networks[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(12): 15687–15701. doi: 10.1109/TITS.2022.3202869. (查阅网上资料,本条文献与第11条文献重复,请确认).
