Multi-modal Joint Automatic Modulation Recognition Method Towards Low SNR Sequences

WANG Zhen; LIU Wei; LU Wanjie; NIU Chaoyang; LI Runsheng

doi:10.11999/JEIT250594

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2025 >

WANG Zhen, LIU Wei, LU Wanjie, NIU Chaoyang, LI Runsheng. Multi-modal Joint Automatic Modulation Recognition Method Towards Low SNR Sequences[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250594

Citation:

WANG Zhen, LIU Wei, LU Wanjie, NIU Chaoyang, LI Runsheng. Multi-modal Joint Automatic Modulation Recognition Method Towards Low SNR Sequences[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT250594

Citation:

PDF( 3360 KB)

Multi-modal Joint Automatic Modulation Recognition Method Towards Low SNR Sequences

doi: 10.11999/JEIT250594 cstr: 32379.14.JEIT250594

Institute of Data and Target Engineering, Information Engineering University, Zhengzhou 450001, China

Received Date: 2025-06-24
Rev Recd Date: 2025-10-14

Available Online: 2025-10-20

Abstract

Abstract

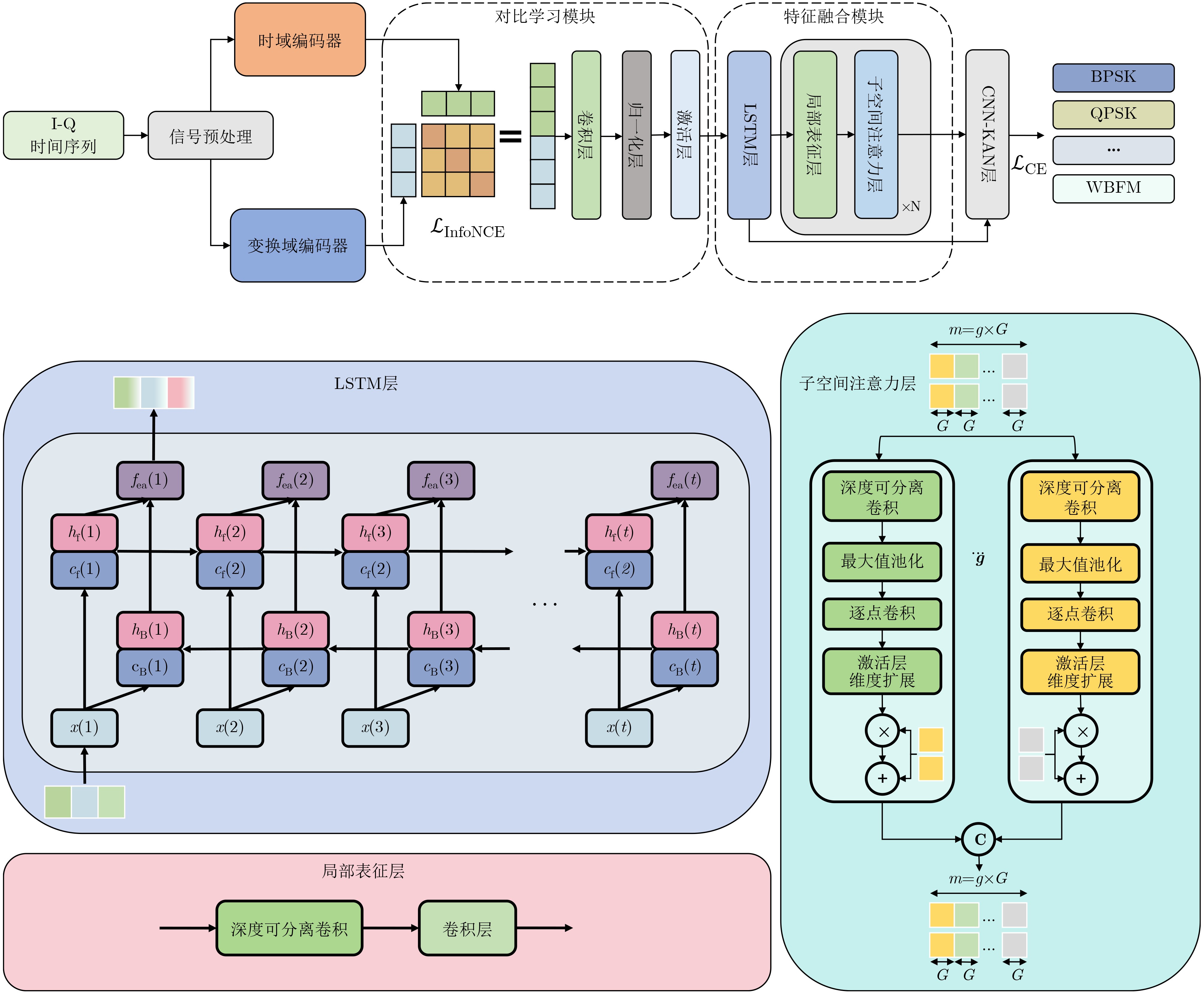

Objective The rapid evolution of data-driven intelligent algorithms and the rise of multi-modal data indicate that the future of Automatic Modulation Recognition (AMR) lies in joint approaches that integrate multiple domains, use multiple frameworks, and connect multiple scales. However, the embedding spaces of different modalities are heterogeneous, and existing models lack cross-modal adaptive representation, limiting their ability to achieve collaborative interpretation. To address this challenge, this study proposes a performance-interpretable two-stage deep learning–based AMR (DL-AMR) method that jointly models the signal in the time and transform domains. The approach explicitly and implicitly represents signals from multiple perspectives, including temporal, spatial, frequency, and intensity dimensions. This design provides theoretical support for multi-modal AMR and offers an intelligent solution for modeling low Signal-to-Noise Ratio (SNR) time sequences in open environments. Methods The proposed AMR network begins with a preprocessing stage, where the input signal is represented as an in-phase and quadrature (I–Q) sequence. After wavelet thresholding denoising, the signal is converted into a dual-channel representation, with one channel undergoing Short-Time Fourier transform (STFT). This preprocessing yields a dual-stream representation comprising both time-domain and transform-domain signals. The signal is then tokenized through time-domain and transform-domain encoders. In the first stage, explicit modal alignment is performed. The token sequences from the time and transform domains are input in parallel into a contrastive learning module, which explicitly captures and strengthens correlations between the two modalities in dimensions such as temporal structure and amplitude. The learned features are then passed into the feature fusion module. Bidirectional Long Short-Term Memory (BiLSTM) and local representation layers are employed to capture temporally sparse features, enabling subsequent feature decomposition and reconstruction. To refine feature extraction, a subspace attention mechanism is applied to the high-dimensional sparse feature space, allowing efficient capture of discriminative information contained in both high-frequency and low-frequency components. Finally, Convolutional Neural Network – Kolmogorov-Arnold Network (CNN-KAN) layers replace traditional multilayer perceptrons as classifiers, thereby enhancing classification performance under low SNR conditions. Results and Discussions The proposed method is experimentally validated on three datasets: RML2016.10a, RML2016.10b, and HisarMod2019.1. Under high SNR conditions (SNR > 0 dB), classification accuracies of 93.36%, 93.13%, and 93.37% are achieved on the three datasets, respectively. Under low SNR conditions, where signals are severely corrupted or blurred by noise, recognition performance decreases but remains robust. When the SNR ranges from –6 dB to 0 dB, overall accuracies of 78.36%, 80.72%, and 85.43% are maintained, respectively. Even at SNR levels below –6 dB, accuracies of 17.10%, 21.30%, and 29.85% are obtained. At particularly challenging low-SNR levels, the model still achieves 43.45%, 44.54%, and 60.02%. Compared with traditional approaches, and while maintaining a low parameter count (0.33–0.41 M), the proposed method improves average recognition accuracy by 2.12–7.89%, 0.45–4.64%, and 6.18–9.53% on the three datasets. The improvements under low SNR conditions are especially significant, reaching 4.89–12.70% (RML2016.10a), 2.62–8.72% (RML2016.10b), and 4.96–11.63% (HisarMod2019.1). The results indicate that explicit modeling of time–transform domain correlations through contrastive learning, combined with the hybrid architecture consisting of LSTM for temporal sequence modeling, CNN for local feature extraction, and KAN for nonlinear approximation, substantially enhances the noise robustness of the model. Conclusions This study proposes a two-stage AMR method based on time–transform domain multimodal fusion. Explicit multimodal alignment is achieved through contrastive learning, while temporal and local features are extracted using a combination of LSTM and CNN. The KAN is used to enhance nonlinear modeling, enabling implicit feature-level multimodal fusion. Experiments conducted on three benchmark datasets demonstrate that, compared with classical methods, the proposed approach improves recognition accuracy by 2.62–11.63% within the SNR range of –20 to 0 dB, while maintaining a similar number of parameters. The performance gains are particularly significant under low-SNR conditions, confirming the effectiveness of multimodal joint modeling for robust AMR.
- Automatic Modulation Recognition (AMR),
- Cross-modal feature fusion,
- Time series analysis,
- Contrastive learning,
- Kolmogorov–Arnold Network (KAN)
