The Effects of Complex Weather and Sea Wind on the Performance of Space-borne Passive Interferometric Microwave Detection System

Guangnan SONG; Hailiang LU; Hao LI; Yinan LI; Liang LANG; Siqiao DONG; Pengfei LI; Rongchuan LÜ

doi:10.11999/JEIT190534

Volume 42 Issue 11

Nov. 2020

Turn off MathJax

Article Contents

Article Navigation > Journal of Electronics & Information Technology > 2020 > 42(11): 2607-2614

Guangnan SONG, Hailiang LU, Hao LI, Yinan LI, Liang LANG, Siqiao DONG, Pengfei LI, Rongchuan LÜ. The Effects of Complex Weather and Sea Wind on the Performance of Space-borne Passive Interferometric Microwave Detection System[J]. Journal of Electronics & Information Technology, 2020, 42(11): 2607-2614. doi: 10.11999/JEIT190534

Citation:

Guangnan SONG, Hailiang LU, Hao LI, Yinan LI, Liang LANG, Siqiao DONG, Pengfei LI, Rongchuan LÜ. The Effects of Complex Weather and Sea Wind on the Performance of Space-borne Passive Interferometric Microwave Detection System[J]. Journal of Electronics & Information Technology, 2020, 42(11): 2607-2614. doi: 10.11999/JEIT190534

Citation:

Guangnan SONG, Hailiang LU, Hao LI, Yinan LI, Liang LANG, Siqiao DONG, Pengfei LI, Rongchuan LÜ. The Effects of Complex Weather and Sea Wind on the Performance of Space-borne Passive Interferometric Microwave Detection System[J]. Journal of Electronics & Information Technology, 2020, 42(11): 2607-2614. doi: 10.11999/JEIT190534

PDF( 2325 KB)

The Effects of Complex Weather and Sea Wind on the Performance of Space-borne Passive Interferometric Microwave Detection System

doi: 10.11999/JEIT190534 cstr: 32379.14.JEIT190534

1.
China Academy of Space Technology (Xi’an), Xi’an 710100, China
2.
School of Electronic Information and Communications, Huazhong University of Science and Technology, Wuhan 430074, China
3.
State Radio Monitoring Center, Beijing 100037, China

Received Date: 2019-07-16
Rev Recd Date: 2020-06-08

Available Online: 2020-07-11

Publish Date: 2020-11-16

Abstract

Abstract

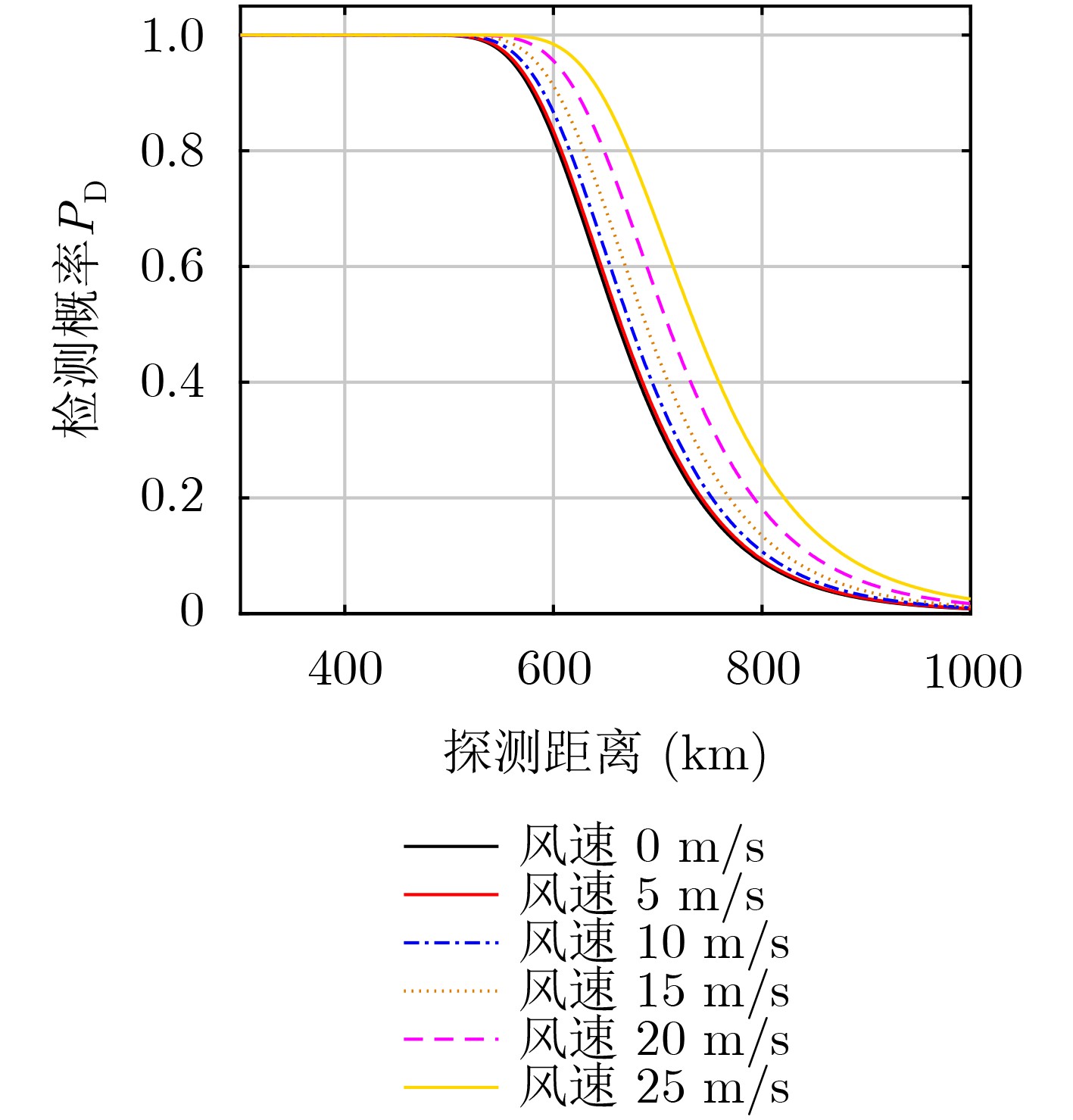

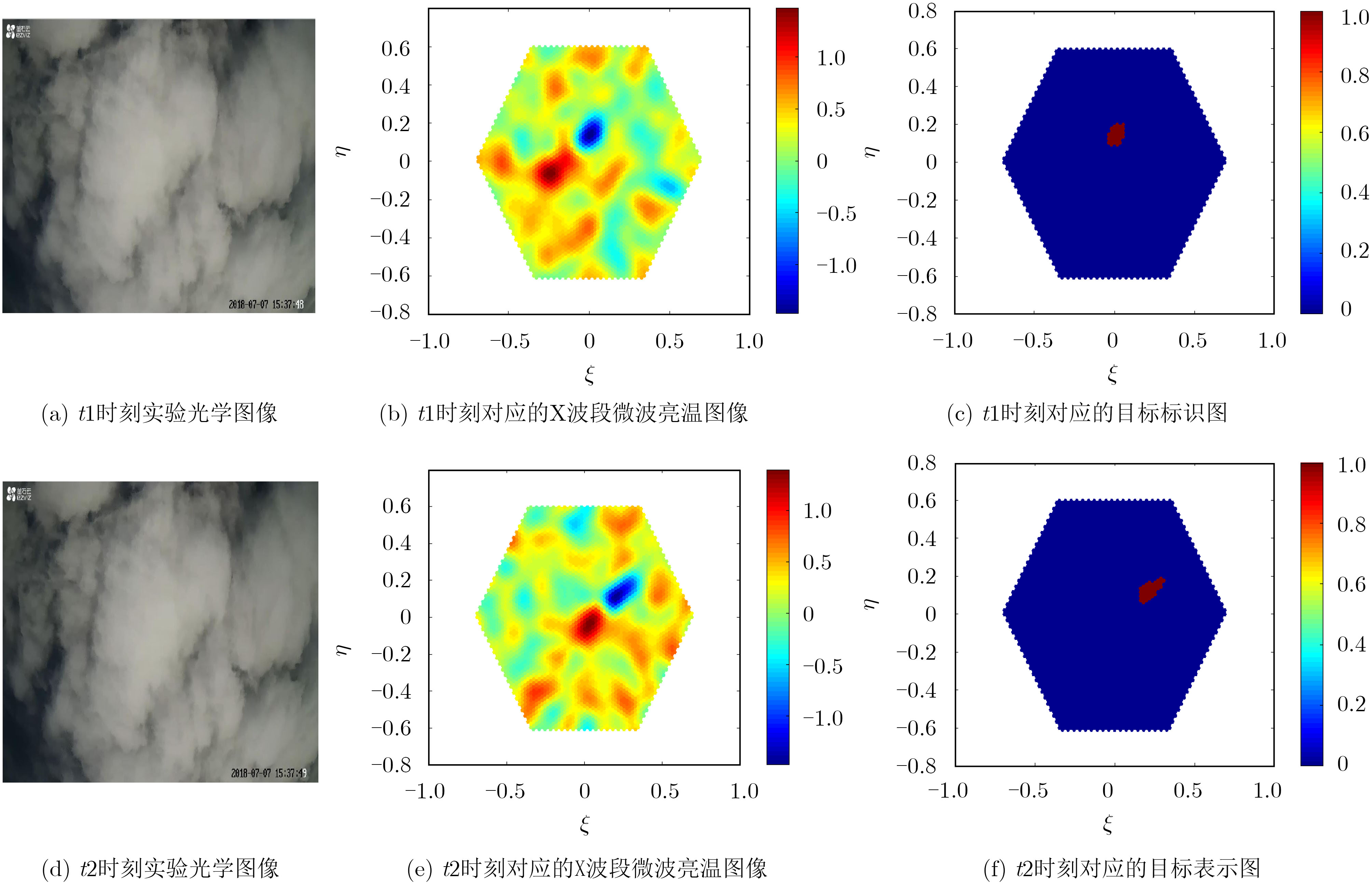

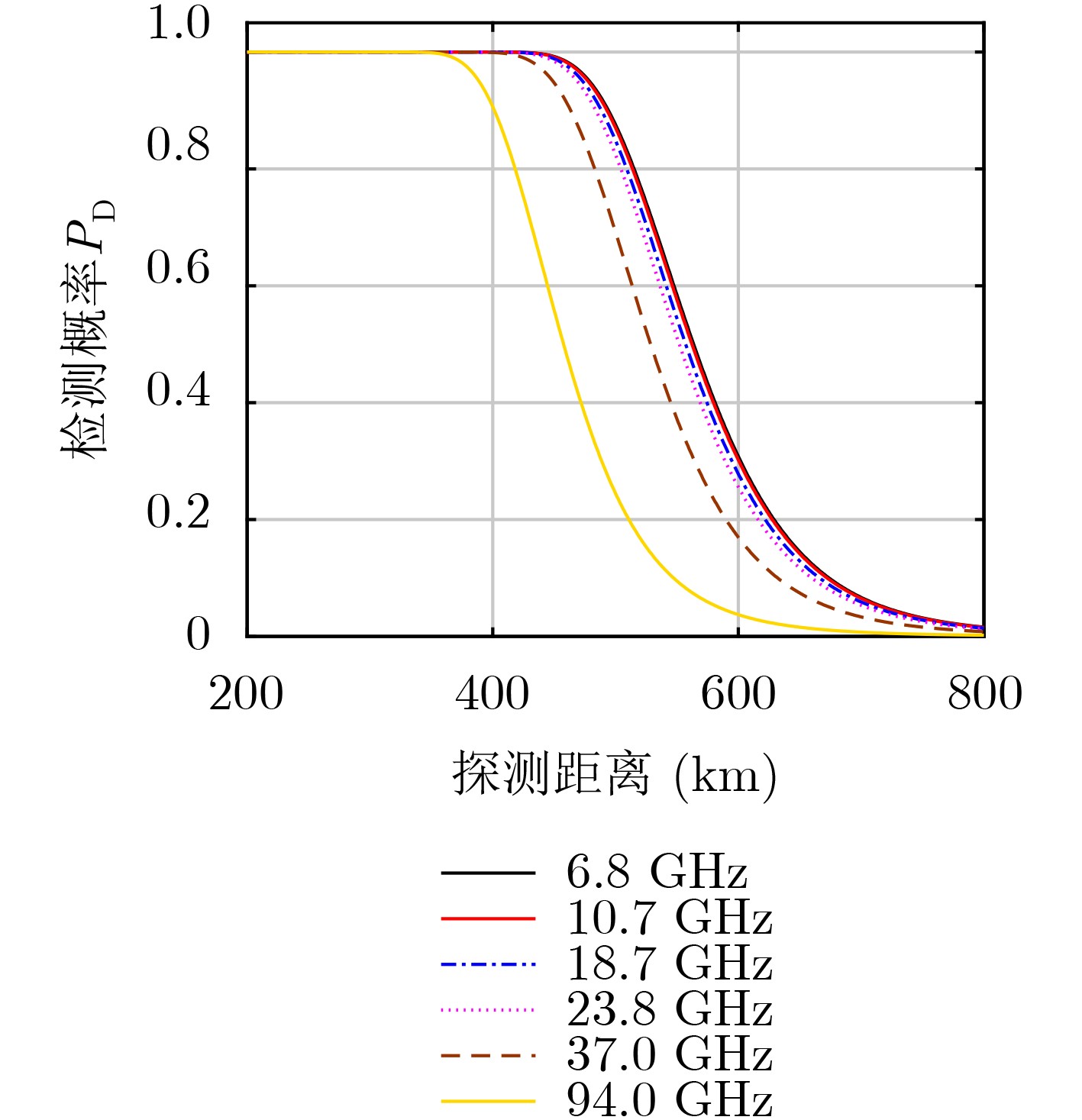

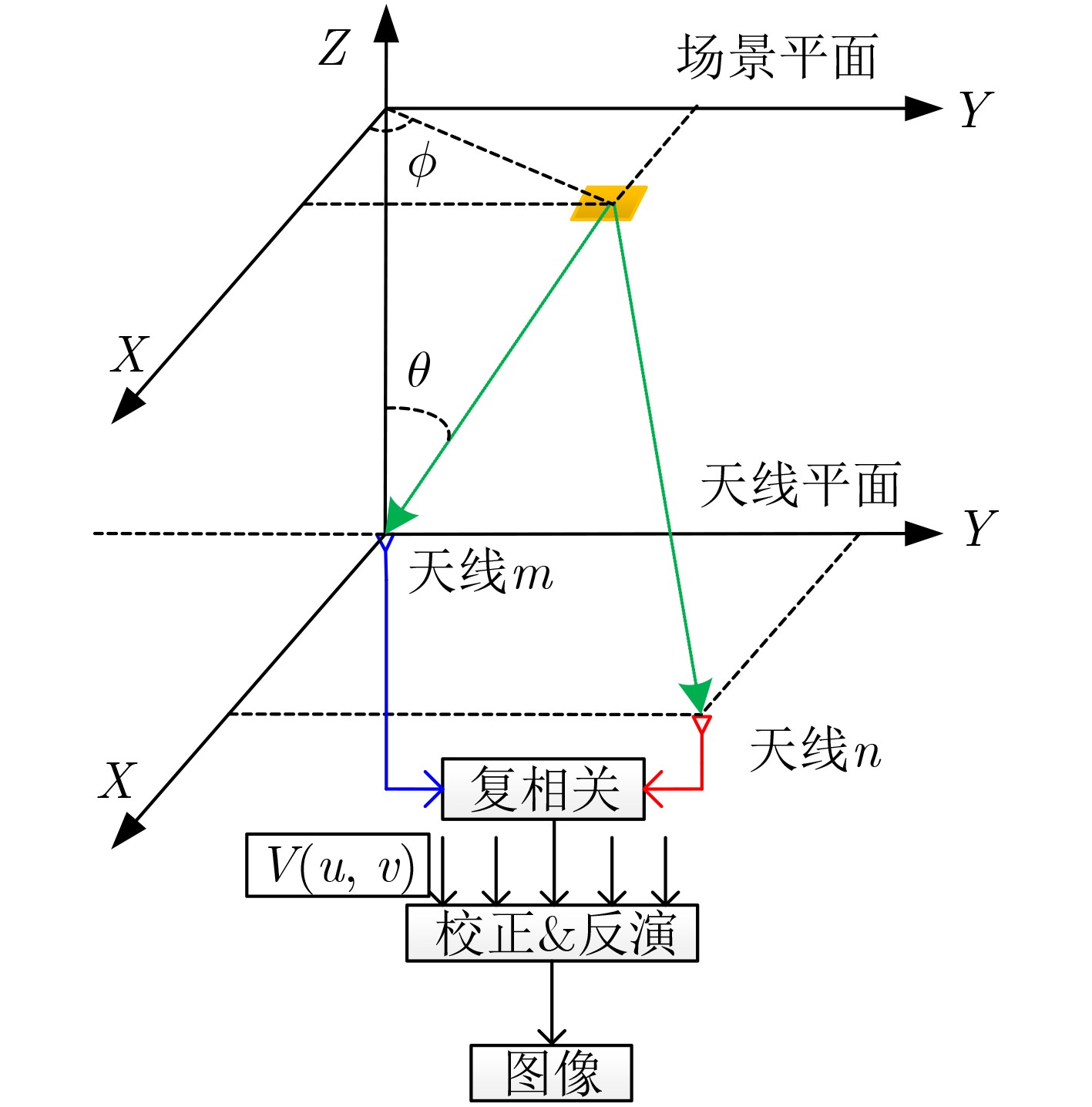

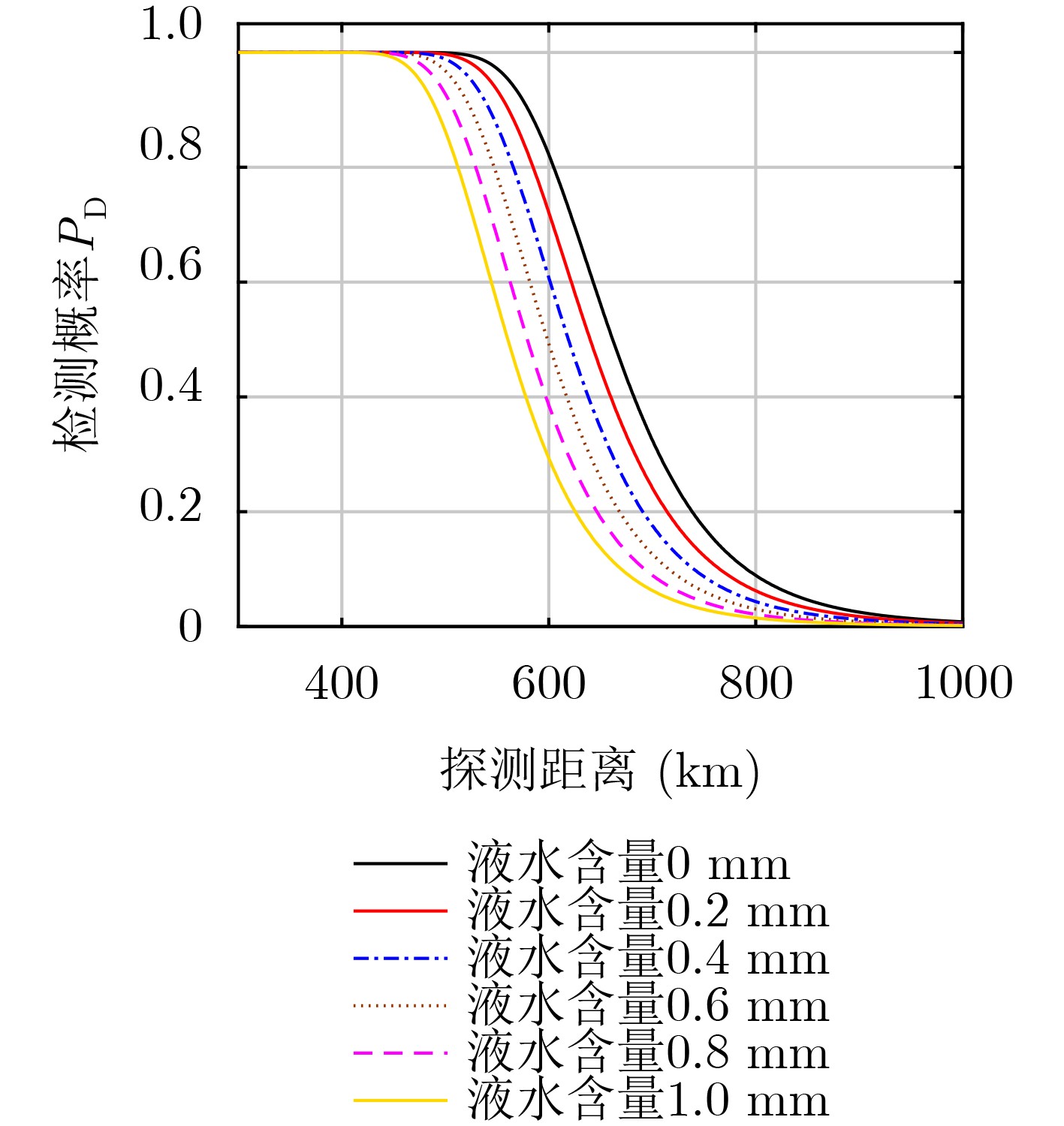

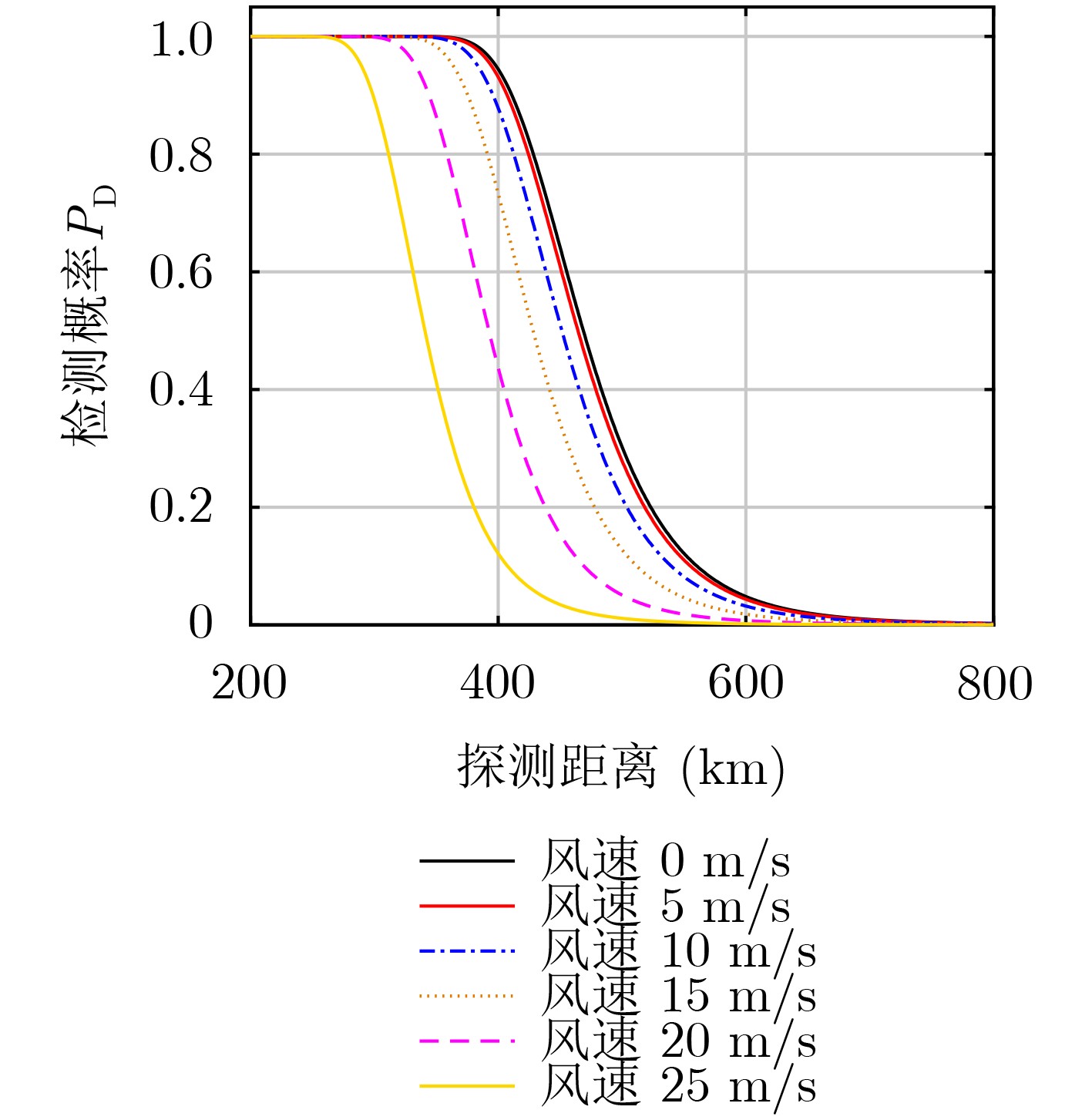

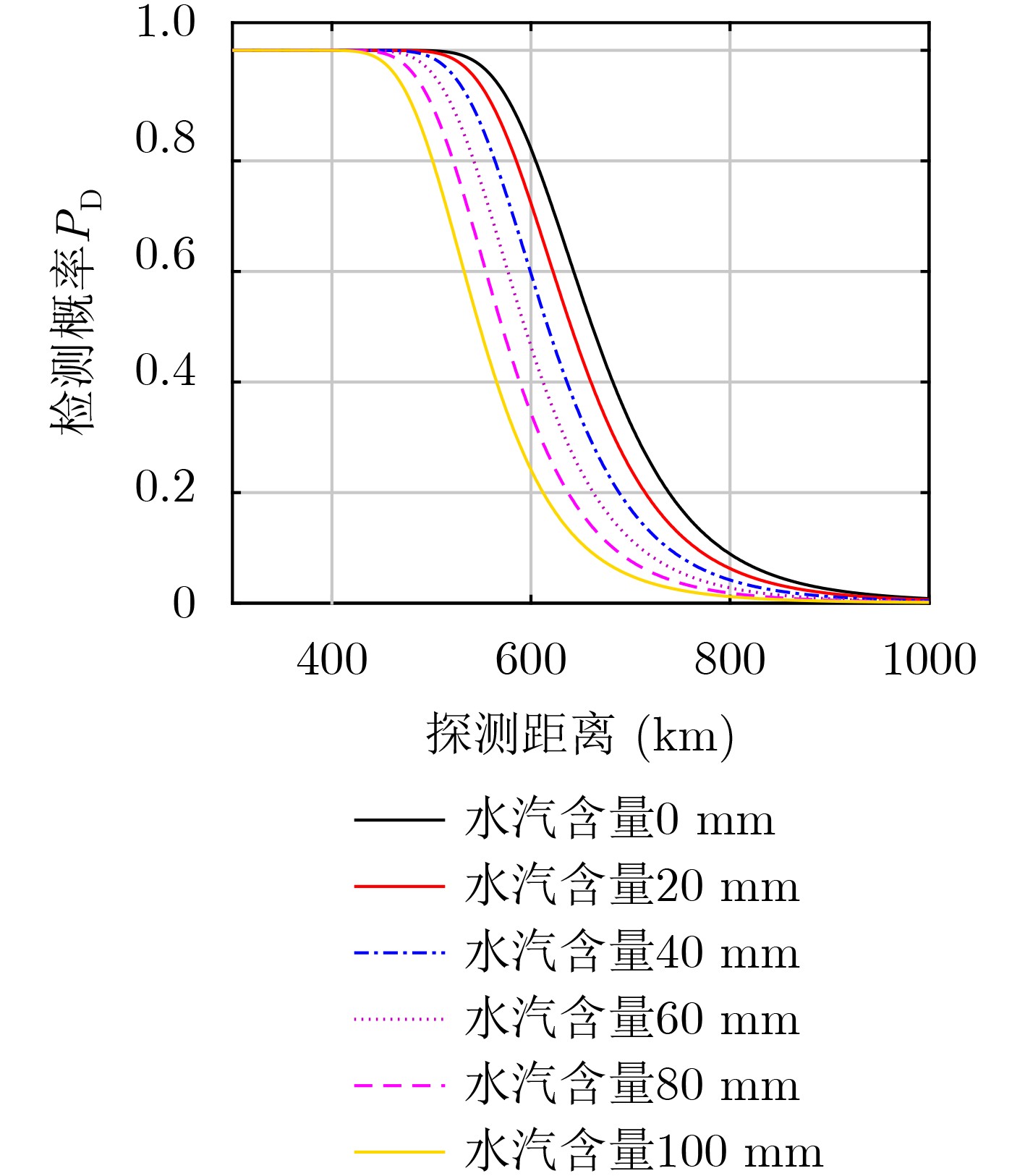

Based on the target detection equation of the passive interferometric microwave system, the effects of complex weather on the detection ability of the passive interferometric microwave system are discussed for the sea surface target, such as clouds, fog and rain, and sea winds. Quantitative simulations are also performed to assess the effects of these previous mentioned factors. The experiments are also performed to demonstrate the passive interferometric microwave system penetrating the clouds. Both theoretical and simulation results show that complex weather has a negative impact on the passive interferometric microwave systems in the sea target detection, such as clouds, fog and rain. However, the impacts can be neglected in low frequency, since the impacts of clouds in low frequency is very small. On the other hand, rainfall will seriously degrade the system’s target detection capability. Sea winds have a positive impact in the metallic target detection. However, sea winds have a negative impact and reduce the system’s detection capability for the stealthy target detection.
- Passive detection,
- Complex weather,
- Sea wind

FullText(HTML)

References(15)

References

HUANG Jian and GAN Tiguo. A novel millimeter wave synthetic aperture radiometer passive imaging system[C]. The 4th International Conference on, Proceedings Microwave and Millimeter Wave Technology, Beijing, China, 2004: 414–417. doi: 10.1109/ICMMT.2004.1411554.

LI Qingxia, CHEN Ke, GUO Wei, et al. An aperture synthesis radiometer at millimeter wave band[C]. 2008 International Conference on Microwave and Millimeter Wave Technology, Nanjing, China, 2008: 1699–1701. doi: 10.1109/ICMMT.2008.4540797.

倪炜, 胡飞, 陈柯. 综合孔径辐射计空中隐身目标探测性能分析[J]. 微波学报, 2012, 28(2): 28–31, 41. doi: 10.14183/j.cnki.1005-6122.2012.02.015

NI Wei, HU Fei, and CHEN Ke. Performance analysis of synthetic aperture radiometer in aerial stealthy targets detection[J]. Journal of Microwaves, 2012, 28(2): 28–31, 41. doi: 10.14183/j.cnki.1005-6122.2012.02.015

吴露露, 胡飞, 朱耀庭, 等. 毫米波热辐射阵列的空间谱估计误差模型研究[J]. 红外与毫米波学报, 2010, 29(2): 123–127. doi: 10.3724/SP.J.1010.2010.00123

WU Lulu, HU Fei, ZHU Yaoting, et al. Error model for spatial spectrum estimation of millimeter-wave thermal radiation array[J]. Journal of Infrared and Millimeter Waves, 2010, 29(2): 123–127. doi: 10.3724/SP.J.1010.2010.00123

CHENG Yayun, HU Fei, WU Hongfei, et al. Multi-polarization passive millimeter-wave imager and outdoor scene imaging analysis for remote sensing applications[J]. Optics Express, 2018, 26(16): 20145–20159. doi: 10.1364/OE.26.020145

苏兴华, 贺平. THz隐身目标无源遥感建模及仿真分析[J]. 太赫兹科学与电子信息学报, 2017, 15(6): 898–902. doi: 10.11805/TKYDA201706.0898

SU Xinghua and HE Ping. Modeling and simulation of stealth target with THz passive sensing[J]. Journal of Terahertz Science and Electronic Information Technology, 2017, 15(6): 898–902. doi: 10.11805/TKYDA201706.0898

高远, 张光锋, 于畅畅, 等. 典型金属立体目标的毫米波辐射特性研究[J]. 计算机测量与控制, 2019, 27(1): 233–236. doi: 10.16526/j.cnki.11-4762/tp.2019.01.048

GAO Yuan, ZHANG Guangfeng, YU Changchang, et al. Research on MMW radiation characteristic of typical mental targets[J]. Computer Measurement &Control, 2019, 27(1): 233–236. doi: 10.16526/j.cnki.11-4762/tp.2019.01.048

李曙光, 于守江, 姜伟, 等. 综合孔径辐射计空中隐身目标探测技术[J]. 无线电工程, 2015, 45(3): 50–53, 61. doi: 10.3969/j.issn.1003-3106.2015.03.14

LI Shuguang, YU Shoujiang, JIANG Wei, et al. Detection of aerial stealthy targets by synthetic aperture microwave radiometer[J]. Radio Engineering, 2015, 45(3): 50–53, 61. doi: 10.3969/j.issn.1003-3106.2015.03.14

卢海梁, 李一楠, 宋广南, 等. 海面目标星载微波辐射无源探测技术研究[J]. 红外与毫米波学报, 2019, 38(5): 674–681. doi: 10.11972/j.issn.1001-9014.2019.05.020

LU Hailiang, LI Yinan, SONG Guangnan, et al. Research on the passive detection technology using space-borne synthesis aperture microwave radiometers for the sea surface target[J]. Journal of Infrared and Millimeter Waves, 2019, 38(5): 674–681. doi: 10.11972/j.issn.1001-9014.2019.05.020

卢海梁, 王志强, 高超, 等. 基于被动干涉微波亮温图像的海面目标探测算法研究[J]. 电子与信息学报, 2020, 42(3): 563–572. doi: 10.11999/JEIT190256

LU Hailiang, WANG Zhiqiang, GAO Chao, et al. Research on the detection algorithm for sea surface targets based on passive interferometric microwave images[J]. Journal of Electronics &Information Technology, 2020, 42(3): 563–572. doi: 10.11999/JEIT190256

LU Hailiang, LI Yinan, LI Hao, et al. Ship detection by an airborne Passive Interferometric Microwave Sensor (PIMS)[J]. IEEE Transactions on Geoscience and Remote Sensing, 2020, 58(4): 2682–2694. doi: 10.1109/TGRS.2019.2953355

WENTZ F J and MEISSNER T. Atmospheric absorption model for dry air and water vapor at microwave frequencies below 100 GHz derived from spaceborne radiometer observations[J]. Radio Science, 2016, 51(5): 381–391. doi: 10.1002/2015RS005858

MEISSNER T and WENTZ F J. The emissivity of the ocean surface between 6 and 90 GHz over a large range of wind speeds and earth incidence angles[J]. IEEE Transactions on Geoscience and Remote Sensing, 2012, 50(8): 3004–3026. doi: 10.1109/TGRS.2011.2179662

刘西川, 宋堃, 高太长, 等. 复杂大气条件对微波传播衰减的影响研究[J]. 电子与信息学报, 2018, 40(1): 181–188. doi: 10.11999/JEIT170253

LIU Xichuan, SONG Kun, GAO Taichang, et al. Research on the effect of complex atmospheric condition on microwave propagation attenuation[J]. Journal of Electronics &Information Technology, 2018, 40(1): 181–188. doi: 10.11999/JEIT170253

倪炜. 空中目标微波辐射特性及检测方法研究[D]. [博士论文], 华中科技大学, 2012.

NI Wei. Microwave radiation characteristics and detection method research in aerial target detection[D]. [Ph. D. dissertation], Huazhong University of Science and Technology, 2012.
